Product Overview: Persona RF PREMIUM+
Advanced Versatility for Maximum Room Utilization Introducing next‑generation digital RF technology with a highly flexible system design. Persona RF PREMIUM+ is engineered for true multi‑purpose workflow and positioning flexibility for interventional and routine radiographic examinations. Fits tight spaces without sacrificing versatility and can accommodate all types of fluoroscopy and general radiography exams including chest and long‑length exams without the need for an overhead tube and chest stand.
Engineered for Performance & Versatility
Persona RF PREMIUM+ introduces a smartly designed approach with an extensive range of motion and ease‑of‑use that sets it apart from traditional radiographic fluoroscopy systems. This unique design enables increased room utilization and fits tight spaces without compromising long‑established standards for contrast, image stitching and urologic procedures. The system’s 80kW generator provides ample power for even the most demanding exams, while the integrated 17×17” IGZO detector delivers 140μm resolution at up to 30 frames per second for smooth, high‑definition fluoroscopy.
Advanced Technology & Imaging Excellence
Persona RF PREMIUM+ combines Fujifilm’s cutting‑edge detector technology, intelligent workflow automation, and flexible positioning to handle the most demanding radiographic and fluoroscopic exams. From digital subtraction angiography (DSA) to long‑length stitching, the system delivers exceptional image quality while optimizing dose efficiency.
Experience Versatility in Action

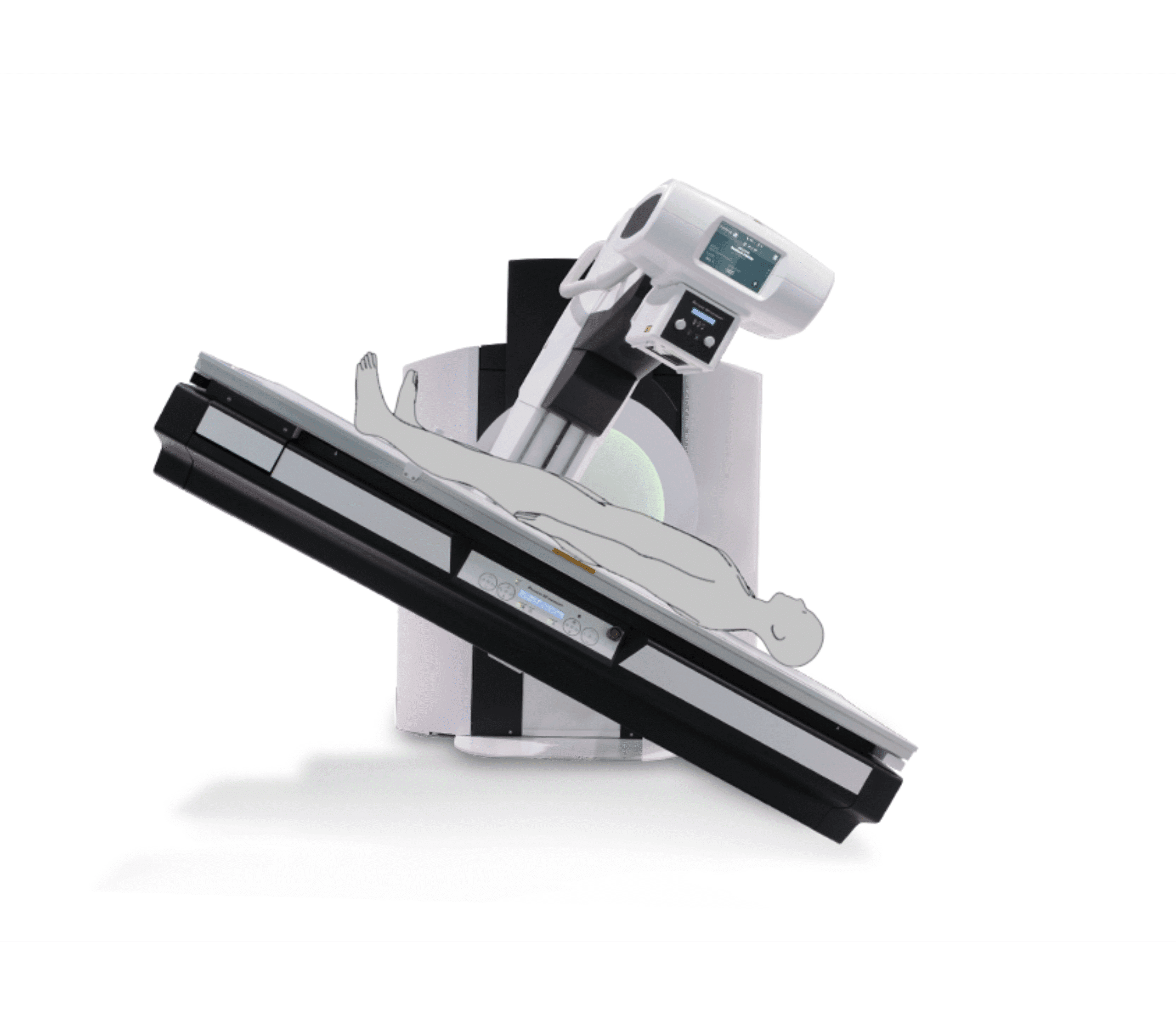

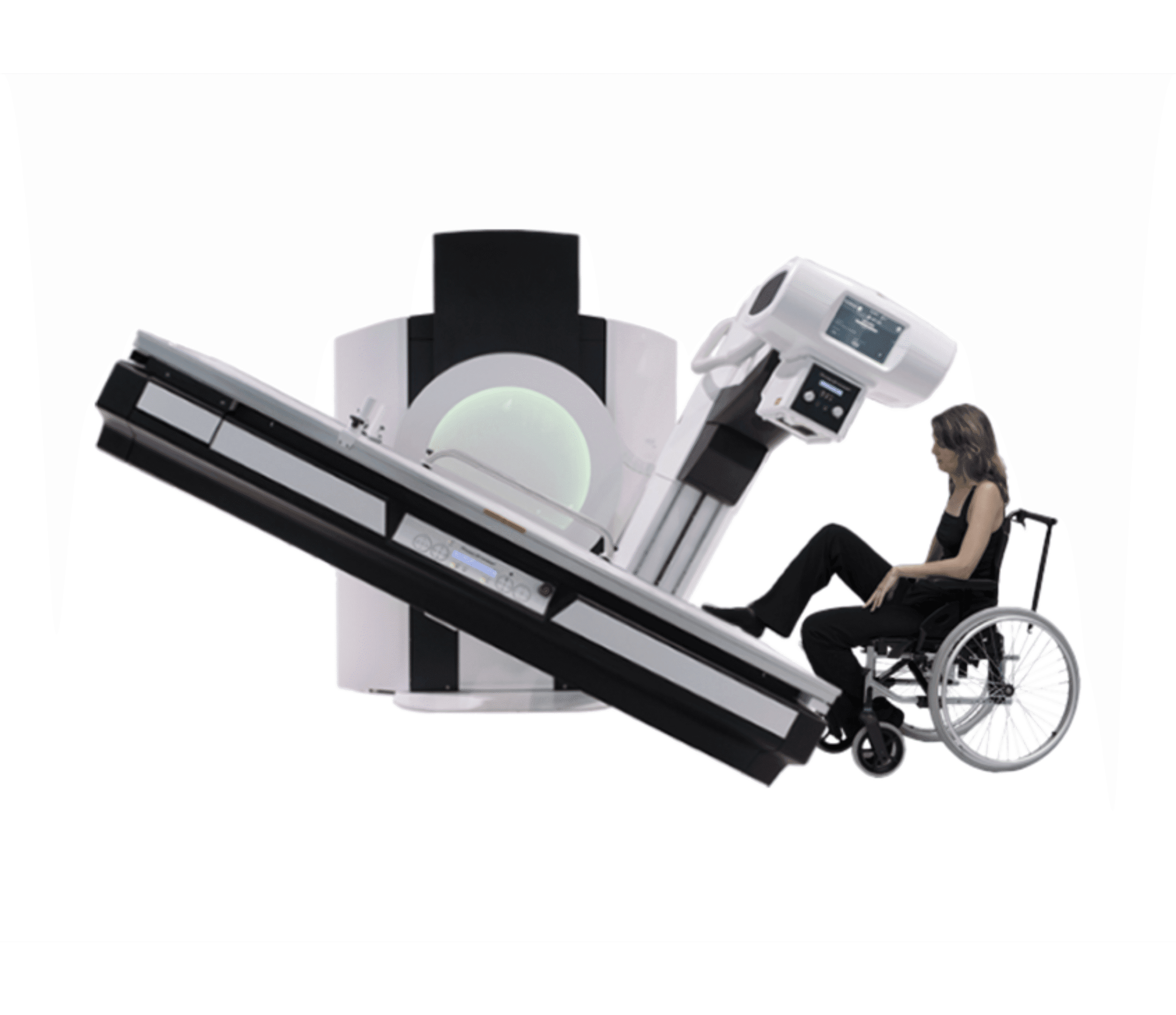

From routine chest imaging to complex urologic procedures, Persona RF PREMIUM+ adapts to your clinical needs with robust construction and intuitive controls. The system’s ±90° tilt, 94” longitudinal travel, and 71” SID provide unmatched flexibility for both ambulatory and stretcher‑bound patients.
Product Specifications : Radiography and Fluoroscopy Table
The Persona RF PREMIUM+ delivers industry‑leading range of motion, power, and image quality. Detailed technical specifications for system integration and facility planning.
Tabletop: 94.5 x 33.5 inch | Table height: 19‑51 inches | Tilting angle: ±90° (tilt speed 6°/sec, max 10°/sec) | Longitudinal coverage: 94.5 inches | SID: 43‑71 inches (110‑180 cm). Tube column movement: 71 inches, tube rotation: ±180°, longitudinal speed 4.7 inches/sec.
X‑ray tube: Rotating anode, dual focus 0.6/1.0, anode heat capacity 450 kJ (600 kHU) or 580 kJ (800 kHU) option. Generator: 80kW high‑frequency, kV range 40‑150 kV in 1 kV steps. Fluoroscopy: 0.5–10 mA continuous, 10–20 mA pulsed. Radiography: 10‑1000 mA. Second tube output included for OTC.
Technology: Indium Gallium Zinc Oxide (IGZO) TFT | Pixel pitch: 140 µm | Spatial resolution: 3.5 lp/mm | Grayscale: 16‑bit radiography and fluoroscopy | X‑ray sensitive array: 17×17 inch (43×43 cm) | DQE: 79% @ 0 lp/mm, 56% @ 1 lp/mm. Max frame rate: 30 fps fluoroscopy.
Standard modes: Radiography, Fluoroscopy (15, 7.5, 3, 1 fps and continuous), Linear Tomography. Options: Image Stitching (up to 4 views, upright or supine), Digital Subtraction Angiography (DSA) with roadmap, Urology isocentric rotation. All modes accessible from single console.
Accessories & Optional Configurations
Customize your Persona RF PREMIUM+ with a wide range of accessories and add‑on systems to match your clinical workflow. From overhead tube cranes to motorized compression, the system grows with your needs.
Workflow & Connectivity : PACS‑ready DICOM integration
Seamless integration into your existing PACS and hospital information systems with full DICOM support and advanced dose management. The single‑console design eliminates split‑study complications.
Patient Comfort & Safety Features
Designed with both patient and clinician in mind ambient lighting, music, low table elevation, and remote controls reduce anxiety and improve workflow. The open table architecture and low entry height enhance accessibility.
Eco‑Friendly & Space‑Efficient Design : Green RF
The compact integrated generator and workstation cabinets minimize system space requirements. Persona RF PREMIUM+ allows optimal space utilization for even the smallest room layouts while reducing energy consumption.
Compact generator and workstation cabinets integrate into the back of the table. Single generator can power both RF table and optional overhead tube crane, minimizing cost and space. No separate generator room needed – all electronics contained within the table footprint.
With no need for a separate chest stand or additional generator, Persona RF PREMIUM+ fits into rooms as small as 180 sq ft. Standard electrical requirements (208‑240V) and no special cooling needed. Ideal for outpatient clinics, orthopedic centers, and small hospitals.
Single Console, Unlimited Possibilities
One console and one generator effortlessly control the main system and additional components such as an added detector, overhead tube system, and chest stand while minimizing cost and space. Switch instantly between fluoro and free radiographic techniques on a single user interface for uninterrupted workflow and simplified image management. The unified workstation supports split studies across multiple detectors without re‑entering patient data.
Single workstation simplifies image viewing and QA tasks for continuous and pulsed fluoro, radiographic imaging and image stitching irrespective of system configuration. One interface for tabletop, wall stand, and stretcher exams.
Single user interface removes complications with split studies across different interfaces. Seamless integration with optional FDR D‑EVO III detectors for tabletop, stretcher and wall stand use. Automatically concatenates images from multiple detectors into one exam folder.
Contact Medical Outfitters for a Quote or Demo
The Persona RF PREMIUM+ digital RF system delivers exceptional image quality, workflow efficiency, and patient comfort in a compact, versatile package. Whether upgrading a fluoroscopy suite or equipping a new outpatient center, this system offers the flexibility and performance you need.
At Medical Outfitters, we provide complete sales, site planning, installation, and training services. Our imaging specialists will help you configure the perfect system including detector options, OTC, wall stand, and software packages tailored to your clinical volume and budget.
Request a quote or schedule a live demonstration today. Contact our team to discuss your RF room requirements and see the Persona RF PREMIUM+ in action.
