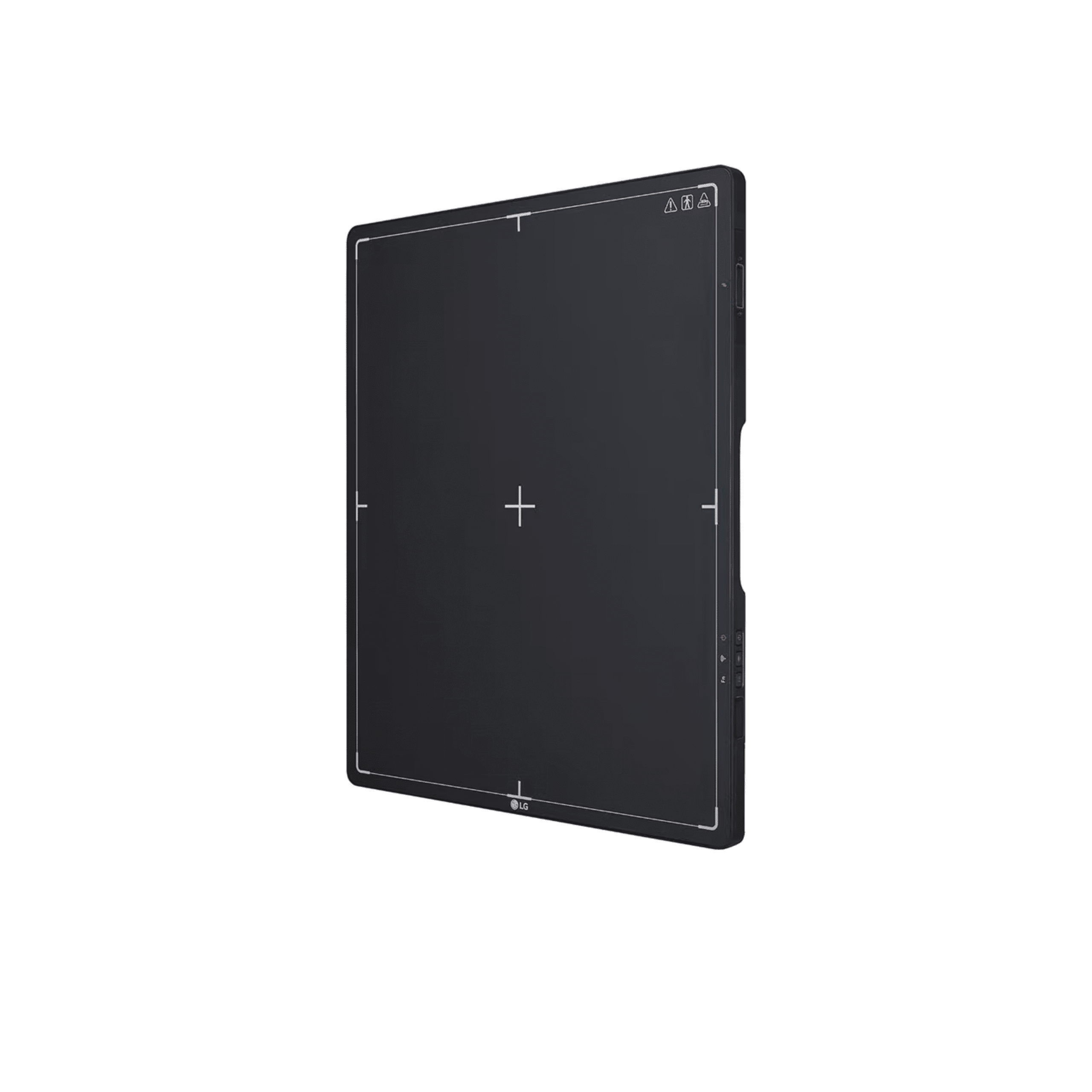

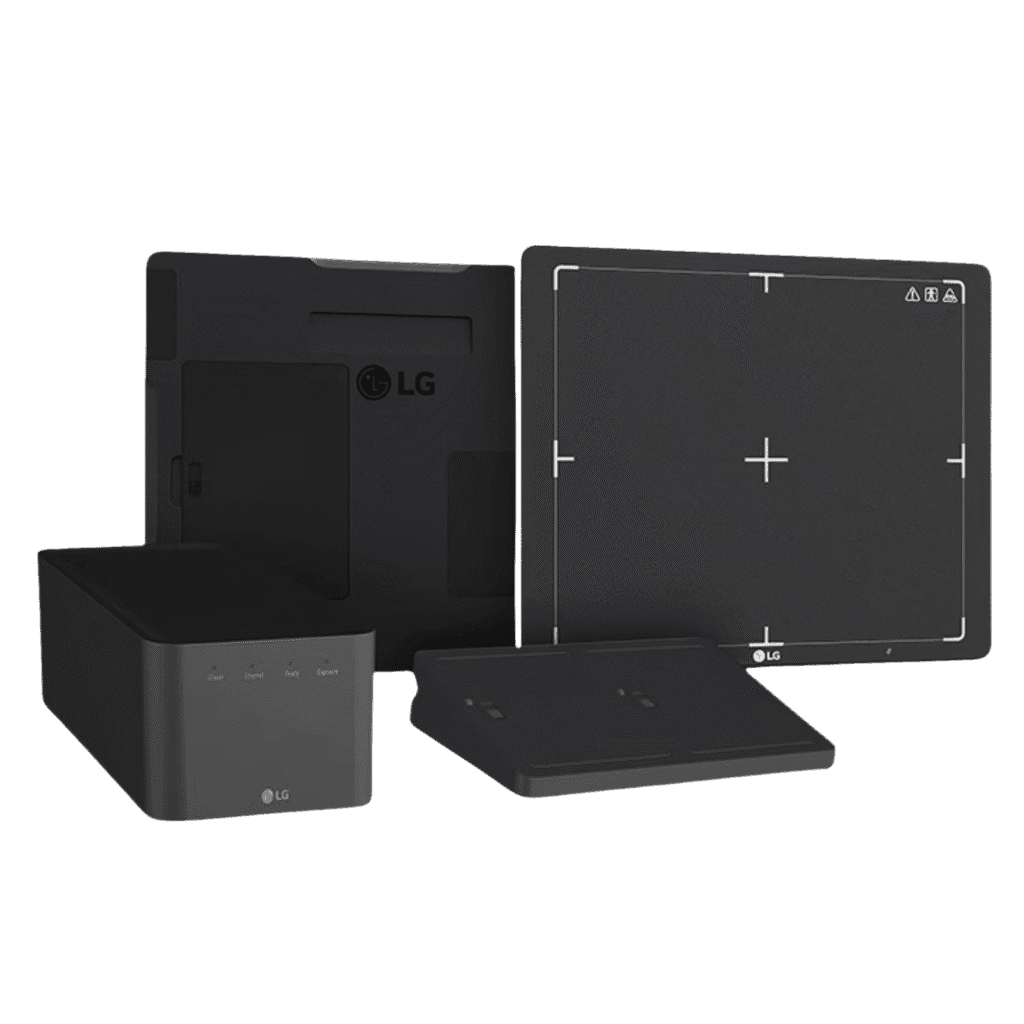

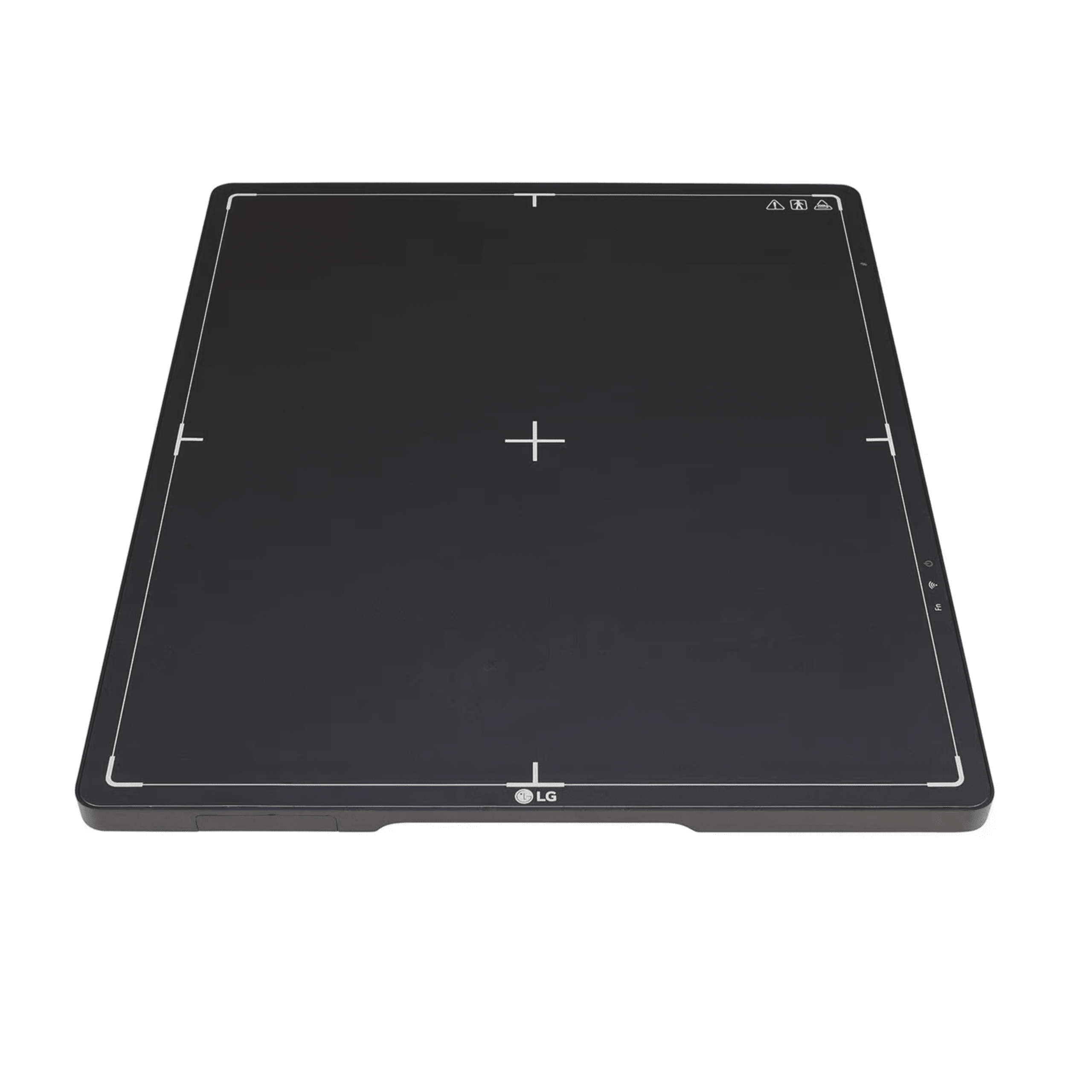

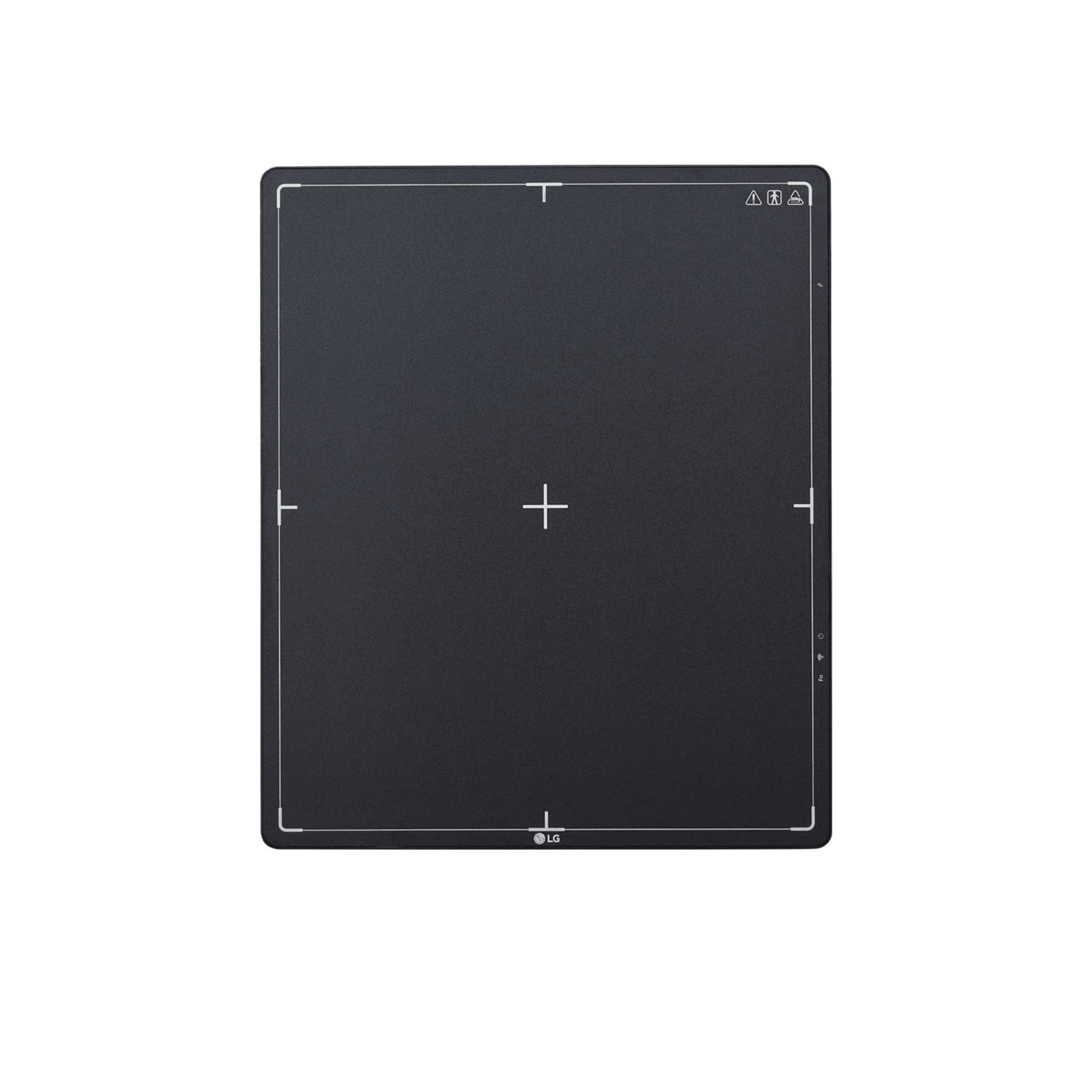

LG Digital X-ray Detector with a-Si TFT – Model 10HQ701G
140µm pixel clarity · IP68 durability · 1.5 sec image transfer – The LG 10HQ701G detector combines amorphous silicon TFT technology with a lightweight, ultra‑rugged design. Capture diagnostic‑quality images faster, with the confidence of a 36‑month warranty and industry‑leading load capacity.
Built for Demanding Radiology Workflows
From high‑volume trauma centers to outpatient clinics, the LG 10HQ701G delivers speed and reliability. Its carbon‑fiber and magnesium body withstands daily use, while the hot‑swap battery ensures zero downtime. See how this detector stacks up against conventional portable panels.
Conventional Detector
LG 10HQ701G
Amorphous Silicon TFT – Get Clear Images
The a‑Si TFT panel with CsI scintillator delivers high DQE and MTF for sharp, low‑noise radiographs. With 16‑bit A/D conversion and a 2048 x 1792 pixel matrix, fine anatomical detail is preserved across all general radiography applications.
DQE @ 0 lp/mm: 0.66 | MTF @ 1 lp/mm: 0.62
Pixel pitch: 140µm | Active area: 286.72 x 250.88 mm
A/D conversion: 16 bit | Sensitivity: 3.57 lsb/µGy
Semi-dynamic acquisition: 5 fps
Cycle time (wired/wireless): 4.5 sec / 5 sec
IP68 dust/water resistance – submersible up to 1m for 30 minutes.
Max uniform load: 400 kg (60 sec) – supports patient weight without damage.
Max point load: 200 kg
Max drop height: 1.5m (IEC 60601-1)

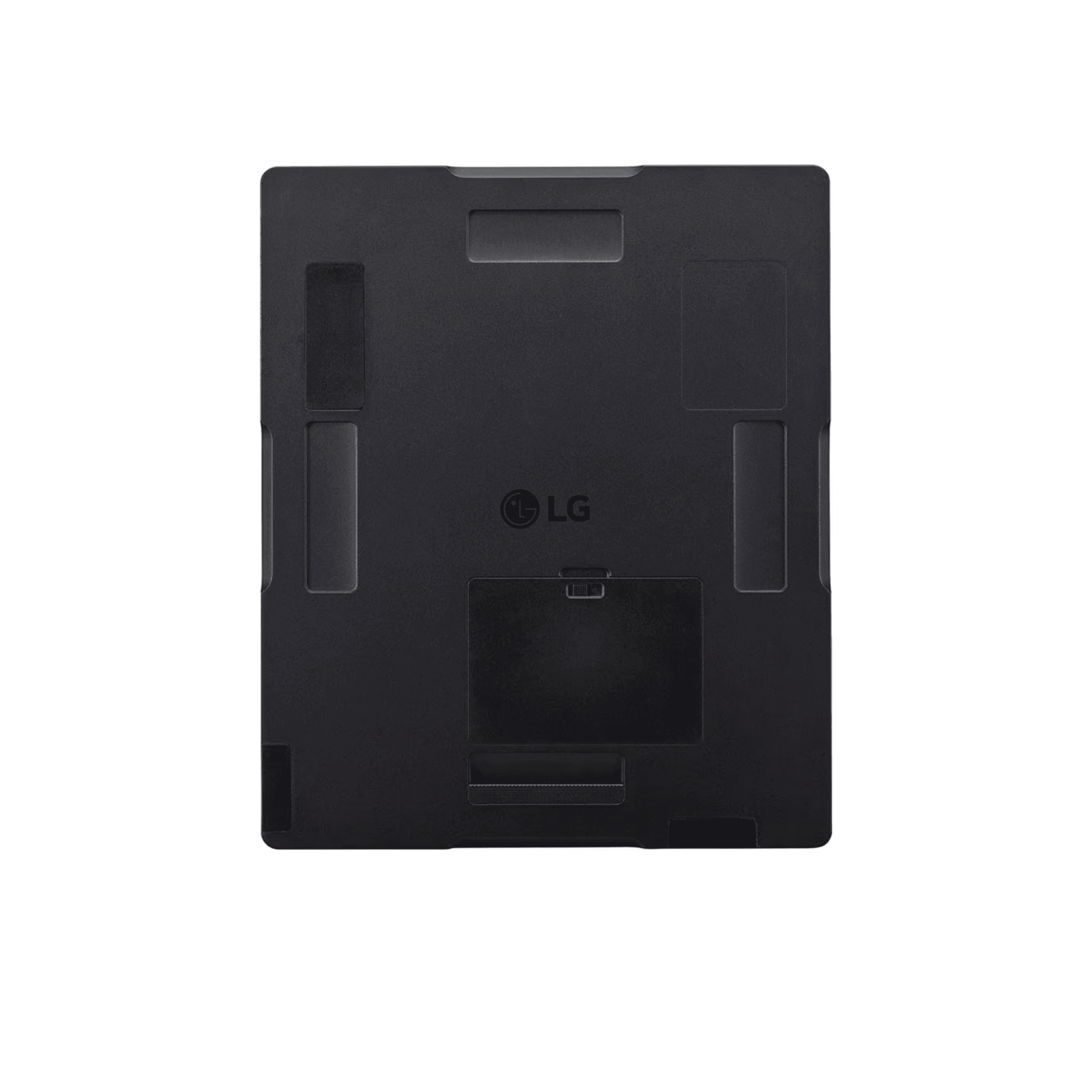

Body material: Magnesium + carbon fiber plate
Shock monitoring built-in
Advanced Engineering & Seamless Integration

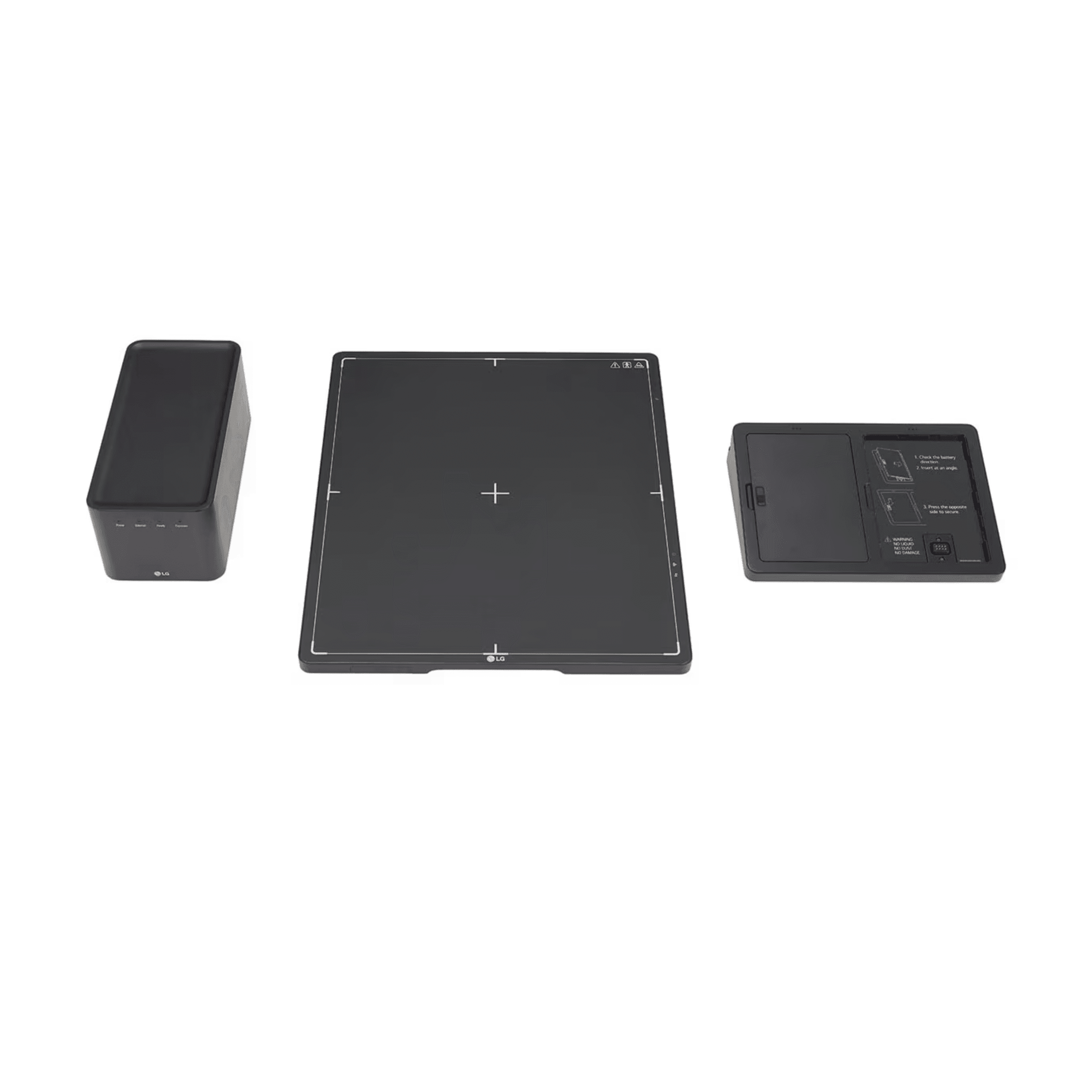

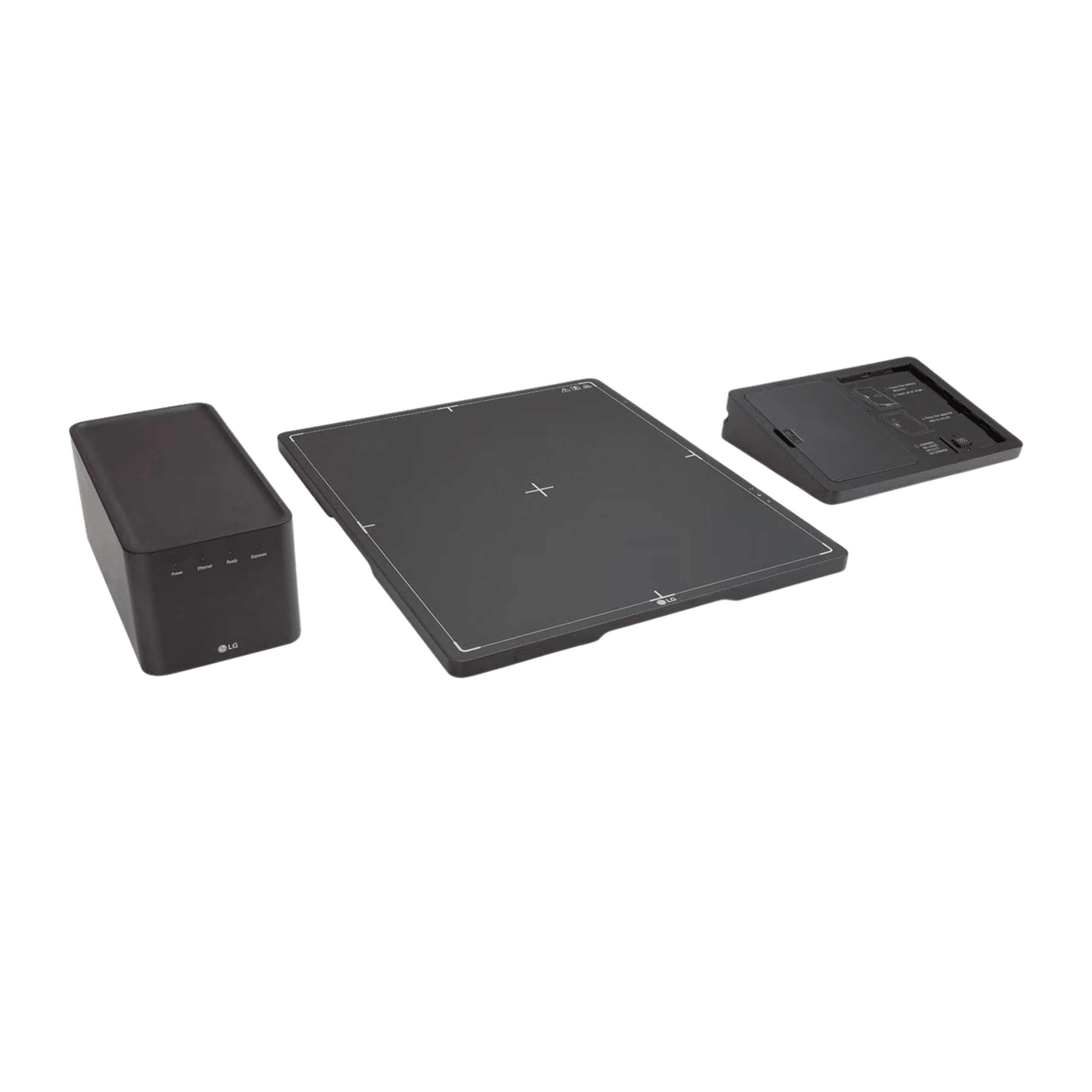

From the built‑in OLED status display to the hot‑swap battery system, every detail of the LG 10HQ701G is designed to keep your department moving. Compatible with major X‑ray generators and PACS systems via standard DICOM and LAN connectivity.
Battery life: Up to 7.5 hours (~300 shots, 90s cycle)
Hot swap: Yes – battery replacement in under 1 minute without powering down.
Charger: 2‑slot charger included, 3‑hour full charge
Nominal capacity: 36Wh (7.7V, 4725mAh)
Power consumption: Typ. 24W
Wired communication: Magnetic detachable cable (7m main cable included)
Wireless: IEEE802.11a/b/g/n/ac (2.4/5 GHz)
Auto exposure detection: Yes
On‑board storage: Up to 200 images
AP mode: Integrated
Control box interface: LAN cable 10m, sync cable 15m (optional)
Detector (W x D x H): 282 x 333 x 15.6 mm
Weight (incl. battery): 1.9 kg
Control box (W x D x H): 125 x 255 x 109.8 mm, 1.3 kg
Battery charger: 268.4 x 186.9 x 54.9 mm, 0.5 kg
Shipping weight: 10.9 kg
Uninterrupted Workflow – Built for Long Days
The hot‑swap battery and local image storage keep your technologists moving. Even if network connectivity drops, the detector buffers up to 200 exposures, then synchronizes when the connection is restored. The OLED panel shows battery status, wireless signal, and storage capacity at a glance.
The built‑in OLED screen displays real‑time status: battery level, wireless signal strength, remaining storage capacity, and connection mode. No need to return to the console to check detector readiness.
Swap a depleted battery for a fresh one in under 60 seconds without interrupting the exam or losing patient data. The charger holds two batteries, so one is always ready.
Technical Specifications at a Glance
Full specifications are available in the accordion below. The LG 10HQ701G meets rigorous international standards and is backed by a 36‑month warranty.
TFT type: Amorphous Silicon (a‑Si)
Scintillator: Cesium Iodide (CsI)
Pixel matrix: 2048 x 1792
Pixel pitch: 140 µm
Active area: 286.72 x 250.88 mm
A/D conversion: 16 bit
X‑ray window time: 350 – 4000 ms
Max uniform load: 400 kg
Max point load: 200 kg
Drop resistance: 1.5 m (IEC 60601-1)
IP rating: IP68
Operating temp: 10 to 35 °C
Storage temp: -20 to 60 °C
Humidity: <80% RH (operating)
Battery: Li‑ion, 36Wh, hot‑swappable
Charger: 2‑slot, input 100‑240VAC
Cables included: Main cable 7m, LAN 10m, sync cable 15m (option)
Control box power: AC100‑240V, output DC24V/2.1A
Warranty: 36 months
Frequently Asked Questions
Yes. The detector uses standard DICOM communication and supports auto exposure detection with most major generators (GE, Siemens, Philips, Canon, Shimadzu, etc.). A sync cable is available for direct triggering. Our support team can verify compatibility during pre‑installation survey.
Under typical use (90‑second cycle time), you can expect around 300 exposures or 7.5 hours of continuous operation. Because the battery is hot‑swappable, you can extend runtime indefinitely by rotating spare batteries.
IP68 certification means the detector is dust‑tight and can withstand immersion in water up to 1 meter for 30 minutes. This protects against fluid spills, cleaning solutions, and everyday contaminants. Always dry the detector before charging.
Absolutely. The integrated dual‑band Wi‑Fi provides reliable wireless transmission. If you move out of range, images are stored locally (up to 200) and automatically forwarded when the connection resumes.
No. Calibration software is included on CD, and the detector maintains excellent stability over time. Most users perform a simple gain calibration monthly, which takes less than 5 minutes.
