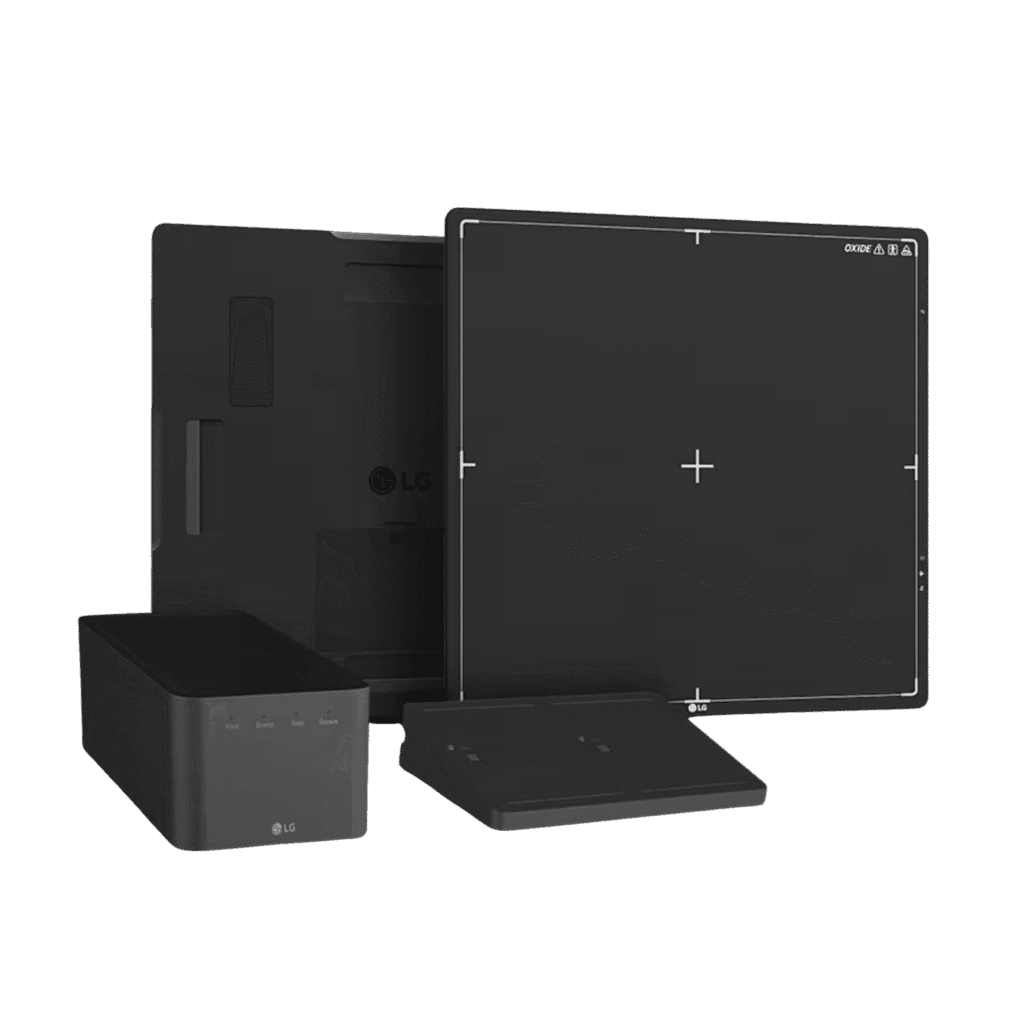

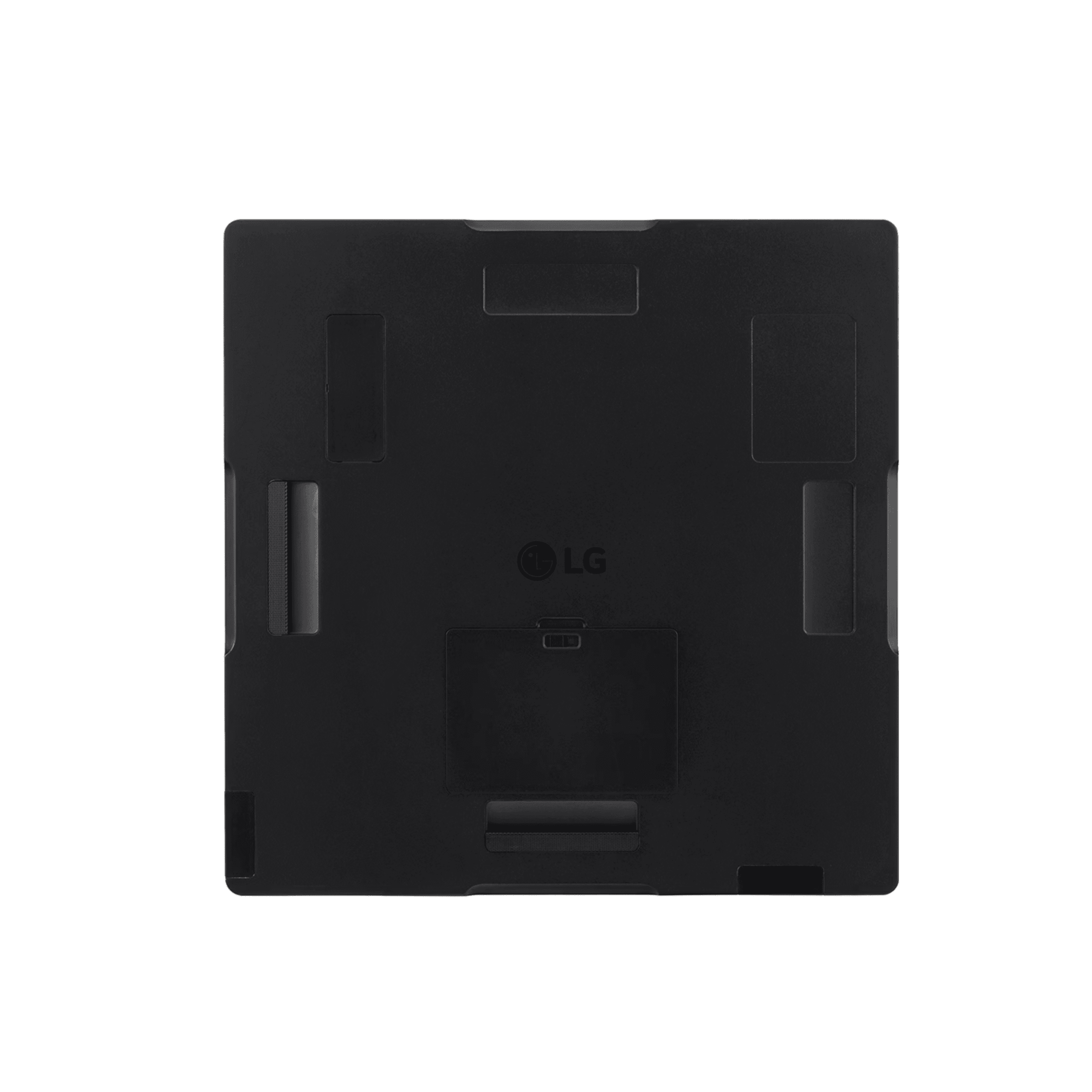

LG Digital X-ray Detector with Oxide TFT – Model 17HQ901G
Oxide TFT · 17×17″ square format · 3072×3072 resolution · 0.78 DQE · 3.6 kg lightweight – The LG 17HQ901G combines the largest field of view with advanced Oxide TFT technology. Exceptional Detective Quantum Efficiency (DQE) and low noise performance make this the ultimate detector for chest, abdomen, and full‑spine imaging without stitching.
Oxide TFT Advantage – Maximum Field of View, Premium Image Quality
Oxide thin‑film transistors offer higher electron mobility and lower leakage current than amorphous silicon, resulting in higher DQE and reduced electronic noise. The 17HQ901G delivers these benefits across a full 43×43 cm active area, enabling confident diagnosis at lower exposure levels.
a‑Si TFT Detector (17″)
LG Oxide TFT 17HQ901G
High‑Resolution Square‑Format Imaging with Oxide TFT
The 17HQ901G combines a 3072 x 3072 pixel matrix (140µm pitch) with Oxide TFT backplane technology. The result is exceptional DQE performance across all spatial frequencies, enabling confident diagnosis across the entire 43×43 cm field.
Oxide TFT benefits: Higher electron mobility reduces noise and improves DQE.
DQE @ 0 lp/mm: 0.78 | DQE @ 1 lp/mm: 0.57
DQE @ 2 lp/mm: 0.38 | DQE @ 3 lp/mm: 0.26
MTF @ 1 lp/mm: 0.60 | Pixel pitch: 140µm
Active area: 430.08 x 430.08 mm
A/D conversion: 16 bit
IP68 dust/water resistance – submersible up to 1m for 30 minutes.
Max uniform load: 400 kg (60 sec)
Max point load: 200 kg
Max drop height: 1.5m (IEC 60601-1)
Body material: Magnesium + carbon fiber plate
Shock monitoring built-in
Advanced Workflow & Efficient Operation
The 17HQ901G is engineered for efficiency in high‑volume departments. Fast 1.5 sec (wired) / 2 sec (wireless) image transfer, hot‑swap battery, and 200‑image on‑board storage keep technologists moving. Built‑in handles and chamfered edges improve portability.
Battery life: Up to 7.5 hours (~300 shots, 90s cycle)
Hot swap: Yes – battery replacement in under 1 minute.
Charger: 2‑slot charger included, 3‑hour full charge
Nominal capacity: 36Wh (7.7V, 4725mAh)
Power consumption: Typ. 38W
Wired communication: Magnetic detachable cable (7m main cable included)
Wireless: IEEE802.11a/b/g/n/ac (2.4/5 GHz)
Auto exposure detection: Yes
On‑board storage: Up to 200 images
AP mode: Integrated
Control box interface: LAN cable 10m, sync cable 15m (optional)
Detector (W x D x H): 460 x 460 x 15.6 mm
Weight (incl. battery): 3.6 kg
Control box: 125 x 255 x 109.8 mm, 1.3 kg
Battery charger: 268.4 x 186.9 x 54.9 mm, 0.5 kg
Shipping weight: 12.0 kg
OLED Display & Intelligent Workflow
The embedded OLED information panel keeps technologists informed of connection status, battery level, AP mode, and storage capacity. Fast image transfer and hot‑swap battery ensure no workflow delays.
The built‑in OLED screen displays real‑time status: battery level, wireless signal, remaining storage, AP mode, and dynamic mode. Technologists can verify detector readiness without returning to the console.
AP Mode: Enables direct wireless connection to a laptop or tablet for point‑of‑care imaging without network infrastructure.
Auto Storage: Built‑in memory stores up to 200 images when offline, automatically forwarding when connection resumes.
Technical Specifications at a Glance
Complete specifications for the Oxide TFT 17HQ901G are listed below. This premium square‑format detector includes all the durability and workflow features of the LG platform with the added benefit of Oxide TFT image quality.
TFT type: Oxide
Scintillator: Cesium Iodide (CsI)
Pixel matrix: 3072 x 3072
Pixel pitch: 140 µm
Active area: 430.08 x 430.08 mm
A/D conversion: 16 bit
X‑ray window time: 350 – 4000 ms
Max uniform load: 400 kg
Max point load: 200 kg
Drop resistance: 1.5 m (IEC 60601-1)
IP rating: IP68
Operating temp: 10 to 35 °C
Storage temp: -20 to 60 °C
Humidity: <80% RH (operating)
Battery: Li‑ion, 36Wh, hot‑swappable
Charger: 2‑slot, input 100‑240VAC
Cables included: Main cable 7m, LAN 10m, sync cable 15m (option)
Control box power: AC100‑240V, output DC24V/2.1A
Warranty: 36 months
Frequently Asked Questions
Request a Quote or Demo
The LG 17HQ901G Oxide TFT detector delivers premium image quality, a full 17×17″ field of view, and the rugged reliability that LG is known for. Upgrade your digital radiography suite with the latest in detector technology, backed by a 36‑month warranty.
At Medical Outfitters, we provide seamless integration, on‑site training, and ongoing support. Our imaging specialists will assess your current setup, confirm compatibility, and help you achieve a rapid return on investment.
Ready to experience Oxide TFT in a square format? Contact our team for pricing, a personalized demo, or to discuss a trial evaluation.
