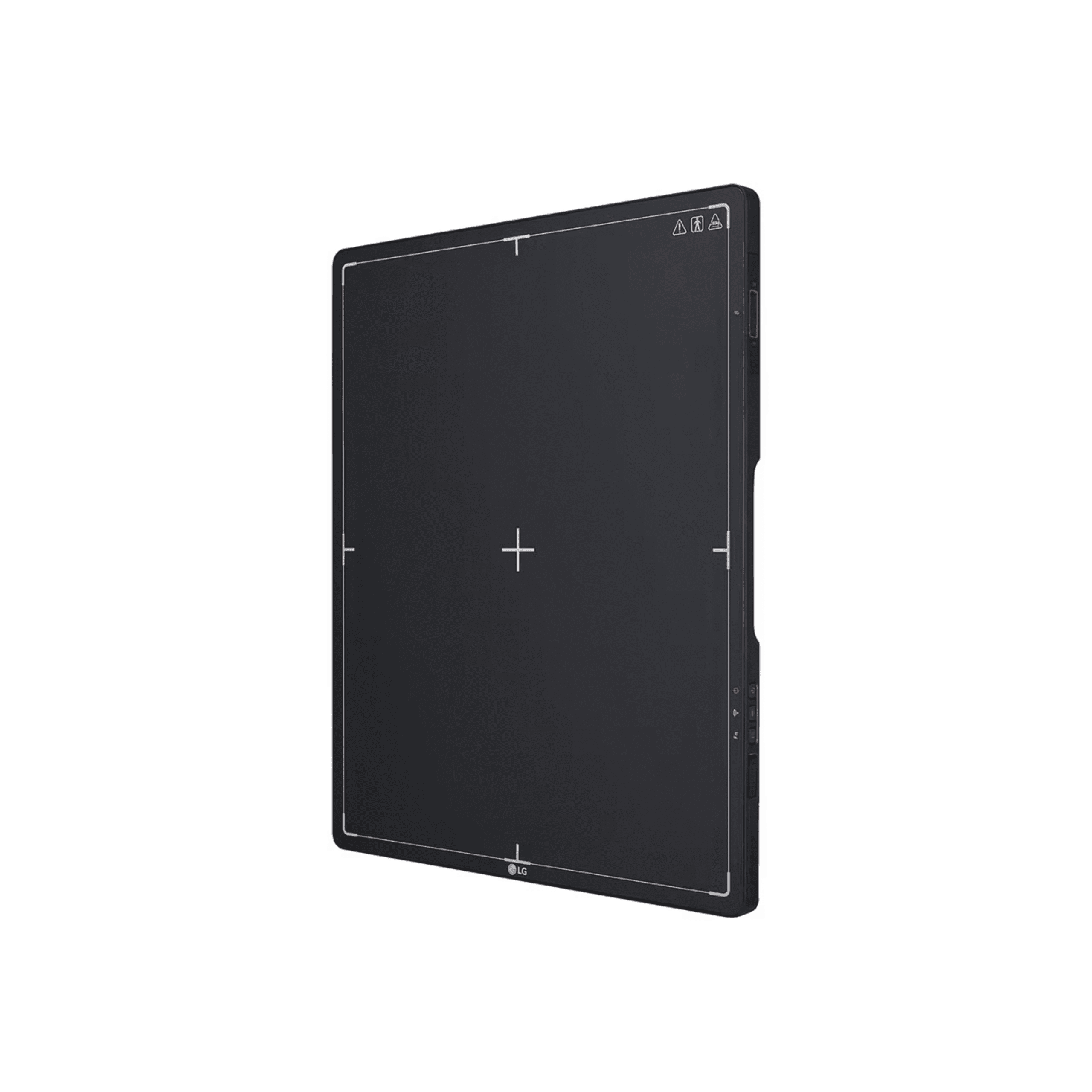

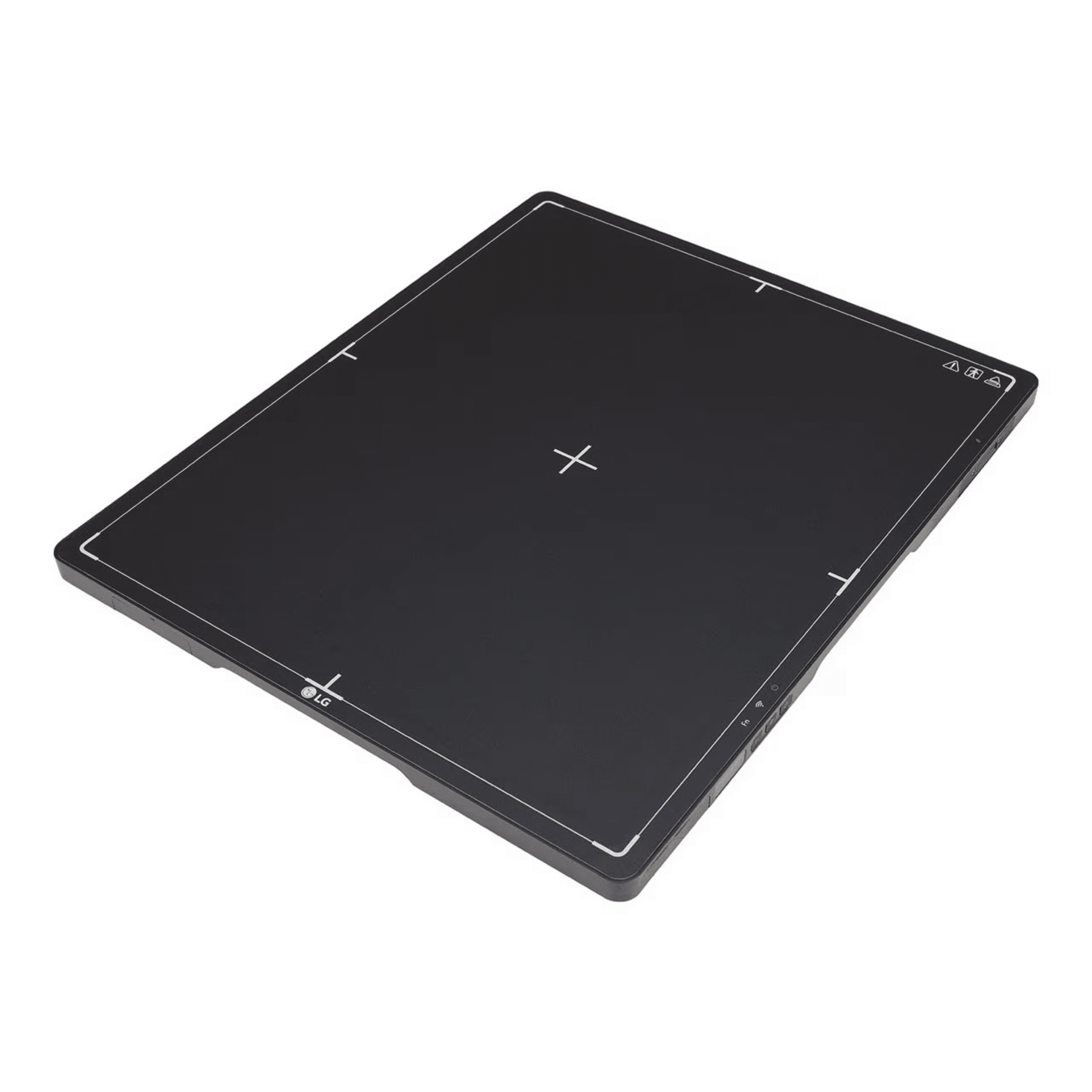

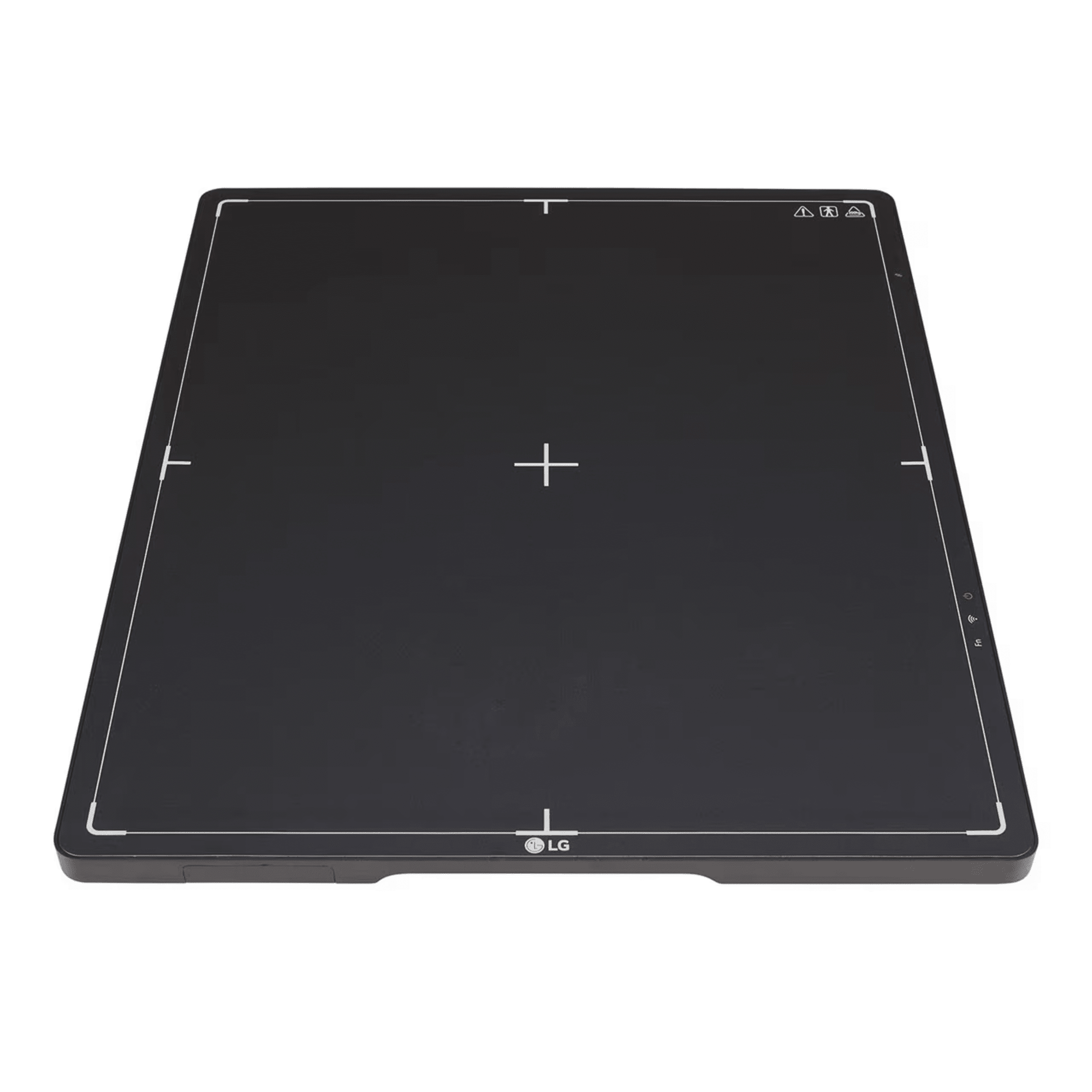

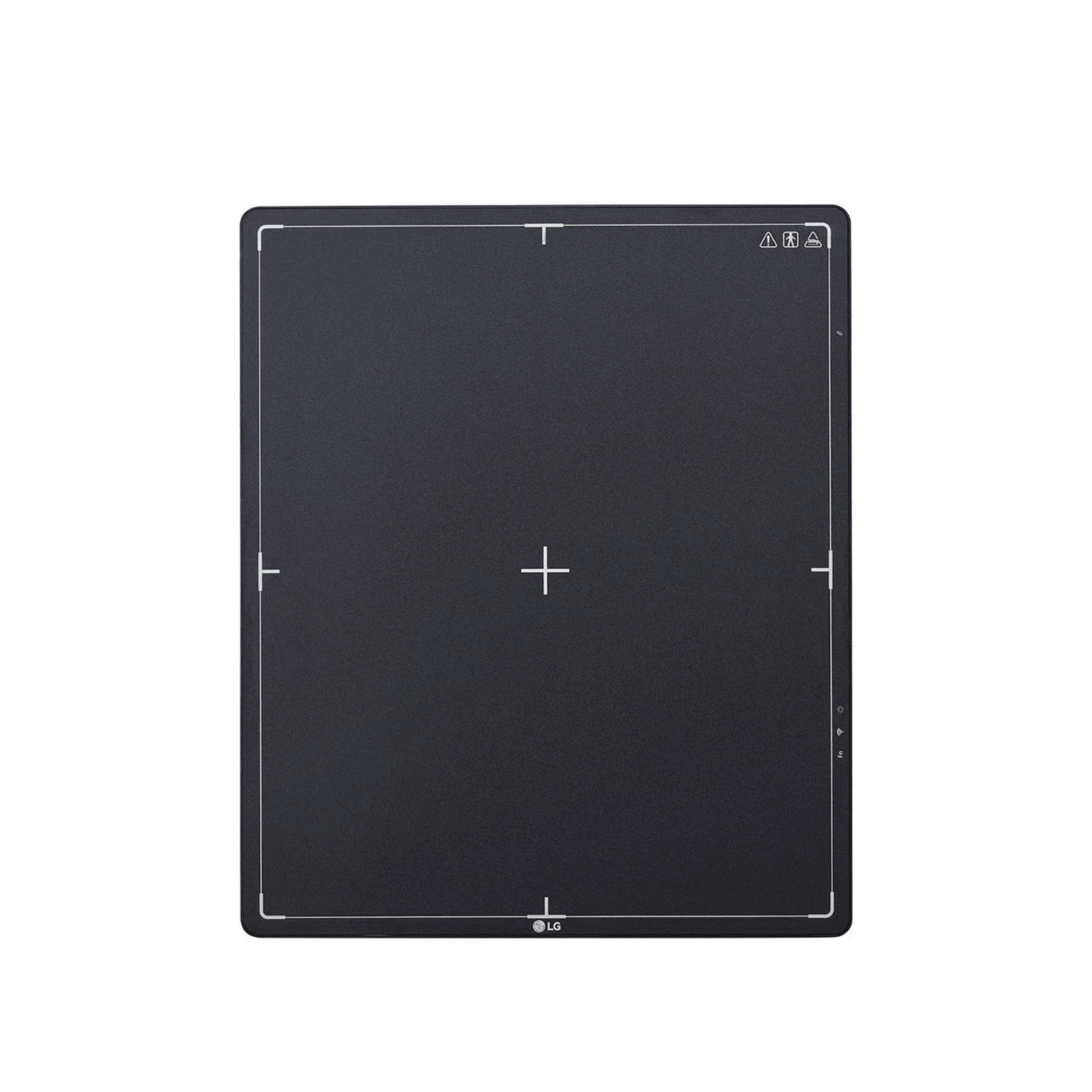

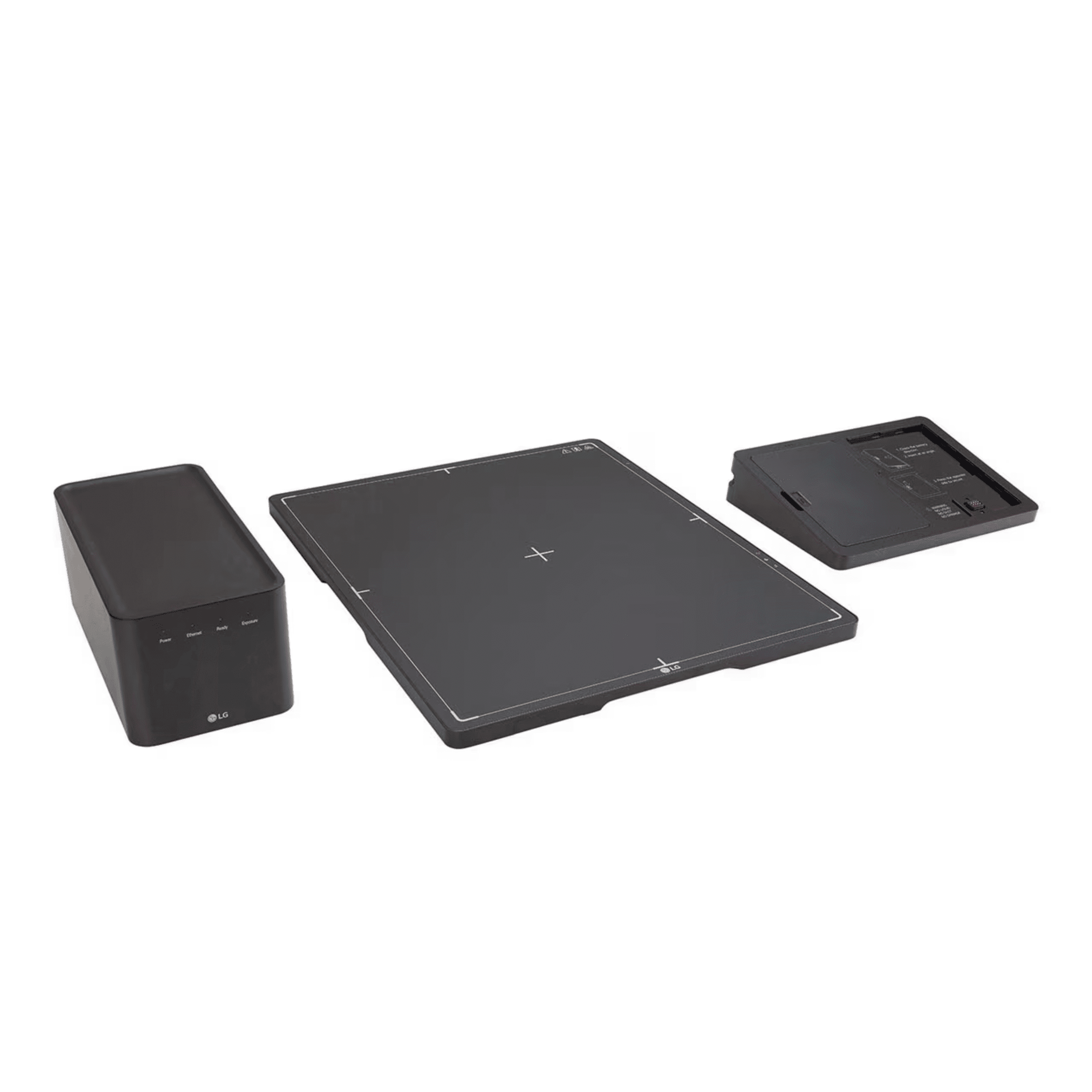

LG 14HQ701G Large Format 14 by 17 Digital X-ray Detector
Authorized LG large format digital radiography equipment supplier. The LG 14HQ701G is a 14 by 17 inch wireless flat panel detector built for chest, abdomen, and full spine imaging. Its generous 430.08 by 358.40 mm active area captures large anatomy in a single exposure without stitching, while a magnesium and carbon fiber body keeps the panel light enough to move between a table and a wall stand throughout the day.
The second generation amorphous silicon TFT panel with a cesium iodide scintillator pairs a 3072 by 2560 pixel matrix with a 140 micron pixel pitch and 16 bit A/D conversion for fine detail across the full field. A 1.5 second wired full image transfer keeps high volume rooms moving, while IP68 dust and water resistance, a 400 kg uniform load, a hot swap battery, and a built in OLED status display make it ready for demanding general radiography.
Need pricing? Get a quote with lead times and volume discounts within one business day.
Large Format Imaging, Hot-Swap Battery, and Rugged Build
The LG 14HQ701G brings a full 14 by 17 inch field of view to general radiography. A large active area, extreme durability, and a hot swap battery let technologists cover big anatomy without slowing down. Full technical detail is in the expandable sections below.
Second Generation a-Si TFT with CsI Scintillator: an amorphous silicon TFT panel with a cesium iodide scintillator delivers sharp, low noise radiographs across general radiography
Large Active Area: a 430.08 by 358.40 mm active area with a 3072 by 2560 matrix and a 140 micron pixel pitch captures 14 by 17 inch anatomy in a single exposure
Image Performance: MTF of 84 percent at 0.5 line pairs per millimeter with 16 bit A/D conversion for clear grayscale across soft tissue and bone
Fast Transfer: a 1.5 second wired and 2.0 second wireless full image transfer keeps high volume rooms moving
IP68 Protection: dust tight and submersible up to 1 meter for 30 minutes, which protects against spills and cleaning solutions
Load and Drop Resistance: a 400 kg uniform load, a 200 kg point load, and a 1.5 meter drop resistance to IEC 60601-1 with a magnesium and carbon fiber body

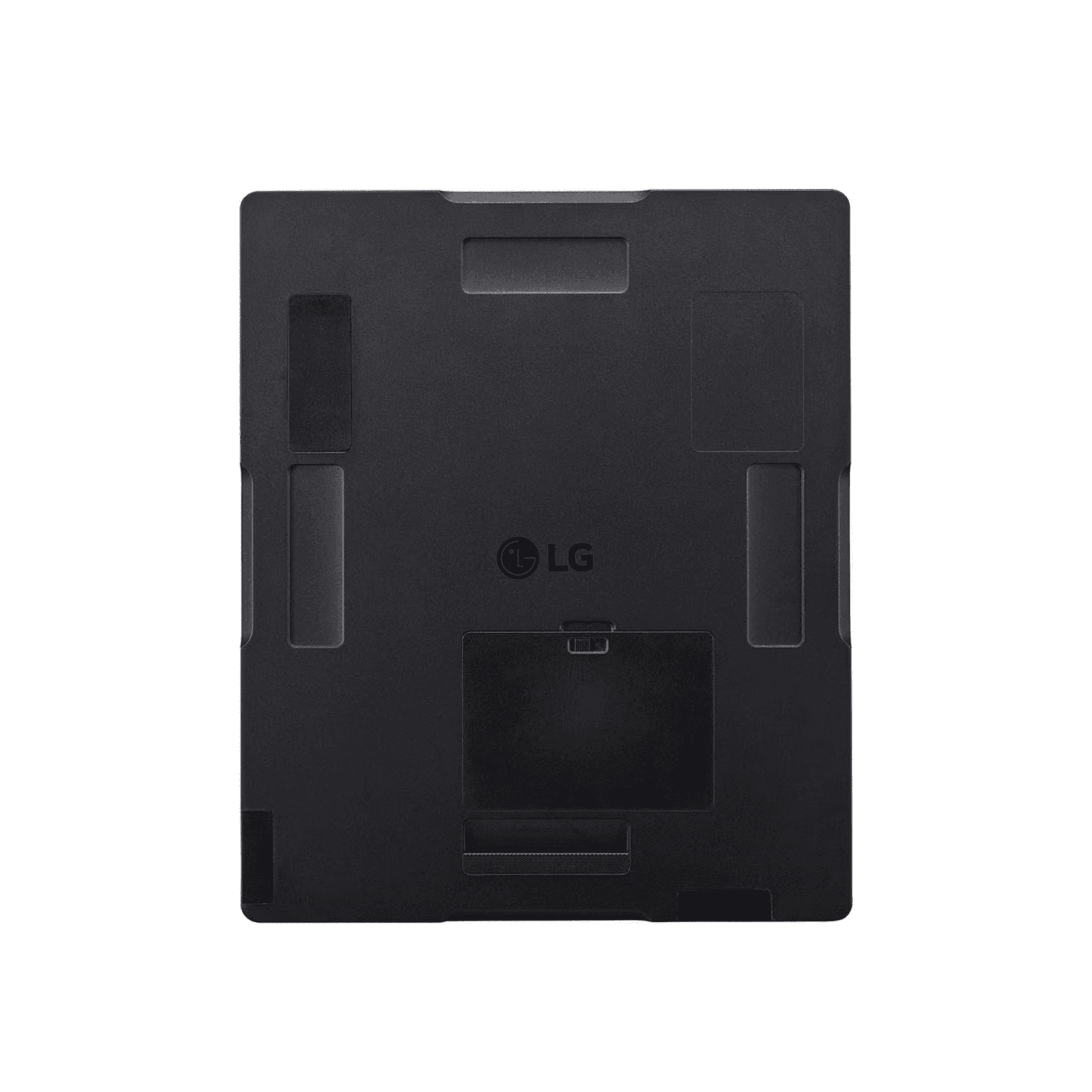

Hot Swap Battery: up to 7.5 hours or about 300 shots per charge, with battery replacement in under 1 minute without powering down, and a two slot charger that fully charges in 3 hours
Battery Capacity: a 36 Wh lithium ion battery at 7.7 V and 4725 mAh, with typical power consumption of 38 W
Wired and Wireless: a 7 meter magnetic detachable cable for wired use, and dual band Wi-Fi on 802.11 a, b, g, n, and ac at 2.4 and 5 GHz
Auto Exposure and Storage: AED auto exposure detection, on board storage for up to 200 images, and an integrated access point mode

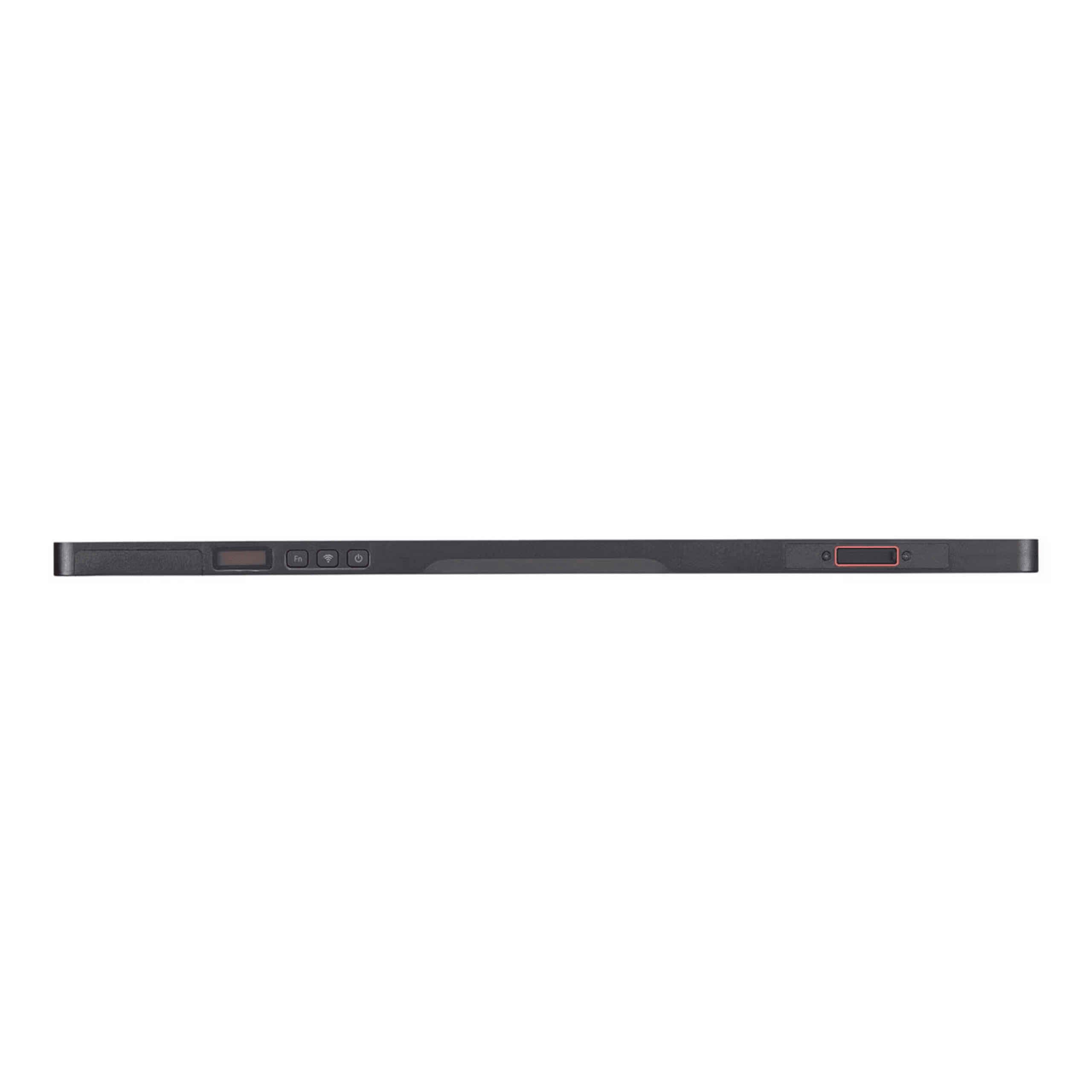

OLED Status Display: a built in OLED screen shows battery level, wireless signal strength, remaining storage, and connection mode without returning to the console
Acquisition Software: the ASHK100G acquisition workstation software drives capture and processing, with standard DICOM and PACS integration
How the LG 14HQ701G compares against a conventional 14 by 17 detector:
The 14 by 17 inch field of view captures chest, abdomen, and full spine anatomy in a single exposure, which removes the need for image stitching and repeat positioning. Combined with a hot swap battery and 200 image local storage, the detector keeps a high volume general radiography department on schedule even when the network drops, since buffered exposures forward automatically once the connection returns.
Full Technical Specifications
Complete reference data for capital procurement, RFP submissions, and biomedical review. Radiology directors, purchasing teams, and biomedical engineers rely on this specification set when they evaluate a large format wireless digital X-ray detector. Expand each category for full detail.
| TFT Type | Amorphous silicon (a-Si), second generation |
| Scintillator | Cesium iodide (CsI) |
| Pixel Matrix | 3072 by 2560 |
| Pixel Pitch | 140 micron |
| Active Area | 430.08 by 358.40 mm, about 14 by 17 inch |
| A/D Conversion | 16 bit |
| Image Quality | MTF 84 percent at 0.5 lp/mm typical |
| Full Image Transfer | 1.5 seconds wired, 2.0 seconds wireless |
| Cycle Time | 4.5 seconds wired, 5 seconds wireless |
| Ingress Protection | IP68, water resistant, submersible up to 1 meter for 30 minutes |
| Max Uniform Load | 400 kg (881.8 lbs) for 60 seconds |
| Max Point Load | 200 kg (440.9 lbs) |
| Drop Resistance | 1.5 meter to IEC 60601-1 |
| Body Material | Magnesium and carbon fiber plate |
| Sensor Protection Plate | Carbon fiber plate with built in shock monitoring |
| Battery | Lithium ion, 36 Wh, 7.7 V, 4725 mAh, hot swappable |
| Battery Life | Up to 7.5 hours or about 300 shots at a 90 second cycle |
| Hot Swap | Under 1 minute without powering down |
| Charger | Two slot, 3 hour full charge, 100 to 240 VAC input |
| Power Consumption | Typically 38 W |
| Wired | Magnetic detachable cable, 7 meter main cable included |
| Wireless | IEEE 802.11 a, b, g, n, ac on 2.4 and 5 GHz |
| Auto Exposure Detection | Yes, AED ready |
| On-Board Storage | Up to 200 images |
| Status Display | Built in OLED showing battery, signal, storage, and connection mode |

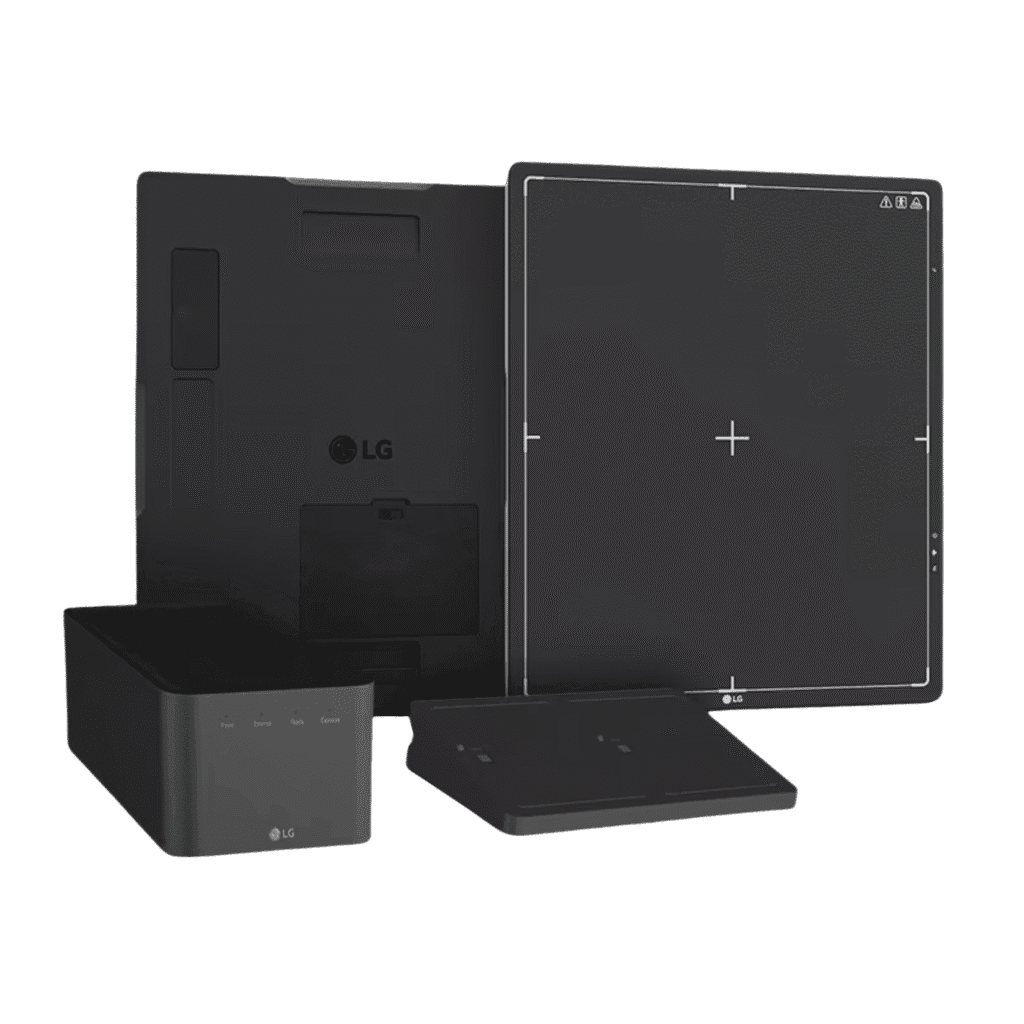

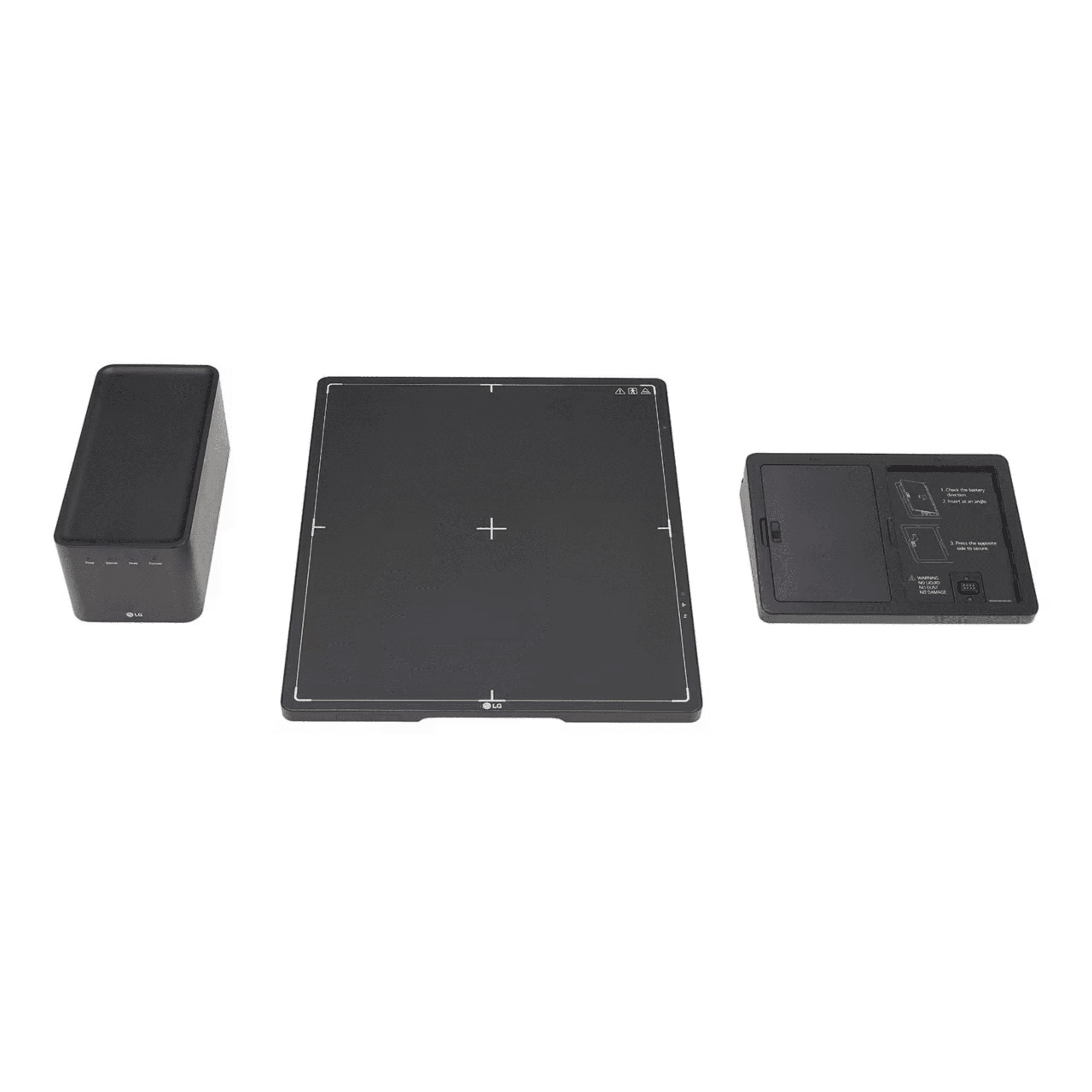

| Accessories | Control box, two battery packs, battery charger, LAN cable and sync cable optional |
| Detector | 384 by 460 by 15.6 mm (15 by 18 by 0.6 inch), 3.2 kg including battery |
| Acquisition Software | ASHK100G acquisition workstation software included |
| Operating Temperature | 10 to 35 degrees C |
| Storage Temperature | -20 to 60 degrees C |
| Humidity | Less than 80 percent RH operating |
| Intended Use | General radiography, not for mammography |
| Warranty | 36 months, 3 year extended |
Clinical Applications
Deployed wherever a large format wireless detector turns an existing X-ray system into an efficient digital radiography workflow for big anatomy, from full spine studies to high volume general radiography.
The large 430.08 by 358.40 mm field captures full spine and long bone anatomy in a single exposure, which removes the need for image stitching.
The 14 by 17 inch format suits standing chest and abdominal exams at the wall stand and supine studies on the table.
A 1.5 second wired transfer and AED auto exposure detection keep busy general radiography rooms on schedule.
A 400 kg uniform load and a 200 kg point load support weight bearing and tabletop positioning without damage.
At 3.2 kg with dual band Wi-Fi and 200 image local storage, the detector supports portable and bedside exams when the network drops.
IP68 sealing and a magnesium carbon fiber body protect against spills and cleaning solutions in trauma and cleaning heavy environments.
From Readiness to PACS, Without Interruption
A detector workflow built for uptime. Quick readiness, fast transfer over a large field, hot swap power, and reliable PACS integration keep every exam moving. Expanded workflow details are in the expandable sections below.
The detector pairs to the system over a magnetic detachable cable or dual band Wi-Fi, and the built in OLED status display shows battery level, wireless signal, storage, and connection mode at a glance. AED auto exposure detection means the detector triggers with most major generators without a hard wired connection.
The second generation a-Si TFT panel with a cesium iodide scintillator captures the full 14 by 17 inch field in a single exposure, and a 1.5 second wired full image transfer keeps the workflow fast. A 16 bit, 3072 by 2560 matrix preserves fine anatomical detail across chest, abdomen, and full spine studies.
The hot swap battery delivers up to 7.5 hours or about 300 shots, and a depleted battery is replaced in under 1 minute without powering down or losing data. The two slot charger keeps a spare ready, so the detector never has to stop.
If the network drops, the detector buffers up to 200 exposures locally and automatically forwards them when the connection resumes. The ASHK100G acquisition workstation software and standard DICOM connectivity send images to PACS for archiving and review, completing a reliable digital radiography workflow.
Regulatory Compliance and Safety
FDA cleared for general radiography under K221434, manufactured by LG Electronics. Medical Outfitters is an ISO 13485:2016 certified supplier of digital radiography equipment, so every LG 14HQ701G ships through a documented and audited quality management system. Full compliance documentation is available in the expandable sections below.
FDA Cleared: the LG 14HQ701G digital X-ray detector is FDA 510(k) cleared under K221434 for general radiography.
ISO 13485: Medical Outfitters Inc. is independently ISO 13485:2016 certified as a digital radiography equipment supplier, so every detector ships through a fully audited quality management system, backed by a 36 month warranty.
Drop and Load: 1.5 meter drop resistance to IEC 60601-1, a 400 kg uniform load, and built in shock monitoring.
Ingress Protection: IP68 dust and water resistance, submersible up to 1 meter for 30 minutes.
DICOM and PACS: standard DICOM connectivity for integration with PACS and major X-ray generators.
RoHS: Restriction of Hazardous Substances compliant.
REACH: EU REACH chemical regulation compliant.
Compatibility & Integration Review
Tell us your current X-ray generator and PACS. Our specialists confirm compatibility, plan the integration with auto exposure detection or a sync cable, and arrange on site training.
Capital Equipment & RFP Support
Volume pricing, technical documentation, and logistics for detector fleet deployments. We support radiology directors, biomedical engineers, and purchasing departments evaluating large format wireless detectors. Contact us for RFP packages.
Frequently Asked Questions
Quick answers to the most common purchase and technical questions about the LG 14HQ701G digital X-ray detector. Tap any question to expand.
The LG 14HQ701G is a large format 14 by 17 inch wireless digital X-ray detector that uses a second generation amorphous silicon TFT panel with a cesium iodide scintillator. Its 430.08 by 358.40 mm active area and 3072 by 2560 matrix capture chest, abdomen, and full spine anatomy in a single exposure without stitching, with a 140 micron pixel pitch, a 1.5 second wired image transfer, IP68 durability, a 400 kg uniform load capacity, and a 36 month warranty.
Yes. The detector uses standard DICOM communication and is auto exposure detection ready with most major generators, including GE, Siemens, Philips, Canon, and Shimadzu. A sync cable is available for direct triggering, and our support team can verify compatibility during a pre installation survey.
Under typical use with a 90 second cycle time, you can expect around 300 exposures or 7.5 hours of continuous operation. Because the battery is hot swappable in under 1 minute without powering down, you can extend runtime indefinitely by rotating spare batteries, and the included two slot charger keeps one ready.
The 430.08 by 358.40 mm active area covers chest, abdomen, and most full spine and long bone studies in a single exposure, which removes the need for image stitching and repeat positioning. This makes the 14HQ701G well suited to general radiography rooms that image large anatomy at a wall stand or table.
IP68 certification means the detector is dust tight and can withstand immersion in water up to 1 meter for 30 minutes. This protects against fluid spills, cleaning solutions, and everyday contaminants in busy clinical environments. Always dry the detector before charging.
Yes. The integrated dual band Wi-Fi on the 2.4 and 5 GHz bands provides reliable wireless transmission. If you move out of range, images are stored locally, up to 200 of them, and are automatically forwarded when the connection resumes.
Yes. The LG 14HQ701G digital X-ray detector is FDA 510(k) cleared under K221434 for general radiography. Medical Outfitters Inc. is ISO 13485:2016 certified as the supplying distributor, so every detector ships through an audited quality management system, and it is backed by a 36 month warranty.
Through Medical Outfitters Inc., ISO 13485:2016 certified, Miami, FL. We provide seamless integration, on site training, and ongoing support, and our specialists confirm compatibility with your current setup. Call (305) 885-4045 or request a quote online.
Compatible Equipment

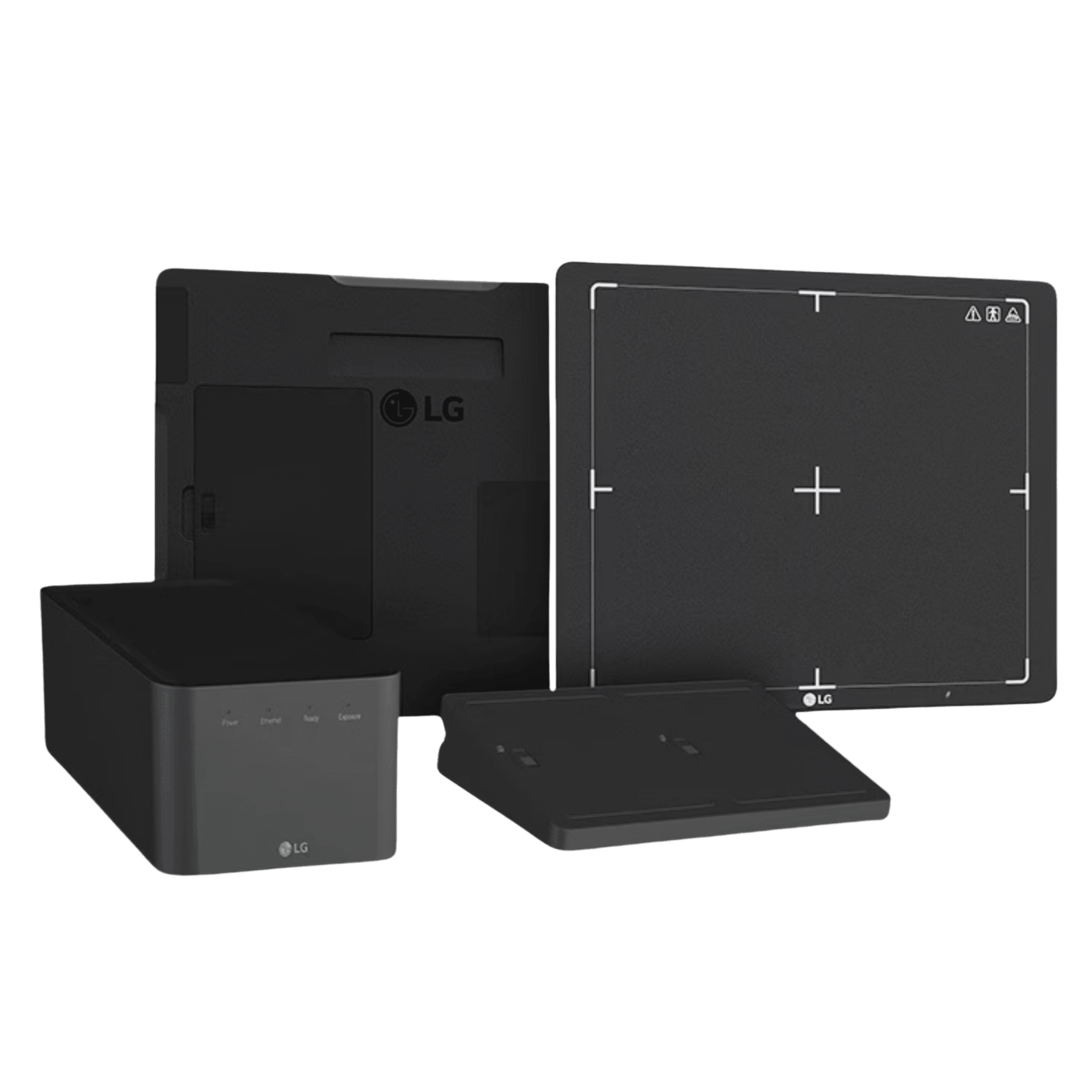

Other LG digital X-ray detectors and a compatible X-ray system to consider alongside the 14HQ701G, from the smaller 10 inch panel to the larger 17 inch oxide detector and the Fujifilm FDR Smart X room it can serve.
