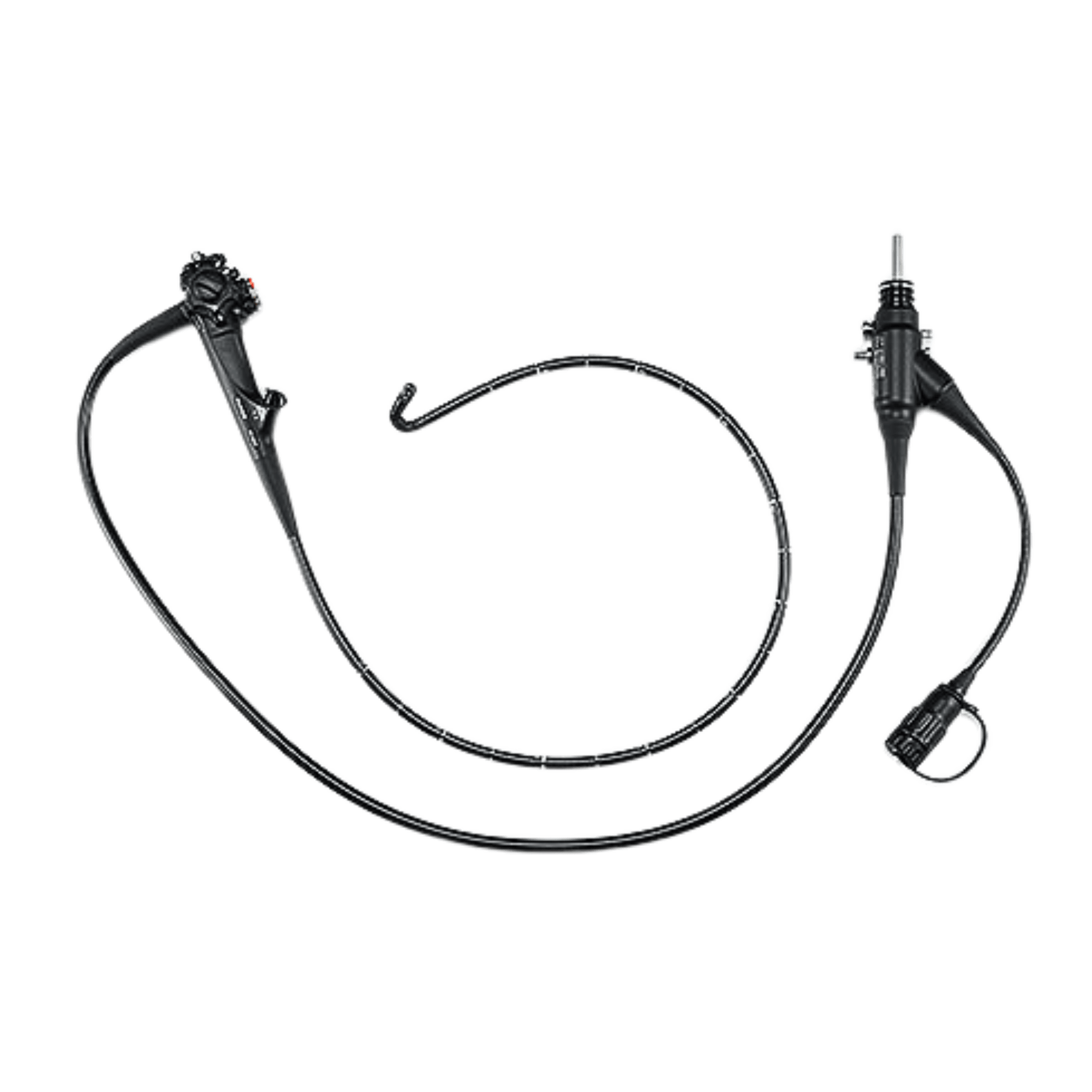

Fujifilm ED-580T duodenoscope overview
Authorized Fujifilm endoscopy supplier. The Fujifilm ED-580T duodenoscope, together with the ED-580XT variant, supports efficient ERCP with less stress. Both models place the new G-Lock at the distal end. As a result, the guidewire can be fixed firmly with a simple movement of the forceps elevator.
Each scope uses an optimized inner tube material in the instrument channel. Therefore devices insert smoothly, and exchanges happen with less stress. In addition, the G7 control portion and the single-use distal end cap improve handling and reprocessing. The two models differ only in viewing direction, so teams can match the angle to their workflow.
Need pricing? Get a quote with lead times within one business day.
Why choose the Fujifilm ED-580T duodenoscope
The ED-580T and ED-580XT focus on guidewire control, force transmission, and easier cleaning. Each feature below comes directly from the Fujifilm specification.

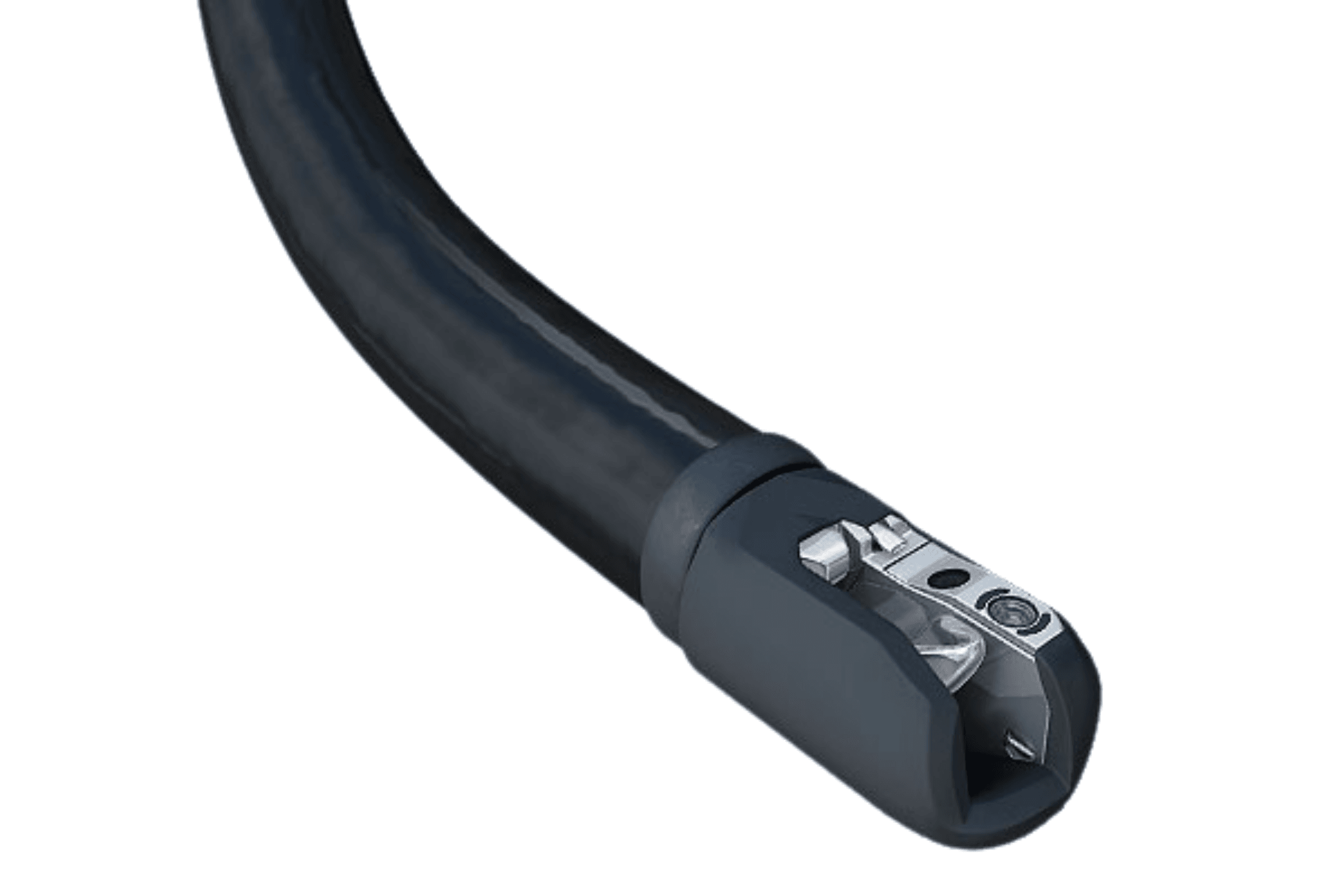

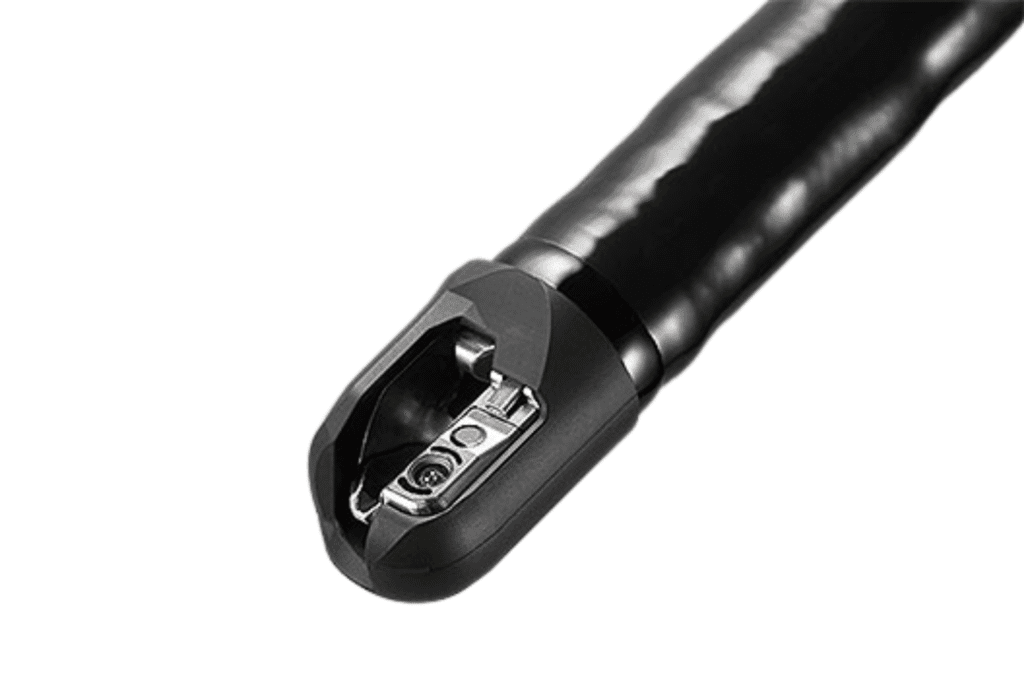

The G-Lock sits at the distal end and contains the forceps elevator and the contact section. As a result, the guidewire is fixed firmly with a simple operation of the forceps elevator. In addition, the specially designed round-shaped forceps elevator leads to less damage to the guidewire.
The inner tube of the instrument channel uses an optimized material. Therefore a device inserts smoothly, and exchanges happen with less stress. The combination of the new G-Lock and the smooth inner tube helps offer efficient ERCP procedures.
The G7 control portion has a rounded surface that fits in the hand. Its button layout makes intuitive operation possible. Because the elastic material increases gradually from the distal end to the control portion, the insertion portion transmits pushing and rotating forces efficiently.
The single-use distal end cap permits easier brushing access to the distal end. In addition, the elevator wire is sealed to allow easier cleaning. Therefore reprocessing access improves at the most demanding part of the scope.
Compare a generic duodenoscope baseline against the Fujifilm ED-580T and ED-580XT.
Because the G-Lock, the smooth channel, and the G7 grip work together, the scope helps teams move through device exchanges quickly. In addition, sealed wire construction and a single-use cap simplify cleaning between cases.
Full Specifications
All specifications below come from the Fujifilm ED-580T/ED-580XT specification sheet.
| Product name | Video Endoscope |
| Generic name | Flexible video duodenoscope |
| Viewing direction (ED-580T) | 105° (retro-viewing 15°) |
| Viewing direction (ED-580XT) | 95° (retro-viewing 5°) |
| Field of view | 100° |
| Observation range | 4 to 60 mm |
| Up | 120° |
| Down | 90° |
| Left | 90° |
| Right | 110° |
| Working length | 1250 mm |
| Total length | 1550 mm |
| Distal end diameter | 13.1 mm |
| Insertion tube diameter | 11.3 mm |
| Min instrument channel diameter | 4.2 mm |
| Suction valve | SB-605 |
| Air and water valve | AW-603 |
| Gas and water valve | AW-604G |
| Distal end cap | DC-07D (single-use) |
| WB11003DV | Valve cylinders and channel inlet |
| WB7025DC | Instrument and suction channel |
| WB1318DE | Distal end and forceps elevator |
| GMDN code | 36112 |
Clinical Applications
The ED-580T and ED-580XT serve a range of therapeutic ERCP tasks. Each card below reflects features stated in the source.
The G-Lock fixes the guidewire firmly with a simple elevator movement. Therefore device exchanges stay controlled during cannulation.
Because the 4.2 mm instrument channel uses an optimized inner tube, devices insert smoothly. As a result, delivery proceeds with less stress.
The ED-580T offers 105° viewing with 15° retro-viewing. In addition, the ED-580XT offers 95° with 5° retro-viewing for a different field choice.
The forceps elevator design offers an increased maximum angle of endotherapy devices. Its movement responds well to the lever.
The single-use distal end cap opens brushing access to the distal end. Because the elevator wire is sealed, cleaning becomes easier.
The rounded G7 control portion fits the hand. Therefore intuitive button operation supports steady positioning.
ERCP workflow with the ED-580T and ED-580XT
These steps follow the ERCP pathway described in the Fujifilm material. Each stage uses a stated feature of the scope.
The insertion portion uses an optimized elastic material. Because elasticity increases gradually toward the control portion, pushing and rotating forces transmit efficiently. Therefore the physician directs the scope as intended.

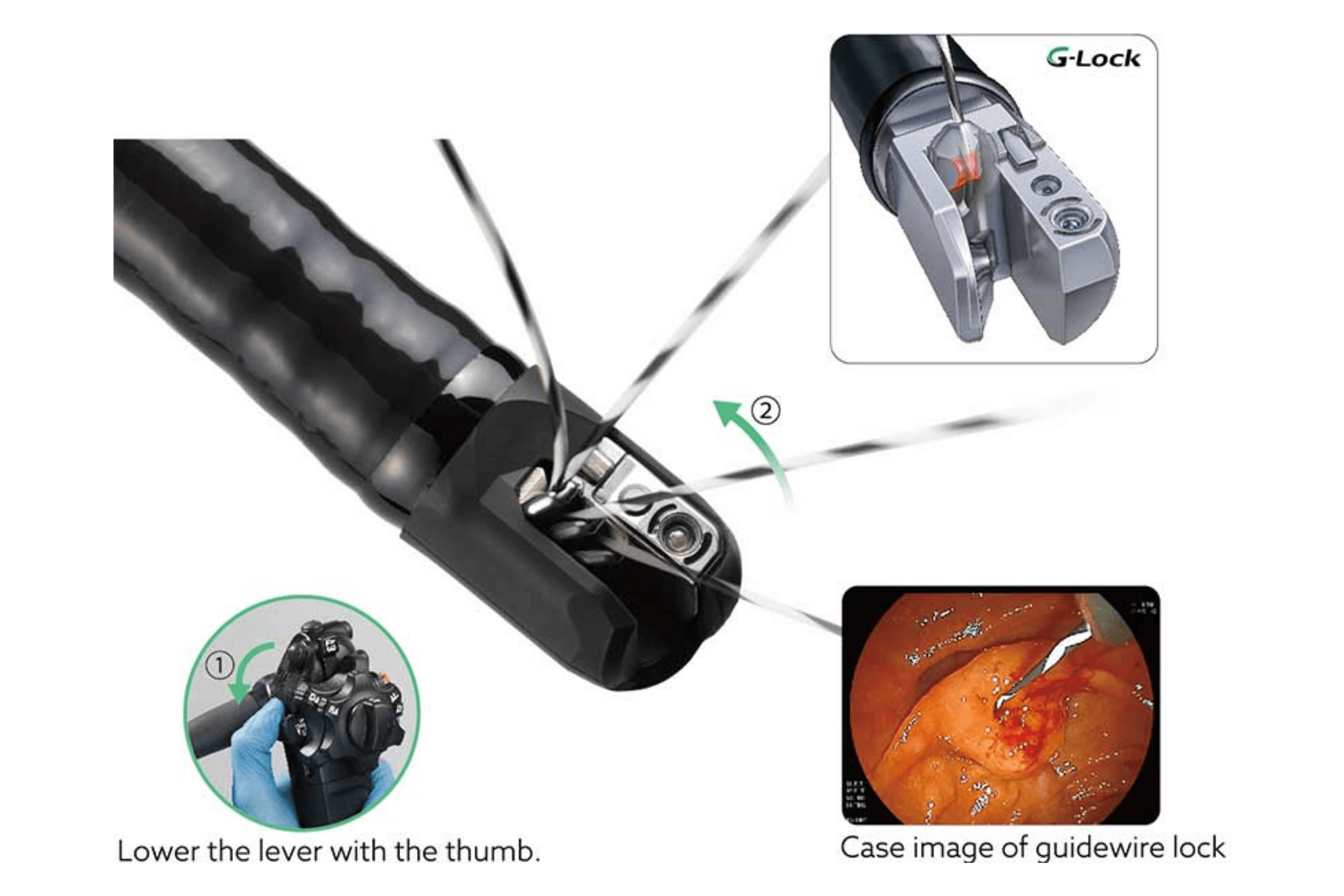

Lower the lever with the thumb to engage the G-Lock. The guidewire is then fixed firmly with simple elevator operation. In addition, the round-shaped elevator helps reduce damage to the guidewire.
This keeps access stable during cannulation.
The smooth inner tube lets devices insert with less stress. Because the forceps elevator reaches an increased angle, endotherapy devices gain working angle. As a result, exchanges and treatment proceed efficiently.

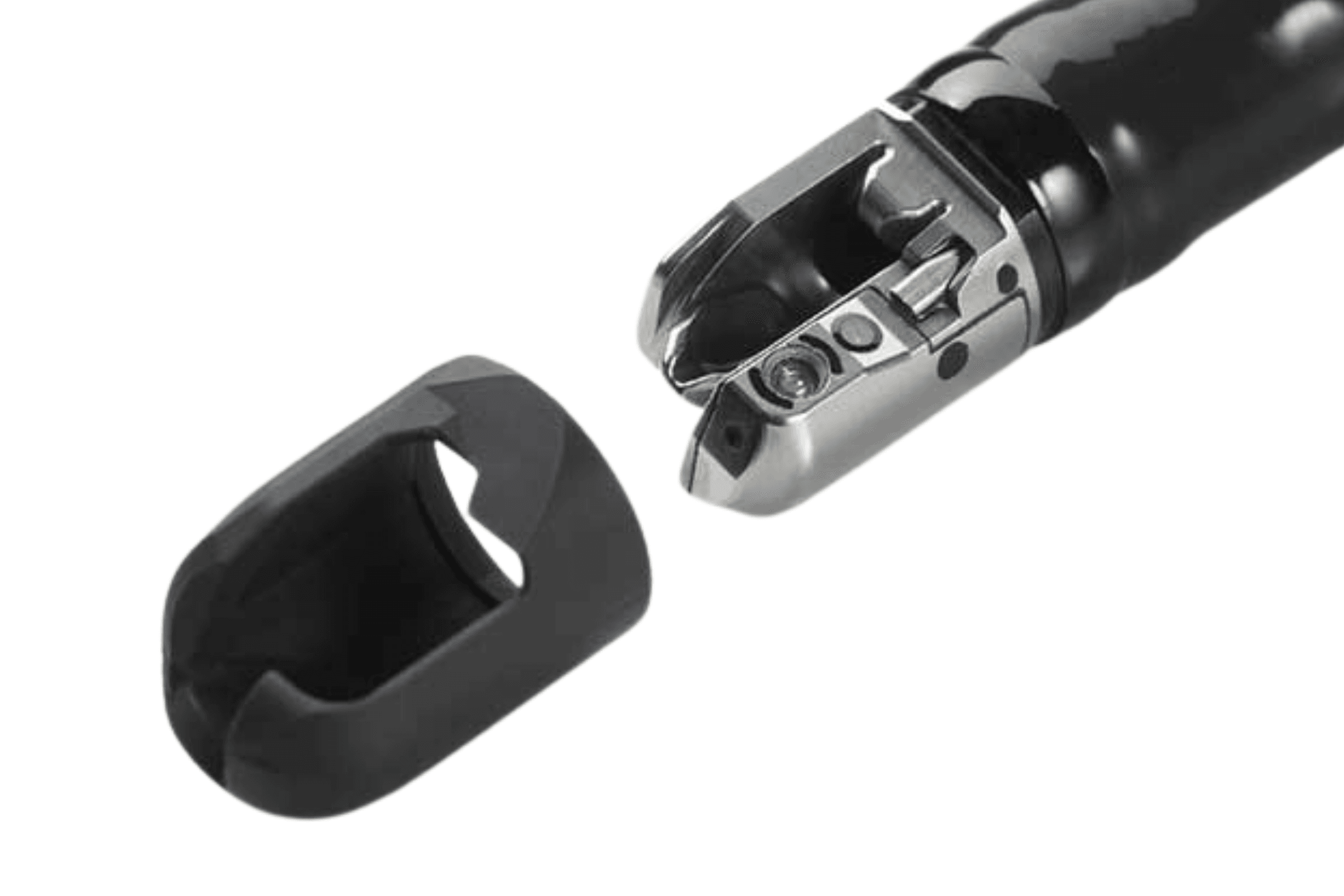

After the case, turn the distal end cap near the instrument channel outlet. Turning it counterclockwise releases the single-use cap for straight removal. This opens the distal end for brushing.
Use the dedicated brushes for the channels, the valve cylinders, and the distal end. Because the elevator wire is sealed and the cap is single-use, brushing access improves. Therefore cleaning the most complex area becomes easier.
Regulatory and quality information
We list only the regulatory details stated in the Fujifilm source. Confirm current registration status for your region before purchase.
Request a quote
Tell us whether you need the ED-580T or the ED-580XT viewing configuration. We will confirm accessories, valves, and brushes for your ERCP service line.
Talk to a specialist
Our team helps match the scope, the single-use caps, and the cleaning brushes to your reprocessing protocol. Call us for availability and lead times.
Frequently Asked Questions
Common questions about the Fujifilm ED-580T and ED-580XT video duodenoscopes, answered from the source specification.
The two models differ in viewing direction. The ED-580T offers 105° with 15° retro-viewing. The ED-580XT offers 95° with 5° retro-viewing.
The G-Lock sits at the distal end and contains the forceps elevator and the contact section. Because of this, the guidewire is fixed firmly with a simple operation of the forceps elevator.
The minimum diameter of the instrument channel is 4.2 mm. In addition, the channel uses an optimized inner tube material so devices insert smoothly.
The working length is 1250 mm and the total length is 1550 mm. The distal end diameter is 13.1 mm, and the insertion tube diameter is 11.3 mm.
No. The DC-07D distal end cap is single-use. Therefore brushing access to the distal end becomes easier during reprocessing.
The G7 control portion has a rounded surface that fits the hand. Its button layout makes intuitive operation possible during the procedure.
Three disposable brushes are listed. WB11003DV cleans the valve cylinders and channel inlet, WB7025DC cleans the instrument and suction channel, and WB1318DE cleans the distal end and forceps elevator.
You can buy it from Medical Outfitters Inc., an ISO 13485:2016 certified supplier in Miami, FL. Call (305) 885-4045 for pricing, availability, and accessory configuration.
