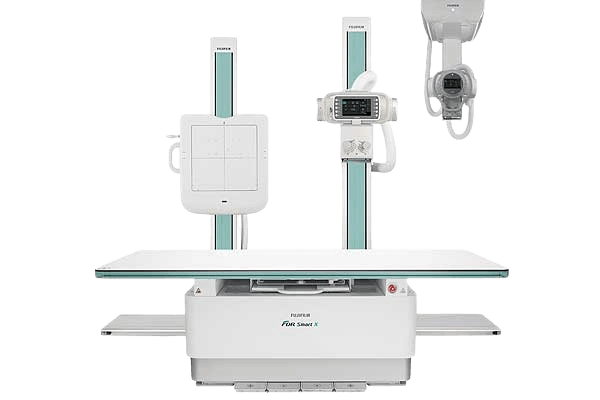

Fujifilm FDR Smart X: Cost-Effective Digital Radiography System
Authorized Fujifilm digital radiography equipment supplier. The Fujifilm FDR Smart X is a newly developed X-ray system that provides multi function, high quality, and cost effective digital radiography. It is offered in two styles, a ceiling suspended tube stand and a floor mounted tube stand, so a department can match the room to its space and workflow. The ceiling mounted tube provides tracking with the upright stand and table detectors, while the floor mounted tube installs in limited space to maximize the imaging systems a department can run.
What sets the Smart X apart is its power flexibility. The FGXR generator lineup includes a capacitor assisted generator for medium departments, a line powered high frequency generator for large hospitals, and a UPS generator that supplies power for up to 5 hours, or about 500 shots, during an outage. The system works with Fujifilm D-EVO II DR panels and CR cassettes, and it adds automatic tracking, dual reference rotation, automatic detector connection, a removable grid, an elevating 300 kg table, and an integrated console with Dynamic Visualization II.
Need pricing? Get a quote with lead times and volume discounts within one business day.
Two Tube Styles, UPS Power Backup, and Automatic Workflow
The FDR Smart X is built for flexibility and reliability. Two tube styles fit different rooms, a generator lineup that includes a UPS option keeps imaging running through outages, and automated positioning speeds every exam. Full technical detail is in the expandable sections below.

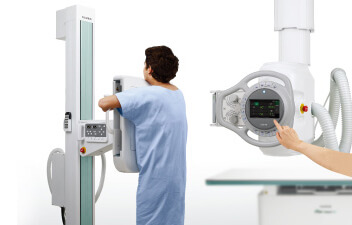

Ceiling Suspended Tube Stand: provides tracking with the upright stand and table detectors to improve workflow, throughput, and efficiency

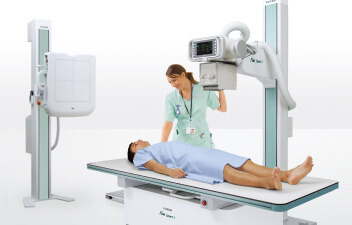

Floor Mounted Tube Stand: installs in limited space and adds flexibility for departments that need to fit more imaging systems
Capacitor Assisted Generator: a 40 kW single phase 3 kVA generator that needs no power supply modification, suited to medium sized X-ray departments
Line Powered Generator: a high frequency generator at 40, 52, 68, or 82 kW with three phase power for large hospitals
UPS Generator: supplies power for up to 5 hours or about 500 shots without mains electricity at 40 kW single phase 1 kVA, the ideal choice for regions with an unstable power supply
Wide Output Range: generator output from 32 kW to 82 kW with a kV range of 40 to 150 in 1 kV steps
Automatic Tracking: the tube head and bucky move synchronized with each other to support positioning for exposure

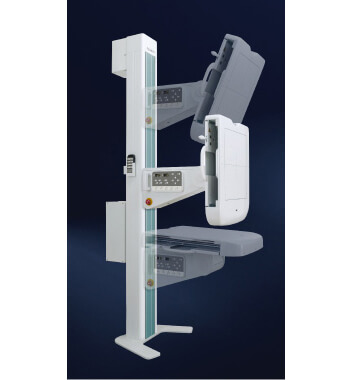

Automatic Tilting Wall Stand: automatic and manual tilting of the upright bucky stand improves workflow and comfort for patients in wheelchairs, with a control panel that stores and recalls preset positions
Dual Reference Rotation: top reference and center rotation can be selected with 14 by 17 inch DR panels, so areas other than the chest can be exposed without removing and reinserting the panel

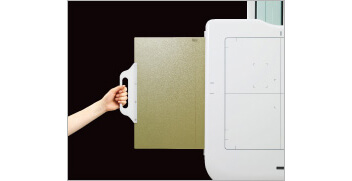

Automatic Connection and Fail Safe: the cable and connector are built into the tray so panels connect automatically with no cables to handle, and a fail safe switch prevents exposure when a panel is not inserted properly
Removable Grid: removable grids in both the table and upright stand allow flexible work such as pediatrics

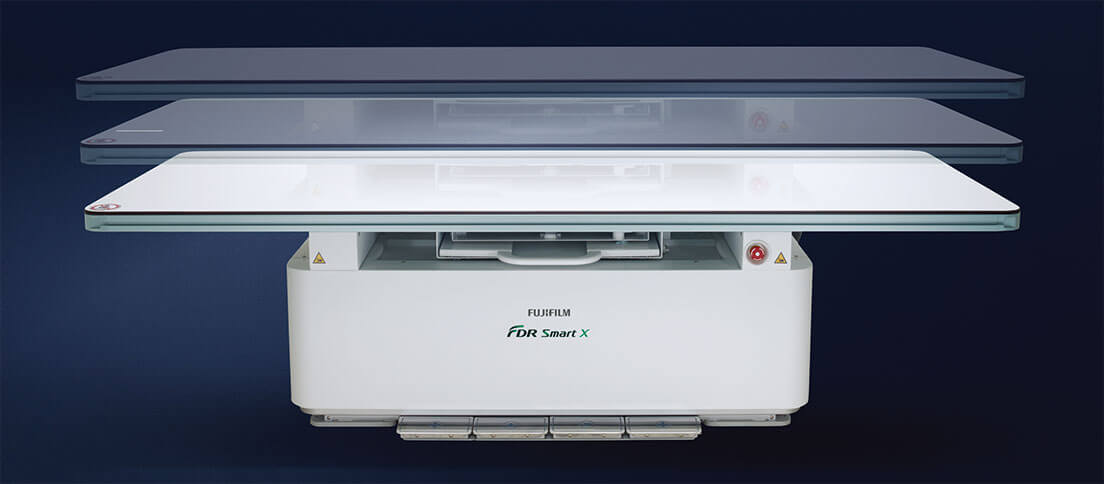

Elevating Table: a motorized, height adjustable floating top table with a 300 kg weight limit and a rotating tray, synchronized with the upright and table detectors

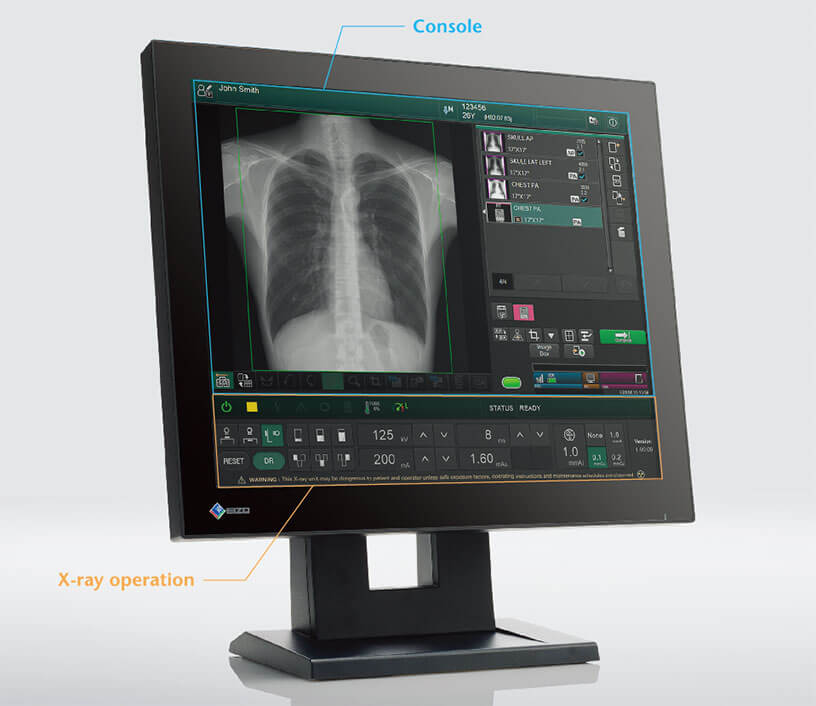

Integrated Console: the detector console and X-ray controller are integrated on the same monitor, with technique select buttons and DR panel status for wireless connection and battery level, plus a touch screen on the tube head
How the FDR Smart X compares against a conventional DR X-ray room:
The FDR Smart X pairs Fujifilm D-EVO II DR panels in 17×17 and 14×17 inch sizes with image processing built for clarity. ISS positions the capture electronics at the X-ray irradiation side rather than behind the scintillator, and a noise reduction circuit further improves the signal, producing sharper images at a lower dose. Dynamic Visualization II automatically adjusts contrast and density by recognizing each body part based on estimated 3D information, which reduces the need for retakes. DR panels, CR cassettes, and F/S cassettes can run in the same system, so a department can transition to digital at its own pace.
Full Technical Specifications
Complete reference data for capital procurement, RFP submissions, and biomedical review. Radiology directors, purchasing teams, and biomedical engineers rely on this specification set when they plan a ceiling or floor digital radiography room. Expand each category for full detail.
| Ceiling Suspended Tube | Tracking with the upright stand and table detectors |
| Floor Mounted Tube | Flexible installation in limited space |
| Tube Head Display | Touch screen digital display for exam parameters in the X-ray room |
| Wall Bucky Stand | Automatic and manual tilting, with preset position storage and recall |
| Capacitor Assisted Generator | 40 kW single phase 3 kVA, no power supply modification, for medium departments |
| Line Powered Generator | High frequency generator at 40, 52, 68, or 82 kW with three phase power for large hospitals |
| UPS Generator | Supplies power up to 5 hours or about 500 shots without electricity, 40 kW single phase 1 kVA, for unstable power supply |
| Output Rating | 32 kW, 40 kW, 52 kW, 68 kW, or 82 kW |
| kV Range | 40 to 150 kV in 1 kV steps (150 kV option on select models) |
| mA Range | 10 to 1000 mA depending on generator |
| Timer Range | 0.001 to 10 seconds, 38 steps |
| mAs Range | 0.1 to 500 mAs, with an optional higher mAs |
| DR Panels | Fujifilm D-EVO II series in 17×17 and 14×17 inch sizes |
| Detector Type | ISS indirect conversion flat detector with noise reduction circuit |
| Capture Compatibility | DR panels, CR cassettes, and F/S cassettes usable in the same system |
| Integrated Console | Detector console and X-ray controller on the same monitor with technique select buttons |
| Panel Status | Wireless connection level and battery charge displayed for DR panels |
| Image Processing | Dynamic Visualization II automatic contrast and density by body part |
| Automatic Tracking | Tube head and bucky move synchronized for exposure positioning |
| Dual Reference Rotation | Top reference and center rotation with 14 by 17 inch DR panels |
| Fail Safe Switch | Disables exposure when a panel is not inserted properly |
| Automatic Connection | Cable and connector built into the tray for automatic panel connection |
| Removable Grid | Removable grids in both table and upright stand, including pediatrics |
| Rotating Tray | Rotating tray available for the table |
| Type | Motorized, height adjustable floating top table |
| Weight Limit | 300 kg |
| Tracking | Synchronized tracking of the tube with upright and table detectors |
| Availability | Available with ceiling and floor mounted systems |
Clinical Applications
Deployed across general radiography programs where room flexibility, power reliability, and cost matter, from large hospitals to clinics in regions with an unstable power supply.
The UPS generator supplies power for up to 5 hours or about 500 shots during an outage, which keeps imaging available where the mains supply is unreliable.
A cost effective design and a capacitor assisted 40 kW generator that needs no power modification suit medium departments and tighter budgets.
The floor mounted tube option installs in limited space, which helps a department fit more imaging systems into the rooms it has.
Automatic tracking, an integrated console, and preset wall stand positions speed routine chest, abdomen, and extremity exams.
An automatic tilting wall bucky stand and a 300 kg elevating table simplify positioning for patients in wheelchairs and those with limited mobility.
Removable grids in the table and upright stand support lower dose pediatric radiography without sacrificing image quality.
Positioning, Acquisition, and PACS Integration
A digital radiography workflow built to speed every step while keeping imaging available. Preset positioning, automatic tracking, and an integrated console reduce steps from setup to image delivery. Expanded workflow details are in the expandable sections below.
The automatic tilting wall bucky stand and the motorized 300 kg elevating table make positioning comfortable for standing, seated, and wheelchair patients. The wall stand control panel stores preset positions and moves the stand to them automatically, which speeds routine setup.
Automatic tracking moves the tube head and bucky in sync to support exposure positioning, so technologists do not take manual measurements. Dual reference rotation allows top reference or center rotation with 14 by 17 inch panels, so areas other than the chest can be imaged without removing and reinserting the panel.
D-EVO II panels connect automatically through the cable and connector built into the tray, and the fail safe switch prevents exposure if a panel is not inserted properly. The integrated console shows the detector and X-ray controls on one monitor with technique select buttons and DR panel status, and both DR and CR can run at the same time.
Dynamic Visualization II adjusts contrast and density by recognizing each body part, which reduces retakes. Images route to PACS through DICOM for archiving and review, completing an efficient general radiography workflow.
Regulatory Compliance and Safety
FDA cleared for diagnostic radiography, manufactured by FUJIFILM Corporation. Medical Outfitters is an ISO 13485:2016 certified supplier of digital radiography equipment, so every FDR Smart X ships through a documented and audited quality management system. Full compliance documentation is available in the expandable sections below.
FDA Cleared: the Fujifilm FDR Smart X is FDA cleared for diagnostic radiography, suitable for hospital radiology departments and outpatient imaging centers.
ISO 13485: Medical Outfitters Inc. is independently ISO 13485:2016 certified as a digital radiography equipment supplier, so every system ships through a fully audited quality management system.
Generator Options: single phase 3 kVA capacitor assisted, three phase 400 or 480 VAC line powered, and a UPS generator at single phase 1 kVA for unstable supply.
Power Resilience: the UPS generator supplies up to 5 hours or about 500 shots during an outage, which supports continuity of imaging service.
DICOM and PACS: images route to PACS through DICOM for archiving and review.
RoHS: Restriction of Hazardous Substances compliant.
REACH: EU REACH chemical regulation compliant.
Room Planning & Power Review
Provide your room dimensions, ceiling height, and power situation. Our team confirms whether a ceiling or floor configuration fits your space, recommends the right generator including the UPS option, and coordinates installation before shipment.
Capital Equipment & RFP Support
Volume pricing, technical documentation, and logistics for digital radiography deployments. We support radiology directors, biomedical engineers, and purchasing departments evaluating X-ray room equipment. Contact us for RFP packages.
Frequently Asked Questions
Quick answers to the most common purchase and technical questions about the Fujifilm FDR Smart X digital radiography system. Tap any question to expand.
The Fujifilm FDR Smart X is a newly developed, multi function and cost effective digital radiography X-ray system. It is available with a ceiling suspended tube stand or a floor mounted tube stand, works with Fujifilm D-EVO II DR panels and CR cassettes, and offers a flexible FGXR generator lineup that includes a UPS option for sites with unstable power.
The FDR Smart X offers two styles. The ceiling suspended tube provides tracking with the upright stand and table detectors to improve workflow and throughput. The floor mounted tube provides flexibility to install in limited space, which maximizes the number of imaging systems a department can run.
The UPS generator supplies power for up to 5 hours, or approximately 500 shots, without mains electricity. It is the ideal solution for regions with an unstable power supply, using a 40 kW single phase input at 1 kVA. The generator lineup also includes a capacitor assisted generator for medium departments and a line powered high frequency generator for large hospitals.
The FDR Smart X is the cost effective, power flexible DR room, defined by its ceiling and floor tube styles and the UPS generator option for unstable power. The FDR Clinica X is the scalable suite with the FDX Console PLUS, SpeedLink dose communication, and automatic long length stitching, and the FDR ES is a wireless flat panel detector that drops into existing rooms. Our team helps match the right solution to your department.
The FDR Smart X is compatible with Fujifilm D-EVO II series DR panels in 17×17 and 14×17 inch sizes, and it also supports CR cassettes and F/S cassettes. DR panels and CR cassettes can be used in the same system at the same time with the same workflow, and the connected modality is shown on the integrated console.
The FDR Smart X uses a motorized, height adjustable floating top table with a weight limit of 300 kg. The table synchronizes tracking of the tube with both the upright and table detectors, and it is available with both ceiling and floor mounted systems. A rotating tray is also available.
Yes. The Fujifilm FDR Smart X is FDA cleared for diagnostic radiography. Medical Outfitters Inc. is ISO 13485:2016 certified as the supplying distributor, so every system ships through an audited quality management system.
Through Medical Outfitters Inc., ISO 13485:2016 certified, Miami, FL. We supply factory new systems with nationwide installation, site planning for ceiling or floor configurations, and applications support. Call (305) 885-4045 or request a quote online.
Compatible Equipment
Digital radiography equipment commonly deployed with the Fujifilm FDR Smart X, from the FDR ES and FDR D-EVO III flat panel detectors that drop into the bucky to the scalable FDR Clinica X suite for larger programs.
