Fujifilm FDR nano Overview

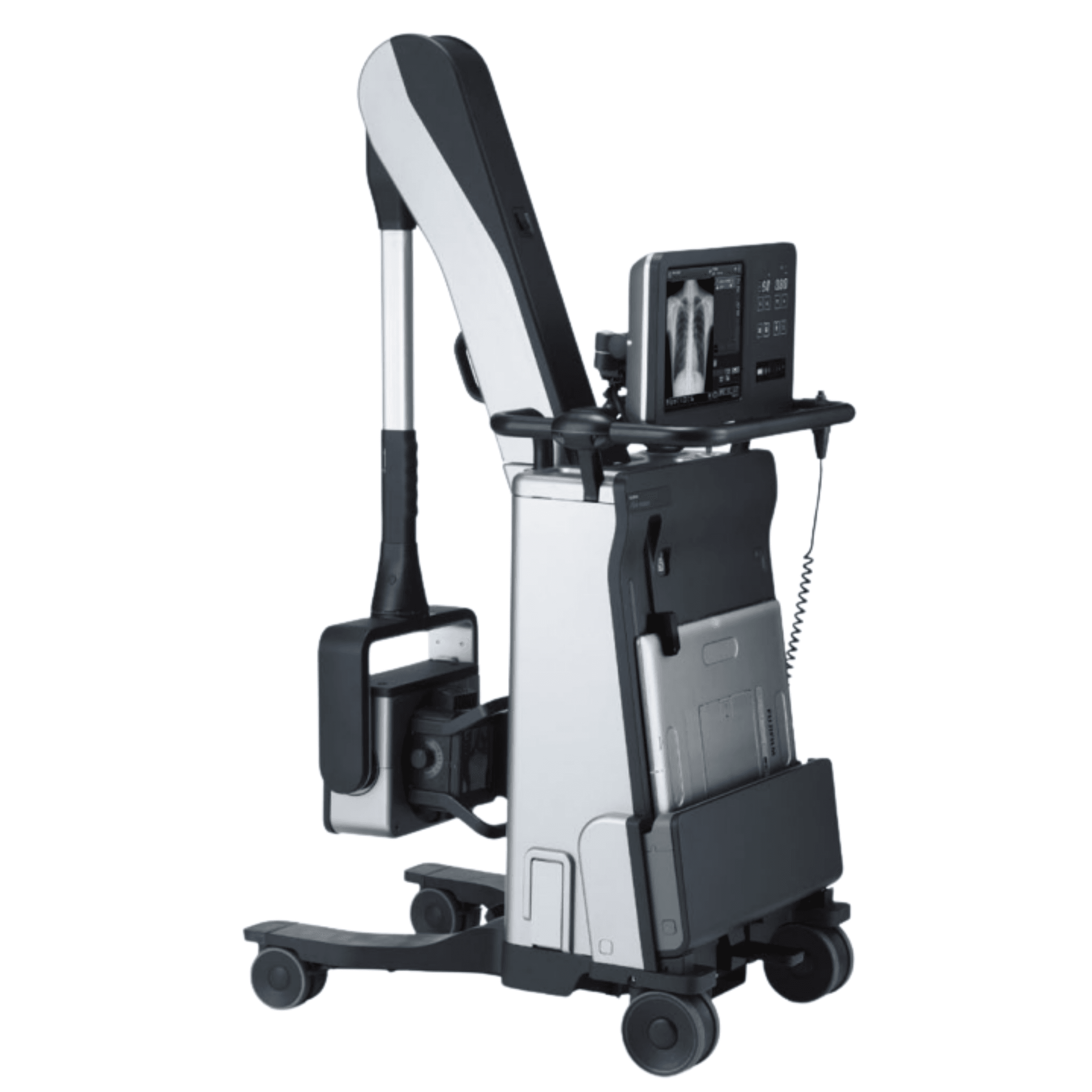

Authorized Fujifilm FDR nano supplier. The Fujifilm FDR nano is a compact digital X-ray cart system built for the critical moments you face every day. It weighs about 90 kg, which is roughly an 80 percent reduction compared to a traditional mobile X-ray unit. Because the body is so light and slim, the four-wheel caster lets the cart slide in any direction and spin in place. Therefore, a single technologist can position the system at the bedside with one hand.
Fujifilm calls the imaging core a Trinity system, and it combines three technologies to promote mobile imaging efficiency. First, the FDR D-EVO II cassette detector uses high-sensitivity ISS reading and a noise reduction circuit. Next, Virtual Grid software delivers high-contrast images without a physical grid. In addition, a high-performance Li-ion battery supports 12 hours of continuous use at 20 shots per hour. As a result, you get easy-to-read images at a lower dose with minimal downtime.
Need pricing? Get a quote with lead times within one business day.
Fujifilm FDR nano Features
The Fujifilm FDR nano blends a downsized X-ray source, a high-sensitivity cassette detector, and proprietary image processing. Together, these features support fast, hygienic, and low-dose bedside radiography.

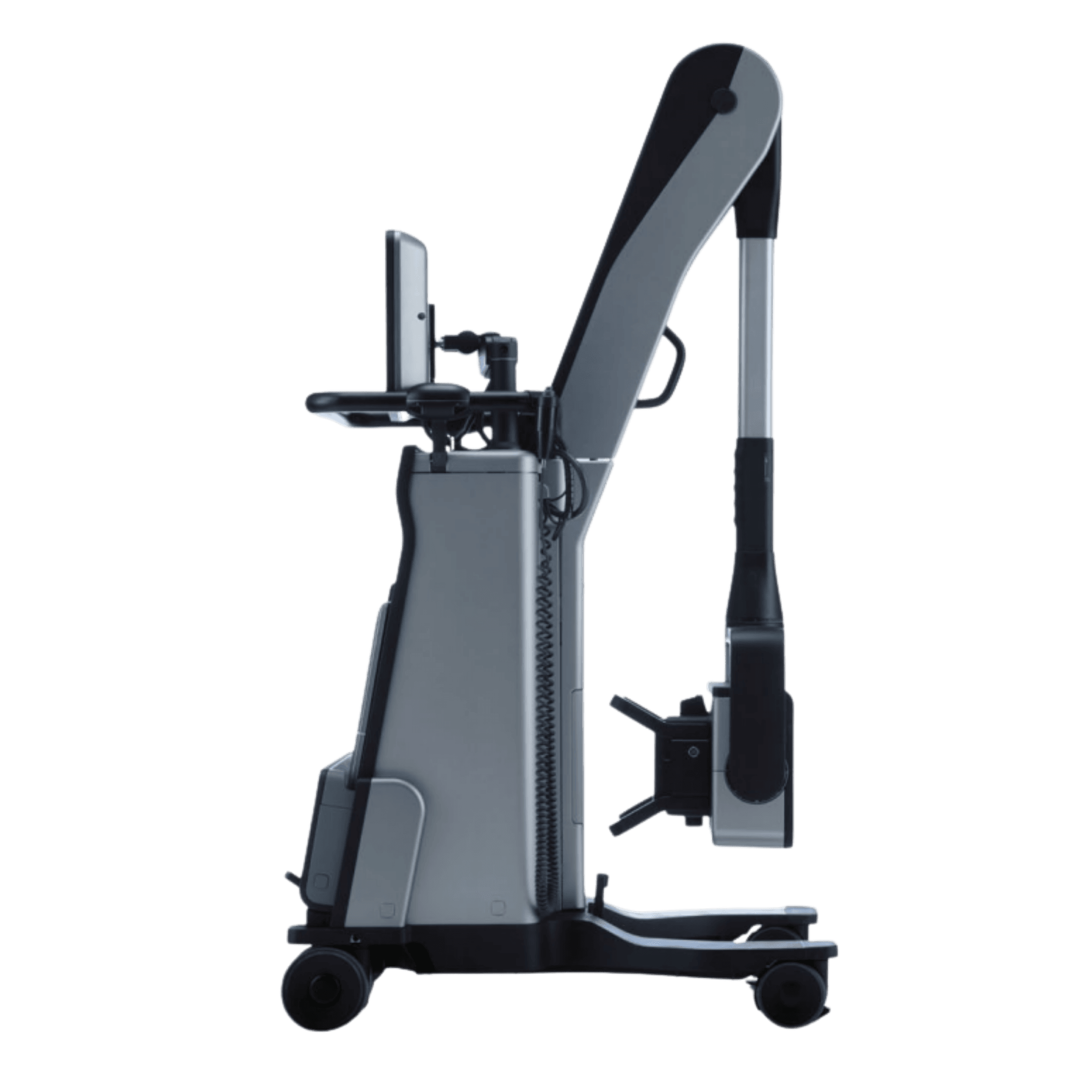

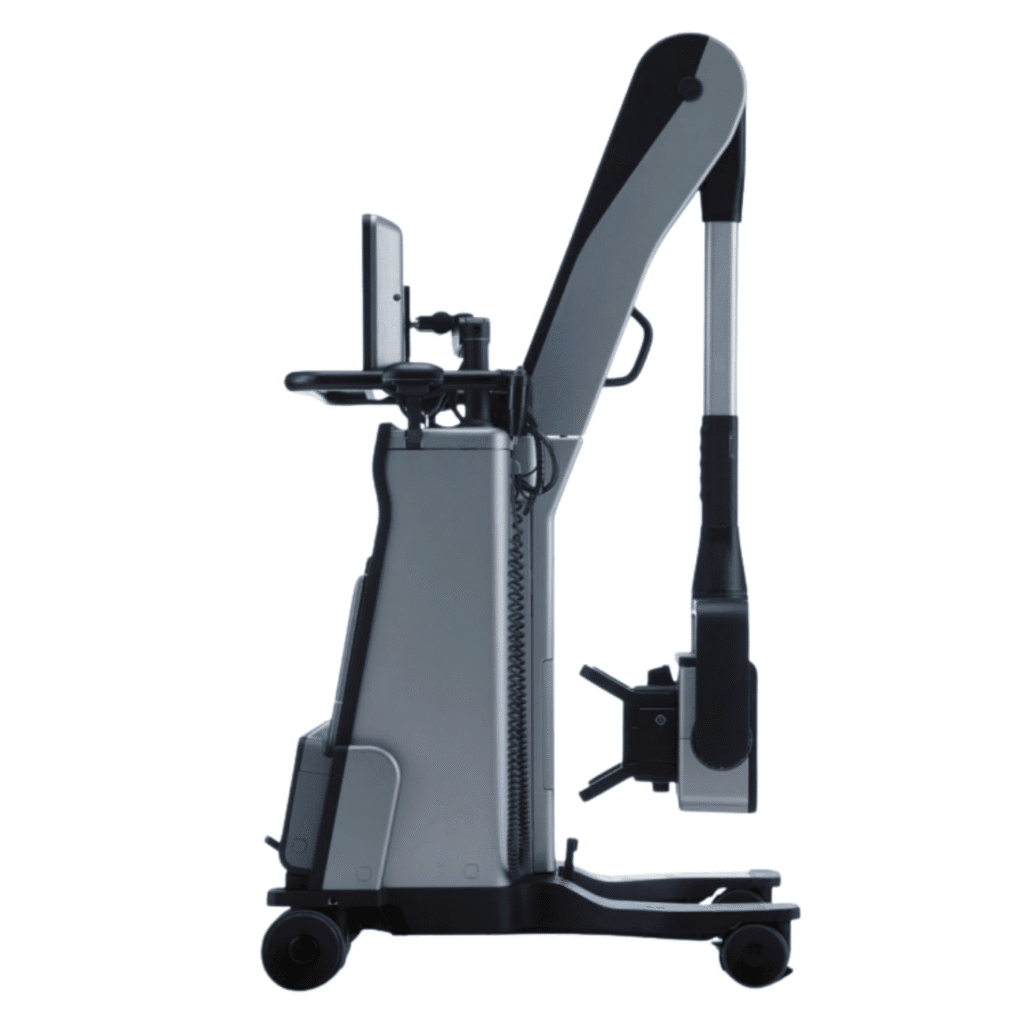

The slim body cuts about 90 kg of weight versus a traditional mobile X-ray unit. Because the cart is so light, the four-wheel caster slides in any direction and spins at one point. In addition, a flexible operation panel rotates 180 degrees and adjusts tilt and height while you view the display.

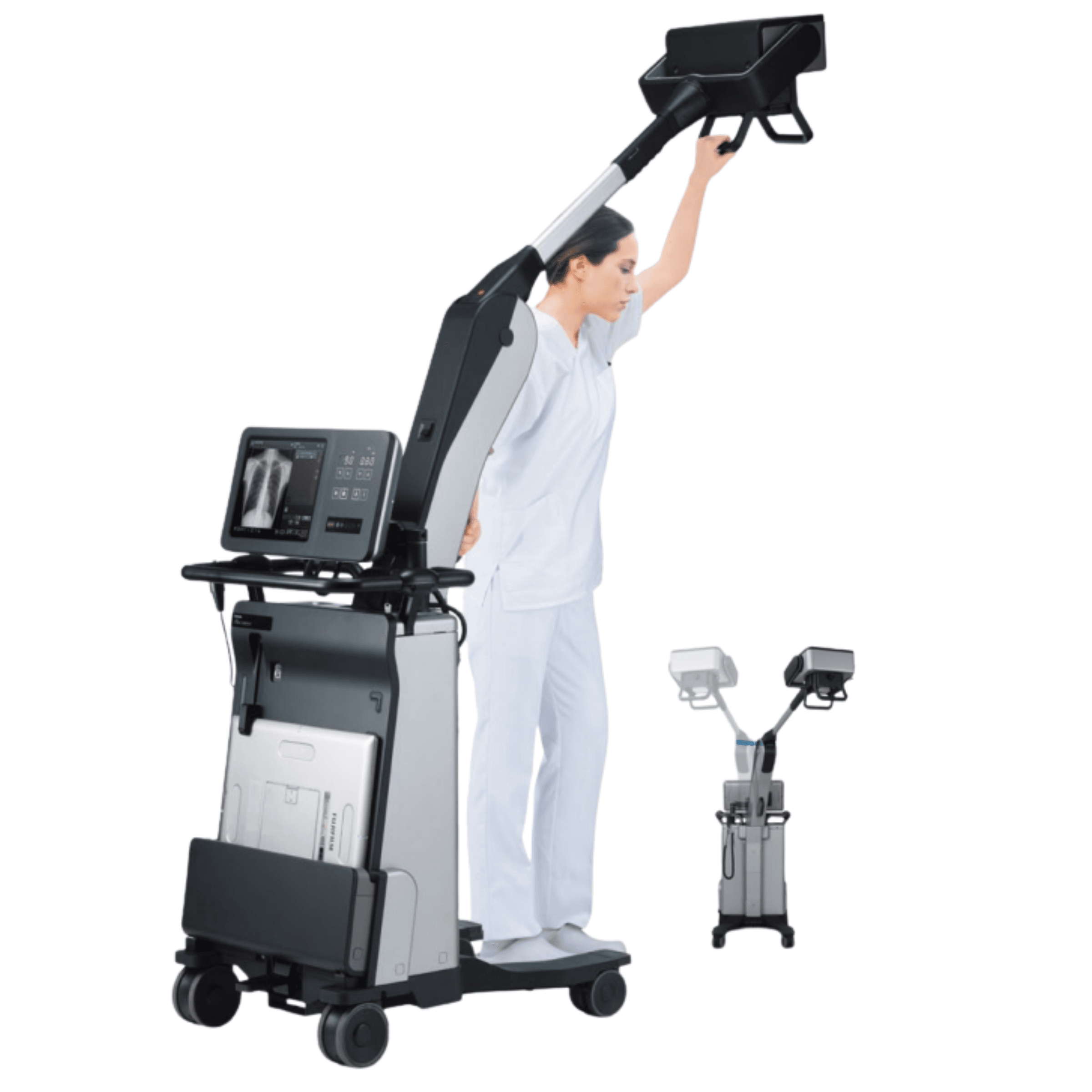

The downsized X-ray tube also frees the arm for smooth, one-handed positioning. Furthermore, a swivel mechanism fine-tunes the radiation field within plus or minus 15 degrees. Therefore, technologists move less and position faster at the bedside.
The built-in Li-ion battery supports 12 hours of continuous use at 20 shots per hour. A full charge takes about 4 hours. However, a quick 15 minute charge restores roughly 1 hour of use, which equals about 20 shots. When the battery is empty, a plug-in shot mode lets you keep working on AC power.
Frequently touched parts use Hydro Ag coating, which Fujifilm reports as 100 times more antibacterial than conventional silver coating. In addition, the flat, cableless arm design wipes clean easily. The FDR D-EVO II detector also complies with the IPX6 waterproofing standard and bears up to 310 kg.
Here is how a traditional mobile X-ray unit compares with the Fujifilm FDR nano.
The FDR D-EVO II detector combines a columnar CsI scintillator with Fujifilm’s ISS reading technology. Because this design suppresses energy attenuation and light scattering, it reaches a high DQE of 54 percent and MTF of 80 percent at approximately 1 Lp/mm and 1 mR. Therefore, you capture higher resolution images at a lower X-ray dose.
Full Specifications
Every specification below comes directly from the Fujifilm FDR nano product documentation. The system carries the model number DR-XD1000.
| Product name | FDR nano |
| Model No. | DR-XD1000 |
| Total width | 550 mm (excluding handle fix part) |
| Total length | 770 mm |
| Total height | 1,460 mm |
| Weight | 90 kg |
| Power supply | 100 to 240 V AC, single phase, 50 to 60 Hz, 8 to 3.3 A |
| Max rating | 2.5 kW |
| Tube voltage | 40 to 100 kV |
| Tube current | Max 35 mA |
| Nominal focal spot size | 1.2 mm |
| Maximum anode heat capacity | 35 kJ (50 kHU) |
| Target angle | 16 degree |
| X-ray tube part weight | 10 kg |
| C35 model | DR-ID1211SE, 460 × 384 × 15 mm, approx. 2.6 kg |
| C43 model | DR-ID1212SE, 460 × 460 × 15 mm, approx. 3.2 kg |
| C24 model | DR-ID1213SE, 328 × 268 × 15 mm, approx. 1.5 kg |
| Scintillator | CsI (Cesium iodide) |
| Waterproof rating | IPX6 |
| Load bearing | 310 kg |
| Battery use | 12 hours at 20 shots/hour |
| Full charge time | 4 hours |
| Quick charge | 15 min charge for 1 hour use |
| Image processing | Virtual Grid, noise reduction circuit |
| Optional processing | Dynamic Visualization II |
| Optional items | High handle kit, added filter, accessory case, apron hanger, BCR, DAP meter fix kit |
Clinical Applications
The Fujifilm FDR nano suits departments that need fast, mobile imaging in confined spaces. Here are six common scenarios.
The slim body approaches the bedside smoothly. Because the arm moves with one hand, technologists position patients quickly and capture images on the spot.
Simply sliding or turning the main unit changes the position. Therefore, sequential chest and abdomen exposures finish quickly and with ease.
Significant downsizing improves forward and downward visibility. As a result, staff pass others safely and maneuver through narrow corridors.
Hydro Ag coating and a flat, cableless arm keep the unit clean. In addition, the IPX6 detector resists blood and fluid ingress for hygienic use.
The ISS detector, noise reduction circuit, and Virtual Grid lower dose while preserving contrast. Therefore, clinicians read images clearly without a physical grid.
The Li-ion battery covers 12 hours at 20 shots per hour. However, plug-in shot mode keeps imaging available even when the battery runs empty.
Fujifilm FDR nano Clinical Workflow
The Fujifilm FDR nano streamlines the mobile imaging pathway from positioning to image confirmation. Each step focuses on speed, safety, and hygiene.
The slim body lets technologists make the shortest moving distance while operating and positioning. Sliding or turning the unit changes the field fast.
The swivel mechanism then fine-tunes the radiation field within plus or minus 15 degrees.
The FDR D-EVO II detector and noise reduction circuit improve sensitivity in high absorption regions. As a result, you capture clear images at a reduced X-ray dose.
Fujifilm reports a further dose reduction compared with its conventional images.
The integrated console and X-ray operation parts allow instant image confirmation after radiography. Therefore, staff verify positioning before moving on.

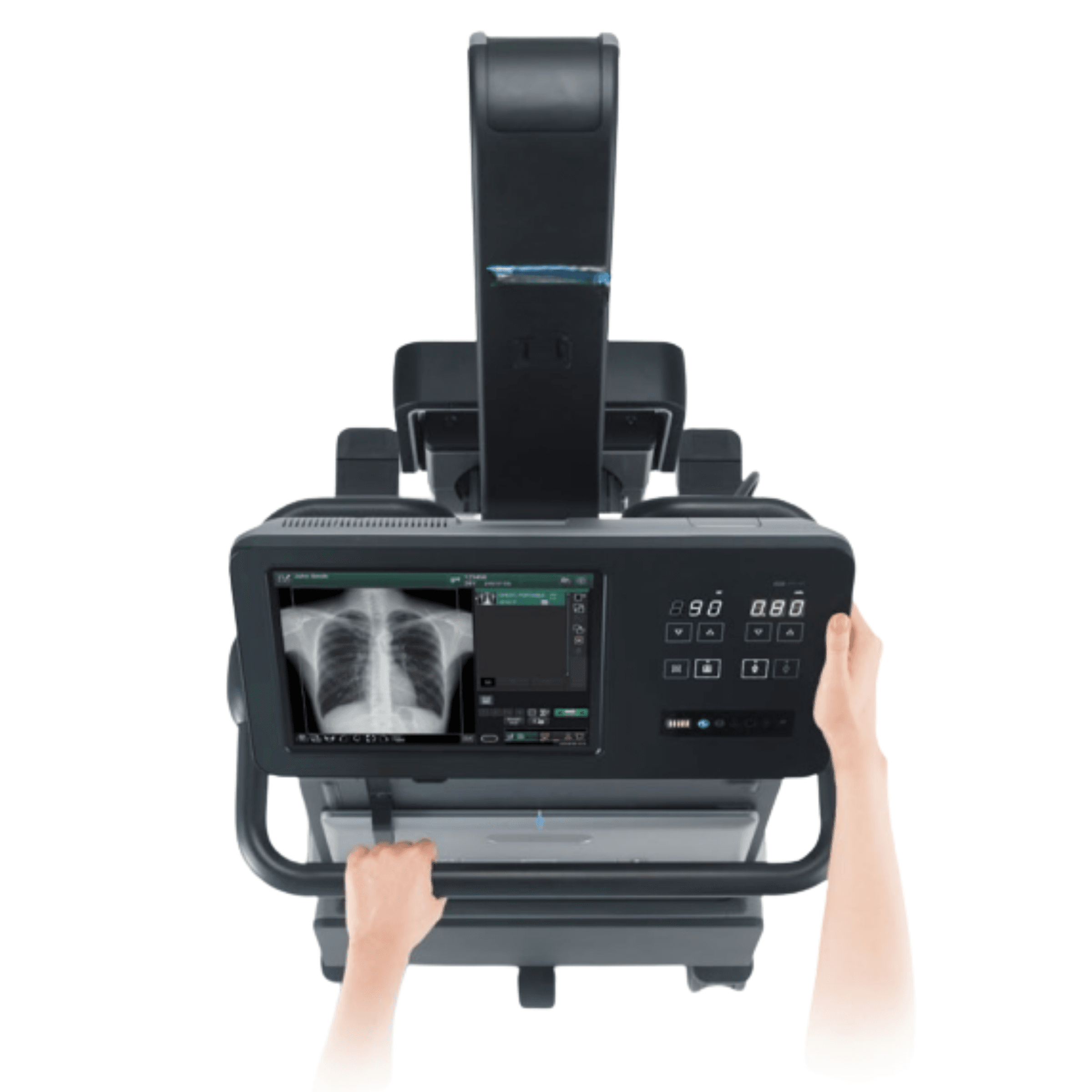

The flexible panel rotates 180 degrees for comfortable viewing.
Virtual Grid estimates scattered radiation and body thickness on a pixel basis. Because of this, it delivers high-contrast images without a physical grid.
You can choose an optimum grid ratio, and optional Dynamic Visualization II further optimizes contrast and density.
The DR slot charges, shares, and locks the D-EVO II detector. In addition, a key lock and a tilting slot make routine handling simple.
A quick 15 minute charge restores about 1 hour of imaging when time is short.
Compliance and Quality
The Fujifilm FDR nano carries documented regulatory marking and tested hygiene performance. Medical Outfitters supplies it under a certified quality system.
Request a Fujifilm FDR nano quote
Tell us your detector size and configuration needs. Our team prepares accurate pricing and availability for the FDR nano and its optional items.
Talk to a specialist
Call Medical Outfitters Inc. at (305) 885-4045 to discuss mobile imaging workflow, detector models, and delivery options for your facility.
Frequently Asked Questions
Common questions about the Fujifilm FDR nano compact digital X-ray cart system.
The total system weighs about 90 kg. That is roughly an 80 percent reduction compared with a traditional mobile X-ray unit, which Fujifilm estimates at 400 to 600 kg. As a result, one technologist can move it with one hand.
The system uses the FDR D-EVO II wireless cassette detector. You can choose the C35, C43, or C24 model. Each detector uses a CsI scintillator and includes the battery in its listed weight.
The built-in Li-ion battery supports 12 hours of continuous use at 20 shots per hour. A full charge takes about 4 hours. However, a 15 minute quick charge restores about 1 hour of use.
A plug-in shot mode lets you perform radiography on the AC power cord even when the battery is empty. Therefore, imaging stays available without downtime.
No. Virtual Grid software estimates scattered radiation and body thickness to produce high-contrast images without a grid. You can select an optimum grid ratio for each examination.
Dynamic Visualization II is an optional image processing technology. It recognizes different body thicknesses to optimize contrast and density. Ask our team if you want it added to your configuration.
Frequently touched parts use Hydro Ag antibacterial coating. In addition, a flat, cableless arm design wipes down easily, and the D-EVO II detector meets the IPX6 waterproofing standard.
You can buy the Fujifilm FDR nano from Medical Outfitters Inc., an ISO 13485:2016 certified supplier in Miami, FL. Call (305) 885-4045 for pricing, configuration, and availability.
