Fujifilm FDR D-EVO III: Glass-Free Lightweight DR Detector
Authorized Fujifilm digital radiography detector supplier. The FDR D-EVO III is a digital X-ray detector that is both portable and fast. Unlike bulkier, slower glass-based panels, it is much more pleasant for staff to use, and it does not sacrifice quality. The images it produces are crisp and clear, and it does not require a high level of radiation to capture them. Its design makes it one of the thinnest and lightest DR detectors available, so staff can handle it easily in portable or bedside applications.
Fujifilm engineers replaced the glass base TFT with a thin, flexible film base, which improves X-ray transmittance and raises the detective quantum efficiency to 58 percent for higher quality images at a lower dose. The 14 by 17 inch model weighs just 2.2 kilograms, a forged magnesium lithium alloy frame supports a 310 kilogram load, the HydroAG antibacterial coating guards against bacteria, and IPX6 and IP5X ratings resist water and dust. Proprietary ISS irradiated side sampling, internal memory for 100 images, and Dynamic Visualization II complete the package.
Need pricing? Get a quote with lead times and volume discounts within one business day.
Glass-Free Film-Based Imaging in an Ultra-Light Detector
The FDR D-EVO III pairs a glass-free film-based sensor with a lightweight, rugged, antibacterial design. Higher image quality at a lower dose, plus easy handling and cleaning, set it apart from conventional glass-based panels. Full technical detail is in the expandable sections below.
Glass-Free Film-Based TFT: replacing the conventional glass base with a thin flexible film improves X-ray transmittance and removes the glass layer that can crack, which makes the detector lighter and more durable
DQE 58 Percent: the film base raises the detective quantum efficiency from 54 percent to 58 percent at 1 line pair per millimeter, for higher quality images at a lower dose

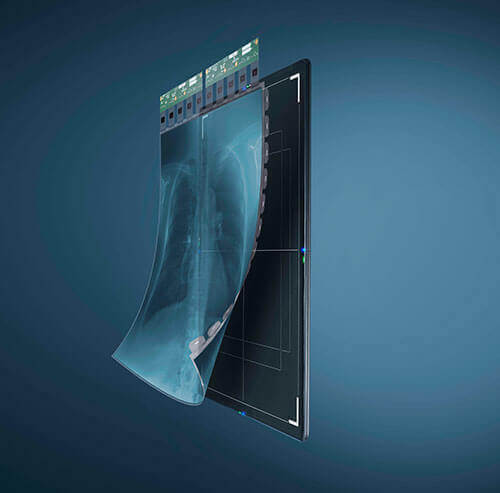

ISS Irradiated Side Sampling: optical sensors bond to the X-ray irradiation side of the panel, which suppresses scattering and attenuation and creates a sharp image with a low X-ray dose
Cesium Iodide Scintillator: a CsI scintillator with a 0.15 millimeter pixel pitch delivers high resolution detail

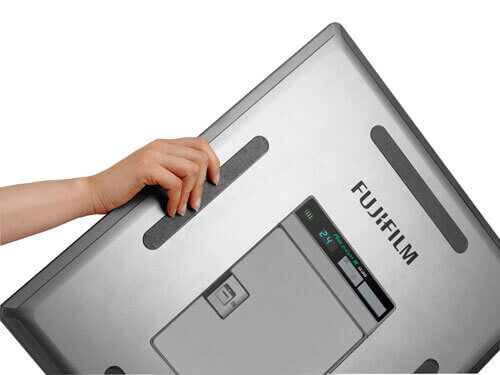

Internal Image Memory: up to 100 images are stored in the panel memory, and the LED display shows the stored image count and battery status even when the panel is used on its own
SmartSwitch Automatic Detection: SmartSwitch detects X-rays automatically without a hard wired connection between the generator and the DR power supply

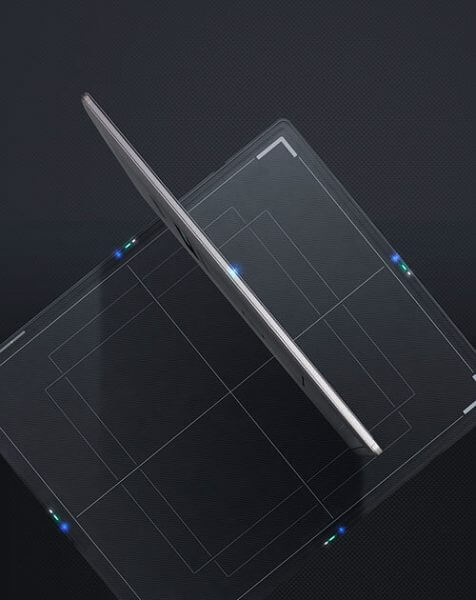

Ultra-Lightweight: the 14 by 17 inch model weighs approximately 2.2 kilograms without the battery, lighter than first and second generation DR detectors, which reduces strain and the risk of dropping the panel on a patient
Magnesium Lithium Alloy Frame: a forged Mg-Li alloy frame protects the internal device while staying light, and supports a 310 kilogram load capacity
HydroAG Antibacterial Coating: an antibacterial effect 100 times greater than conventional silver coatings reduces bacteria below the detection limit within one hour for hygienic use between patients
IPX6 and IP5X Protection: waterproof against jets from any direction and dust proof against small particles, so fluids like blood or vomit do not penetrate the device
Easy-Clean Flat Design: a flat shape with reduced contours and curved shell edges makes the panel easy to wipe down and simple to slide under patients and pick up from a flat surface

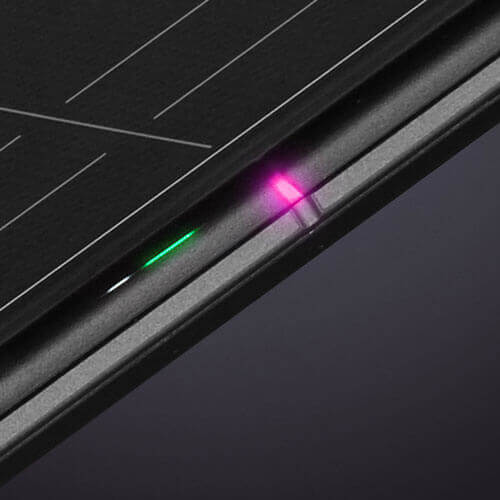

Five-Color LED Positioning: side-center LEDs on four sides aid positioning, show a green ready status, and use five colors to distinguish multiple detectors
How the FDR D-EVO III compares against a conventional glass-based DR detector:
The synergy of the ISS method and the flexible film-based TFT is what sets the D-EVO III apart. The thin film reduces attenuation of X-ray signals and increases absorption, which improves both sensitivity and resolution while keeping the dose low. At the same time, the lightweight magnesium lithium alloy frame, the HydroAG antibacterial coating, and the IPX6 and IP5X ratings make the detector easier and safer for staff to handle, clean, and rely on across portable, bedside, and high-volume radiology work.
Full Technical Specifications
Complete reference data for capital procurement, RFP submissions, and biomedical review. Radiology directors, technologists, and biomedical engineers rely on this specification set when they evaluate a digital radiography flat panel detector. Expand each category for full detail.
| Type | Cassette type detector with ISS irradiated side sampling and flexible film-based TFT |
| Scintillator | Cesium iodide, CsI |
| Pixel Pitch | 0.15 millimeters |
| DQE | 58 percent at 1 line pair per millimeter, RQA5 1 mR |
| Image Preview | Less than 2 seconds, wired or wireless |
| Processed Image | Less than 5 seconds, wired or wireless |
| Cycle Time | Less than 7 seconds, less than 8 seconds with SmartSwitch |
| C35i 14 by 17 inch | 460 by 384 by 15 mm, approximately 2.2 kg without battery, 2836 by 2336 pixels |
| C43i 17 by 17 inch | 460 by 460 by 15 mm, approximately 2.6 kg without battery, 2836 by 2832 pixels |
| Sensor | Glass-free flexible film-based TFT |
| Frame | Forged magnesium lithium alloy |
| Load Capacity | 310 kilograms |
| Waterproof | IPX6, withstands jets from any direction |
| Dust Proof | IP5X |
| Antibacterial | HydroAG coating, 100 times more effective than conventional silver coatings |
| Cleaning | Flat shape with reduced contours and curved shell edges |
| Battery | Battery Pack and Battery Pack S, lithium ion, one-handed replacement |

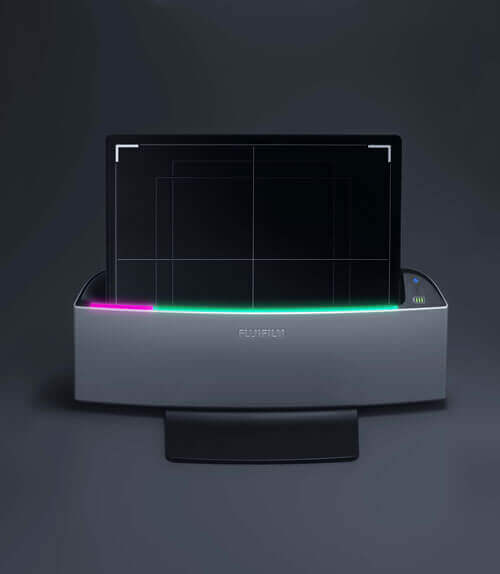

| Recharging | Approximately 3 hours with battery charger, 4 hours with docking stand |
| Internal Memory | Up to 100 images stored in the panel |
| Status Display | LED display shows stored image count, battery status, and ready state |
| Sleep Modes | Sleep and extra sleep modes extend standby time |
| Automatic Detection | SmartSwitch automatic X-ray detection, no generator connection required |
| Wireless | IEEE 802.11n and 802.11ac on 2.4 and 5 GHz, W52, W53, and W56 |
| Access Point | No small access point required, panel and mobile console only |
| LED Positioning | Side-center LEDs on four sides with five colors to distinguish multiple detectors |
| Image Processing | Virtual Grid and Dynamic Visualization II through Console Advance |
| Peripherals | Compatible with FDR D-EVO II battery charger, docking stand, power supply, and power box |
Clinical Applications
Deployed wherever a light, durable, and hygienic DR detector turns an X-ray system into an efficient digital radiography workflow, from the bedside to high-volume rooms.
A 2.2 kilogram glass-free panel with curved shell edges is easy to slide under patients and handle for portable and bedside exams.
Dual band 2.4 and 5 GHz wireless and internal memory for 100 images support mobile and outdoor imaging without a small access point.
Fast image preview under 2 seconds and SmartSwitch automatic detection keep busy radiography rooms moving.
IPX6 waterproofing, IP5X dust resistance, and the HydroAG antibacterial coating suit trauma, ICU, and cleaning heavy environments.
Five-color side-center LEDs distinguish multiple detectors and show a green ready status across a busy department.
The lightweight detector pairs with existing rooms and portable flex configurations to upgrade analog or older DR workflows.
From Bedside Placement to a Processed Image
A detector workflow built for speed and easy handling. Simple placement, automatic detection, fast preview, and advanced processing move every exam from the bedside to PACS. Expanded workflow details are in the expandable sections below.

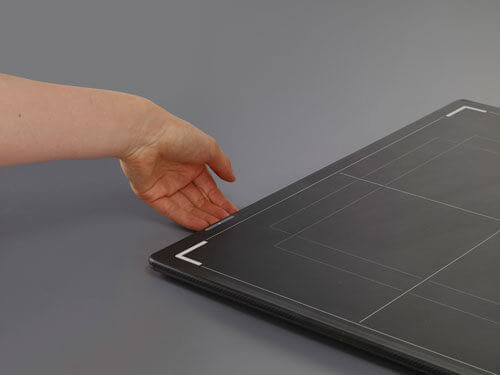

The lightweight 2.2 kilogram panel is easy to handle, and the curved shell-designed edges on both sides allow easier insertion into patient beds and a simpler pick up from a flat surface. The flat, reduced contour shape also makes the detector quick to wipe down between patients.
SmartSwitch detects X-rays automatically, so the D-EVO III does not require a hard wired connection between the X-ray generator and the DR power supply. The technologist exposes as usual, and the detector starts image creation on its own, which simplifies portable and retrofit setups.
An image preview appears in less than 2 seconds, wired or wireless, and a fully processed image is ready in less than 5 seconds. The glass-free film-based sensor and ISS method deliver a sharp, high DQE image at a low dose, while the LED display confirms status and stored image count.
Paired with Console Advance, the system applies Virtual Grid to correct scatter without a physical grid and Dynamic Visualization II to optimize contrast and density for each body part. Up to 100 images can buffer in panel memory when the network is unavailable, then route to PACS through standard connectivity.
Regulatory Compliance and Safety
FDA cleared for digital radiography, manufactured by FUJIFILM Corporation of Japan. Medical Outfitters is an ISO 13485:2016 certified supplier of imaging equipment, so every Fujifilm FDR D-EVO III ships through a documented and audited quality management system. Full compliance documentation is available in the expandable sections below.
FDA Cleared: the Fujifilm FDR D-EVO III flat panel detector is FDA cleared for digital radiography.
ISO 13485: Medical Outfitters Inc. is independently ISO 13485:2016 certified as a supplier, so every detector ships through a fully audited quality management system.
Manufacturer: the FDR D-EVO III is manufactured by FUJIFILM Corporation of Tokyo, Japan.
Configuration: external appearance and specifications are subject to change, and all products require the regulatory approval of the importing country.
Antibacterial: the HydroAG coating is validated under JIS Z 2801 and ISO 22196 antibacterial testing.
Ingress Protection: IPX6 waterproof and IP5X dust proof construction.
Connectivity: standard DICOM connectivity through Console Advance for PACS integration.
Detector & Accessory Review
Tell us your room and mobile imaging needs and detector size. Our team confirms the C35i or C43i configuration, accessories such as chargers, docking stands, and grid caps, and arranges delivery and training.
Capital Equipment & RFP Support
Pricing, technical documentation, and logistics for DR detector deployments. We support radiology directors, biomedical engineers, and purchasing departments evaluating flat panel detectors. Contact us for RFP packages.
Frequently Asked Questions
Quick answers to the most common purchase and technical questions about the Fujifilm FDR D-EVO III flat panel detector. Tap any question to expand.
The Fujifilm FDR D-EVO III is a glass-free, film-based digital radiography flat panel detector that is both portable and fast. It is one of the thinnest and lightest DR detectors available, captures crisp images at a low dose, and uses proprietary ISS irradiated side sampling with a cesium iodide scintillator. It is well suited to portable, bedside, and high-volume radiology work.
The D-EVO III replaces the conventional glass base TFT panel with a thin, flexible film base. This improves X-ray transmittance and raises the detective quantum efficiency from 54 percent on the prior generation to 58 percent, which means higher image quality at a lower radiation dose. The film base also removes the glass layer that can crack, so the detector is more durable and lighter.
Both are Fujifilm DR detectors that use ISS, SmartSwitch, and Virtual Grid. The FDR ES is a wireless detector available in CsI and GOS that fits standard Bucky stands with IPX3 protection. The D-EVO III is the glass-free, film-based generation that achieves a 58 percent DQE, weighs about 2.2 kilograms, adds a magnesium lithium alloy frame with a 310 kilogram load, the HydroAG antibacterial coating, and higher IPX6 and IP5X ingress protection, with Dynamic Visualization II processing.
The 14 by 17 inch model weighs approximately 2.2 kilograms, about 4.9 pounds, without the battery, which makes it easier and safer for staff to position. A forged magnesium lithium alloy frame provides a 310 kilogram load capacity, and the detector is IPX6 waterproof against jets from any direction and IP5X dust proof, so it withstands fluids and small particles in demanding settings.
HydroAG is Fujifilm’s antibacterial coating, which has an antibacterial effect 100 times greater than conventional silver coatings and reduces residual bacteria below the detection limit within one hour in JIS Z 2801 and ISO 22196 testing. A hyper hydrophilic binder and the flat, reduced contour design make the detector easy to wipe down for hygienic use between patients.
The FDR D-EVO III is available as the C35i 14 by 17 inch model, with external dimensions of 460 by 384 by 15 millimeters and a 2836 by 2336 pixel matrix, and the C43i 17 by 17 inch model, with external dimensions of 460 by 460 by 15 millimeters and a 2836 by 2832 pixel matrix. Both use a cesium iodide scintillator and a 0.15 millimeter pixel pitch.
Yes. The Fujifilm FDR D-EVO III flat panel detector is FDA cleared. Medical Outfitters Inc. is ISO 13485:2016 certified as the supplying distributor, so every detector ships through an audited quality management system. It is manufactured by FUJIFILM Corporation.
Through Medical Outfitters Inc., ISO 13485:2016 certified, Miami, FL. We supply factory new detectors with accessories such as battery chargers, docking stands, and grid caps, and nationwide support. Call (305) 885-4045 or request a quote online.
