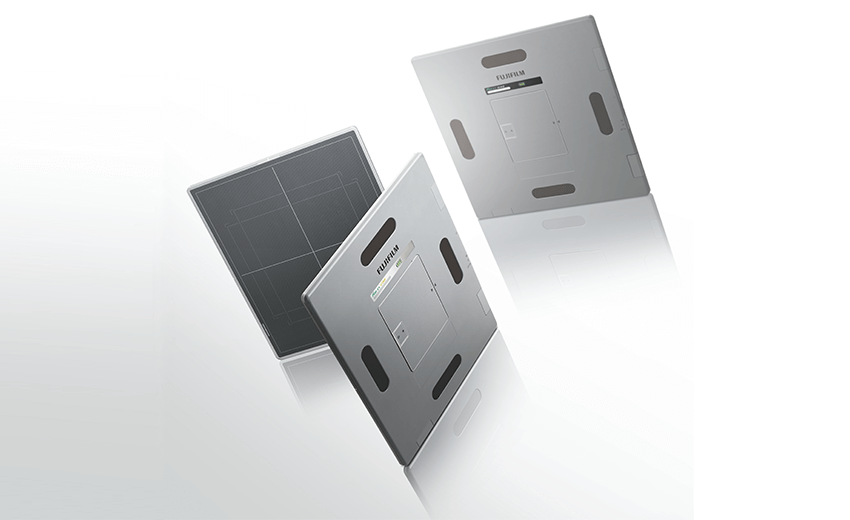

Fujifilm FDR ES: Wireless Flat Panel DR Detector
Authorized Fujifilm digital radiography equipment supplier. The FDR ES is a wireless flat panel detector that transforms existing analogue mobile X-ray units and standard Bucky installations into a complete digital radiography machine without room construction, equipment replacement, or workflow disruption. It fits directly into most standard Bucky stands and holders, removing the cost and downtime of a conventional digital upgrade.
Core digital X-ray technology: Fujifilm’s proprietary ISS (Irradiated Side Sampling) positions the capture electronics at the irradiation side rather than behind the scintillator layer, significantly suppressing light scatter and signal attenuation to deliver sharper images at doses up to 20% lower than conventional DR detectors. SmartSwitch automatic X-ray detection eliminates cable connections between generator and detector. Virtual Grid software replaces physical anti-scatter grids across four selectable ratios, and Dynamic Visualization II automatically adjusts contrast and density per body part, making the FDR ES a complete digital X-ray system for general radiology, mobile imaging, and multi-room DR deployment.
Need pricing? Get a quote with lead times and volume discounts within one business day.
ISS Technology, SmartSwitch & Virtual Grid
Three core technologies differentiate the FDR ES from standard flat panel detectors and conventional digital radiography systems. Each addresses a specific limitation in traditional DR equipment. Full technical detail is in the expandable sections below.
ISS (Irradiated Side Sampling): Fujifilm’s proprietary design positions the TFT capture electronics at the irradiation side of the detector, in contrast to conventional detectors where the TFTs sit behind the scintillator. This eliminates the optical signal path through the scintillator layer, significantly reducing light scatter and attenuation
Dose Improvement: Up to 20% dose efficiency improvement over comparable conventional DR detectors while maintaining or improving image quality
Noise Reduction Circuit: Fujifilm’s uniquely developed noise reduction circuit reduces image granularity in low-concentration regions such as the heart and mediastinum, dramatically improving diagnostic clarity in high-absorption areas
Virtual Grid: Image processing software that predicts and corrects scatter radiation effects without a physical anti-scatter grid, available in selectable ratios of 1:1, 6:1, 8:1, and 20:1 to match examination needs
Dynamic Visualization II (optional): Advanced recognition algorithms automatically adjust contrast and density for individual body parts based on estimated 3D image data
Exam Speed: Total two-exposure exam time as low as 10 seconds from first exposure through second image review
SmartSwitch Technology: Automatically detects X-ray exposure and begins image acquisition without a physical cable connection between the X-ray generator and DR detector, simplifying setup and reducing inter-exposure delays
Fits Existing Equipment: Designed to drop into most standard Bucky stands and holders so facilities can transition to digital radiography without room construction or equipment replacement
Lightweight Design: 2.9kg for 14×17 models and 3.7kg for 17×17 models, with rounded edges that make the detector easy to pick up from flat surfaces with one hand
IPX3 Waterproofing: Protects against incidental liquid spray during routine clinical use and standard cleaning protocols
300kg Load Capacity: Reinforced frame structure supports the load demands of busy radiology departments

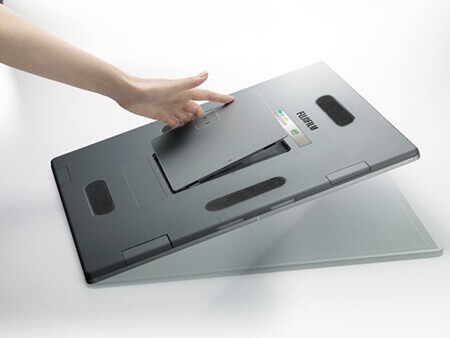

One-Handed Battery Replacement: Battery swaps are completed with one hand, and the detector is ready to image within 30 seconds of battery insertion
17×17 Square Cassette Design: The square format eliminates the need to rotate the cassette between horizontal and vertical orientations during examinations, removing a common workflow interruption
Sleep Mode: Automatic sleep mode reduces battery drain during idle periods, extending operational life between charges
How the FDR ES compares against a conventional CR or analogue system:
Paired with Console Advance, the FDR ES transforms analogue mobile X-ray units into complete digital radiography systems quickly and easily. Images appear on-screen within seconds of exposure for immediate review at the point of care. This mobile digital radiography solution is ideal for departments upgrading portable equipment without the budget or timeline for a full-system replacement.
Full Technical Specifications
Complete reference data for capital procurement, RFP submissions, and biomedical engineering evaluation. This specification set is required by radiology directors, purchasing teams, and biomedical engineers comparing digital radiography machine options. Expand each category.

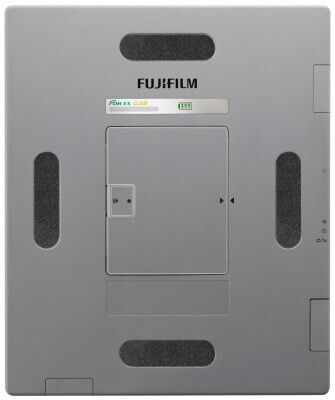

| FDR ES G35 | GOS scintillator, 14×17 cassette size, 460x384x15mm, approx. 2.9kg |
| FDR ES C35 | CsI scintillator, 14×17 cassette size, 460x384x15mm, approx. 2.9kg |
| FDR ES G43 | GOS scintillator, 17×17 cassette size, 460x460x15mm, approx. 3.7kg |
| FDR ES C43 | CsI scintillator, 17×17 cassette size, 460x460x15mm, approx. 3.7kg |
| Scintillator Options | GOS (Gadolinium Oxysulfide) or CsI (Cesium Iodide) |
| ISS Technology | Irradiated Side Sampling, TFTs at irradiation side for reduced scatter and attenuation |
| Dose Efficiency | Up to 20% improvement over comparable conventional detectors |
| Noise Reduction | Proprietary circuit improves granularity in the heart, mediastinum, and low-concentration regions |
| Virtual Grid | Software scatter correction in ratios of 1:1, 6:1, 8:1, and 20:1 |
| Dynamic Visualization II | Optional. Auto-adjusts contrast and density per body part using estimated 3D image data |
| Load Capacity | 300kg reinforced frame structure |
| Waterproofing | IPX3 rated against incidental liquid spray |
| Shape | Easy-to-clean flat shape with rounded edges for single-hand pickup from flat surfaces |
| Weight | Approx. 2.9kg (35 models) / Approx. 3.7kg (43 models), including battery |
| Battery Replacement | One-handed battery swap, ready to image within 30 seconds |
| Sleep Mode | Automatic sleep mode extends battery life during idle periods |
| SmartSwitch | Automatic X-ray exposure detection, no generator cable connection required |
| Wireless Operation | Available on 14×17 and 17×17 models (detachable cord also supported) |
| Compatible System | Console Advance (DR-ID 300CL) for image processing and PACS routing |
| Battery Charger | Dedicated battery charger for continuous operation support |
| AP MP Box | Optional accessory for expanded connectivity |
| Power-Box | Supplemental power management accessory |
| Image Processing Software | Advanced processing software including Dynamic Visualization II for optimized diagnostic output |
Clinical Applications
Deployed across general radiology, mobile imaging, and multi-room digital X-ray deployments wherever rapid image availability, low patient dose, and retrofit simplicity are the primary purchasing drivers.
ISS technology and Virtual Grid software deliver high-resolution digital X-ray images at doses up to 20% lower than conventional DR systems, across chest, spine, abdomen, and extremity projections.
Paired with Console Advance, the FDR ES converts existing analogue portable x-ray machines into complete digital radiography systems in minutes, with images available for review within 10 seconds of exposure.
The noise reduction circuit specifically improves granularity in the heart and mediastinum, making the FDR ES well-suited for chest radiography where low-concentration region clarity is critical for diagnostic confidence.
The 14×17 cassette models are sized for extremity applications. The lightweight 2.9kg design and rounded edges simplify positioning around complex anatomical areas and patient-held extremity studies.
SmartSwitch wireless detection, one-handed battery replacement, 30-second ready time, and sleep mode keep throughput high in busy digital x-ray systems without exam-to-exam delays.
The FDR ES drops into existing standard Bucky stands and holders, allowing facilities to upgrade to digital radiography equipment without construction, room modification, or replacement of existing wall stands and table systems.
Acquisition, Image Processing & PACS Integration
A complete DR radiography system designed to integrate into existing radiology infrastructure with minimal setup. Whether upgrading a Bucky room or expanding portable x-ray equipment capability, the FDR ES connects to Console Advance for immediate PACS routing. Expanded workflow details are in the expandable sections below.
The FDR ES drops into the existing Bucky stand or holder with no room modification. SmartSwitch automatically detects the X-ray exposure and initiates image acquisition without a cable connection to the generator. Images appear on Console Advance within seconds for immediate review, and are routed to PACS automatically. Total two-exposure exam time is as low as 10 seconds.
With Console Advance (mobile version), the FDR ES converts existing analogue mobile X-ray units to full digital radiography capability. The detector wirelessly connects to the mobile console, images are reviewed at the point of care, and data is transferred to PACS. No new mobile X-ray unit purchase is required for facilities with capable analogue generators.
The technologist selects the Virtual Grid ratio (1:1, 6:1, 8:1, or 20:1) appropriate to the examination. Virtual Grid software then predicts and corrects for scatter radiation effects, eliminating the need to physically insert or remove an anti-scatter grid between examinations. Dynamic Visualization II (optional) applies body-part-specific contrast and density optimization automatically.
One-handed battery replacement takes seconds, and the detector is ready to image within 30 seconds of battery insertion. Automatic sleep mode reduces battery drain during idle periods between patients. Spare battery chargers and additional batteries are available as optional accessories to support continuous high-volume operation.
Regulatory Compliance & Safety
FDA cleared for digital radiography imaging. Fujifilm Healthcare is a globally recognized provider of diagnostic imaging technology with decades of DR detector development. Medical Outfitters is an ISO 13485:2016-certified supplier of digital X-ray systems and radiology equipment, meaning every FDR ES ships through a documented, audited quality management system. Full compliance documentation is available in the expandable sections below.
FDA Cleared: The Fujifilm FDR ES is FDA cleared for digital radiography imaging. Suitable for use in U.S. hospital radiology departments, outpatient imaging centers, and mobile X-ray programs.
ISO 13485: Medical Outfitters Inc. is independently ISO 13485:2016 certified as a digital X-ray imaging equipment supplier, ensuring every unit ships through a documented, audited quality management system.
IPx3 Waterproofing: The FDR ES is rated IPX3 for protection against incidental liquid spray, compatible with standard clinical cleaning protocols in radiology environments.
Load Capacity: 300kg reinforced frame meets the structural demands of high-volume clinical use.
RoHS: Restriction of Hazardous Substances compliant.
REACH: EU REACH chemical regulation compliant.
Manufacturer: FUJIFILM Corporation, Tokyo, Japan. A global leader in diagnostic imaging products and medical informatics solutions.
Compatibility & System Integration Review
Provide your existing Bucky stand model, generator type, and PACS configuration. Our team confirms FDR ES compatibility with your infrastructure and coordinates installation before shipment.
Capital Equipment & RFP Support
Volume pricing, technical documentation, and multi-room logistics for digital radiography equipment upgrade projects. We support radiology directors, biomedical engineers, and purchasing departments evaluating DR system options. Contact us for RFP packages.
Frequently Asked Questions
Quick answers to the most common purchase and technical questions about the Fujifilm FDR ES flat panel detector. Tap any question to expand.
The Fujifilm FDR ES is a wireless flat panel DR detector available in CsI and GOS scintillator options across 14×17 and 17×17 cassette sizes. It features ISS technology for up to 20% dose efficiency improvement, SmartSwitch automatic X-ray detection, Virtual Grid scatter correction software, IPX3 waterproofing, and fits standard Bucky stands without room retrofitting.
Pricing varies by model (G35, C35, G43, C43) and configuration. Medical Outfitters returns a quote within one business day. Submit a request online or call (305) 885-4045.
ISS (Irradiated Side Sampling) positions the TFT capture electronics at the irradiation side of the detector rather than behind the scintillator layer. This significantly reduces light scatter and signal attenuation, producing sharper images at doses up to 20% lower than conventional DR detectors of comparable specification.
SmartSwitch automatically detects X-ray exposure and begins image acquisition without requiring a cable connection between the X-ray generator and the DR detector. This simplifies workflow, reduces setup steps between exposures, and supports fully wireless operation.
The FDR ES is available in four models: FDR ES G35 (GOS, 14×17, 2.9kg), FDR ES C35 (CsI, 14×17, 2.9kg), FDR ES G43 (GOS, 17×17, 3.7kg), and FDR ES C43 (CsI, 17×17, 3.7kg). The 17×17 square format eliminates the need to rotate the cassette during examinations.
Yes. The FDR ES is designed to fit into most existing standard Bucky stands and holders, enabling a transition from computed radiography or analogue systems to digital radiography equipment without room construction or major equipment replacement.
Computed radiography uses a phosphor plate that must be physically processed in a reader after exposure, adding time and handling steps. The FDR ES digital radiography detector delivers images to the console within seconds of exposure, with no cassette processing, no reader hardware, and higher dose efficiency than CR systems. The total transition from computed radiography to digital radiography with the FDR ES requires no room construction.
Through Medical Outfitters Inc., ISO 13485:2016 certified, Miami, FL. Factory-new units with nationwide installation support. Call (305) 885-4045 or request a quote online.
