Fujifilm FDR Beyond Hybrid X-ray Room Overview
Authorized Fujifilm digital radiography and fluoroscopy supplier. The Fujifilm FDR Beyond integrates radiography and fluoroscopy into one X-ray room. As a result, you gain a practical hybrid room model. Because fluoroscopy rooms remain essential, this system adds fluoroscopic capability to general radiography. Therefore, a single room covers a wide range of exams.
At its core sits the FDR D-EVO III flat panel detector. It uses Fujifilm’s ISS method and a film-based TFT panel, so images stay sharp at low dose. In addition, pulsed fluoroscopy and the Dynamic Core Engine X help reduce exposure for patients and staff. The Bucky table supports a 220 kg load and adjusts in height for comfortable positioning.
Need pricing? Get a quote with lead times within one business day.
Fujifilm FDR Beyond Features
The Fujifilm FDR Beyond brings radiography and fluoroscopy together with a film-based detector and frame-by-frame image processing. Below are the core capabilities that define the system.
The FDR D-EVO III is a high-end model in the D-EVO series. It combines lightweight design, high image quality, durability, and ease of use. Because it uses the indirect-conversion ISS method, the TFT light sensor sits on the irradiation side. In addition, a flexible film sensor replaces traditional glass, so X-ray transmittance improves. Therefore, the detector delivers sharper images at lower dose. The detector also ships in two sizes, the C35i 14 × 17 inch model and the C43i 17 × 17 inch model. Furthermore, the C35i can be positioned vertically or horizontally to match the exam.
Pulsed fluoroscopy emits X-rays intermittently, so it significantly reduces radiation compared with continuous fluoroscopy. The frame rate adjusts in four steps, namely 15, 8, 4, or 2 fps. As a result, you can balance image quality and dose for each exam. In addition, the Dynamic Core Engine X applies dynamic visualization and noise reduction on a frame-by-frame basis. Because the FPD maintains a high DQE, the system holds stable image quality while keeping dose low.
Here is how a conventional R/F setup compares with the Fujifilm FDR Beyond.

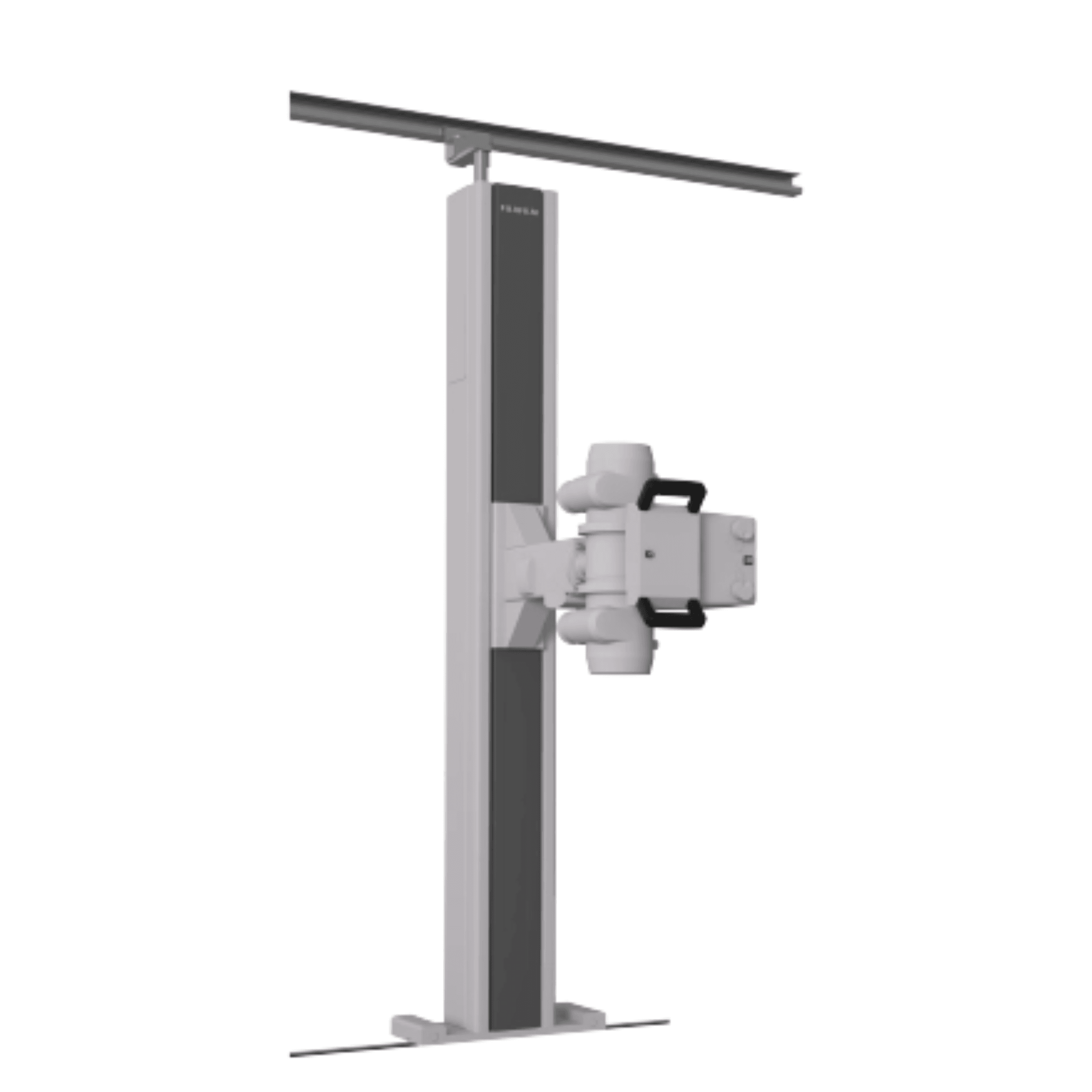

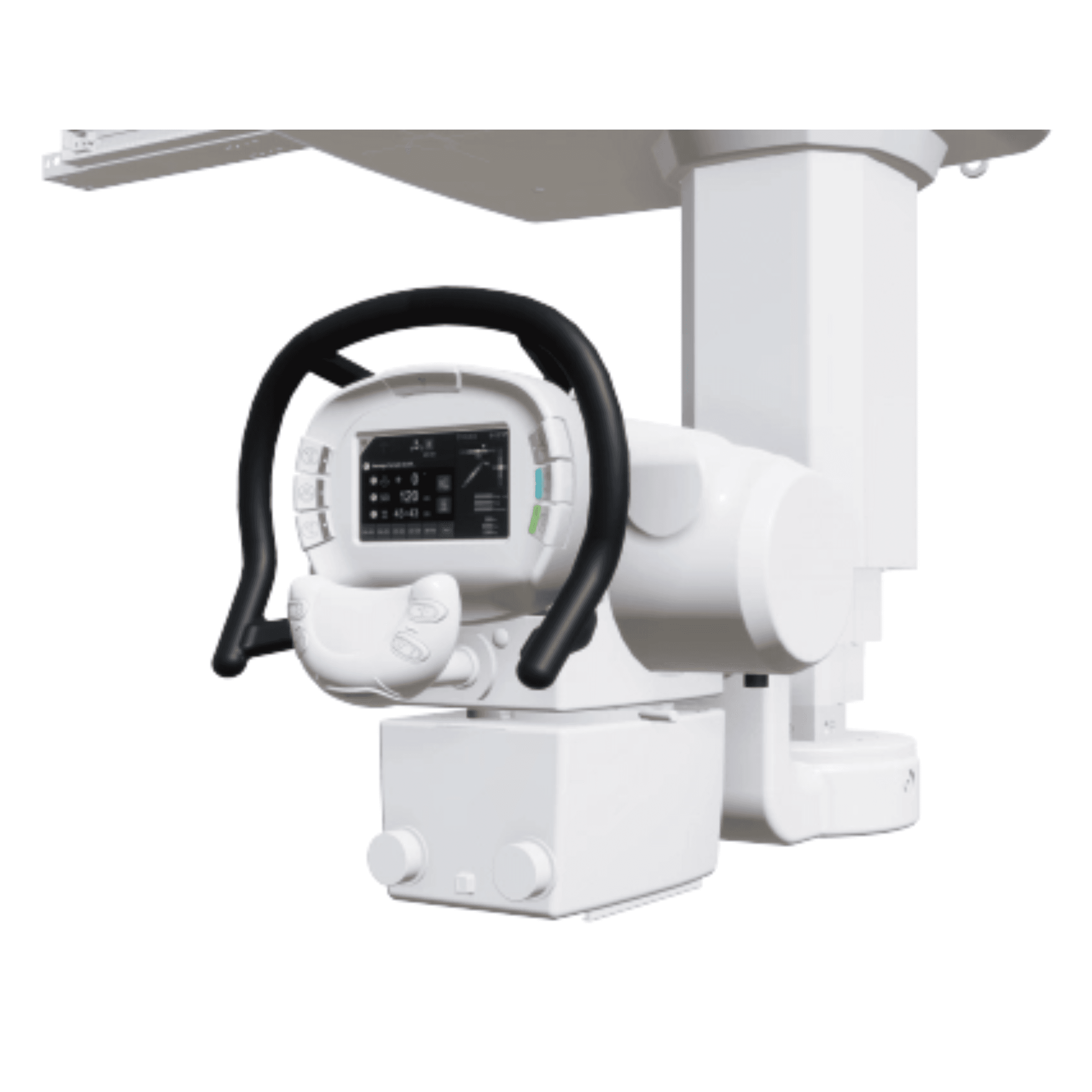

The Bucky table and the optional Bucky stand both support fluoroscopy. Therefore, your team can perform table-based and upright exams in the same space. Flexible tube support layouts expand what the X-ray room can do.
Full Specifications
The specifications below come directly from Fujifilm source material for the FDR Beyond and the FDR D-EVO III detector.
| Type | Digital radiography and fluoroscopy system |
| Configuration | Radiography and fluoroscopy in one room |
| Room model | Hybrid X-ray room |
| Fluoroscopy enablement | Enabled with FDR Beyond and FDR D-EVO III |
| Load capacity | 220 kg |
| Height range | 565 to 850 mm |
| SID auto-tracking | 1000 to 1500 mm in 100 mm increments |

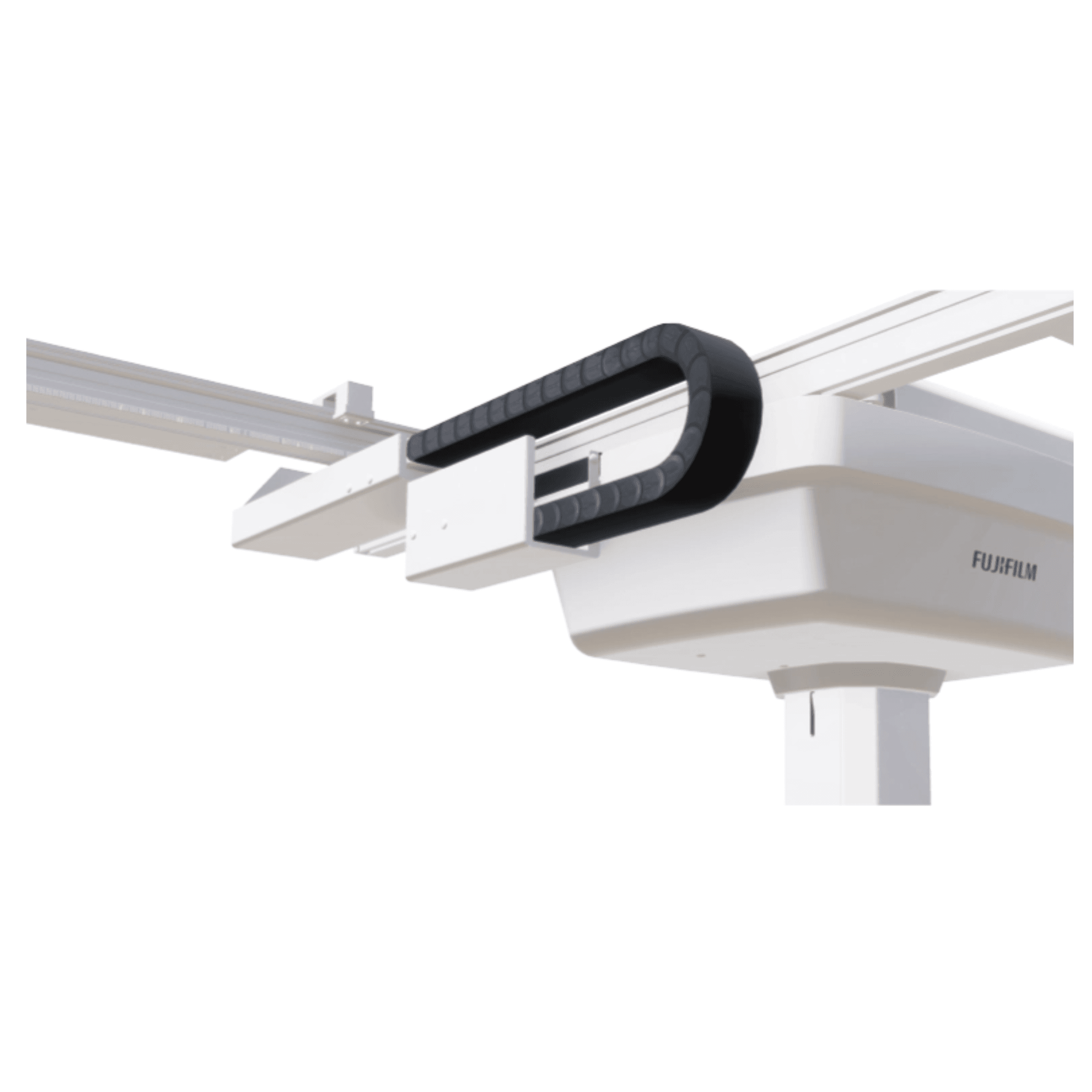

| Tracking method | Constant SID with Ceiling-traveling System |
| Cover design | Straight-line for easy cleaning |
| C35i model | 14 × 17 inch |
| C43i model | 17 × 17 inch |
| Conversion type | Indirect-conversion ISS method |
| TFT panel | Flexible film sensor TFT |
| Orientation | C35i vertical or horizontal |
| C35i positioning | Selectable by exam requirements |
| Fluoroscopy type | Pulsed fluoroscopy |
| Frame rate steps | 15, 8, 4, or 2 fps |
| Dynamic processing | Dynamic Core Engine X |
| Detector efficiency | High DQE for stable imaging |
| Contrast control | Dynamic Visualization II (option) |
| Noise control | Flexible Noise Control |
| Grid-free imaging | Virtual Grid (option) |
| Antibacterial coating | Hydro Ag, 100x conventional Ag |
| Construction | Waterproofed and dust-proofed |
Clinical Applications

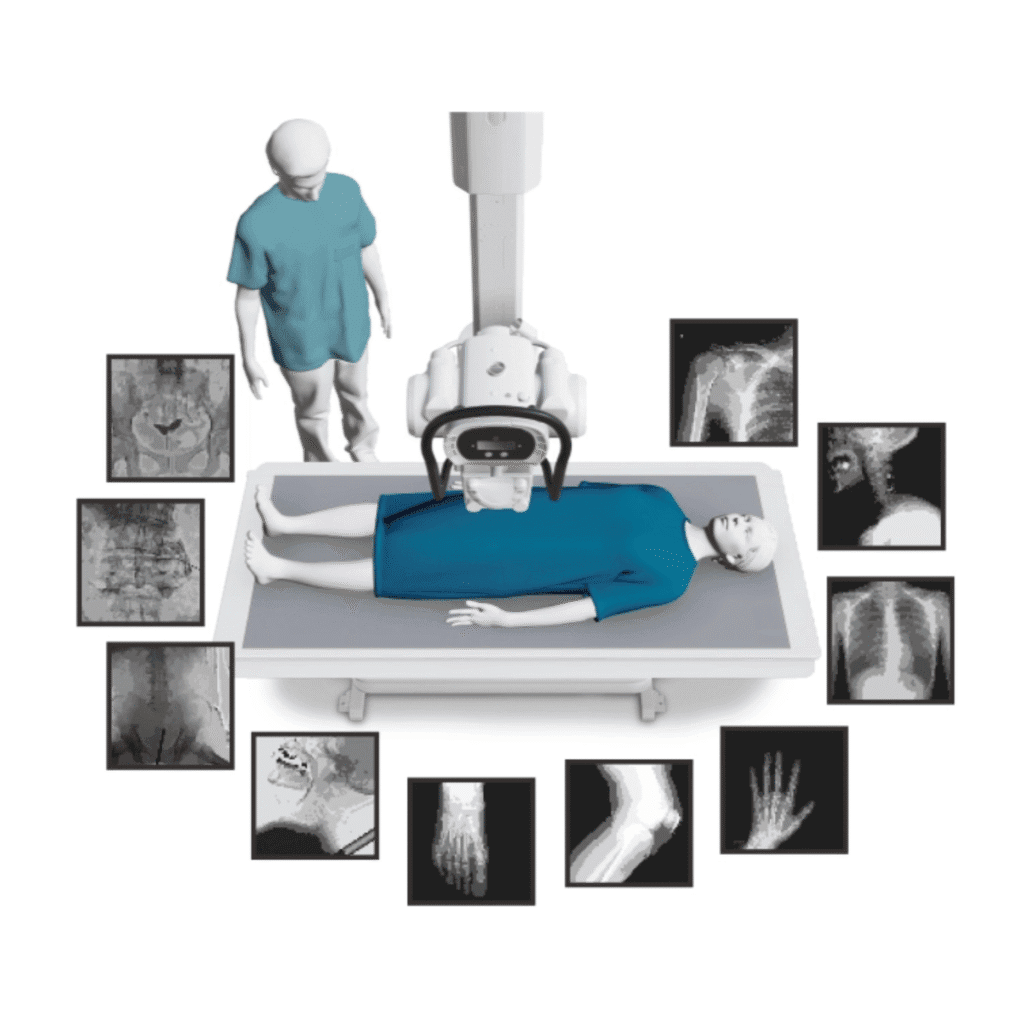

The Fujifilm FDR Beyond supports both routine radiography and dynamic fluoroscopy. Here are common clinical applications.
The Bucky table handles standard abdominal imaging. Because the system is integrated, the same room also runs related fluoroscopy. Therefore, workflow stays simple.
Teams capture orthopedic still images on the height-adjustable table. In addition, the table accommodates patient comfort across exam types.
Fluoroscopic guidance supports nerve blocks on the Bucky table. As a result, clinicians can target structures with dynamic imaging.
The system accommodates urological and gynecological fluoroscopy. Because pulsed mode is adjustable, dose stays controlled during each study.

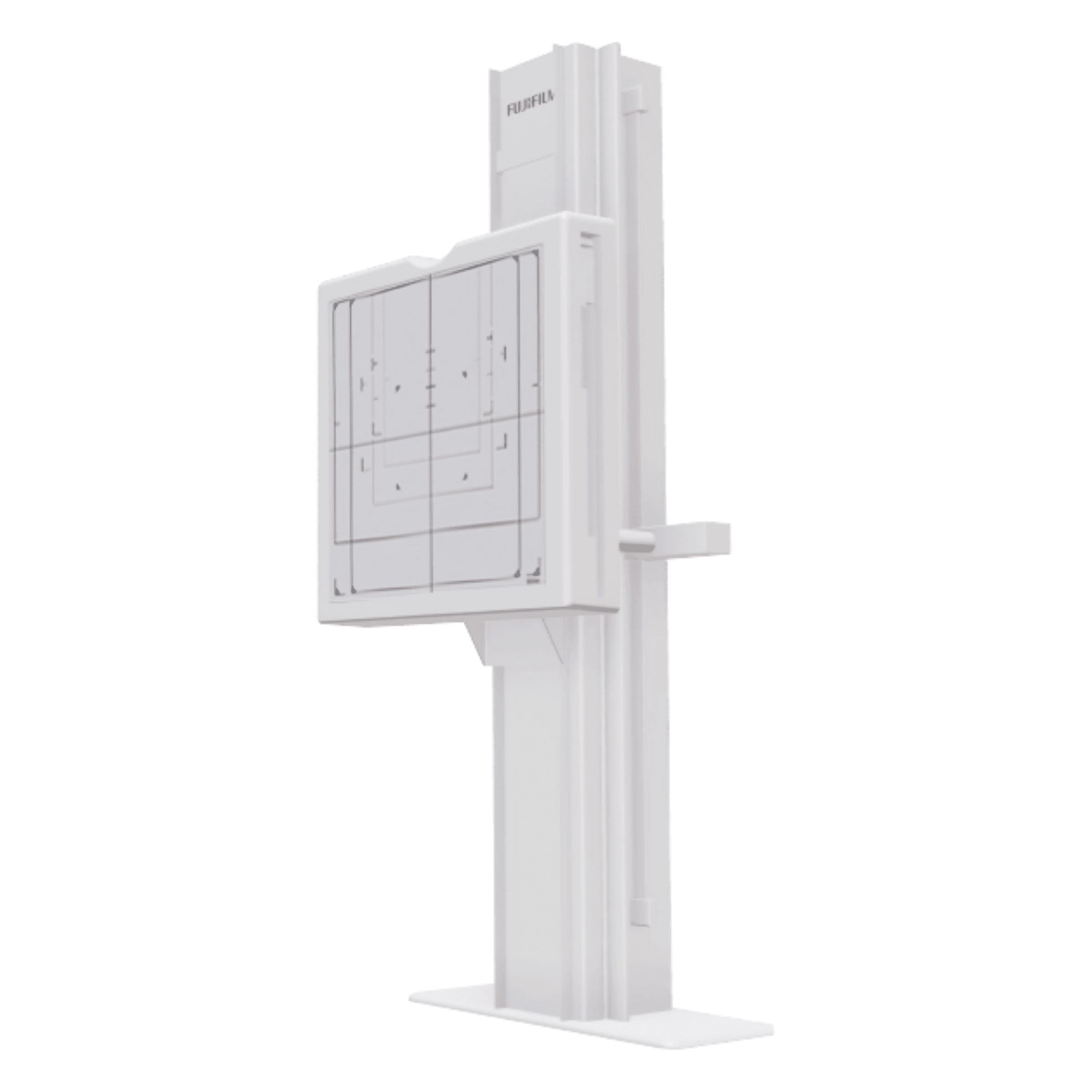

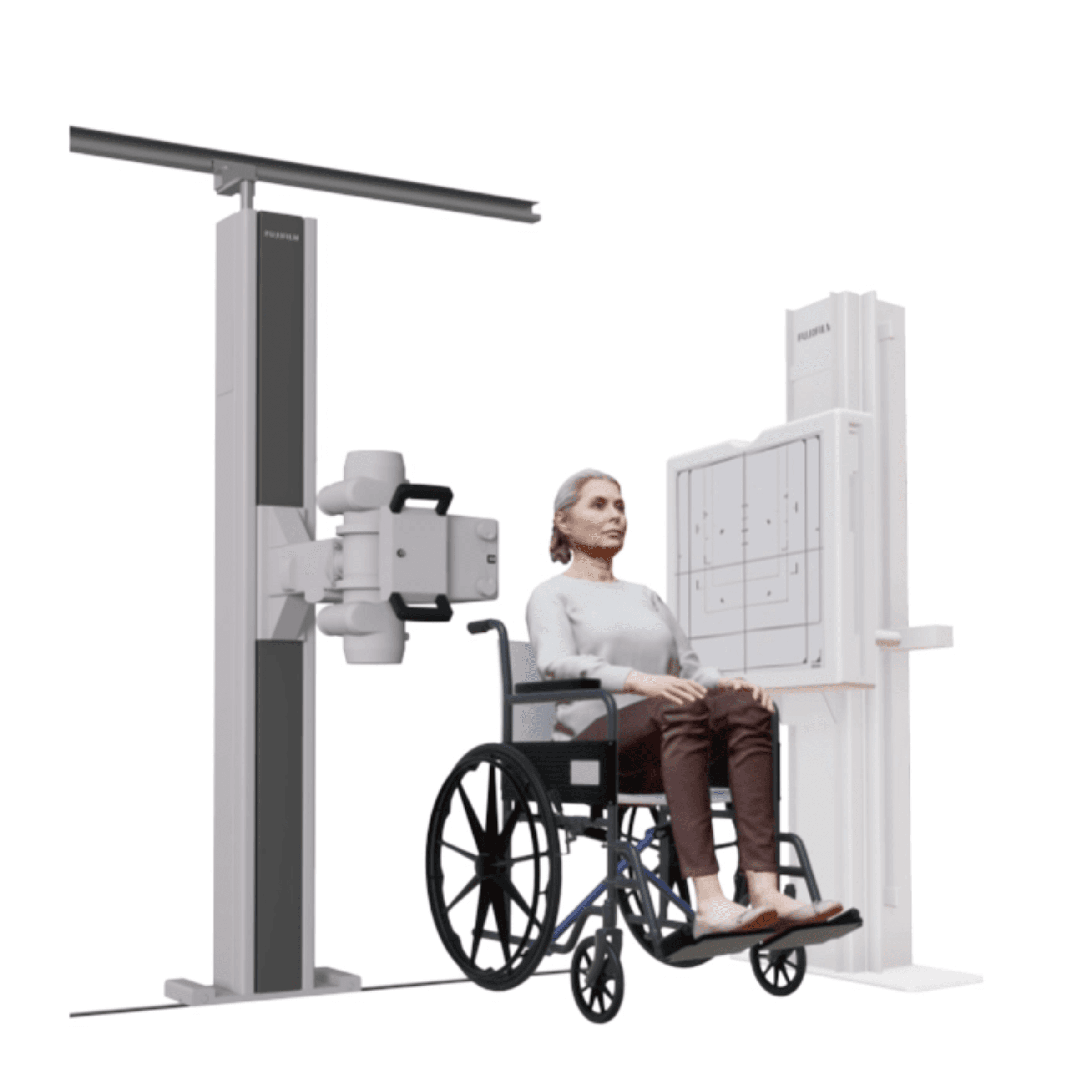

The optional Bucky stand supports swallowing studies in the seated position. Therefore, dynamic upright exams fit the same room.

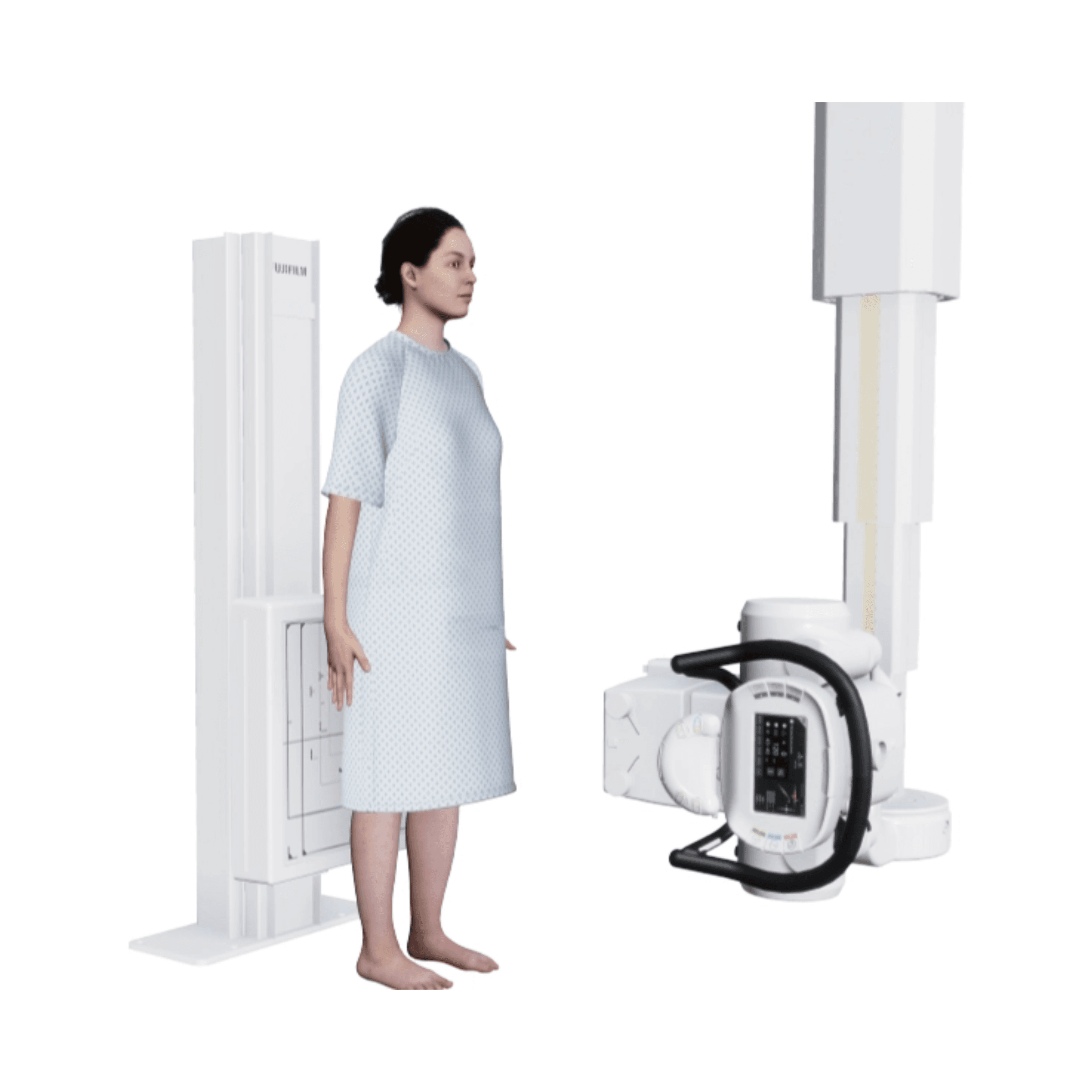

Standing, weight-bearing dynamic evaluations run on the Bucky stand. In addition, the room covers trauma care imaging when needed.
Clinical Workflow
The FDR Beyond was built around a hybrid X-ray room workflow. The steps below show how a single room covers both still and dynamic exams.

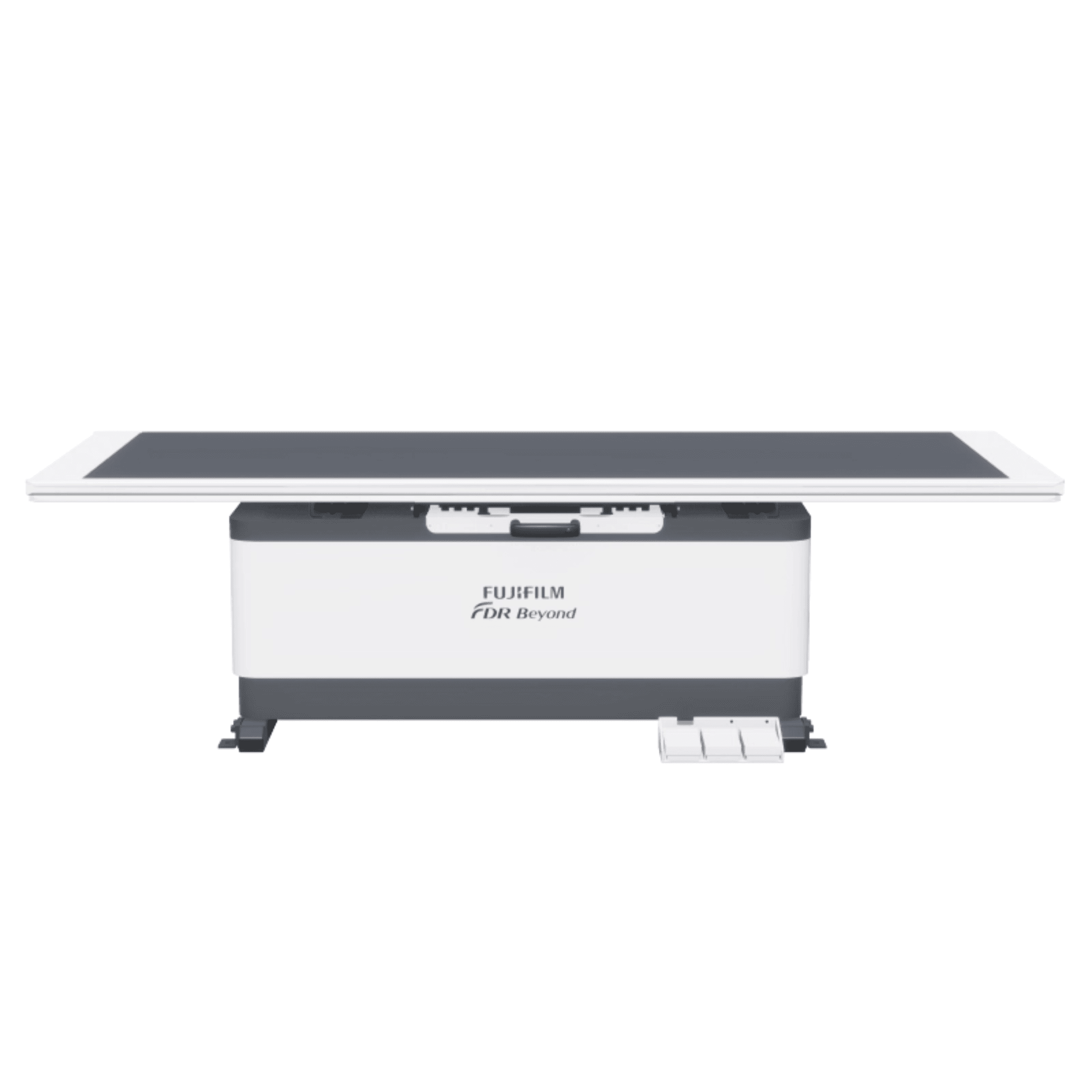

The Bucky table raises and lowers between 565 and 850 mm. Because the height adjusts, positioning stays comfortable for patients and operators. In addition, the straight-line cover wipes clean quickly between cases.
The fluoroscopy-compatible FDR D-EVO III detector switches the room between still and dynamic imaging. Therefore, abdominal, orthopedic, and fluoroscopic exams run in one place. The Bucky stand option also adds upright fluoroscopy.
Pulsed fluoroscopy emits X-rays intermittently across 15, 8, 4, or 2 fps. As a result, patient and staff exposure drop compared with continuous mode. The high DQE detector keeps image quality stable.
The Dynamic Core Engine X applies dynamic visualization and noise reduction frame by frame. In addition, optional Virtual Grid corrects scatter without a physical grid. Therefore, contrast and sharpness hold up across exams.
Compliance and Quality
Approved uses and availability vary by country and region. The notes below reflect the Fujifilm source material and Medical Outfitters supplier quality.
Fujifilm makes no representation that this product is commercially available in all countries and regions. In addition, approved uses vary by location. Therefore, please confirm regional status with our team before ordering.
Specifications and appearance are subject to change without notice. Because the Bucky table is included, please confirm the actual equipment layout. Instructions for use are provided electronically in PDF format by Fujifilm.
The FDR D-EVO III is waterproofed and dust-proofed and carries a Hydro Ag antibacterial coating. However, Fujifilm notes these effects cannot always be guaranteed in the future due to product characteristics.
Medical Outfitters Inc. is an ISO 13485:2016 certified medical imaging equipment supplier based in Miami, FL. As a result, we apply documented quality processes to sourcing, handling, and delivery. Contact us to confirm configuration and regional availability.
Request a Quote
Tell us about your X-ray room and exam mix. Our team will scope an FDR Beyond configuration, including detector size and options. Therefore, you receive pricing matched to your workflow.
Installation and Support
We coordinate delivery and layout confirmation for your hybrid room. In addition, we help align tube support options with your ceiling or floor configuration.
Frequently Asked Questions
Common questions about the Fujifilm FDR Beyond digital radiography and fluoroscopy system.
It is a digital radiography and fluoroscopy system. Because it integrates both modalities in one room, it creates a practical hybrid X-ray room. Therefore, a single space covers still and dynamic exams.
Fluoroscopy works when the fluoroscopy-compatible FDR D-EVO III detector is combined with FDR Beyond. As a result, the room supports dynamic imaging in addition to standard radiography.
The FDR D-EVO III comes in two models. The C35i is the 14 × 17 inch model, and the C43i is the 17 × 17 inch model. In addition, the C35i can be positioned vertically or horizontally.
Pulsed fluoroscopy emits X-rays intermittently rather than continuously. Because the frame rate adjusts across 15, 8, 4, or 2 fps, you balance image quality and dose for each exam.
The Bucky table supports a 220 kg load. In addition, it raises and lowers between 565 and 850 mm for patient comfort and operator workflow.
Virtual Grid is an optional processing feature that corrects for scatter radiation without a physical grid. Therefore, it retains high contrast and sharpness while avoiding asymmetric density from misalignment.
It handles abdominal and orthopedic radiography plus fluoroscopic procedures. For example, nerve blocks, urological and gynecological exams, swallowing studies, and weight-bearing orthopedic evaluations.
You can buy it from Medical Outfitters Inc., an ISO 13485:2016 certified supplier in Miami, FL. Call (305) 885-4045 to confirm configuration and regional availability.
