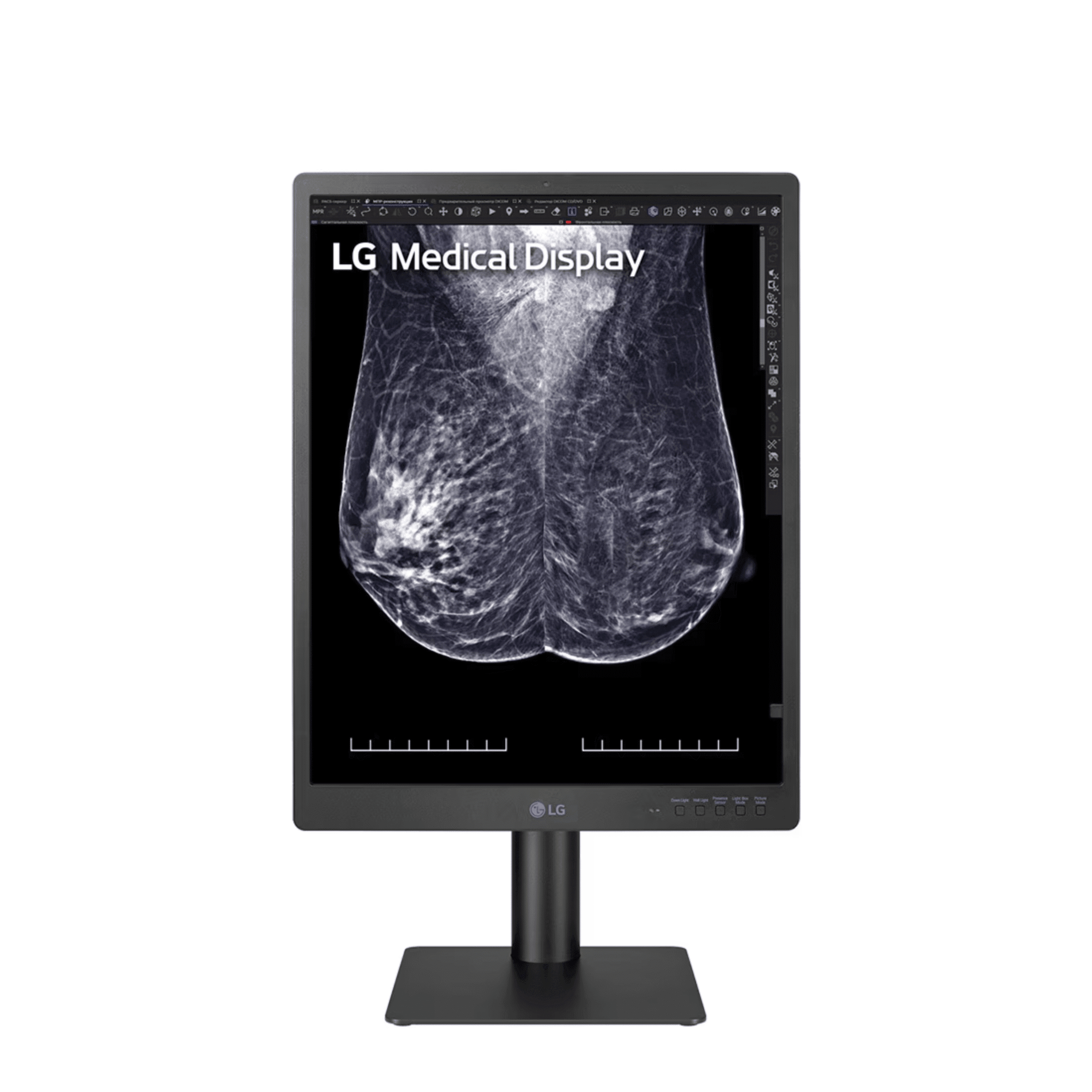

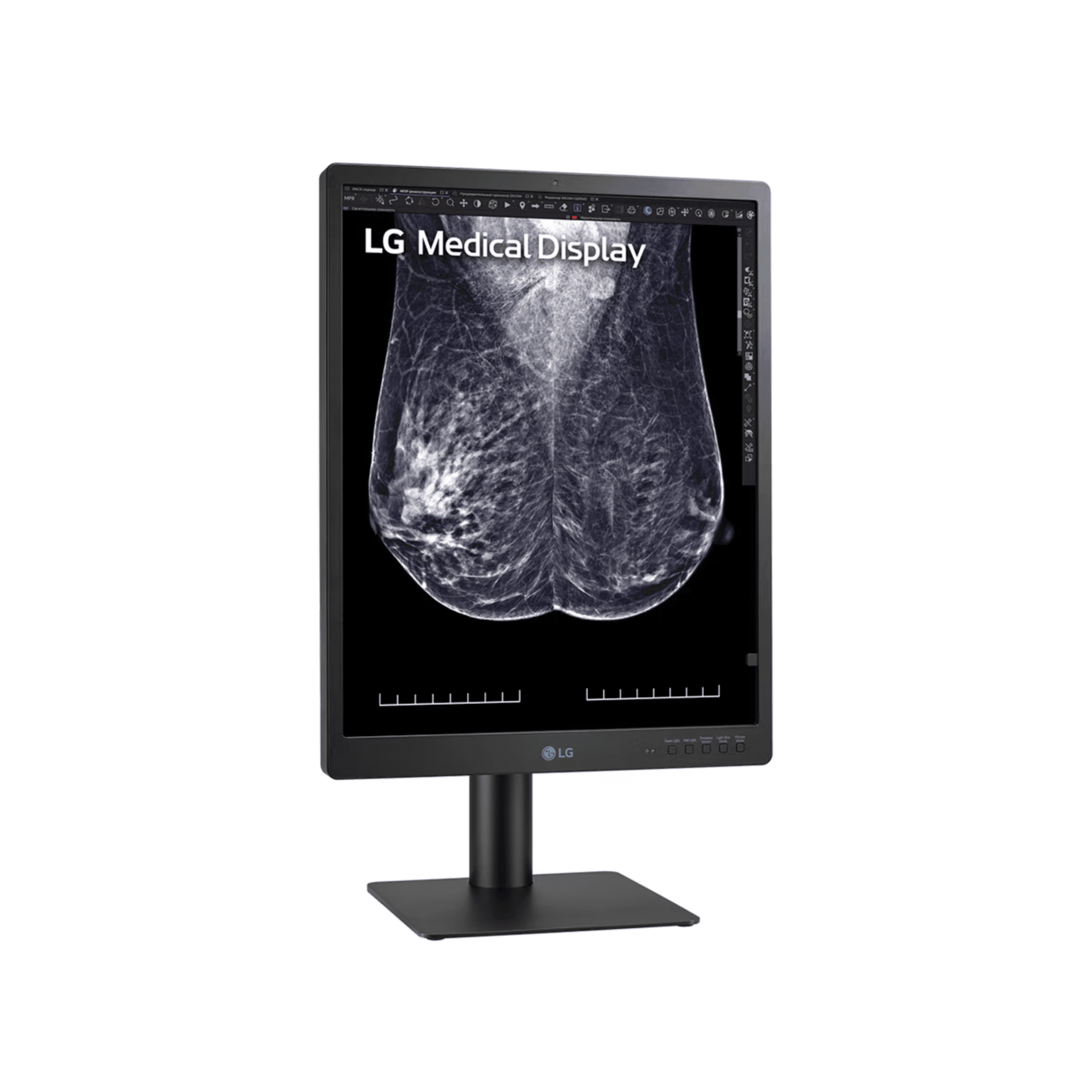

LG 21HQ613D: 21.3" 5MP IPS Diagnostic Monitor with Front Sensor Calibration
Authorized LG medical imaging display supplier. The LG 21HQ613D is a 21.3-inch 5MP IPS diagnostic monitor that displays a broad range of radiological images, including full-field digital mammography, digital breast tomosynthesis, breast MRI, CT, and ultrasound, in a compact form factor. A built-in front calibration sensor and LG Calibration Studio maintain DICOM Part 14 accuracy without an external photometer, and multi-resolution modes let a single display serve mammography, general radiography, and cross-sectional review from one PACS workstation.
Core specifications: 21.3-inch IPS panel at 2048 by 2560 (5MP) with a 0.165 mm pixel pitch, 1,100 cd/m² typical brightness, an 1,800 to 1 contrast ratio, NTSC 72 percent color, and 10-bit color depth. Built-in front calibration sensor with brightness stabilization at 600 cd/m², multi-resolution 5MP, 3MP, and 2MP modes, Focus View, Pathology Mode, Light Box Mode, Down and Wall lighting, five hot keys, a Presence Sensor, Dual Controller, and a DisplayPort daisy chain output at 5MP and 48Hz. The bi-directional auto pivot stand adjusts height, tilt, swivel, and pivot for the reading position.
Need pricing? Contact Medical Outfitters for a same-day quote with volume pricing and lead times.
5MP IPS, Front Sensor Calibration, and Multi-Resolution Reading
Three capabilities set the 21HQ613D apart for diagnostic reading rooms. The 5MP IPS panel with 1,100 cd/m² brightness displays mammography, tomosynthesis, breast MRI, CT, and ultrasound with clarity. The built-in front calibration sensor maintains DICOM Part 14 accuracy without an external photometer. Multi-resolution 5MP, 3MP, and 2MP modes let one display serve every modality. Full technical detail is in the expandable sections below.
Panel: 21.3-inch IPS, 2048 by 2560 (5MP), 4:5
Pixel Pitch: 0.165 mm, which resolves fine detail at diagnostic reading distances
Brightness, typical: 1,100 cd/m²
Brightness, DICOM stabilized: 600 cd/m² via the built-in front sensor
Contrast Ratio: 1,800:1
Color Gamut: NTSC 72 percent, CIE 1931
Color Depth: 10-bit
Viewing Angle: 178° horizontal and 178° vertical
Response Time: 5 ms gray to gray at faster setting
Surface Treatment: Anti-Glare
DICOM: DICOM Part 14 compliant, with internal front sensor and LG Calibration Studio hardware calibration
Super Resolution+: enhances perceived sharpness of lower-resolution source content
Multi-Resolution Mode: accepts and displays 5MP, 3MP, and 2MP inputs at full panel resolution
Focus View Mode: highlights a selected region of interest while dimming the surrounding area, using the mouse and keyboard
Pathology Mode: a color profile that provides clarity and color accuracy as if viewing through a microscope
Light Box Mode: a uniform bright field for film and document review
Down and Wall Lighting: downward illumination for reading documents and rear wall lighting to reduce eye strain in darkened reading rooms
5 Hot Keys: one-button access to Down Light, Wall Light, Presence Sensor, Light Box Mode, and Picture Mode
Presence Sensor: powers the display off after five minutes with no detected motion
Auto Luminance Sensor: adjusts brightness to ambient room light
Dual Controller, Reader Mode, and Flicker Safe: software KVM control and eye comfort for extended reading
Picture Modes: Custom, Mono, Pathology, Text, DICOM, DICOM Custom, Calibration 1, and Calibration 2

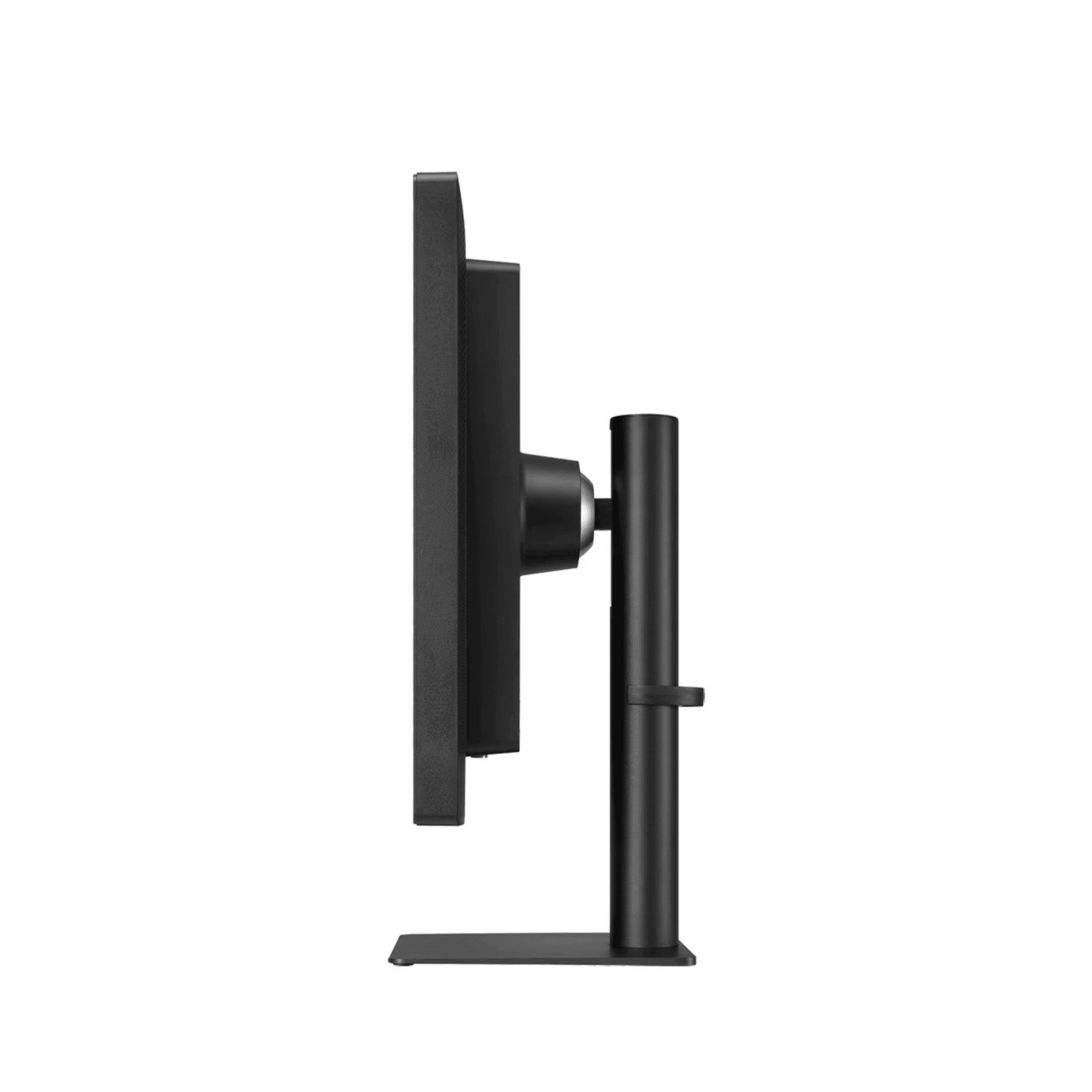

Bi-Directional Auto Pivot Stand: height, tilt, swivel, and pivot with automatic image rotation
How the 21HQ613D compares against a standard office monitor:
The 21HQ613D built-in front sensor and multi-resolution modes change the economics of a diagnostic reading station. The internal sensor lets LG Calibration Studio perform hardware DICOM calibration on a schedule without an external photometer, which reduces calibration service requirements across a fleet. Multi-resolution support means one display handles 5MP mammography and breast imaging, 3MP general radiography, and 2MP cross-sectional review, so a mixed-use reading room does not need a separate display for each modality.
Full Technical Specifications
Complete reference data for IT procurement, biomed review, and reading room planning. Expand each category for the full specification set required by radiology department heads, IT administrators, and facilities teams evaluating the 21HQ613D for PACS workstations and diagnostic reading rooms.
| Resolution | 2,048 × 2,560 (5MP) |
| Panel Type | IPS |
| Screen Size | 21.3-inch, 4:5 |
| Pixel Pitch | 0.165 mm |
| Brightness, typical | 1,100 cd/m² |
| Brightness, DICOM stabilized | 600 cd/m² |
| Contrast Ratio | 1,800:1 |
| Color Gamut | NTSC 72 percent, CIE 1931 |
| Color Depth | 10-bit |
| Response Time | 5 ms gray to gray at faster |
| Viewing Angle | 178° horizontal and 178° vertical |
| Surface Treatment | Anti-Glare |
| DICOM | DICOM Part 14, internal front sensor and LG Calibration Studio |
| Weight, with stand | 7.85 kg |
| Weight, without stand | 5.45 kg |
| Dimensions with Stand, W by H by D | 364.5 × 634.4 × 233.6 mm |
| Dimensions without Stand, W by H by D | 364.5 × 473.4 × 78 mm |

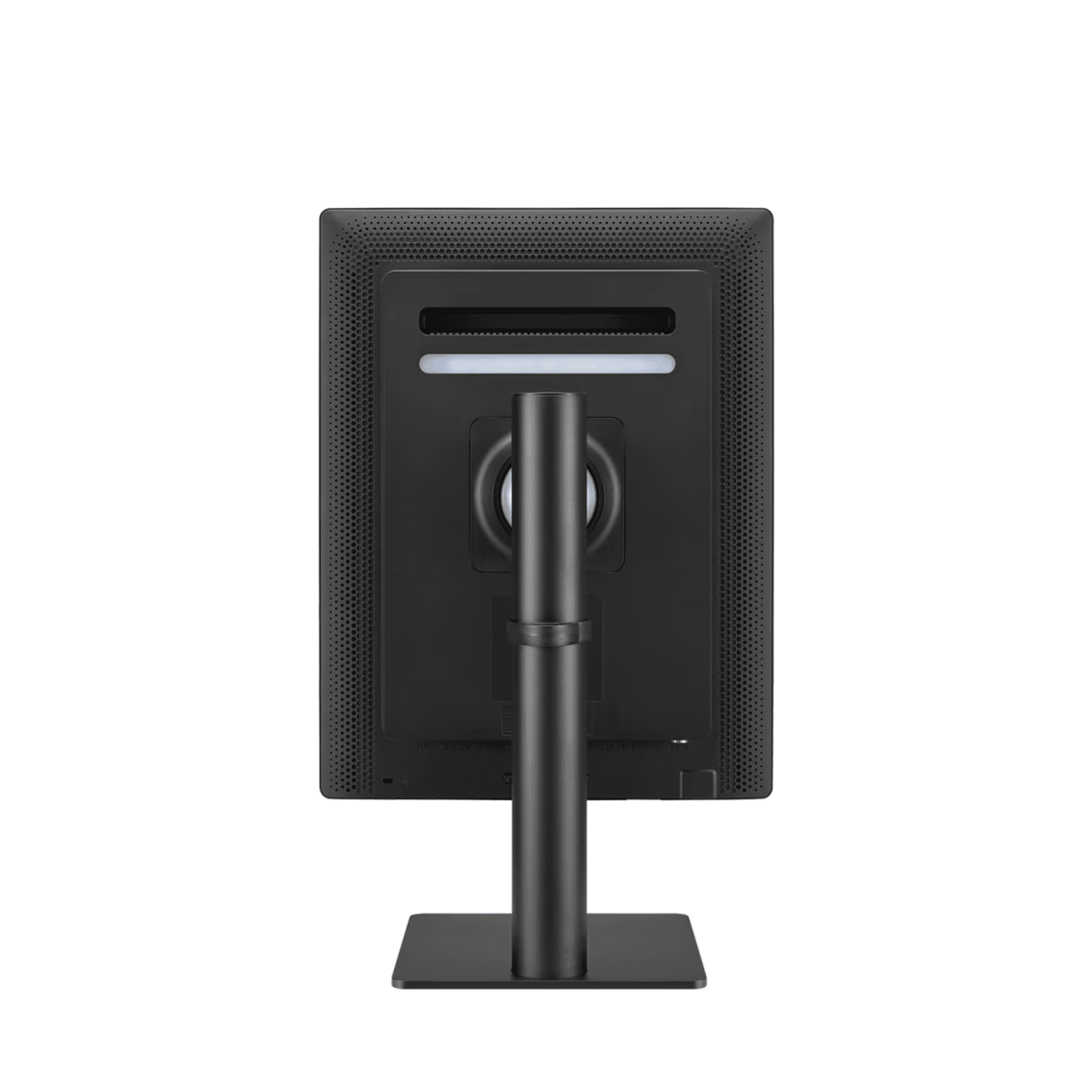

| VESA Mount | 100 × 100 mm |
| Height Adjustment | 110 mm |

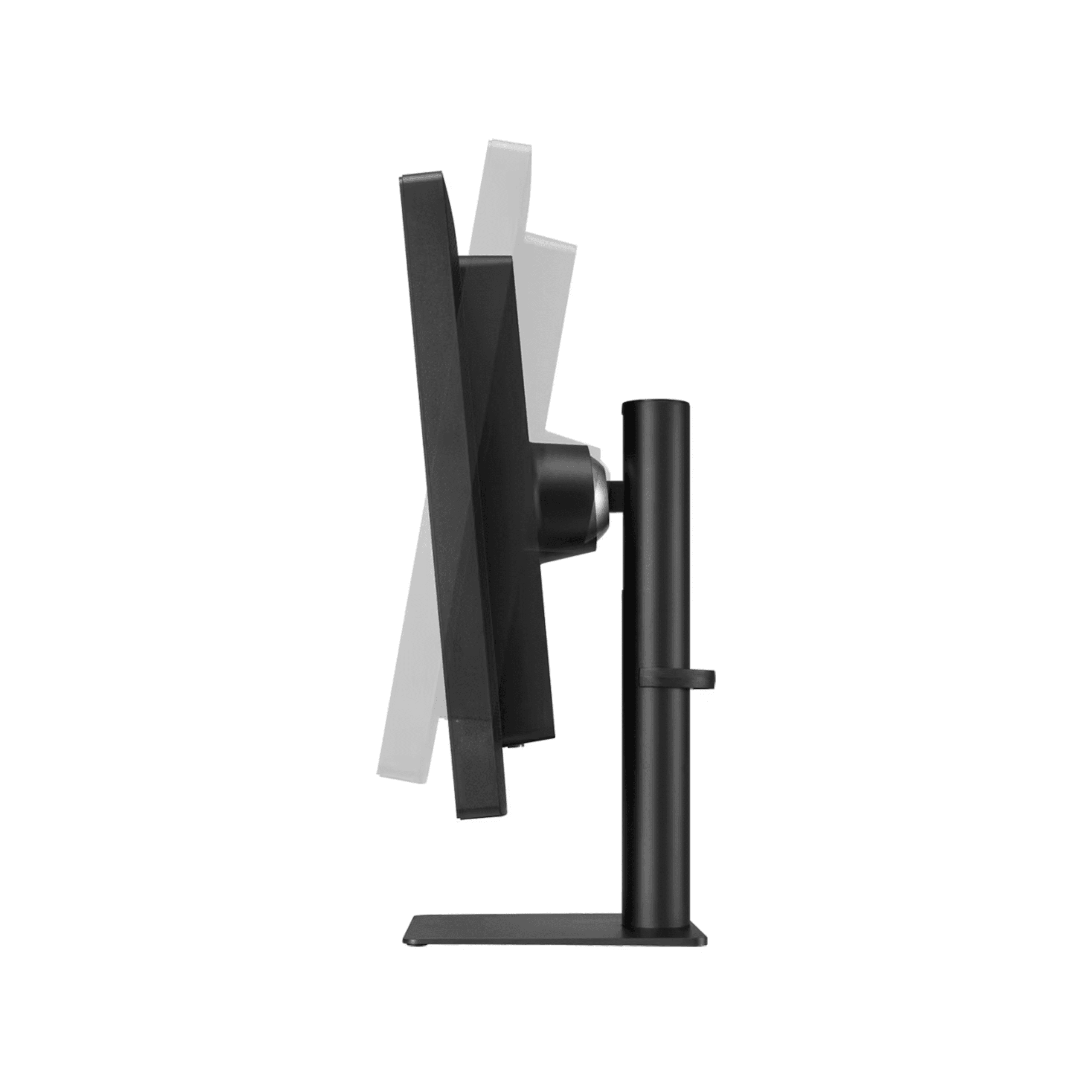

| Tilt | -5 to +20 degrees |
| Swivel | plus/minus 15 degrees |
| Pivot | Bi-directional, with Auto Pivot |

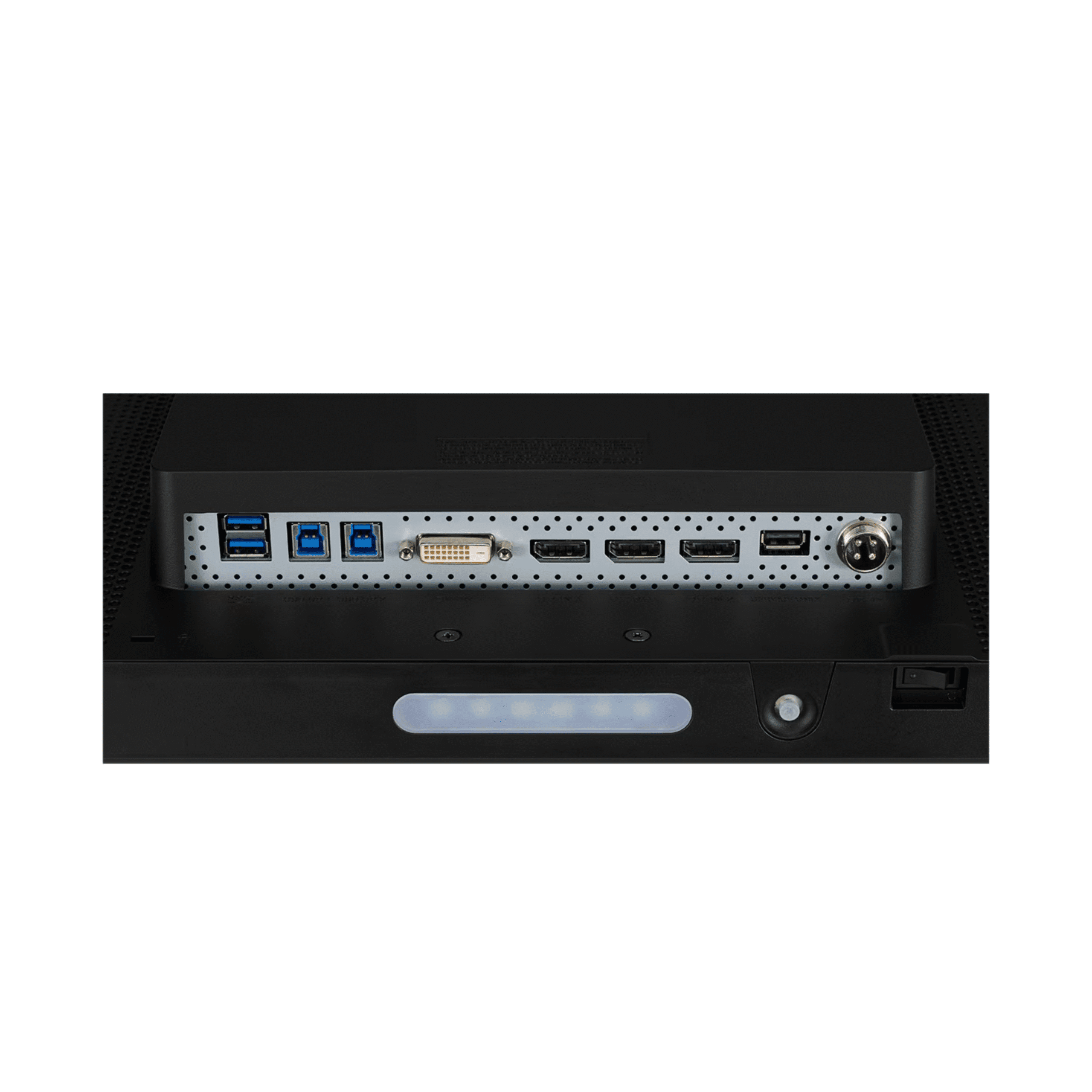

| Video Inputs | DisplayPort × 2, DVI-D Dual Link × 1 |
| Video Output | DisplayPort × 1, daisy chain at 5MP and 48Hz |
| USB | USB 3.0, 2 Upstream and 2 Downstream |
| Power Requirements | 100 to 240 Vac, 50/60 Hz |
| Power Consumption, maximum | 120 W |
| Power Consumption, DC off | Less than 0.3 W |
| Multi-Resolution | 5MP, 3MP, and 2MP modes |
| Calibration | Internal front sensor, LG Calibration Studio, hardware DICOM QA |
| Viewing Modes | Focus View Mode, Pathology Mode, Light Box Mode |
| Picture Modes | Custom, Mono, Pathology, Text, DICOM, DICOM Custom, Calibration 1-2 |
| Lighting | Down Light and Wall Light |
| Hot Keys | 5 hot keys |
| Auto Features | Presence Sensor, Auto Luminance Sensor, bi-directional Auto Pivot |
| User Convenience | Dual Controller, Reader Mode, Flicker Safe, Super Resolution+ |
| Intended Use | Diagnostic review of radiology including FFDM, DBT, breast MRI, CT, and ultrasound |
Clinical Applications
Deployed across diagnostic reading rooms, breast imaging review stations, and mixed-modality PACS workstations where 5MP resolution, multi-resolution flexibility, self-calibration, and daisy chain connectivity provide clinical and operational value.
Multi-resolution 5MP, 3MP, and 2MP modes let one display handle mammography and breast imaging, chest X-ray and general radiography, and CT, MRI, and ultrasound from a single PACS workstation, reducing the number of displays in a mixed-use reading room.
Per LG, the 21HQ613D displays full-field digital mammography and digital breast tomosynthesis, along with breast MRI, at 5MP with a 0.165 mm pixel pitch and 1,100 cd/m² brightness. Confirm the appropriate display class for primary interpretation with your physicist.
The built-in front sensor and LG Calibration Studio perform hardware DICOM Part 14 calibration without an external photometer, with brightness stabilized at 600 cd/m² between cycles, which reduces calibration service requirements across a fleet.

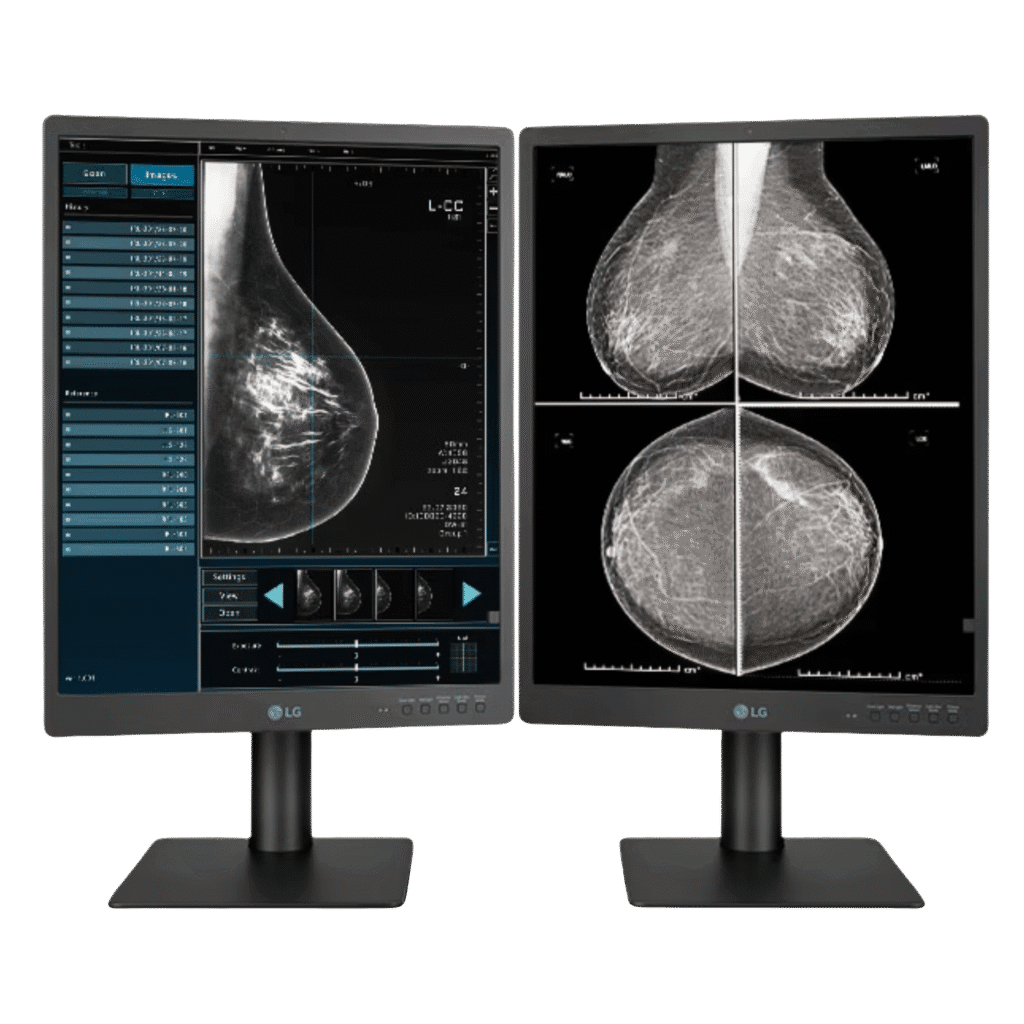

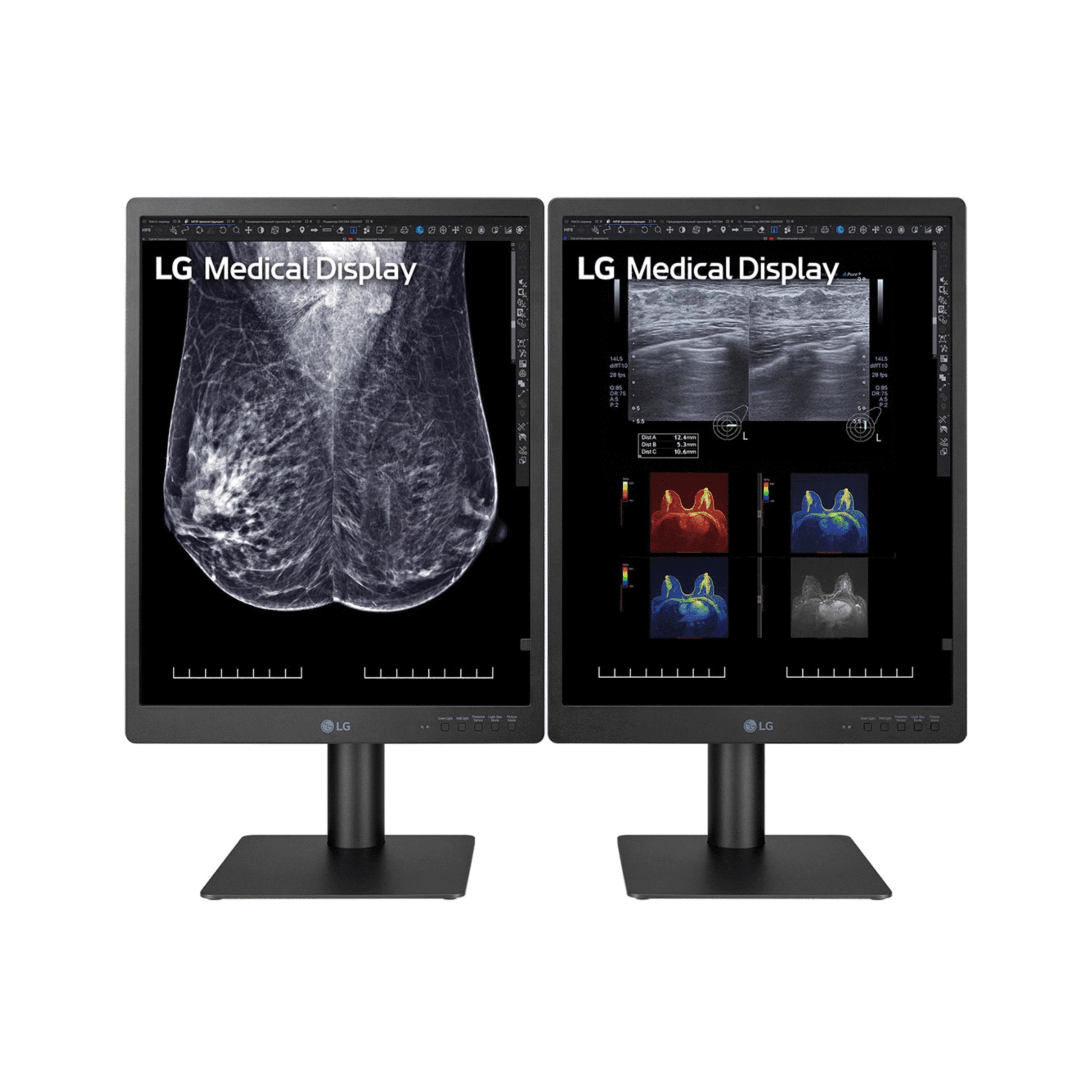

The DisplayPort daisy chain output drives a second 21HQ613D at 5MP and 48Hz from a single workstation output, which supports a two-screen reading layout in a compact footprint without a second graphics card port.
The compact 21.3-inch form factor suits remote and home reading environments where desk space is limited, while retaining 5MP resolution, DICOM Part 14 calibration, and front sensor QA at the remote workstation.
Down and Wall lighting, the Presence Sensor, Reader Mode, and Flicker Safe support long reading sessions in darkened rooms, and the five hot keys change modes and lighting without navigating the on-screen menu.
Calibration, PACS Integration, and Dual-Monitor Setup
Front sensor calibration, multi-resolution PACS compatibility, DisplayPort daisy chain, specialized viewing modes, and reading room lighting combine to support diagnostic reading rooms and mixed-modality workstations. Expand each section for detail required by radiologists, IT administrators, and biomed teams evaluating the 21HQ613D.
Built-In Front Calibration Sensor: the integrated front-facing sensor measures panel luminance and corrects the hardware lookup table to maintain the DICOM Part 14 grayscale display function, without an external photometer. Brightness is stabilized at 600 cd/m2 between full calibration cycles.
LG Calibration Studio: the calibration software runs scheduled hardware calibration and exports calibration logs and DICOM conformance reports for departmental quality assurance documentation.
No external photometer: this reduces sensor maintenance, storage, and QA scheduling across a multi-monitor fleet.
Multi-Resolution Mode: the 21HQ613D accepts PACS workstation outputs at 5MP, 3MP, or 2MP and displays each at full panel resolution. 5MP suits mammography and breast imaging, 3MP suits chest X-ray and general radiography, and 2MP suits CT, MRI, and ultrasound. The display applies the appropriate calibration for each input, so one monitor serves a mixed-modality reading station without separate displays for each modality.
DisplayPort Out, daisy chain: using DisplayPort Multi-Stream Transport, the output passes the signal to a second 21HQ613D so two displays run at 5MP and 48Hz from a single workstation DisplayPort output. This supports a two-screen reading layout where the graphics card has one available DisplayPort output.
Inputs: two DisplayPort inputs and one DVI-D Dual Link input cover current and legacy workstation connections, and two USB 3.0 upstream and two downstream ports provide hub connectivity.
Focus View Mode: highlights a selected region of interest while dimming the surrounding area, using just the mouse and keyboard, for evaluating subtle findings without changing zoom or pan.
Pathology Mode: a color profile that provides clarity and color accuracy as if viewing through a microscope.
Light Box Mode: a uniform bright field for film and document review.
Down and Wall Lighting: downward illumination for reading documents and rear wall lighting to reduce eye strain in darkened reading rooms.
Presence Sensor: powers the display off after five minutes with no detected motion, which saves energy and helps protect on-screen patient images.
Auto Luminance Sensor: adjusts brightness automatically to ambient room light.
Dual Controller: a software KVM that lets one keyboard and mouse control two connected computers, and Reader Mode and Flicker Safe support eye comfort.

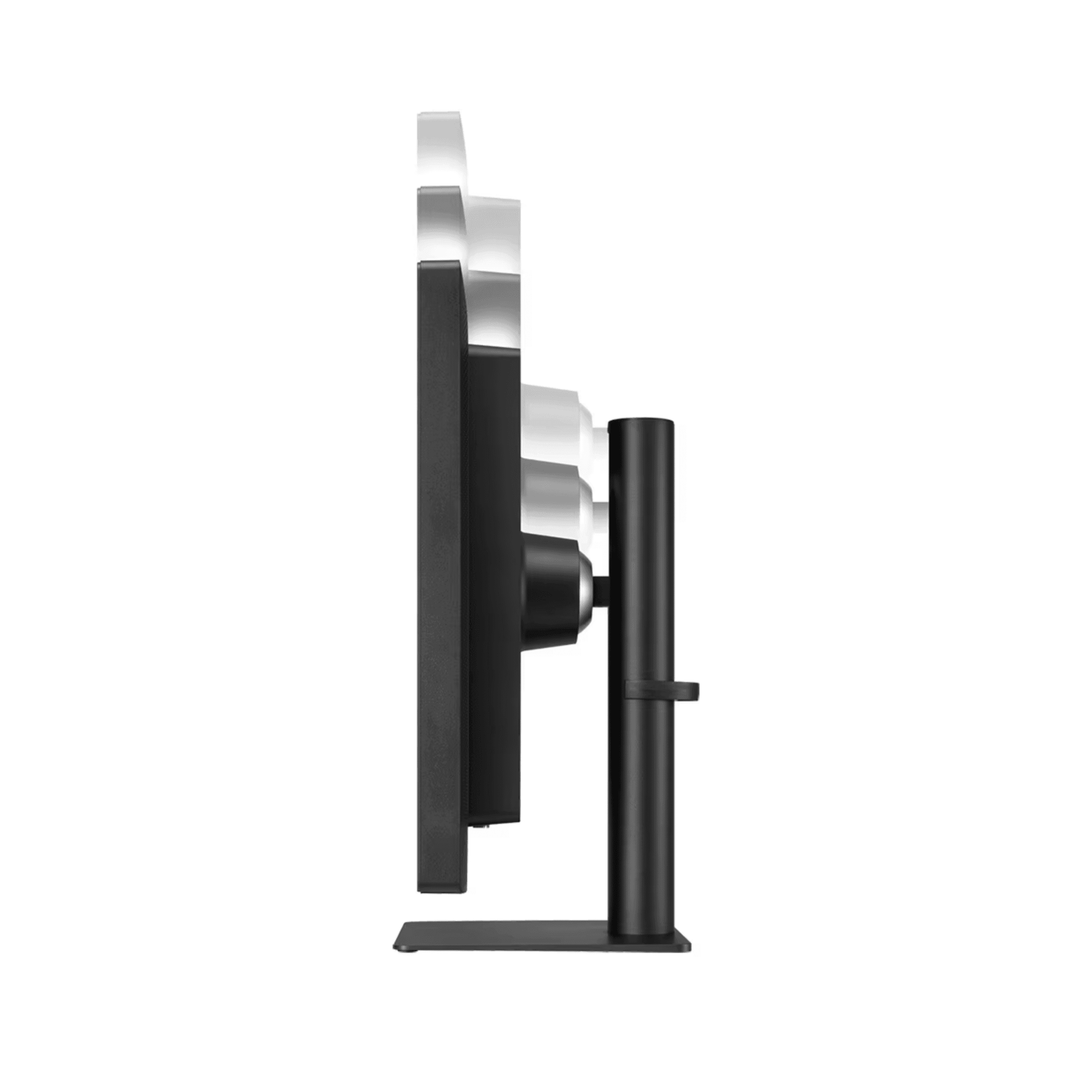

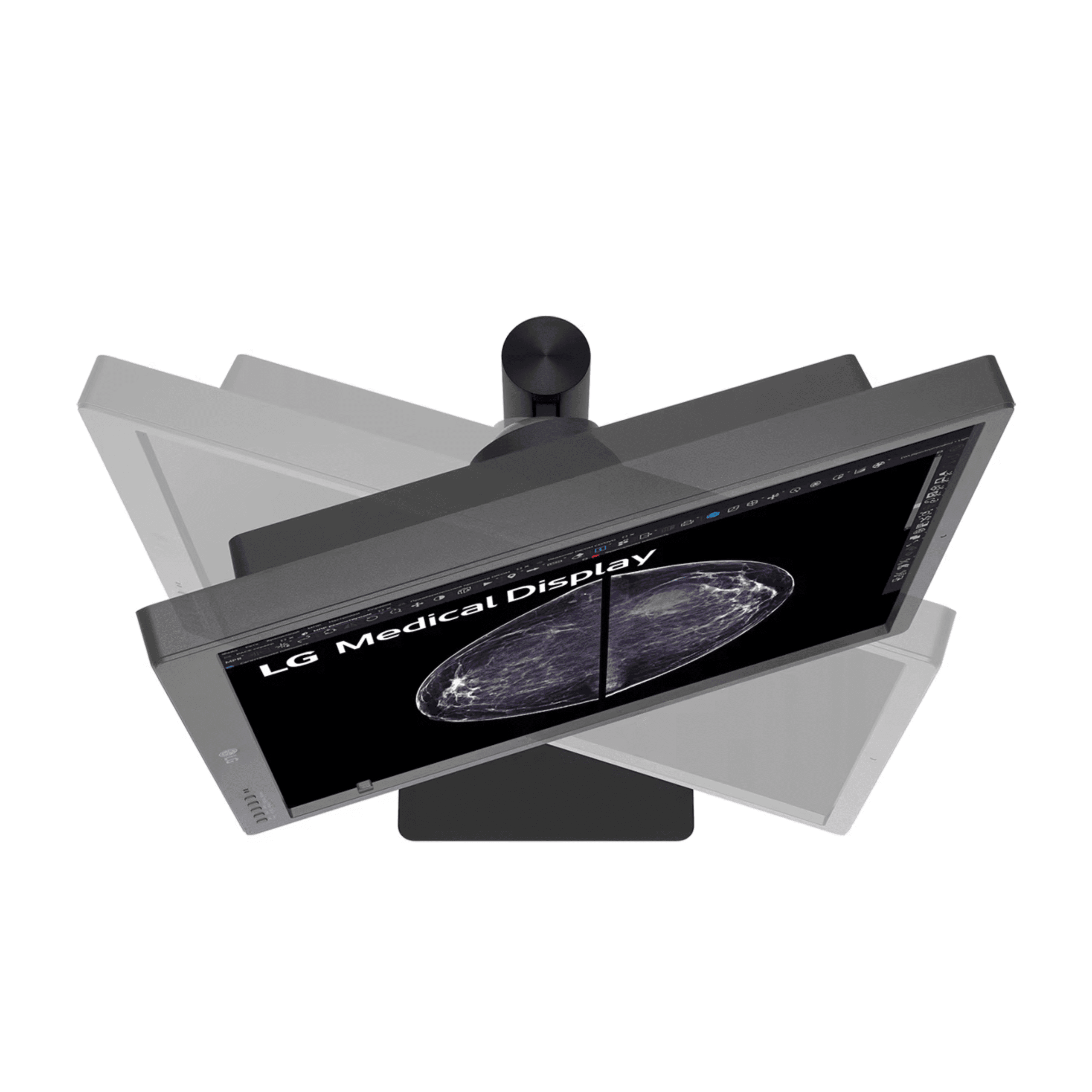

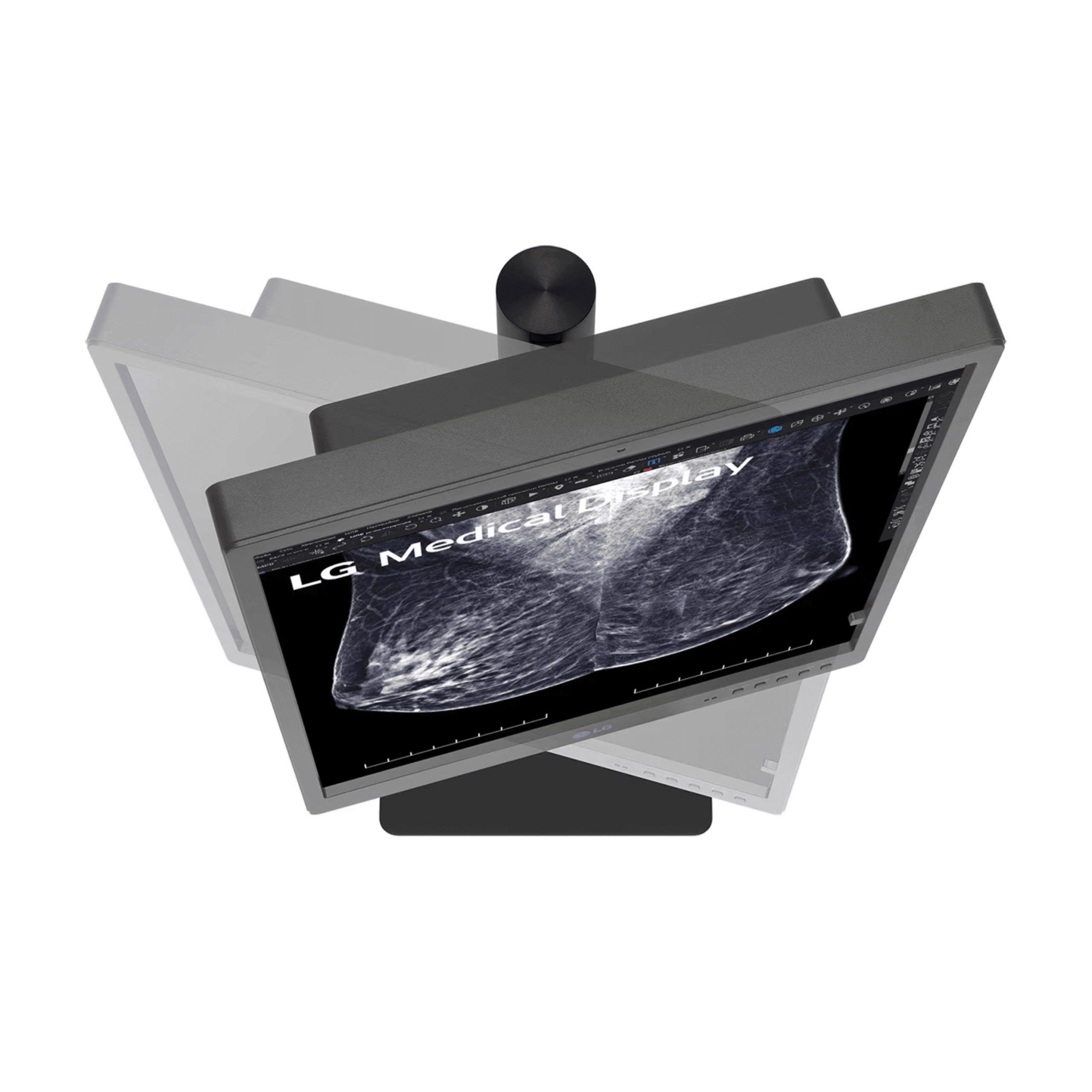

Bi-Directional Auto Pivot Stand: 110 mm height adjustment, -5 to +20 degree tilt, plus/minus 15 degree swivel, and bi-directional pivot with automatic image rotation, plus VESA 100 by 100 mm mounting.
Regulatory Compliance and Quality Standards
The LG 21HQ613D is a 5MP IPS diagnostic monitor calibrated to DICOM Part 14 with a built-in front sensor and LG Calibration Studio. Per LG, it displays radiological images including full-field digital mammography, digital breast tomosynthesis, breast MRI, CT, and ultrasound. Confirm the appropriate display class and any MQSA requirements for your primary interpretation tasks with your medical physicist. Medical Outfitters Inc. is independently ISO 13485:2016 certified.
DICOM Part 14: calibrated to the DICOM Part 14 grayscale display function for diagnostic review applications.
Internal Front Sensor: built-in sensor enables hardware lookup table calibration without an external photometer, supporting automated QA workflows.
LG Calibration Studio: performs scheduled hardware calibration and exports calibration logs and DICOM conformance reports for departmental quality assurance documentation.
Brightness Stabilization: stabilized output at 600 cd/m2 maintains luminance consistency between calibration cycles.
Diagnostic Monitor: LG classifies the 21HQ613D as a 5MP IPS diagnostic monitor.
Modality support: per LG, it displays radiological images including full-field digital mammography, digital breast tomosynthesis, breast MRI, CT, and ultrasound, with multi-resolution 5MP, 3MP, and 2MP modes.
Clinical determination: confirm the appropriate display class and any MQSA requirements for primary mammography interpretation with your medical physicist before clinical use.
ISO 13485: LG manufactures its medical displays under an ISO 13485 quality management system, and Medical Outfitters is independently ISO 13485:2016 certified as a medical imaging equipment supplier.
Power: 100 to 240 Vac, 50/60 Hz, maximum 120 W, with DC Off mode less than 0.3 W.
Note: features, standards, and certifications may vary by region and are subject to change without notice. Confirm current regional certifications with Medical Outfitters before procurement.
PACS & Calibration Compatibility Review
Share your PACS system, multi-resolution output requirements, daisy chain layout, and calibration QA schedule. Our imaging specialists confirm the 21HQ613D signal routing, front sensor calibration setup, and DICOM QA configuration before your order ships.
Hospital Procurement & RFP Support
Volume pricing, technical documentation, and logistics coordination for radiology practices, breast imaging centers, and GPO procurement teams. Full biomed documentation package available for diagnostic display procurement review.
Frequently Asked Questions
Common questions from radiologists, breast imaging center administrators, IT managers, and procurement teams evaluating the LG 21HQ613D for diagnostic reading stations, mixed-modality reading rooms, and PACS workstations.
The 21HQ613D is a 21.3-inch 5MP IPS diagnostic monitor. Per LG, it displays radiological images including full-field digital mammography, digital breast tomosynthesis, breast MRI, CT, and ultrasound, and its multi-resolution modes accept 5MP, 3MP, and 2MP inputs from a PACS workstation. Confirm the appropriate display class and any MQSA requirements for primary mammography interpretation with your medical physicist before clinical use.
The 21HQ613D is a 21.3-inch 5MP display in a 4:5 portrait aspect ratio, suited to compact reading positions and multi-resolution mixed-modality review. The 31HN713D is a larger 31-inch 12MP display designed to show full bilateral views at high resolution on a single panel. Both are LG diagnostic displays that use a built-in front sensor for DICOM Part 14 hardware calibration. Confirm which display class fits your specific reading task with your physicist.
Yes. Per LG, the 21HQ613D displays full-field digital mammography and digital breast tomosynthesis images. The 5MP (2048 by 2560) resolution with a 0.165 mm pixel pitch and 1,100 cd/m2 brightness provide the pixel density and luminance to review tomosynthesis reconstruction slices at full native resolution, and the built-in front sensor maintains DICOM Part 14 calibration for consistent image quality.
Multi-resolution mode lets the 21HQ613D accept and display 5MP, 3MP, or 2MP input signals at full panel resolution without distortion. This suits mixed-modality reading rooms where the same workstation sends mammography and breast imaging at 5MP, chest X-ray and general radiography at 3MP, and CT, MRI, or ultrasound at 2MP. The monitor applies the appropriate calibration for each input.
No. The 21HQ613D has a built-in front calibration sensor that, with LG Calibration Studio, performs hardware DICOM Part 14 calibration without an external photometer. Brightness is stabilized at 600 cd/m2 between calibration cycles, and calibration logs support departmental quality assurance documentation.
The 21HQ613D has two DisplayPort inputs and a DisplayPort output. Using DisplayPort Multi-Stream Transport, the output passes the signal to a second 21HQ613D, so two displays run at 5MP and 48Hz from a single workstation DisplayPort output. This supports a compact dual-monitor reading setup without a second graphics card port.
The five hot keys provide one-button access to Down Light, Wall Light, Presence Sensor, Light Box Mode, and Picture Mode, so readers change modes and lighting without navigating the on-screen menu. The Presence Sensor automatically powers the display off after five minutes with no detected motion, which saves energy and helps protect on-screen patient images.
Through Medical Outfitters Inc., an authorized LG medical imaging display supplier, ISO 13485:2016 certified, based in Miami, FL. We provide configuration support, DICOM calibration verification, and PACS workstation compatibility review. Call (305) 885-4045 or request a quote online. We respond to all inquiries within one business day.
