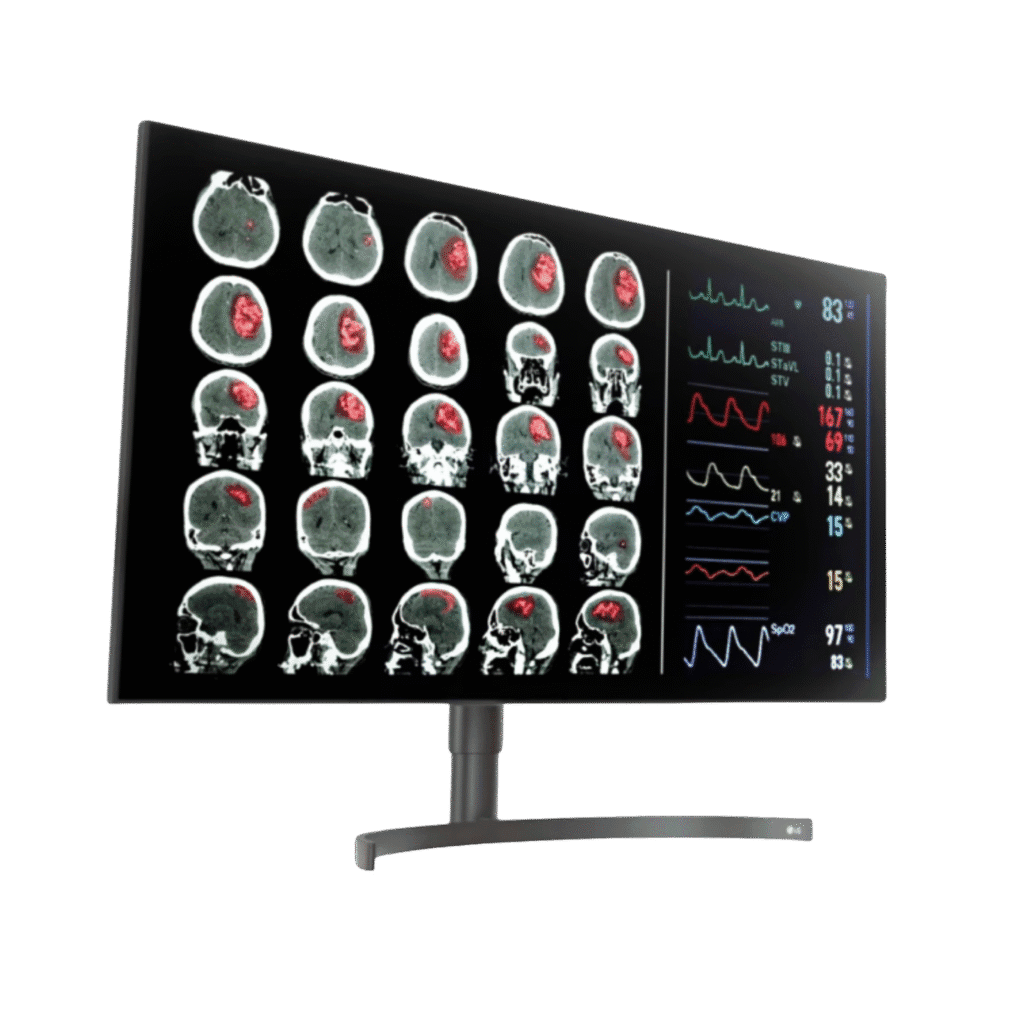

LG 32HL512D: 31.5" 8MP Nano IPS Diagnostic Monitor with DCI-P3 98%
Authorized LG diagnostic imaging equipment supplier. The 32HL512D is a versatile and affordable 8 megapixel diagnostic color display designed for multimodality reading environments where color accuracy, a wide gamut, and PACS compatibility all matter in a single monitor. It solves three practical problems. A limited color gamut compresses color-rich modalities, single-orientation stands lock radiologists into fixed postures, and many diagnostic displays are heavy and slow to deploy.
The core technology is a 31.5 inch LG Nano IPS panel with a DCI-P3 98 percent color gamut, which is wider than sRGB for accurate reproduction of 3D reconstructions, PET-CT fusion images, and digital pathology slides. The monitor is DICOM Part 14 factory calibrated, and an internal backlight sensor maintains the DICOM brightness target over time. HDMI 2.0 plus dual DisplayPort 1.4 inputs connect to virtually any PACS workstation or laptop, and a two-way pivot with a four-side virtually borderless design supports flexible multi-monitor reading rooms. It is lightweight and the LG datasheet positions it as ideal for home and reading room use.
Need pricing? Get a quote with lead times and volume discounts within one business day.
Nano IPS Color, DICOM Calibration, and Pathology Mode
Three technologies set the 32HL512D apart from a standard 4K display. LG Nano IPS with a DCI-P3 98 percent gamut extends color accuracy beyond sRGB, factory DICOM Part 14 calibration with an internal backlight sensor keeps grayscale consistent, and Pathology Mode supports color-rich modality review. Full technical detail is in the expandable sections below.
Panel: 31.5 inch LG Nano IPS, 3840 by 2160 8 megapixel, 16:9
Brightness, typical: 450 cd/m²
Contrast Ratio: 1300:1
Color Gamut: DCI-P3 98 percent, CIE1976, wider than sRGB for 3D reconstruction, fusion imaging, and pathology review
Response Time: 5 ms in faster setting, 14 ms standard
Viewing Angle: 178° horizontal and 178° vertical
Surface Treatment: anti-glare, 3H hardness
DICOM: Part 14 factory calibrated with a calibration report included
Brightness Stabilization: internal backlight sensor maintains the DICOM brightness target over time
Hardware Calibration: supported through LG PerfectLum software
Pathology Mode: optimized color fidelity comparable to microscope viewing for digital pathology correlation alongside CT, MRI, or CR images from a PACS
Picture Modes: dedicated DICOM Clinical, DICOM Diagnostic, Pathology, Reader, Mono, Vivid, and Calibration modes
Super Resolution Plus: enhances the perceived sharpness of displayed detail
Black Stabilizer and Uniformity: improve dark region visibility and luminance uniformity across the panel

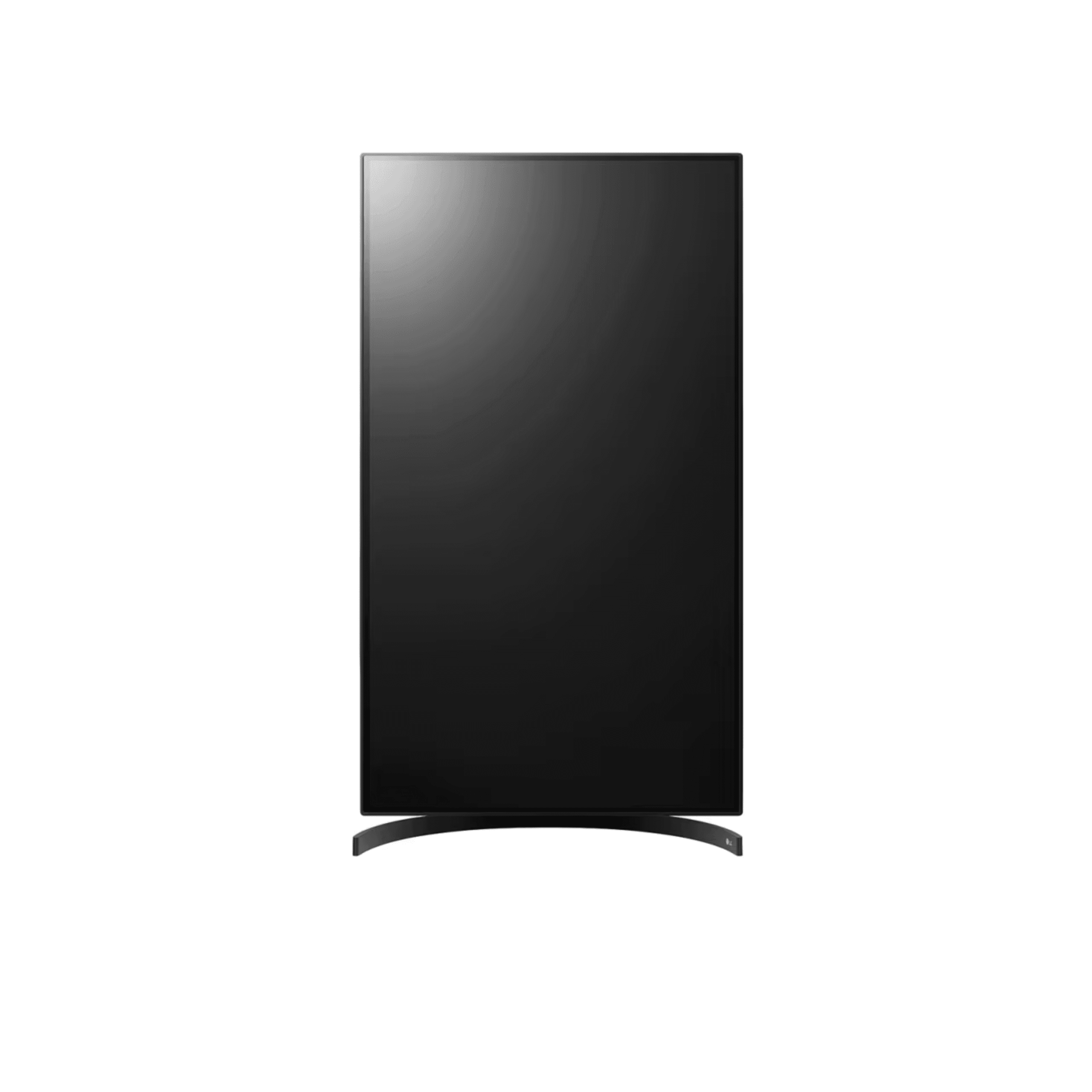

Two-Way Pivot: bi-directional 90 degree portrait rotation for flexible reading room configurations
4-Side Virtually Borderless: minimized bezels on all four sides for near-seamless dual-monitor workflows
How the 32HL512D compares against a standard 4K monitor:
The 32HL512D is one of the few 8 megapixel diagnostic displays that pairs an LG Nano IPS panel and a DCI-P3 98 percent color gamut with full DICOM Part 14 compliance. That combination of clinical color accuracy and diagnostic compliance, in a lightweight and affordable package, reduces the need to maintain separate monitors for grayscale reading and color-rich modality review in multimodality diagnostic imaging environments.
Full Technical Specifications
Complete reference data for procurement, RFP submissions, and biomedical review. Hospital purchasing teams, radiology department heads, and biomedical engineers rely on this specification set when they evaluate diagnostic imaging displays. Expand each category for full detail.
| Resolution | 8 megapixel, 3,840 × 2,160 |
| Panel Type | LG Nano IPS |
| Screen Size | 31.5 inch, 16:9 |
| Pixel Pitch | 0.182 mm |
| Brightness, typical | 450 cd/m² |
| Contrast Ratio, typical | 1300:1 |
| Color Gamut | DCI-P3 98 percent, CIE1976 |
| Response Time | 5 ms in faster setting, 14 ms standard |
| Viewing Angle | 178° horizontal and 178° vertical |
| Surface Treatment | Anti-glare, 3H hardness |
| DICOM | Part 14 factory calibrated, calibration report included |
| Dimensions, with stand | 718.2 × 590.0 × 231.2 mm |
| Dimensions, without stand | 718.2 × 414.3 × 45.1 mm |
| Weight, with stand | 7.3 kg, which is 16.1 lbs |
| Weight, without stand | 5.9 kg, which is 13.0 lbs |
| Shipping Weight | 11.1 kg |

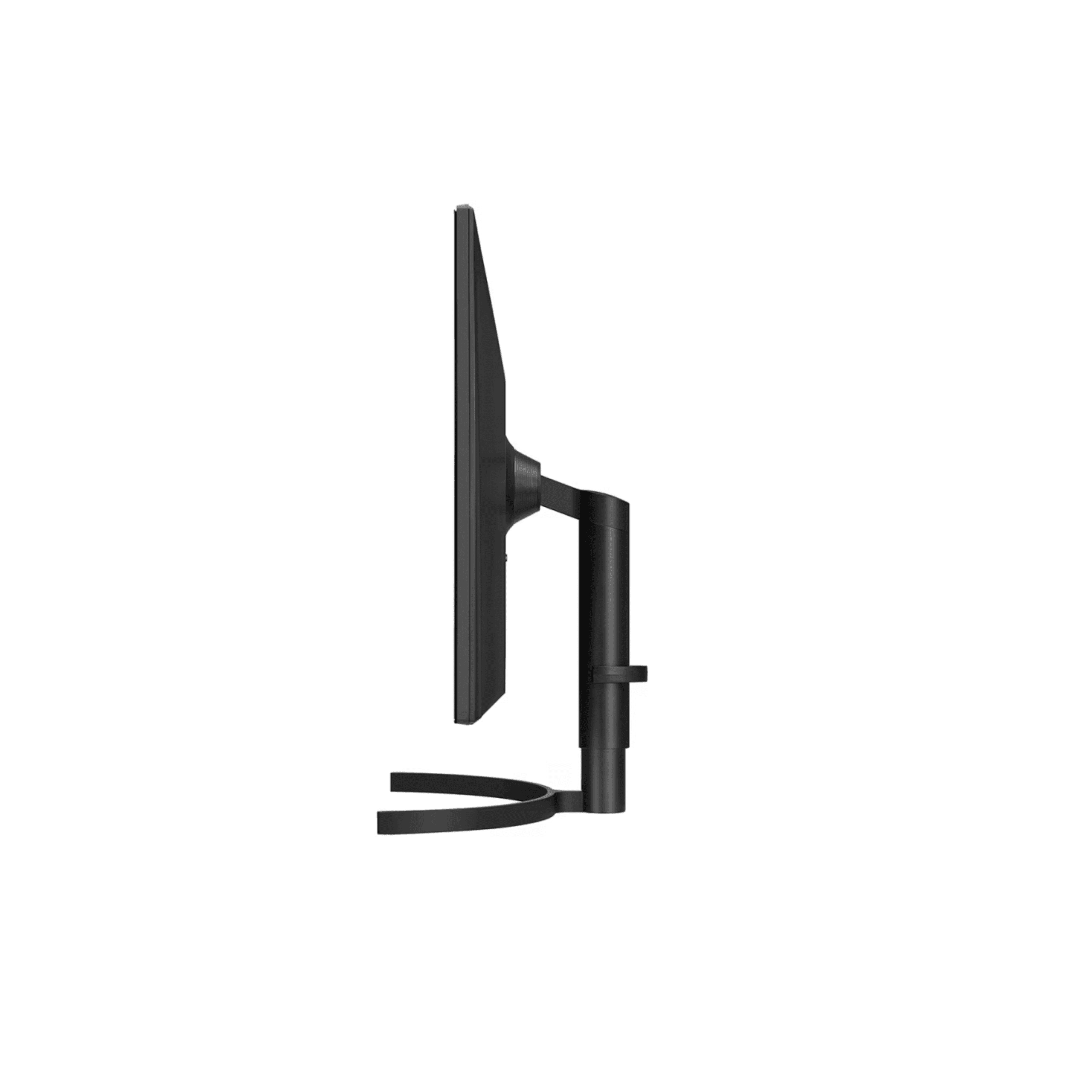

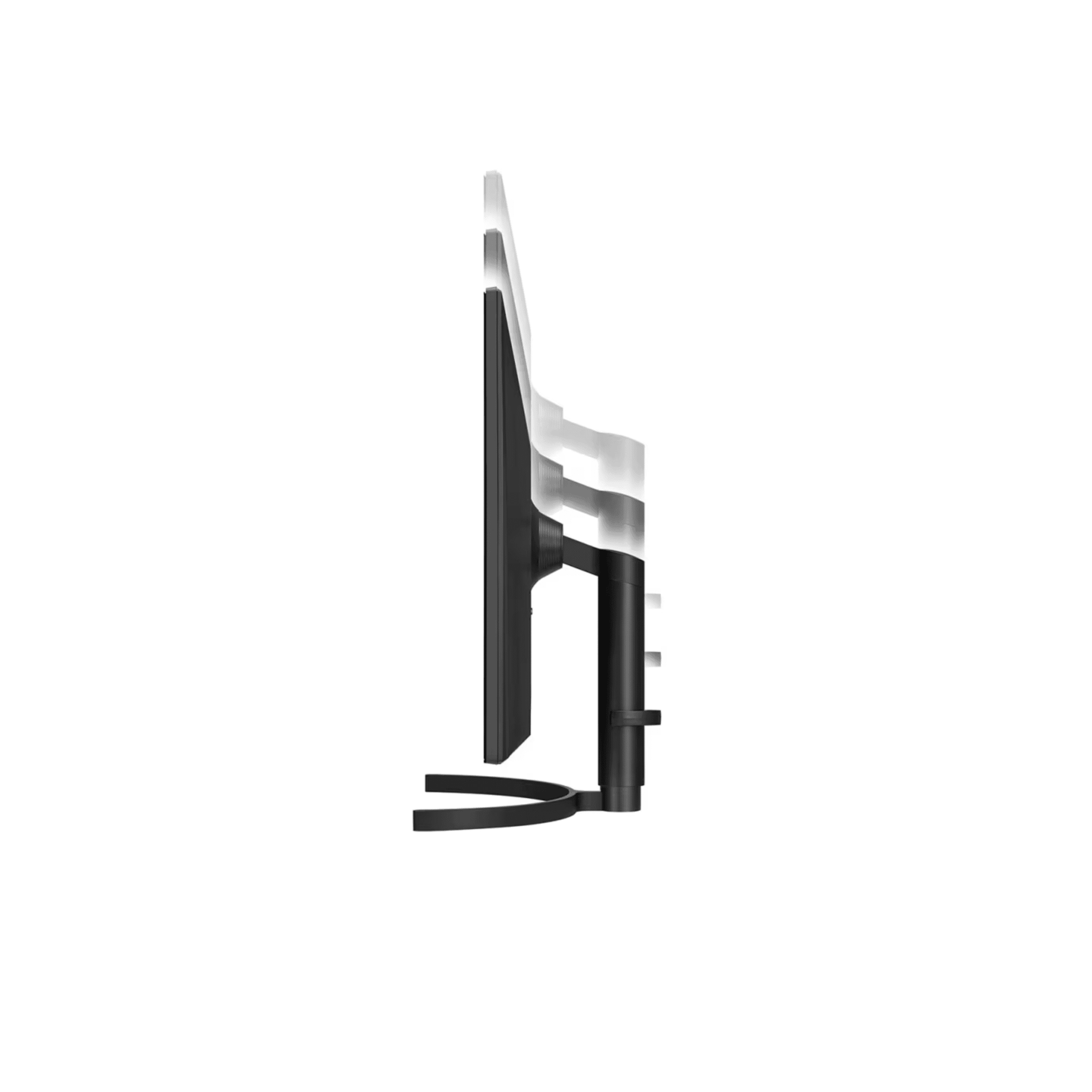

| Adjustments | Height, tilt, and pivot, with plus or minus 90 degree two-way pivot |
| Design | Four-side virtually borderless with a OneClick stand |
| VESA Wall Mount | 100 × 100 mm |

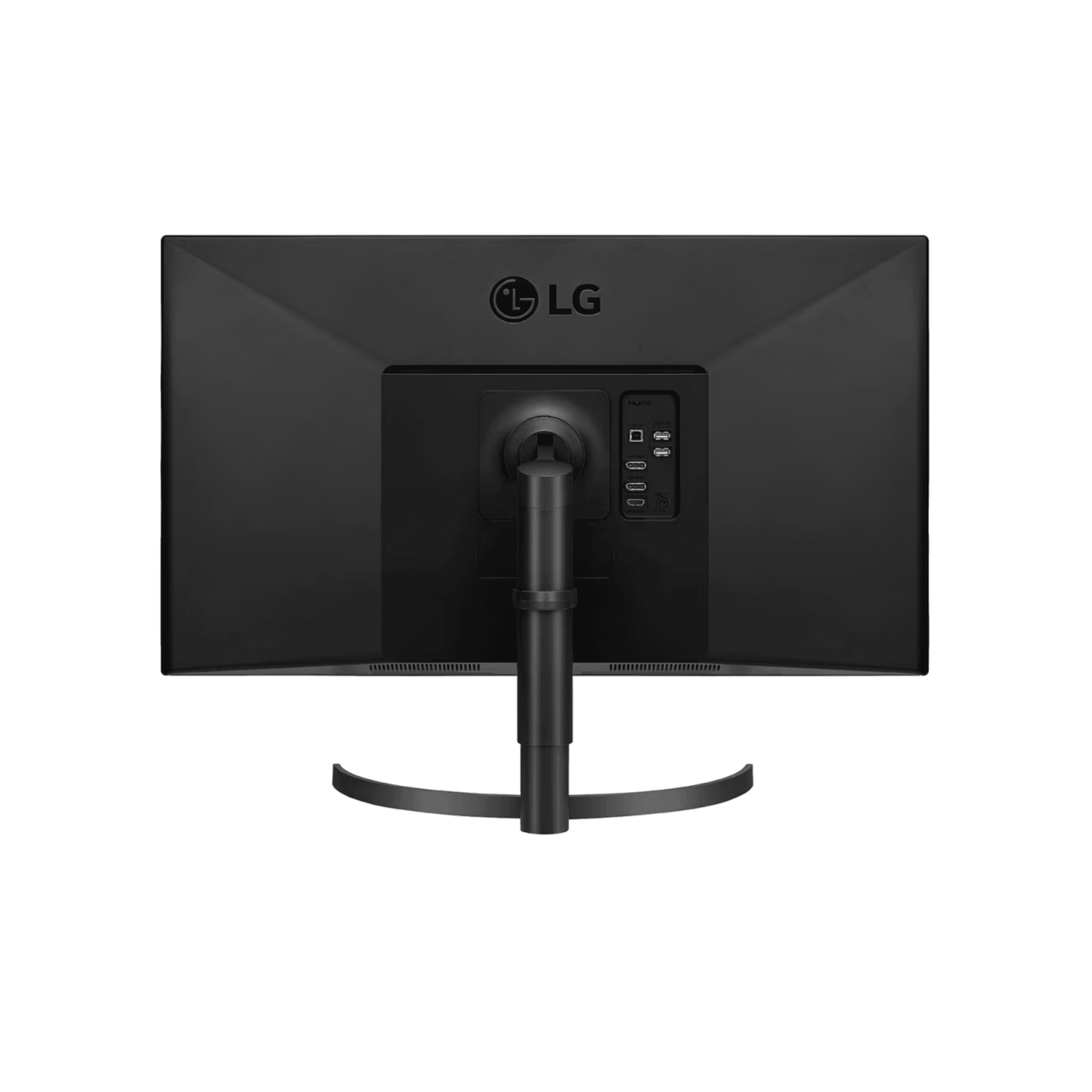

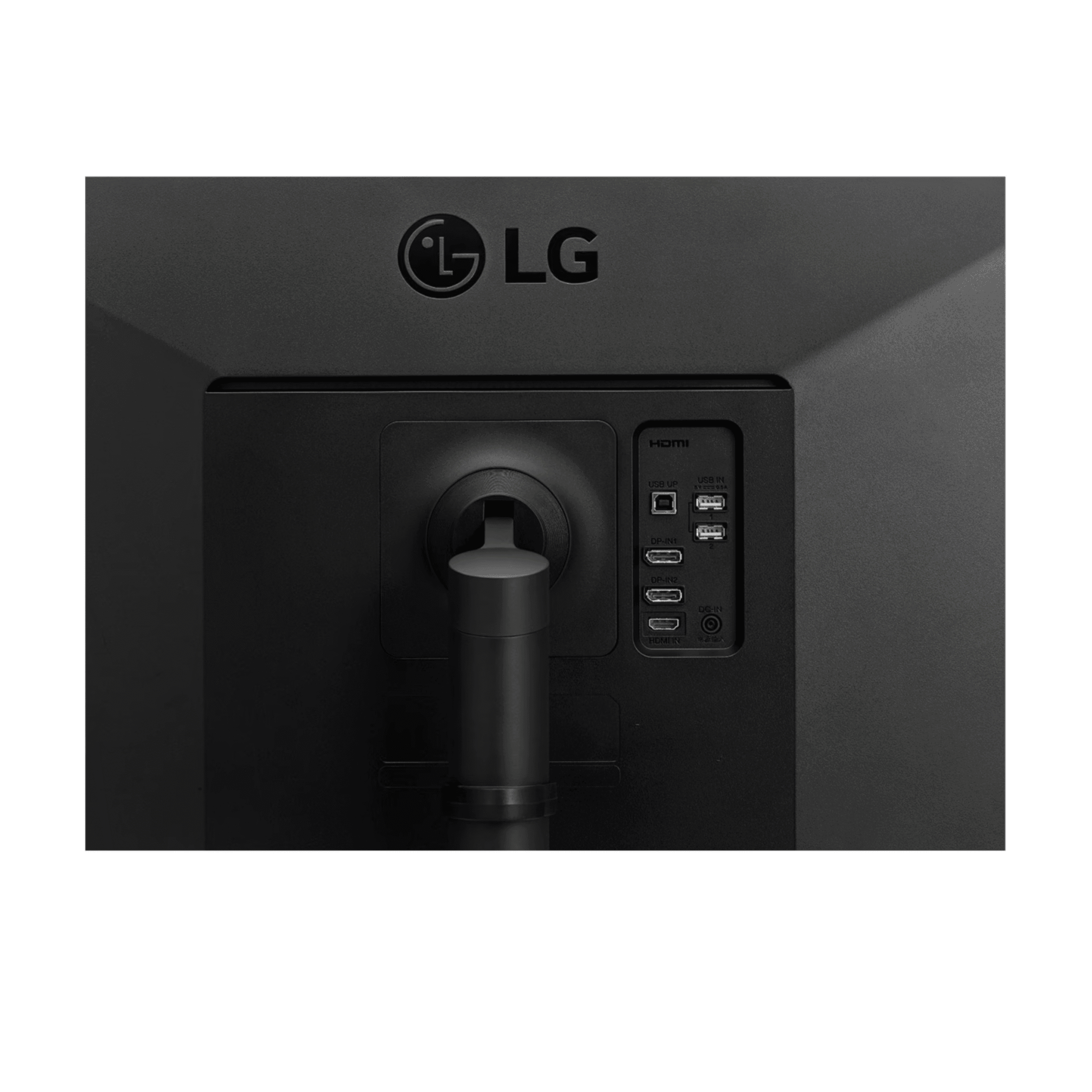

| Video Inputs | HDMI 2.0 × 1, DisplayPort 1.4 × 2 |
| USB Upstream | USB 2.0 × 1 |
| USB Downstream, hub | USB 2.0 × 2 |
| Multi-View | 2 picture by picture, two 4 megapixel sources |
| Graphics Support | Nvidia, AMD, and Intel |
| Dual Controller | Yes, one keyboard and mouse controls two workstations |
| Power Type | External power adapter |
| AC Input | 100 to 240 V AC |
| DC Output | 19 V, 3.42 A |
| Power Consumption, maximum | 65 W |
| Power Consumption, sleep | Less than 0.5 W |
| PBP | 2 picture by picture |
| Pathology Mode | Yes |
| Picture Modes | DICOM Clinical, DICOM Diagnostic, Pathology, Reader, Mono, Vivid, and Calibration |
| HDR | HDR10 and HDR Effect |
| Super Resolution Plus | Yes |
| Black Stabilizer and Uniformity | Yes |
| Auto Luminance, ALS | Yes, adjusts to ambient light |
| Flicker Safe and Reader Mode | Yes |
| Software | OnScreen Control and LG PerfectLum calibration |
| Compliance | TAA compliant |
| Warranty | 3 year SWAP warranty |
Clinical Applications
Deployed across multimodality diagnostic imaging environments where color accuracy, DICOM compliance, and PACS compatibility determine reading quality and radiologist efficiency.
DICOM Part 14 calibration and 450 cd/m2 brightness support accurate interpretation of CT, MRI, DR, and CR images from PACS workstations in general radiology reading rooms.
The wide DCI-P3 98 percent color space accurately represents PET-CT fusion images, volume-rendered 3D reconstructions, and multiparametric MRI color maps that sRGB displays compress.
Pathology Mode and LG Nano IPS reproduce color fidelity comparable to microscope viewing for digital pathology slide review alongside clinical images.
2 picture by picture with HDMI 2.0 plus dual DisplayPort 1.4 inputs lets you compare current and prior studies from different PACS workstations or modality controllers.
At 7.3 kilograms with the stand and 65 watts maximum power, the lightweight 32HL512D suits outpatient imaging centers, smaller reading rooms, and home reading setups.
TAA compliance and a 3 year SWAP warranty make the 32HL512D a straightforward choice for government, VA, and group purchasing organization deployments.
Color Accuracy, Connectivity, and Ergonomics
Color accuracy, multi-source connectivity, and ergonomic flexibility combine to support demanding multimodality diagnostic imaging workflows. The expanded workflow detail is in the expandable sections below.
LG Nano IPS: nanometer-sized particles in the LED backlight absorb excess light wavelengths to enhance on-screen colors and grays for high DICOM accuracy.
DCI-P3 98 percent Color Gamut: a wider color space than sRGB for accurate reproduction of 3D reconstructions, fusion imaging, and digital pathology correlation in PACS reading environments.
Pathology Mode: reproduces color fidelity comparable to microscope viewing for correlating digital pathology slides alongside CT, MRI, and CR images.
Brightness Stabilization: an internal backlight sensor measures and adjusts the LED backlight to maintain the calibrated DICOM brightness target over time.
Factory DICOM Calibration: the monitor is DICOM Part 14 factory calibrated to primary diagnostic guidelines, and a calibration report is included.
HDR10 and HDR Effect: extended dynamic range support for high-contrast clinical image review.
Video Inputs: HDMI 2.0 plus two DisplayPort 1.4 inputs connect to virtually any PACS workstation, modality controller, or laptop, with support for Nvidia, AMD, and Intel graphics.

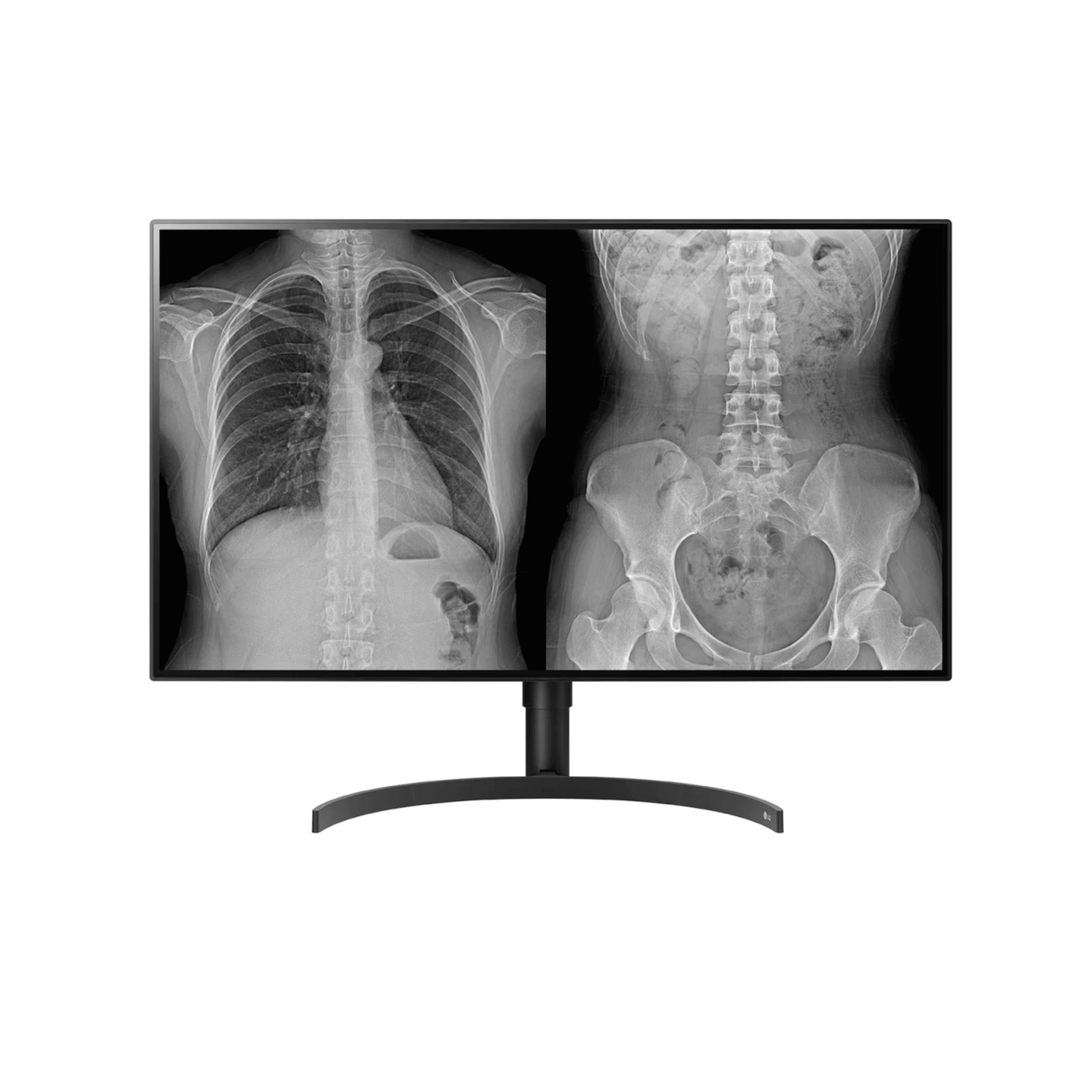

2 Picture by Picture: display two 4 megapixel sources side by side to work with PACS applications and compare studies.
Dual Controller: control two workstations with a single keyboard and mouse, which helps in multi-modality reading environments.
OnScreen Control and LG PerfectLum: adjust monitor settings from the desktop, and run DICOM calibration and quality assurance through LG PerfectLum software.
USB Hub: two USB 2.0 downstream ports for peripherals at the reading station.
Two-Way Pivot: bi-directional 90 degree portrait rotation supports both landscape and portrait configurations for flexible reading room layouts.
4-Side Virtually Borderless: minimized bezels on all four sides create near-seamless multi-monitor arrays for side by side diagnostic workflows.
OneClick Stand: a lightweight stand and construction allow fast deployment, with height, tilt, and pivot adjustment.
Ambient Light Sensor: automatically adjusts brightness to ambient light to keep DICOM viewing conditions consistent.
Flicker Safe and Reader Mode: reduce eye fatigue during long interpretation sessions.
VESA 100 by 100 mm: compatible with medical-grade monitor arms and wall mounts.
Regulatory Compliance and Quality Standards
FDA 510(k) Class II clearance for diagnostic interpretation, CE marking under the European Medical Device Directive, and IEC 60601-1 electrical safety certification. Medical Outfitters is an ISO 13485:2016 certified supplier of diagnostic imaging equipment, so every 32HL512D ships through a documented and audited quality management system. Full compliance documentation is available in the expandable sections below.
FDA 510(k) Class II: cleared for the display of radiological images for review, analysis, and diagnosis, which is a higher regulatory standard than Class I. The monitor is not intended for mammography.
CE marked: compliant with the European Medical Device Directive 93/42/EEC, and certified to EN 60601-1 and EN 60601-1-2.
ISO 13485 and GMP: manufactured under ISO 13485, GMP, and KGMP quality standards, and Medical Outfitters is independently ISO 13485:2016 certified as a supplier.
TAA Compliant: compliant with the Trade Agreements Act for government and group purchasing procurement.
IEC 60601-1: meets the general safety requirements for medical electrical equipment.
IEC 60601-1-2: meets the electromagnetic compatibility requirements.
UL 60601-1 and CSA: certified to UL 60601-1 and CSA C22.2 No. 60601-1 for the United States and Canada, and FCC Part 15 Class A.
MFDS: approved by the Korean Ministry of Food and Drug Safety.
RoHS: compliant with the Restriction of Hazardous Substances directive.
REACH: compliant with the European Union REACH chemical regulation.
WEEE: compliant with the European Union Waste Electrical and Electronic Equipment directive.
Warranty and Accessories: a 3 year SWAP warranty, with calibration software, a calibration report, a power adapter, an HDMI cable, and a DisplayPort cable included.
PACS & Calibration Compatibility Review
Share your PACS vendor, display layout, and quality assurance schedule. Our diagnostic imaging specialists confirm the 32HL512D DICOM configuration and LG PerfectLum calibration setup before your order ships.
Hospital Procurement & RFP Support
Volume pricing, TAA compliant quoting, technical documentation, and logistics for hospital systems, imaging center networks, and group purchasing teams. Full biomedical documentation is available for review committees.
Frequently Asked Questions
Quick answers to the most common purchase and technical questions about the LG 32HL512D diagnostic monitor. Tap any question to expand.
No. The LG 32HL512D is not intended for mammography. It is FDA 510(k) Class II cleared for the display of general radiological images for review, analysis, and diagnosis. For dedicated mammography, LG offers 5 megapixel and 12 megapixel displays cleared for breast imaging, and our team can help you choose the right monitor for your needs.
DCI-P3 covers a wider color space than sRGB, which provides more vivid and accurate color reproduction. This is particularly valuable for color-intensive modalities such as 3D volume reconstructions, PET-CT fusion images, and digital pathology slides reviewed within PACS workstations. For grayscale reading, the monitor still meets DICOM Part 14 requirements.
The 32HL512D has an internal backlight sensor that measures and adjusts the LED backlight to maintain the DICOM brightness target over time, and it supports hardware calibration through LG PerfectLum software with an included calibration report. The 32HQ713D adds a built-in front self-calibration sensor for hands-free DICOM recalibration. Both maintain DICOM Part 14 compliance, and the right choice depends on your calibration workflow.
LG Nano IPS uses nanometer-sized particles in the LED backlight that absorb excess light wavelengths, which enhances on-screen colors and grays for high DICOM accuracy and a crisp reading experience. It is what enables the wide DCI-P3 98 percent color gamut on the 32HL512D.
Yes. The two-way pivot allows bi-directional 90 degree rotation to portrait orientation on both sides. Combined with the four-side virtually borderless design, two monitors in portrait create a near-seamless vertical reading array that suits long-image modalities such as DR chest radiography and spine MRI in multimodality PACS workstations.
Yes. The LG 32HL512D is FDA 510(k) Class II cleared for the display of radiological images for review, analysis, and diagnosis, which is a higher clearance level than Class I registration. It also meets IEC 60601-1 and IEC 60601-1-2 requirements for medical electrical devices used in clinical reading rooms.
The 32HL512D is DICOM Part 14 factory calibrated to primary diagnostic guidelines, with a calibration report included. An internal backlight sensor maintains the DICOM brightness target over time, and ongoing hardware calibration and quality assurance are supported through LG PerfectLum software.
Through Medical Outfitters Inc., an ISO 13485:2016 certified supplier based in Miami, FL. We supply factory-new units with calibration support and nationwide installation. Call (305) 885-4045 or request a quote online.
