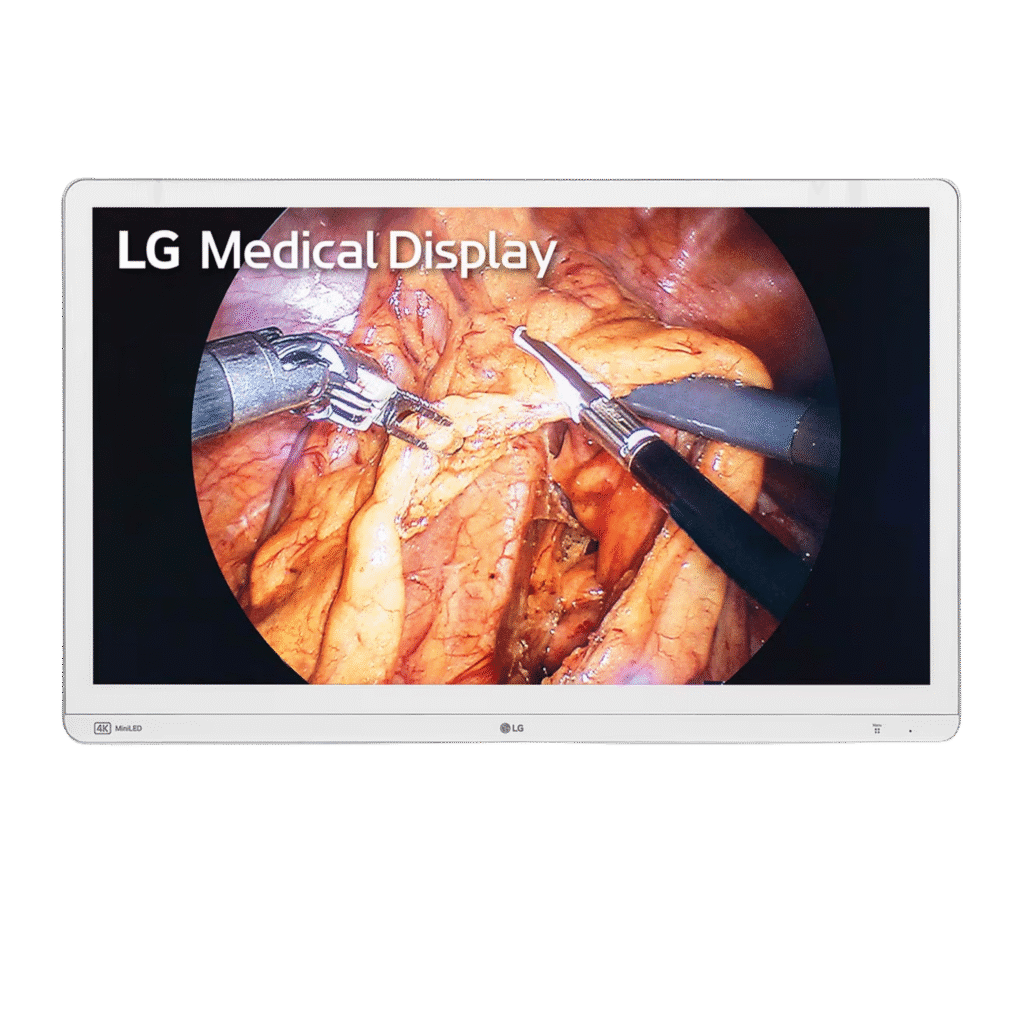

LG 32HR734S-W: 31.5" 4K Mini-LED Surgical Monitor
Authorized LG medical imaging equipment supplier. The LG 32HR734S-W is purpose-built surgical display technology for high-acuity operating room environments. It solves three persistent problems in clinical imaging. Edge-lit backlights wash out contrast in bright surgical suites, operating room ceiling glare obscures fine tissue detail, and multi-cable 4K signal distribution is complex. The 32HR734S-W replaces those compromises with an integrated, clinically validated display platform.
The core medical imaging technology is a full-array Mini-LED backlight with 1,500 independent local dimming zones, 2,000 cd/m² peak brightness, and a DCI-P3 98 percent wide color gamut, the image fidelity that modern diagnostic imaging demands. A single 12G-SDI cable transports native 4K at 60 frames per second. The built-in Clone Screen mirrors the display to a second monitor with no splitter and no added latency, which makes the 32HR734S-W a complete operating room imaging solution for surgical suites, cath labs, and EP labs alike.
Need pricing? Get a quote with lead times and volume discounts within one business day.
Mini-LED Precision, Optical Bonding, and Clone Screen
Three surgical display technologies set the 32HR734S-W apart from standard operating room monitors. Each addresses a specific failure point in traditional hospital imaging displays. Full technical data is in the expandable sections below.
Panel: 31.5 inch IPS, 3840 by 2160 4K UHD, 16:9
Backlight: full-array Mini-LED with 1,500 independent local dimming zones
Brightness, typical: 800 cd/m²
Peak Brightness: 2,000 cd/m²
Dynamic Contrast: up to 1,000,000:1
Color Gamut: DCI-P3 98 percent
Color Depth: 10 bit
HDR: HDR10 and HDR Effect
DICOM: Part 14 grayscale, stabilized at 500 cd/m²
Hardware Calibration: LG Calibration Studio
Response Time: 5 ms gray to gray at faster
Viewing Angle: 178° horizontal and 178° vertical
Optical Bonding: full-area bonding fills the air gap between the LCD and the protective glass with optical resin, which eliminates internal reflections that are critical for accurate surgical visualization in brightly lit operating rooms
Anti-Reflection: reduces ambient light reflections from operating room ceiling fixtures
Anti-Glare: diffuses specular reflections from surgical lights
Anti-Fingerprint: resists smudges and allows cleaning with operating room grade disinfectants
How the 32HR734S-W compares against a standard surgical monitor:
Clone Screen outputs a latency-free copy of the active display to any HDMI secondary monitor, with no external splitter required, and it works even when picture in picture or picture by picture modes are active. From cath lab interventional procedures to open surgery, the entire care team views the identical live feed, which improves collaboration and real-time clinical decisions without adding cabling complexity to your imaging equipment setup.
Full Technical Specifications
Complete reference data for procurement, RFP submissions, and biomedical review. Hospital purchasing teams, imaging technology managers, and biomedical engineers rely on this specification set when they evaluate surgical displays and operating room imaging equipment. Expand each category for full detail.
| Resolution | 4K, 3,840 × 2,160 |
| Panel Type | IPS |
| Screen Size | 31.5 inch, 16:9 |
| Backlight Technology | Mini-LED, full-array, 1,500 local dimming zones |
| Color Gamut, typical | DCI-P3 98 percent, CIE1976 |
| Color Depth | 10 bit |
| Brightness, typical | 800 cd/m² |
| Peak Brightness | 2,000 cd/m² |
| Contrast Ratio, typical | 1,000:1 |
| Dynamic Contrast | Up to 1,000,000:1 |
| Response Time | 5 ms gray to gray at faster |
| Viewing Angle | 178° right and left, 178° up and down |
| Surface Treatment | Protective glass with optical bonding, AR, AG, and AF |
| Weight | 9.7 kg, which is 21.3 lbs |
| IP Rating, front | IP45 |
| IP Rating, except front | IP32 |
| Impact Protection | IK06, withstands 1 joule of impact |
| VESA Wall Mount | 200 × 100 mm and 100 × 100 mm |
| Dimensions | Width 751.4 mm, height 469.5 mm, depth 39.2 to 65.2 mm |
| Input Terminals | HDMI × 1, DisplayPort × 1, SDI 12G and 3G × 4, DVI-D × 1 |
| Output Terminals | HDMI Clone Screen × 1, SDI 12G and 3G × 4 loop-through |
| USB | USB 3.0, 1 upstream and 1 downstream |
| Service | RS-232C service port |
| AC Input | 100 to 240 V AC, 50/60 Hz |
| Power Consumption, maximum | 130 W |
| Power Consumption, standby | Less than 0.3 W |
| DICOM Compliant | Yes, Part 14 grayscale stabilized at 500 cd/m² |
| Hardware Calibration | Yes, LG Calibration Studio |
| HDR | HDR10 and HDR Effect |
| PBP and PIP | Up to 4 picture by picture, plus picture in picture |
| Screen Flip | Mirror Mode and Rotation Mode, rotates 180 degrees |
| Failover Input Switch | Yes, across HDMI, SDI, DVI, and DisplayPort |
Clinical Applications
Deployed across the full spectrum of hospital imaging environments, wherever display fidelity and system reliability directly affect procedural outcomes and patient safety.
Full-array Mini-LED contrast and single-cable 12G-SDI integrate directly with laparoscopic tower systems and operating room AV infrastructure without additional distribution hardware.
Peak brightness of 2,000 cd/m² and DCI-P3 98 percent color reveal subtle mucosal detail that standard operating room imaging equipment can miss under bright procedural lighting.
Automatic failover input switching and an IP45-rated front panel keep cath lab equipment running uninterrupted during time-critical interventional cardiology procedures.
Clone Screen mirrors to the technologist console for a true shared imaging view, with no splitter, no signal delay, and no additional hardware between the procedural and control positions.
DICOM Part 14 calibration and native 4K resolution deliver precise fluoroscopic and intraoperative reference imaging for procedures where spatial accuracy matters most.
Clone Screen feeds a fully identical second display for observers, residents, and AV recording systems, without modifying the primary operating room workflow.

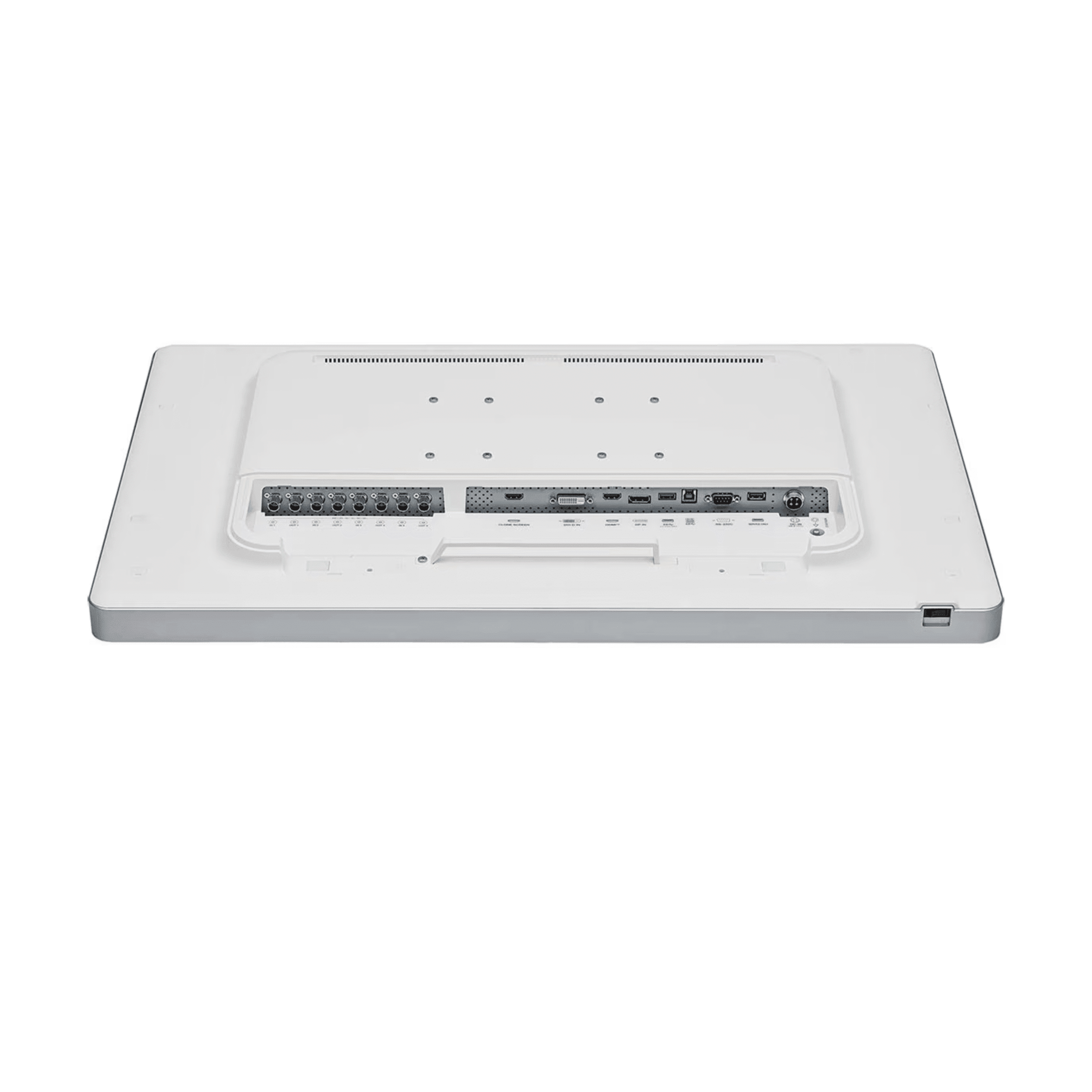

12G-SDI, Clone Screen, and Multi-View
A complete 4K surgical AV integration platform engineered to slot into existing hospital imaging infrastructure, including PACS radiology systems, laparoscopic towers, cath lab AV routing, and multi-room imaging networks. The expanded details on inputs, outputs, multi-view modes, failover logic, and mounting are in the expandable sections below.
HDMI x1: connects cameras, a PC, or image management systems.
DisplayPort x1: supports high frame rate 4K sources.
12G and 3G-SDI x4: 12G-SDI carries native 4K at 60 frames per second over one coaxial cable, while 3G-SDI requires four cables for the same result, and SDI routes directly from C-arm and fluoroscopy sources into PACS radiology workflows.
DVI-D x1: provides legacy system compatibility.
USB 3.0: supports firmware updates and peripherals.
Clone Screen, HDMI output: mirrors the complete display to a secondary monitor with no external splitter and no added latency, and it works even with picture in picture or picture by picture active.
SDI loop-through, 12G and 3G, four channels: passes each SDI input directly to recording systems, a PACS archive, or additional monitors without signal loss.
4PBP: displays up to four independent sources side by side, such as a laparoscopic camera, fluoroscopy, a vitals overlay, and a PACS reference at the same time.
PIP: overlays a secondary source in a resizable picture in picture window.
Mirror Mode: flips the display horizontally for boom arm orientations.
Rotation Mode: rotates the output 180 degrees for non-standard mounting.
The 32HR734S-W monitors signal integrity on the active input and automatically switches to a backup source across HDMI, SDI, DVI, or DisplayPort without manual intervention. For 12G-SDI in particular, the system switches from the primary input to the next available input if a signal loss is detected, which keeps the video output consistent during surgical procedures.
IP45, front: dust tight and protected against water jets, and compatible with operating room grade disinfectants.
IP32, except the front: protected against vertically falling water drops and solid particle ingress.
IK06: withstands 1 joule of impact energy.
Weight: 9.7 kilograms, which is 21.3 pounds.

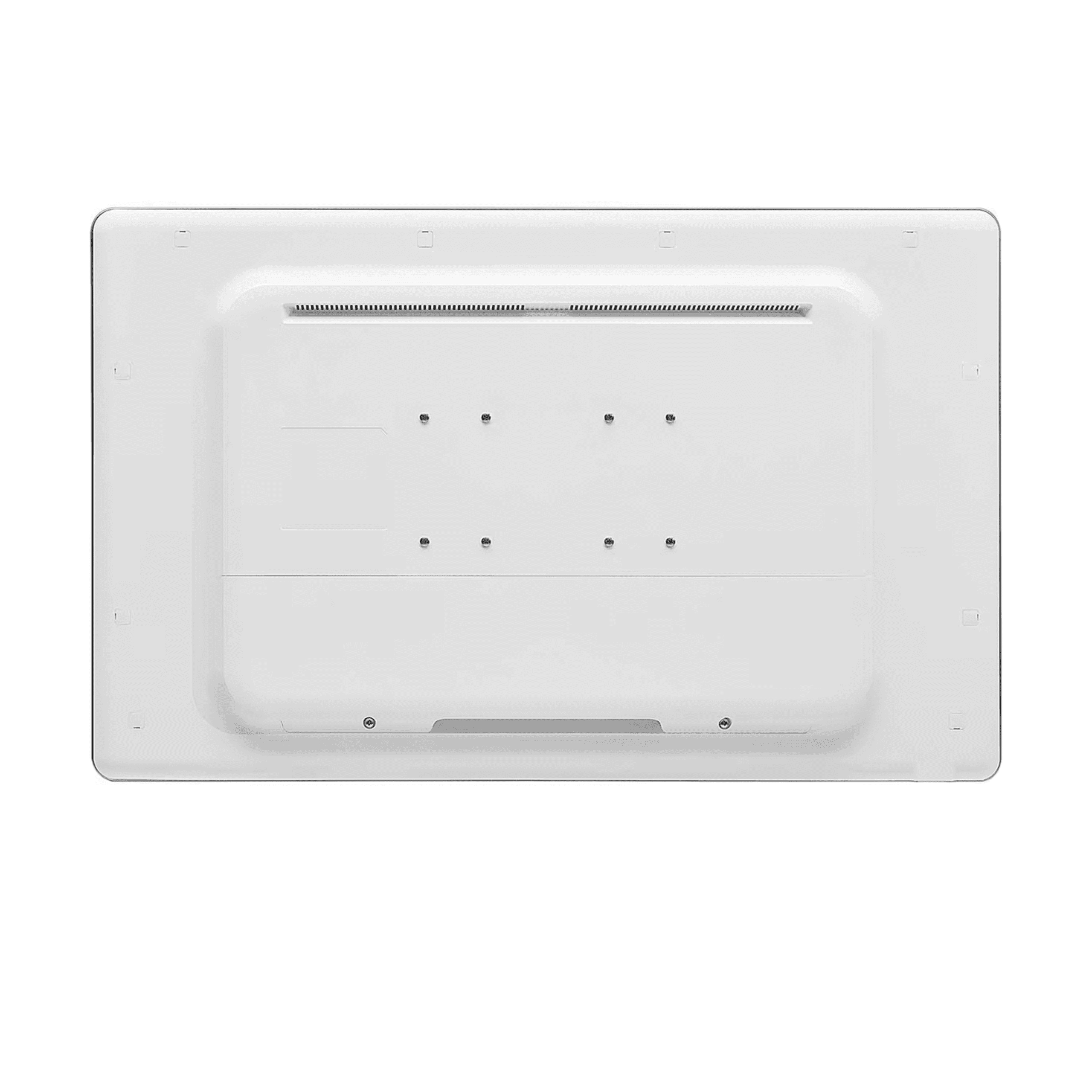

VESA: 200 by 100 millimeters and 100 by 100 millimeters are supported.
Regulatory Compliance and Safety
FDA Class I registration, CE MDR compliance, and IEC 60601-1 electrical safety certification. Medical Outfitters is an ISO 13485:2016 certified supplier of diagnostic medical imaging equipment, so every 32HR734S-W ships through a documented and audited quality management system. Full compliance documentation is available in the expandable sections below.
FDA Class I: registered as a Class I medical device with the United States FDA, suitable for use in hospital operating rooms, procedure suites, and outpatient clinical environments.
CE MDR: compliant with the European Union Medical Device Regulation 2017/745.
ISO 13485: Medical Outfitters is independently ISO 13485:2016 certified as a surgical imaging equipment supplier.
IEC 60601-1: meets the general safety requirements for medical electrical equipment.
IEC 60601-1-2: meets the electromagnetic compatibility requirements for medical electrical equipment.
UL and cUL: UL Listed for the United States and Canada.
RoHS: compliant with the Restriction of Hazardous Substances directive.
REACH: compliant with the European Union REACH chemical regulation.
WEEE: compliant with the European Union Waste Electrical and Electronic Equipment directive.
AV Integration & PACS Compatibility Review
Provide your laparoscopic tower model, boom arm specifications, SDI routing plan, and PACS radiology system details. Our team confirms full compatibility with your existing imaging infrastructure before your order ships.
Hospital Procurement & RFP Support
Volume pricing, technical documentation, and logistics for multi-OR deployments. We support biomedical engineers, operating room directors, and hospital purchasing departments sourcing surgical display equipment. Contact us for RFP packages.
Frequently Asked Questions
Quick answers to the most common purchase and technical questions about the LG 32HR734S-W surgical display. Tap any question to expand.
The LG 32HR734S-W is a 31.5-inch 4K Mini-LED surgical monitor with 1,500 local dimming zones, 2,000 cd/m2 peak brightness, Clone Screen HDMI output, 12G-SDI connectivity, DICOM Part 14, optical bonding with anti-reflection, anti-glare, and anti-fingerprint coatings, and IP45 and IK06 protection. It is FDA Class I registered and CE MDR compliant.
Pricing varies by quantity and installation scope. Medical Outfitters returns a quote within one business day. Call (305) 885-4045 or request a quote online.
Clone Screen mirrors the complete display to a secondary monitor through the HDMI output port, with no external splitter required. It works even when advanced modes such as picture in picture or picture by picture are active, so the whole surgical team sees the same live feed.
12G-SDI carries native 4K at 60 frames per second over a single coaxial cable, while 3G-SDI requires four cables for the same result. This simplifies cabling and supports long-distance 4K transmission in the operating room.
Yes. The monitor is FDA Class I registered, CE MDR compliant, and certified to IEC 60601-1 and IEC 60601-1-2, so it is suitable for use in hospital operating rooms and procedure suites.
Yes. It supports DICOM Part 14 grayscale, stabilized at 500 cd/m2 for calibrated diagnostic viewing, and includes hardware calibration through LG Calibration Studio.
Optical bonding fills the air gap between the LCD and the protective glass, which eliminates internal reflections that reduce perceived contrast in brightly lit operating rooms. Anti-reflection, anti-glare, and anti-fingerprint coatings suppress glare and allow cleaning with operating room grade disinfectants.
No. It is designed for boom arm, pendant, or wall mounting. The VESA pattern is 200 by 100 millimeters and 100 by 100 millimeters, and the monitor weighs 9.7 kilograms, which is 21.3 pounds.
Through Medical Outfitters Inc., an ISO 13485:2016 certified supplier based in Miami, FL. We supply factory-new units with nationwide installation support. Call (305) 885-4045 or request a quote online.
