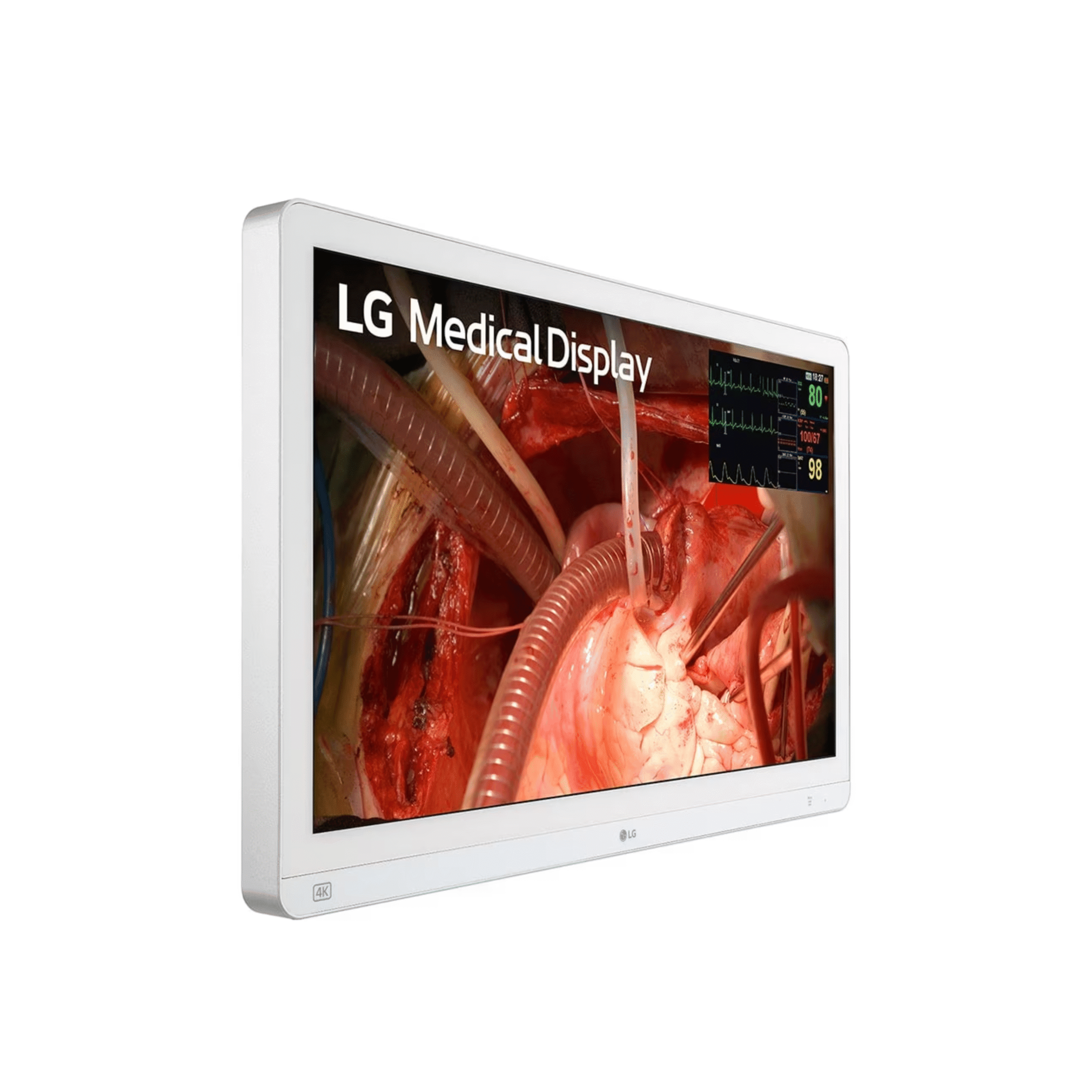

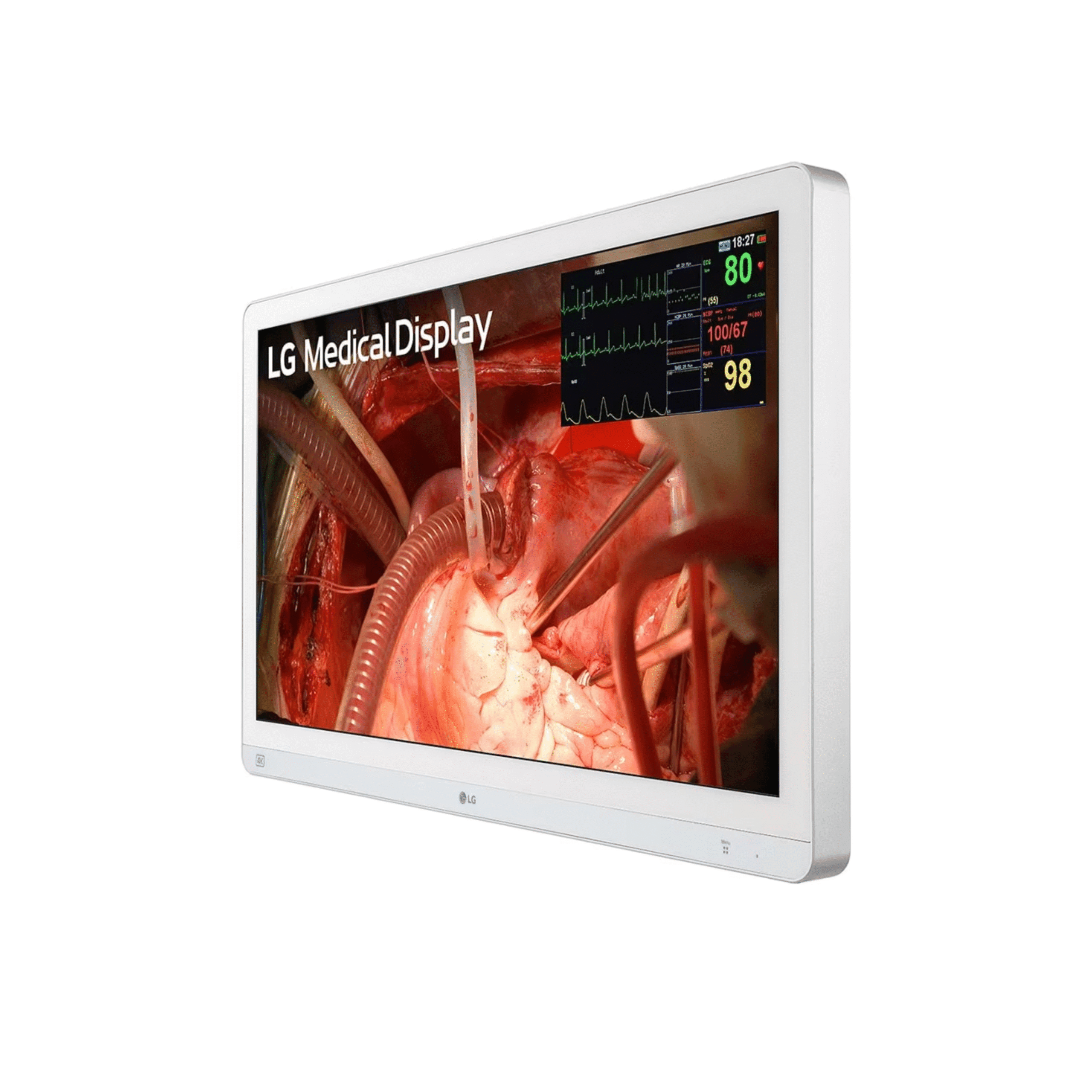

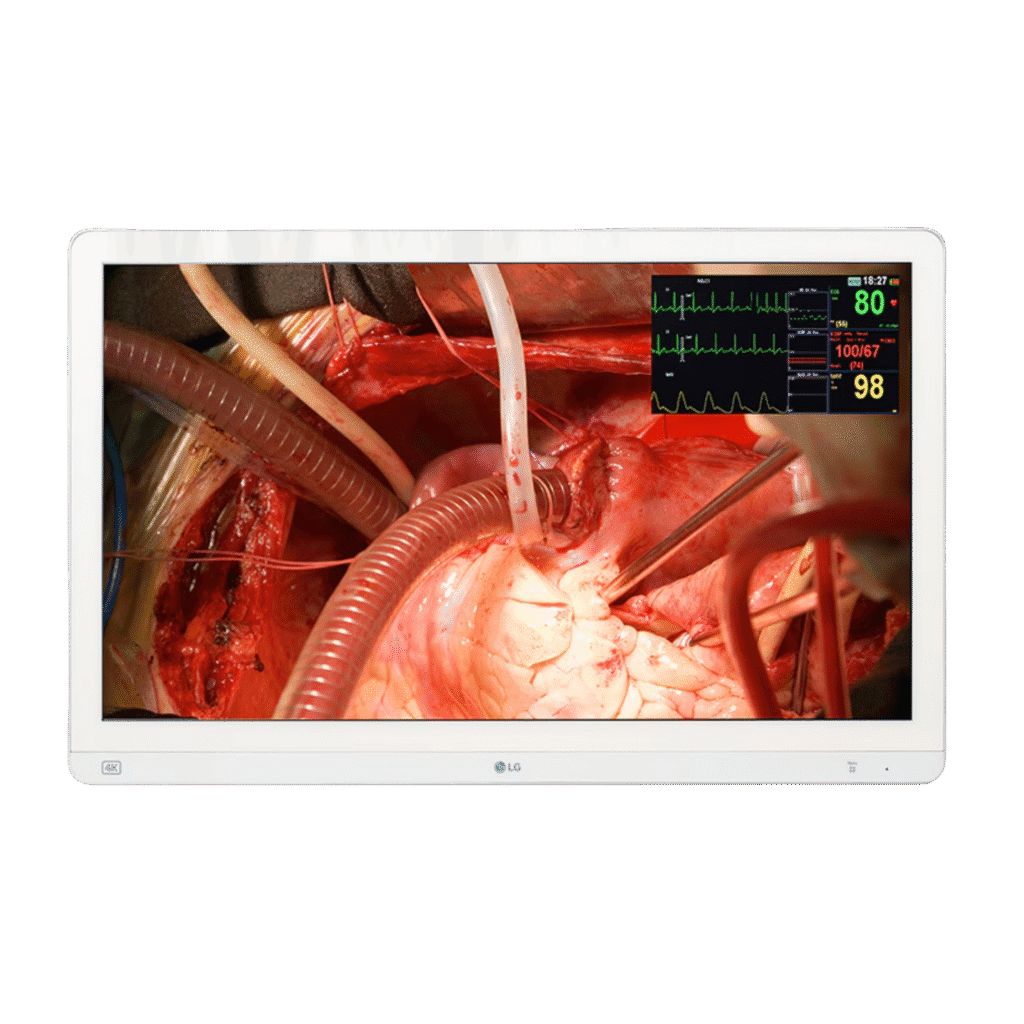

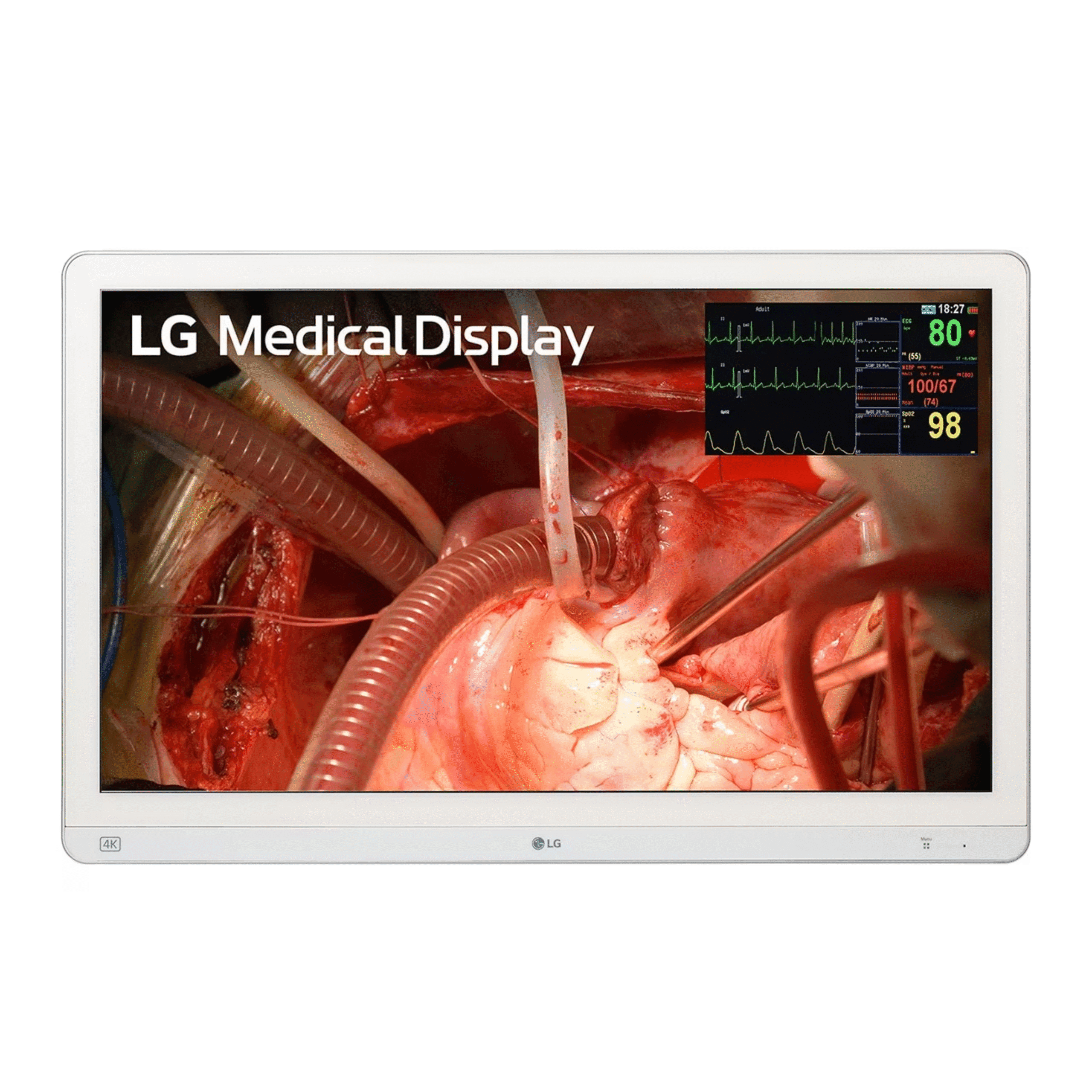

LG 27-inch 4K Surgical Monitor with Mini-LED – Model 27HQ710S
27″ 4K (3840×2160) Mini‑LED · 1.5K Dimming Zones · 2000 cd/m² Peak · HDR10 · sRGB 139% · IP45 Protection · 4PBP – The LG 27HQ710S represents the pinnacle of surgical display technology. Mini‑LED backlighting with 1,500+ local dimming zones delivers exceptional contrast and HDR clarity, while the sealed IP45 design and optical bonding ensure reliable performance in the most demanding OR environments.
Mini‑LED Backlight – Unmatched Contrast & HDR
Mini‑LED technology with over 1,500 local dimming zones delivers deep blacks and brilliant highlights. HDR10 and HDR Effect ensure fine anatomical detail is visible even in the brightest and darkest regions of the image, critical for endoscopic and laparoscopic procedures.
Standard Surgical Monitor
LG 27HQ710S (Mini‑LED)
4K Resolution with Expanded Color Gamut
The 27-inch 4K UHD panel provides four times the detail of Full HD, enabling precise visualization of fine structures. With sRGB 139% Area and DCI-P3 98% coverage, the 27HQ710S reproduces a wider range of colors, enhancing tissue differentiation and surgical precision.
Advanced Connectivity & Multi‑Input Visualization
Designed for complex hybrid OR setups, the 27HQ710S supports up to 4PBP (Picture‑by‑Picture) and PIP, allowing simultaneous viewing of multiple sources including endoscopy, fluoroscopy, and navigation. 3G‑SDI, DVI, HDMI, and DisplayPort inputs with loop‑through ensure seamless integration.

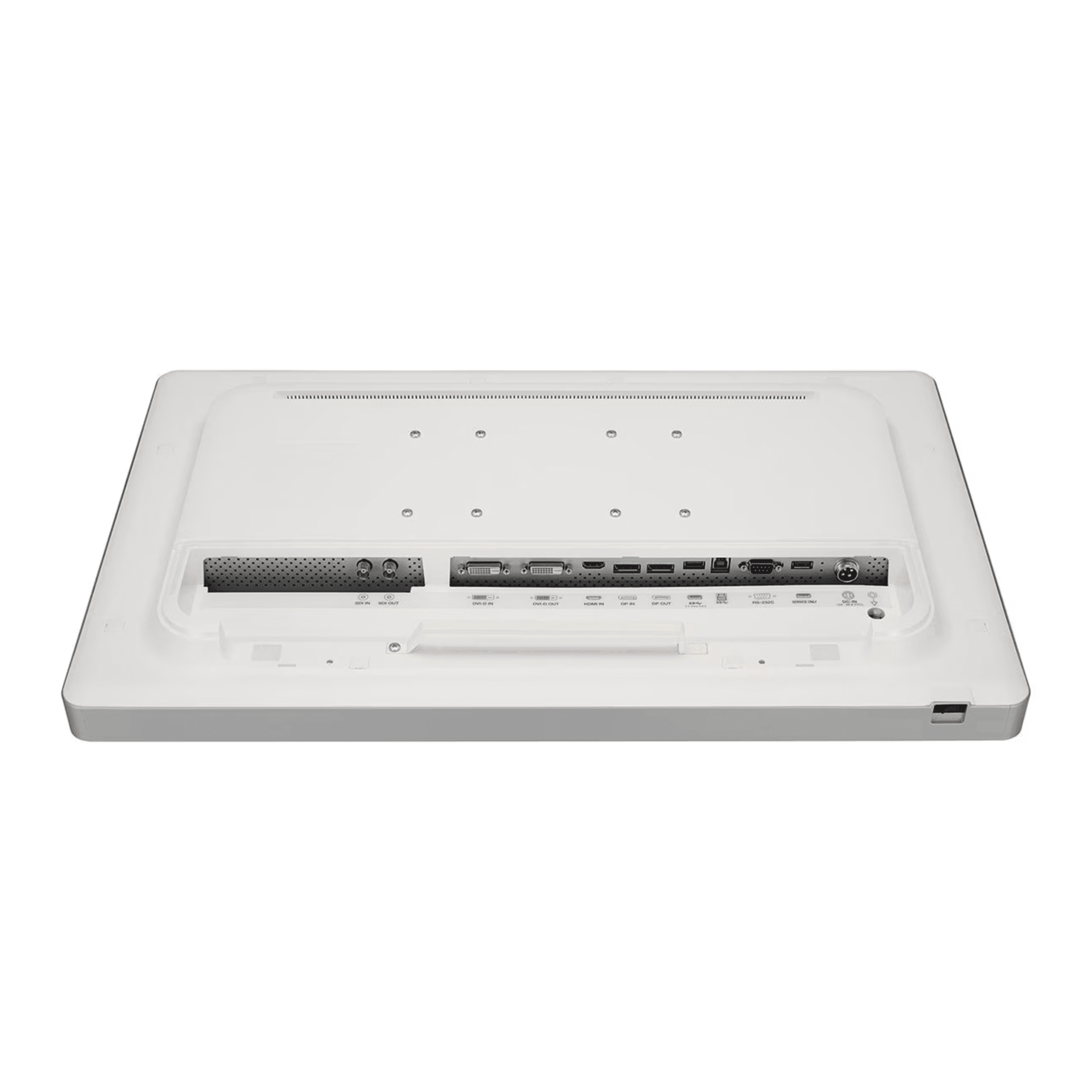

Inputs: 3G‑SDI (In/Out), DVI‑D (In/Out), HDMI, DisplayPort In/Out, USB 3.0
Multi‑view: Up to 4PBP, PIP, Mirror Mode, Rotation Mode
RS‑232C Control: Yes, for surgical integration
Failover Input Switch: Automatically switches to backup signal
2 Hot Keys: Quick access to presets
Ingress Protection: IP45 (front panel) / IP32 (rear) – protected against water jets and dust.
Cleaning: Sealed design with protection glass allows thorough disinfection.

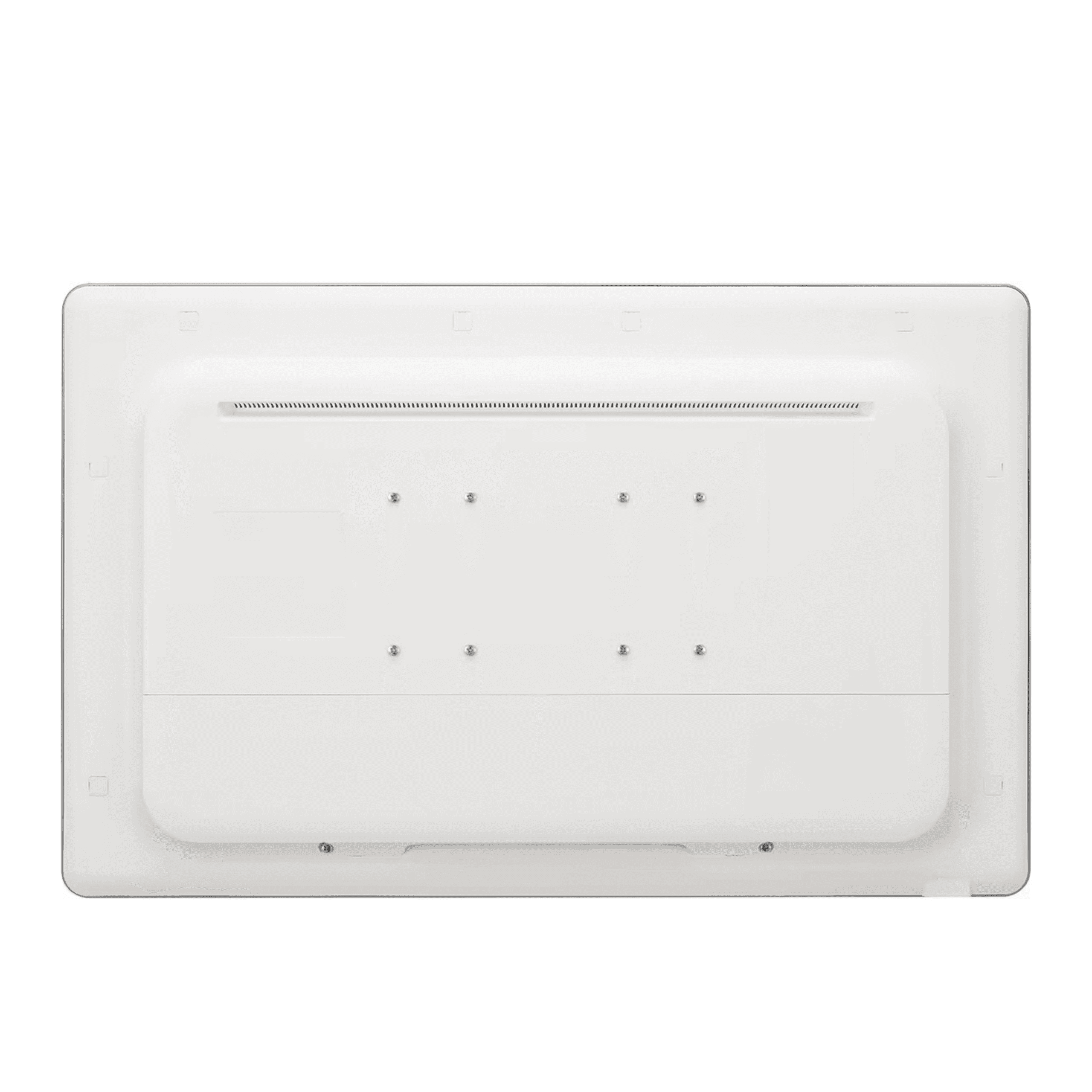

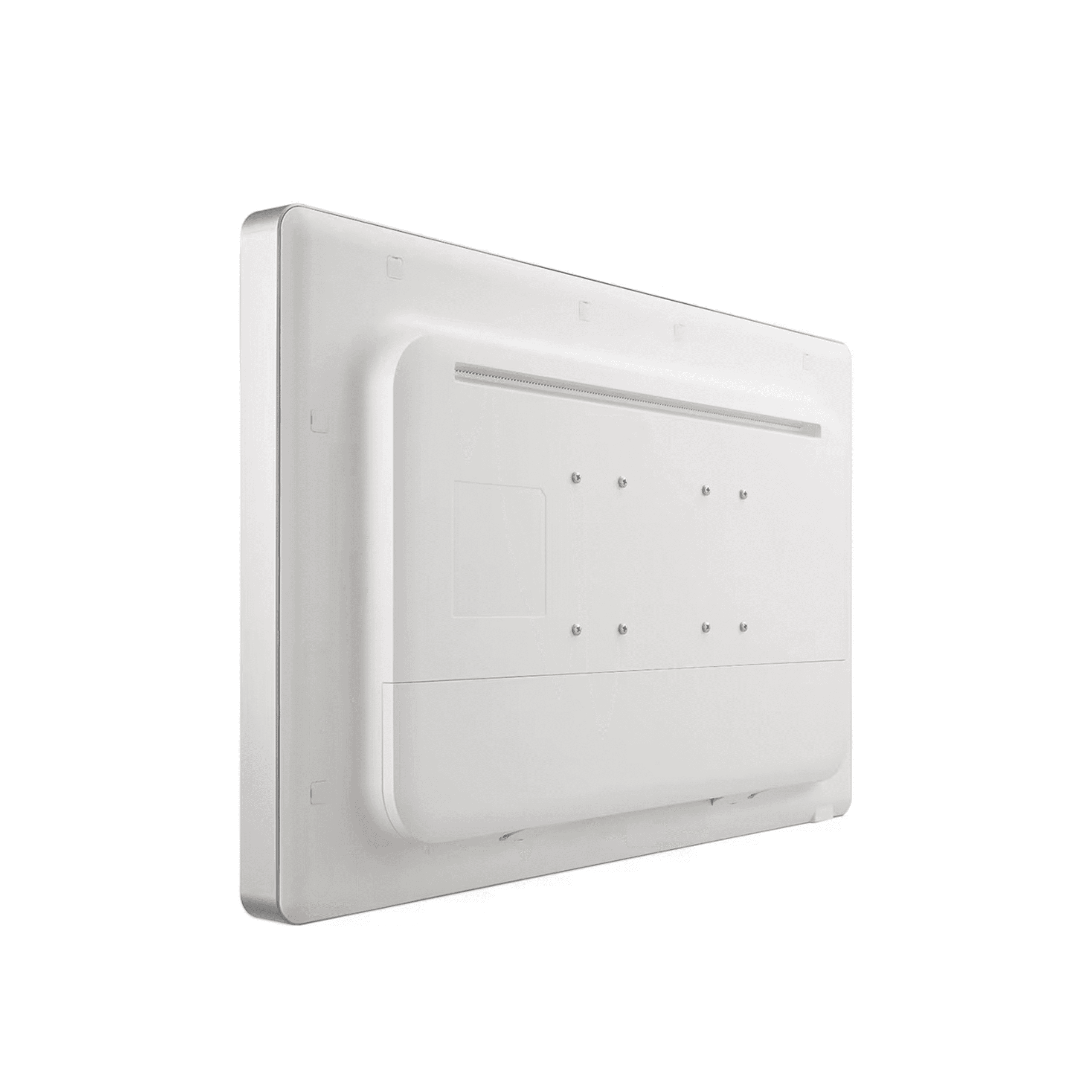

Mounting: VESA 200×100 / 100×100 mm (stand not included).

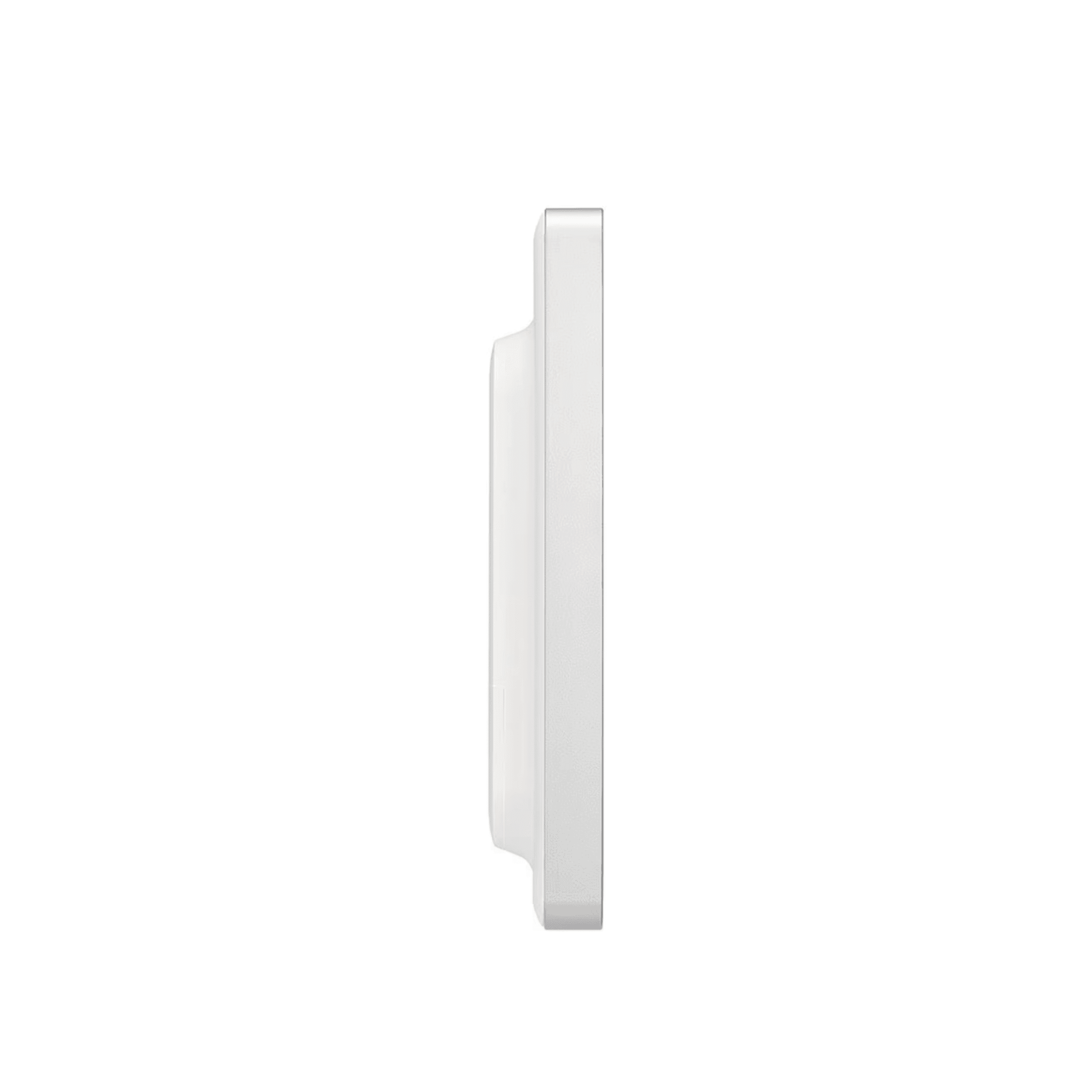

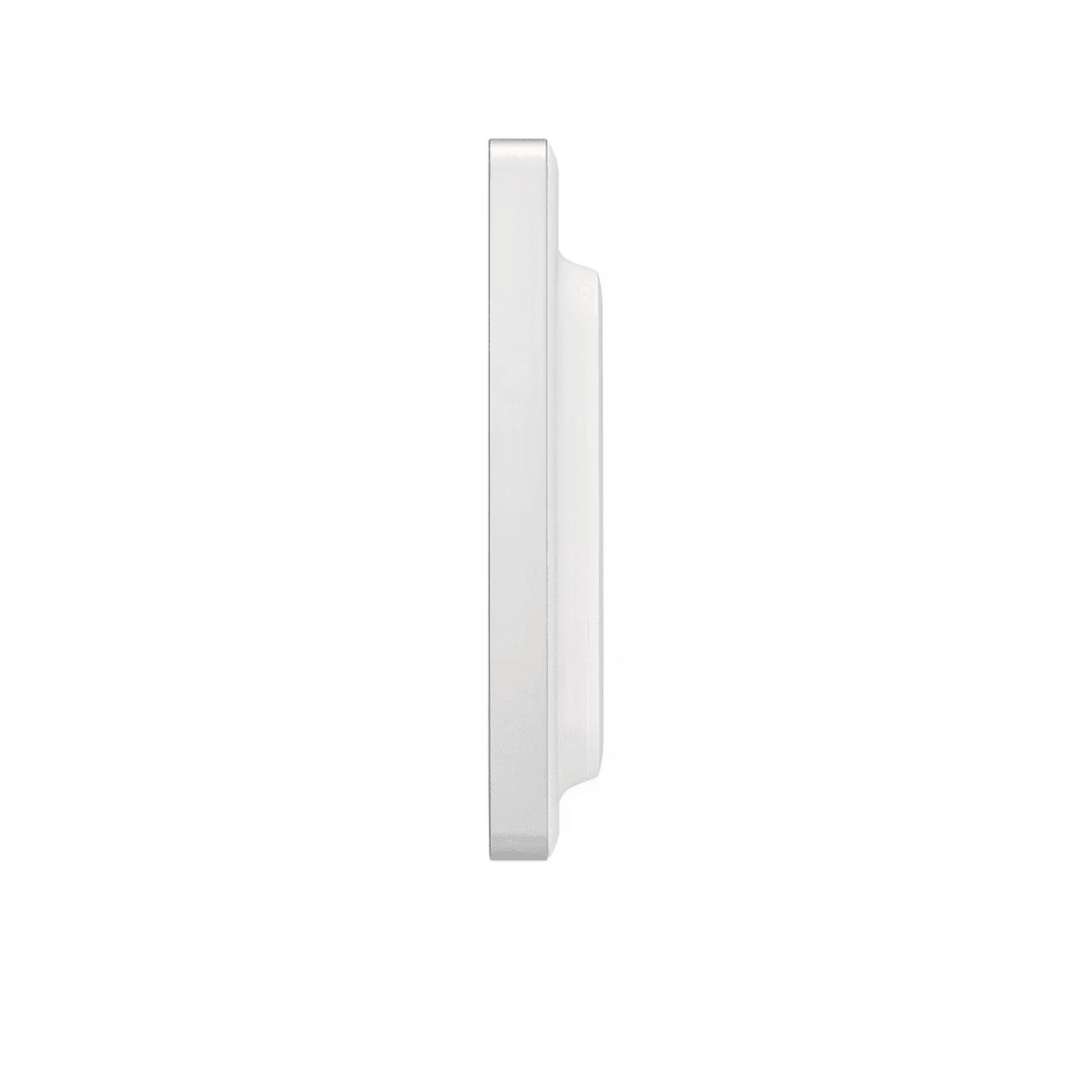

Without stand (W x H x D): 650.8 x 411.7 x 66.6 mm
Weight without stand: 8.0 kg
Shipping weight: 11.9 kg
Power consumption: Max 120W, external adapter (19V/6.32A)
Regulatory Compliance & Safety
The 27HQ710S meets rigorous medical device standards including FDA Class I registration and CE MDR, ensuring safe deployment in operating rooms and interventional suites worldwide.
Medical: FDA Class I, CE MDR, ISO 13485
Safety/EMC: IEC 60601‑1, IEC 60601‑1‑2, UL/cUL
Environmental: RoHS, REACH, WEEE
Ingress Protection: IP45 (front) / IP32 (back)
Warranty: Standard manufacturer warranty applies (contact for details).
Frequently Asked Questions
Mini‑LED provides thousands of tiny LEDs enabling precise local dimming. This results in superior contrast, deeper blacks, and higher peak brightness (2000 cd/m²) compared to conventional edge‑lit LED displays. Critical anatomical details are more visible in both bright and dark regions.
No. The LG 27HQ710S is designed for wall or articulating arm mounting in surgical environments. It supports VESA 200×100 and 100×100 mounting patterns.
Optical bonding eliminates the air gap between the LCD panel and the protection glass. This reduces internal reflections, improves contrast, and enhances durability against impact and moisture ingress.
Yes. The 27HQ710S supports up to 4PBP (4 Picture‑by‑Picture), allowing surgeons to view endoscopic, fluoroscopic, navigation, and vital signs feeds on a single display.
