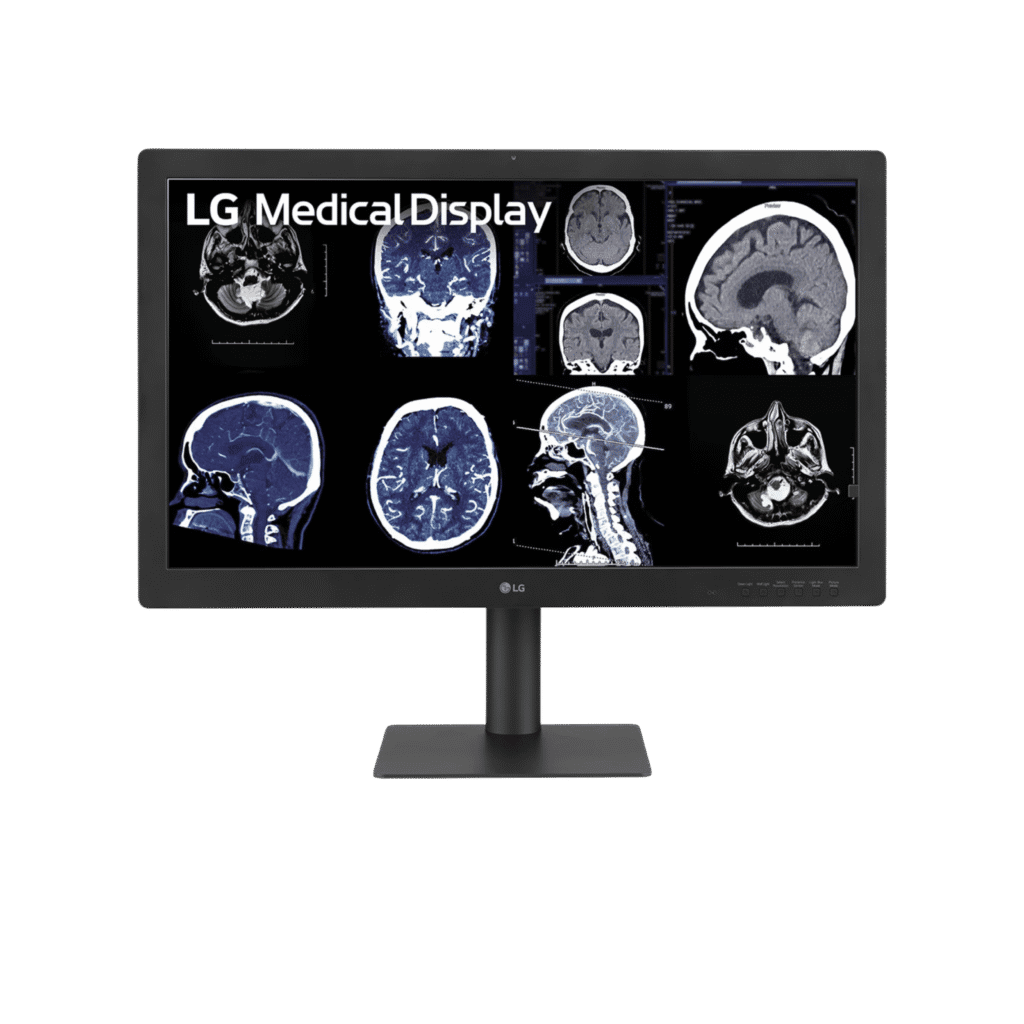

LG 32HQ713D: 31.5" 8MP IPS Black Diagnostic Monitor
Authorized LG diagnostic imaging equipment supplier. The 32HQ713D is purpose-built for radiology reading rooms and multimodality PACS workstations. It solves three persistent problems in diagnostic display. Limited contrast can obscure low-density findings, external calibration workflows are time consuming, and mixed-resolution modality sources are often hard to connect. The 32HQ713D answers all three in a single display.
The core technology is an IPS Black panel that delivers a 2,000 to 1 contrast ratio, which is twice the depth of standard IPS diagnostic displays, paired with 1,000 cd/m² brightness and an internal front self-calibration sensor that maintains DICOM Part 14 accuracy at 500 cd/m² without external instruments. A multi-resolution 8, 6, and 4 megapixel mode ensures compatibility with all major PACS radiology workstations and legacy modality sources. LG positions the 8 megapixel resolution for mammography and high-resolution diagnostic review.
Need pricing? Get a quote with lead times and volume discounts within one business day.
IPS Black Panel, Internal Calibration, and Pathology Mode
Three technologies set the 32HQ713D apart from standard diagnostic displays. IPS Black closes the contrast gap, the internal front sensor removes the external photometer dependency, and multi-resolution mode removes PACS compatibility friction. Full technical data is in the expandable sections below.
Panel: 31.5 inch IPS Black, 3840 by 2160 8 megapixel, 16:9
Brightness, typical: 1,000 cd/m², DICOM stabilized at 500 cd/m²
Contrast Ratio: 2,000:1, compared with about 1,000:1 on standard IPS
Viewing Angle: 178° horizontal and 178° vertical
Color Gamut: sRGB 100 percent, CIE 1931
Response Time: 14 ms gray to gray
Surface Treatment: anti-glare, 3H hardness
Calibration: internal front sensor self-calibration for hands-free DICOM Part 14 maintenance with no external photometer required
Hardware Calibration: LUT based hardware calibration for long-term consistency across PACS diagnostic workflows
Multi-resolution Mode: accepts 8 megapixel at 3840 by 2160, 6 megapixel, and 4 megapixel input signals, which removes compatibility friction when connecting to legacy modalities and PACS workstations without signal converters
Pathology Mode: optimized color fidelity and detail rendering comparable to microscope viewing, which suits digital pathology correlation alongside CT, MRI, or CR images from a PACS
Focus View: highlights a region of interest while dimming the surrounding areas for targeted inspection of subtle findings
Super Resolution Plus: enhances the perceived sharpness of displayed detail
Light Box Mode: provides a bright, uniform field for film and reference viewing
How the 32HQ713D compares against a standard IPS diagnostic monitor:
Among diagnostic radiology monitors available at this tier, the 32HQ713D is one of the few 8 megapixel IPS Black displays with a built-in front calibration sensor. That removes the annual cost and the scheduling burden of external photometer calibration visits, which is a significant operational advantage for high-volume diagnostic imaging environments.
Full Technical Specifications
Complete reference data for procurement, RFP submissions, and biomedical review. Hospital purchasing teams, radiology department heads, and biomedical engineers rely on this specification set when they evaluate diagnostic imaging displays. Expand each category for full detail.
| Resolution | 8 megapixel, 3,840 × 2,160 |
| Panel Type | IPS Black |
| Screen Size | 31.5 inch, 16:9 |
| Brightness, typical | 1,000 cd/m², DICOM stabilized at 500 cd/m² |
| Contrast Ratio, typical | 2,000:1 |
| Color Gamut | sRGB 100 percent, CIE 1931 |
| Viewing Angle | 178° horizontal and 178° vertical |
| Response Time | 14 ms gray to gray |
| Surface Treatment | Anti-glare, 3H hardness |
| DICOM Compliance | Part 14 grayscale, stabilized at 500 cd/m² |
| Calibration | Internal front sensor with hardware LUT calibration |
| Dimensions, with stand | 758.5 × 646.2 × 280.0 mm |
| Dimensions, without stand | 758.5 × 465.3 × 79.1 mm |
| Weight, with stand | 13.0 kg, which is 28.6 lbs |
| Weight, without stand | 9.7 kg, which is 21.3 lbs |
| Stand, Height Adjust | 110 mm |
| Stand, Tilt | Negative 5 to positive 15 degrees |
| Stand, Swivel | Plus or minus 15 degrees |
| VESA Wall Mount | 100 × 100 mm |

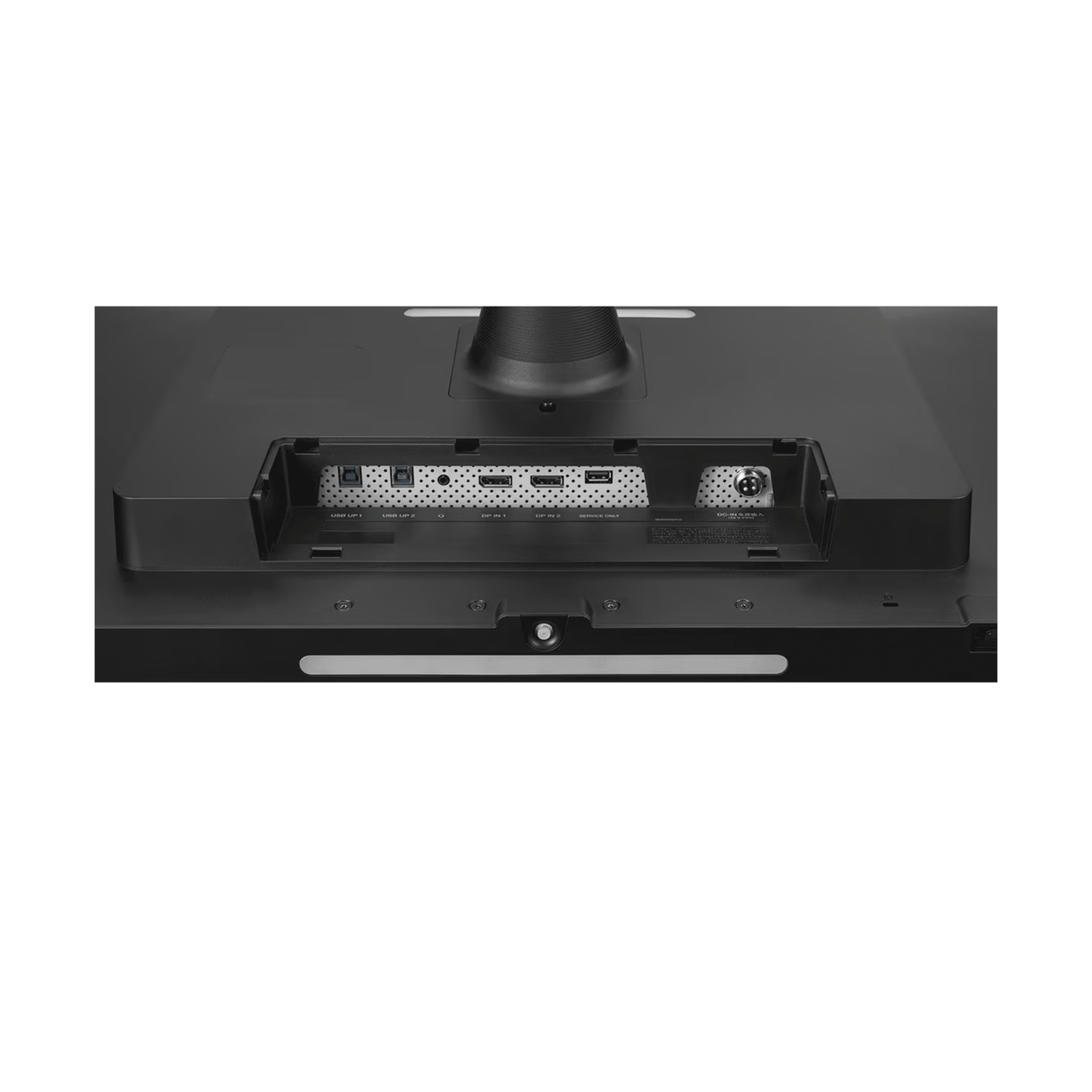

| Video Inputs | DisplayPort × 2 |
| USB Upstream | USB 3.0 × 2 |
| USB Downstream, hub | USB 3.0 × 2 |
| Multi-View | 2 picture by picture, side by side |
| AC Input | 100 to 240 V AC, 50/60 Hz |
| Power Consumption, maximum | 120 W |
| Power Consumption, standby | Less than 0.3 W |
| Multi-Resolution Mode | 8 megapixel, 6 megapixel, and 4 megapixel |
| PBP | 2 picture by picture, side by side |
| Dual Controller | Yes, one keyboard and mouse controls two workstations |
| Pathology Mode | Yes |
| Focus View | Yes |
| Light Box Mode | Yes |
| Super Resolution Plus | Yes |
| Reader Mode and Flicker Safe | Yes |
| Hot Keys | 6 keys, Down Light, Wall Light, Resolution, Presence Sensor, Light Box, and Picture Mode |
| Presence Sensor | Yes, automatic power-off |
| Auto Luminance Sensor | Yes |
Clinical Applications
Deployed across multimodality diagnostic imaging environments where contrast accuracy, DICOM compliance, and PACS compatibility determine reading quality and radiologist efficiency.
The 2,000:1 IPS Black contrast reveals low-density soft tissue findings that standard diagnostic displays compress into similar gray tones.
LG positions the 8 megapixel IPS Black panel for mammography, and the high resolution supports review of digital mammography and breast tomosynthesis detail.
Pathology Mode delivers color fidelity comparable to microscope viewing, which enables tissue correlation alongside PACS diagnostic images.
FDA 510(k) Class II clearance and DICOM Part 14 compliance support hospital credentialing for primary diagnosis workstations.
Multi-resolution 8, 6, and 4 megapixel modes and 2 picture by picture display two sources at once with no PACS reconfiguration between modalities.
Focus View and six hot keys speed workflow, and the internal front sensor keeps DICOM accuracy across extended shifts without external calibration visits.
Productivity Features, Calibration, and Ergonomics
Purpose-built for the demands of a high-volume diagnostic imaging environment. The 32HQ713D integrates reading room lighting, automatic calibration, and multi-workstation control into a single display, which reduces peripheral hardware cost and clutter in PACS radiology setups. Expanded workflow detail is in the expandable sections below.
Focus View: highlights a region of interest while dimming the surrounding areas, which suits detailed inspection of subtle findings in radiology and pathology.
Down and Wall Lighting: built-in ambient illumination for reading PACS images in darkened reading rooms without straining the eyes.
Six Hot Keys: instantly toggle Down Light, Wall Light, Select Resolution, Presence Sensor, Light Box Mode, and Picture Mode with no menu navigation.
Presence Sensor: automatically powers down when no motion is detected, which saves energy and helps protect patient data privacy.
Auto Luminance Sensor: adjusts brightness to the ambient light to maintain optimal DICOM viewing throughout the session.
Internal Front Sensor: the built-in front calibration sensor enables automatic DICOM Part 14 grayscale calibration without an external photometer. The monitor self-calibrates on a scheduled basis or on demand and keeps brightness stabilized at 500 cd/m2.
Hardware Calibration: LUT based hardware calibration keeps results consistent across extended reading sessions and multiple PACS connections.
DICOM Part 14: full grayscale standard display function compliance for review across CT, MRI, CR, and DR modalities.
2 Picture by Picture: displays two full-resolution sources side by side, so you can compare modalities or reference prior studies alongside current images without switching windows.
Dual Controller: controls two workstations with a single keyboard and mouse, which helps in multi-modality radiology setups.

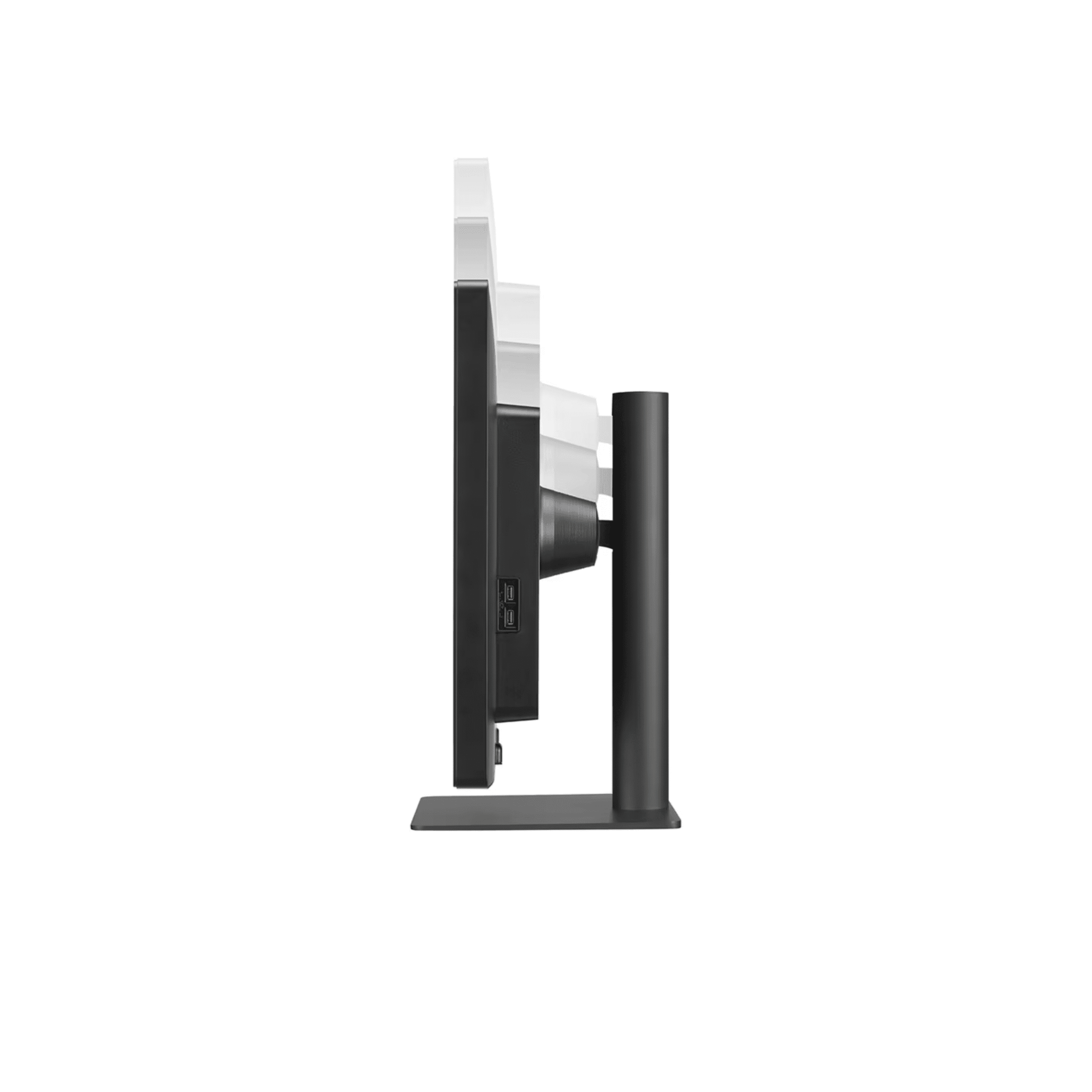

Stand Adjustments: height range 110 millimeters, tilt from negative 5 to positive 15 degrees, and swivel of plus or minus 15 degrees for personalized ergonomics over long sessions.
Tool-less Stand: quick assembly for fast installation or reconfiguration in reading rooms.
VESA Mount: 100 by 100 millimeters, compatible with medical-grade monitor arms.
Regulatory Compliance and Quality Assurance
FDA 510(k) Class II clearance, ISO 13485 manufacturing, and CE MDR compliance. Medical Outfitters is an ISO 13485:2016 certified supplier of diagnostic imaging equipment, so every 32HQ713D ships through a documented and audited quality management system. Full compliance documentation is available in the expandable sections below.
FDA 510(k) Class II: cleared for diagnostic interpretation, which is a higher regulatory standard than Class I and confirms clinical-grade accuracy for radiology use in United States hospitals and reading centers.
CE MDR: compliant with the European Union Medical Device Regulation 2017/745.
ISO 13485: manufactured under ISO 13485 quality standards, and Medical Outfitters is independently ISO 13485:2016 certified as a diagnostic imaging equipment supplier.
IEC 60601-1: meets the general safety requirements for medical electrical equipment.
IEC 60601-1-2: meets the electromagnetic compatibility requirements, so the monitor does not interfere with adjacent radiology equipment or PACS networking hardware.
UL and cUL: UL Listed for the United States and Canada.
RoHS: compliant with the Restriction of Hazardous Substances directive.
REACH: compliant with the European Union REACH chemical regulation.
WEEE: compliant with the European Union Waste Electrical and Electronic Equipment directive.
PACS Compatibility & Integration Review
Provide your PACS vendor, workstation specifications, and modality sources. Our team confirms full compatibility with your existing diagnostic imaging infrastructure and radiology equipment before your order ships.
Hospital Procurement & RFP Support
Volume pricing, technical documentation, and logistics for multi-workstation reading room deployments. We support radiology department procurement teams, biomedical engineers, and hospital purchasing departments. Contact us for RFP packages.
Frequently Asked Questions
Quick answers to the most common purchase and technical questions about the LG 32HQ713D diagnostic monitor. Tap any question to expand.
IPS Black is an advanced panel technology that delivers deeper black levels and a higher contrast ratio of 2,000 to 1 compared with conventional IPS displays at about 1,000 to 1. This improves visibility of subtle grayscale detail in diagnostic imaging, particularly in low-density regions of CT, MRI, and digital X-ray images viewed through PACS workstations, which supports diagnostic confidence.
The built-in front sensor performs automatic DICOM Part 14 calibration without an external photometer. The monitor self-calibrates on a scheduled basis or on demand and keeps brightness stabilized at 500 cd/m2 for consistent grayscale accuracy across long radiology reading sessions.
Yes. LG positions the 32HQ713D as an 8 megapixel IPS Black display for mammography, and its high resolution supports review of digital mammography and breast tomosynthesis alongside CT, MRI, and digital radiography. We recommend confirming the FDA clearance indication for your specific intended use, and our team can help match the right display to your modality.
The 32HQ713D accepts 8 megapixel at 3840 by 2160, 6 megapixel, and 4 megapixel input signals, which provides flexibility when connecting to various modalities and existing PACS workstations without replacing your infrastructure.
Yes. The monitor is FDA 510(k) Class II cleared for diagnostic interpretation, which is a higher clearance level than Class I registration. It also meets IEC 60601-1 and IEC 60601-1-2 requirements for medical electrical devices used in clinical reading rooms.
It provides full DICOM Part 14 grayscale standard display function compliance with brightness stabilized at 500 cd/m2. The internal front sensor maintains DICOM accuracy over time without external instruments, which supports quality assurance requirements for diagnostic imaging.
Yes. The 32HQ713D provides two DisplayPort inputs and multi-resolution 8, 6, and 4 megapixel modes for compatibility with all major PACS vendors and radiology workstations. The Dual Controller feature lets one keyboard and mouse manage two workstations.
Through Medical Outfitters Inc., an ISO 13485:2016 certified supplier based in Miami, FL. We supply factory-new units with calibration support and nationwide installation. Call (305) 885-4045 or request a quote online.
