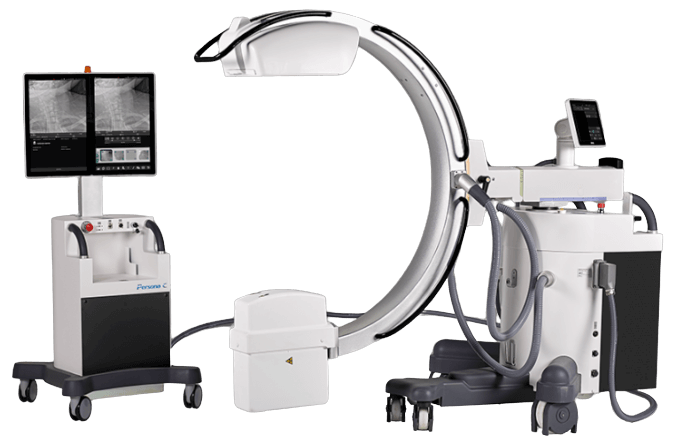

Fujifilm Persona C Mobile Fluoroscopy System: Surgical C-Arm with Flat Panel Detector
Authorized Fujifilm surgical imaging equipment supplier. The Fujifilm Persona C Mobile Fluoroscopy System provides the crisp, clear images that diagnostic and surgical teams need to help their patients. Its lightweight design and high technology features make it a smart choice for busy surgical centers and hospitals, and the C-arm is built to enhance the surgical team rather than get in their way.
At its core is a high resolution aSi flat panel detector, available as a 21×21 cm panel with 1.8 million pixels or a 30×30 cm panel with 3.8 million pixels for low dose imaging without geometric distortion. Absolute operability comes from a C-arm mounted multi touch console that controls exam parameters from any side, paired with two 21.5 inch touch monitors. The large diameter, lightweight C-arm offers orbital rotation from +65 to -95 degrees, angular rotation beyond plus or minus 210 degrees, 450 mm of vertical travel, a 3 mode active cooling system, and modulated power for pulsed fluoroscopy, Roadmap, and Digital Subtraction Angiography.
Need pricing? Get a quote with lead times and volume discounts within one business day.
Operability, Flat Panel Imaging, and Agile C-Arm Positioning
The Persona C is designed around the surgical team. A flat panel detector and modulated power deliver image quality at low dose, while a lightweight, balanced C-arm and dual touch displays keep the team in control. Full technical detail is in the expandable sections below.
Flat Panel Detector: high resolution aSi technology for low dose imaging, with a choice of a 21×21 cm panel at 1.8 million pixels or a 30×30 cm panel at 3.8 million pixels
No Geometric Distortion: the flat panel is lighter and thinner than an image intensifier and has no geometric distortion at the edges, with images available immediately for sharing
Modulated Power: pulsed fluoroscopy in high quality or low dose modes, plus Roadmap, Digital Subtraction Angiography, and Radiography modes for optimum dose control
Radiography Mode: a dedicated radiography mode with a removable 8 to 1 grid supports low dose, high detail applications and gridless pediatric procedures
Zero Dose Centering: laser localizers on the X-ray tube and flat panel detector allow centering without exposing the patient
Emission Control: footswitch or multifunction hand switch control of the X-ray emission mode
Absolute Operability: a C-arm mounted multi touch operator console controls exam parameters from any side, with live image display during the procedure

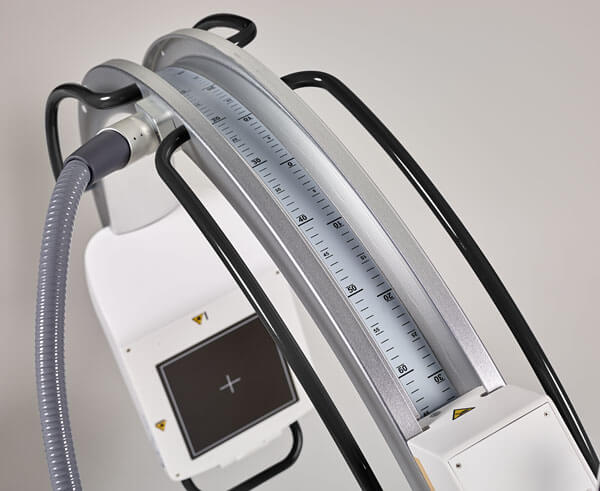

Compact Lightweight C-Arm: a large diameter, lightweight C-arm built from light alloys, carbon fiber, polyurethane, and special polymers, at an approximate weight of 200 pounds for effortless gliding
Agile Positioning: a perfectly balanced C-arm with brake and axis color coding, soft bumpers to prevent knocks, and easy lift front wheels that overcome cords and obstacles on the operating room floor
3 Mode Active Cooling: an active cooling system that keeps the system at temperature and can reduce tube heat by up to half, which matters for long surgical procedures
Dual Touch Displays: a mobile viewstation with two 21.5 inch touch monitors at a 1920 by 1920 pixel matrix, adjustable in height and angle, with large image and thumbnail display in portrait mode
Workflow Access: live and saved images shown together, touch shortcuts, I/O ports for IT network integration, and optional NFC smartcard login
How the Persona C compares against a conventional mobile C-arm:
The Persona C is perfectly balanced for fast and precise positioning that responds to the operator’s touch and feel. The extensive orbital rotation range from +65 to -95 degrees makes oblique projections easy without moving the stand around the operating table, while angular rotation of more than plus or minus 210 degrees reaches around and in front of the patient. A large range of vertical movement at 450 mm keeps the operator comfortable and the surgical field accessible, so the team can capture the views they need without repositioning the patient.
Full Technical Specifications
Complete reference data for capital procurement, RFP submissions, and biomedical review. Surgical directors, OR managers, and biomedical engineers rely on this specification set when they evaluate a mobile fluoroscopy C-arm. Expand each category for full detail.
| Detector Type | aSi flat panel detector for high resolution low dose imaging |
| Panel Options | 21×21 cm with 1.8 million pixels or 30×30 cm with 3.8 million pixels |
| Image Quality | No geometric distortion at the edges, lighter and thinner than an image intensifier |
| Radiography Mode | Dedicated radiography mode with a removable grid for high detail applications |
| Pulsed Fluoroscopy | High quality and low dose pulsed fluoroscopy modes |
| Roadmap | Roadmap mode for guidance |
| DSA | Digital Subtraction Angiography mode |
| Radiography | Radiography mode for high detail images |
| Removable Grid | Removable 8 to 1 grid for low dose pediatric surgery and gridless procedures |
| Zero Dose Centering | Laser localizers on the X-ray tube and flat panel detector |
| Orbital Rotation | +65 to -95 degrees |
| Angular Rotation | More than plus or minus 210 degrees |
| Vertical Movement | 450 mm |
| C-Arm Opening | Large diameter opening of approximately 81 cm |
| Positioning | Perfectly balanced with brake and axis color coding |
| Monitors | Two 21.5 inch touch screen monitors |
| Resolution | 1920 by 1920 pixel matrix |
| Viewstation | Portrait oriented monitors adjustable in height and angle |
| Console | C-arm mounted multi touch operator console with live image display |
| Login | Optional NFC smartcard login |
| Connectivity | I/O ports for IT network integration, footswitch or hand switch control |
| Construction | Lightweight light alloys, carbon fiber, polyurethane, and special polymers |
| Weight | Approximately 200 pounds |
| Cooling | 3 mode active cooling that can reduce tube heat by up to half |
| Mobility | Easy lift front wheels that overcome obstacles, with soft bumpers at the base |
Clinical Applications
Deployed across surgical and interventional programs where image quality, low dose, and easy positioning in a busy operating room decide how well a C-arm supports the team.
A C-arm mounted multi touch console and live image display let the surgical team control exam parameters from any side during a procedure.
A perfectly balanced, lightweight C-arm with wide orbital and angular rotation captures the views needed for orthopedic and trauma cases without moving the patient.
Roadmap and Digital Subtraction Angiography modes with pulsed low dose fluoroscopy support vascular and interventional imaging.
Precise positioning and high resolution flat panel imaging support spine and pain management injections and procedures.
The removable 8 to 1 grid and low dose modes support gridless pediatric surgery while keeping dose low.
Lightweight carbon fiber construction and easy lift front wheels make it simple to move the Persona C safely between operating theatres.
Positioning, Imaging, and Review in the OR
A surgical imaging workflow built around the operating room team. Fast positioning, dose aware imaging, and a dual touch viewstation keep the procedure moving. Expanded workflow details are in the expandable sections below.
The lightweight, perfectly balanced C-arm glides into place with effortless movement and color coded brake and axis locks for fast, accurate positioning. Soft bumpers prevent knocks and easy lift front wheels overcome cords and obstacles on the operating room floor, so the team positions the system without strain.
The team selects the optimal dose for the case using pulsed fluoroscopy in high quality or low dose modes, plus Roadmap, Digital Subtraction Angiography, and Radiography. Laser localizers on the tube and flat panel detector allow zero dose centering, and a footswitch or hand switch controls X-ray emission.
Two 21.5 inch touch monitors on a height and angle adjustable viewstation display live and saved images together. The operator can zoom, view thumbnails, and use touch shortcuts to select, edit, move, and send images, all without affecting the live display.
Images are available immediately for sharing, and I/O ports support integration with the facility IT network. Studies route to PACS through DICOM for archiving and review, completing a smooth surgical imaging workflow.
Regulatory Compliance and Safety
FDA cleared as a mobile fluoroscopic X-ray system, manufactured by FUJIFILM Medical Systems U.S.A., Inc. Medical Outfitters is an ISO 13485:2016 certified supplier of surgical imaging equipment, so every Persona C ships through a documented and audited quality management system. Full compliance documentation is available in the expandable sections below.
FDA Cleared: the Fujifilm Persona C is FDA cleared as a mobile fluoroscopic X-ray system, suitable for operating rooms, surgical centers, and hospitals.
ISO 13485: Medical Outfitters Inc. is independently ISO 13485:2016 certified as a surgical imaging equipment supplier, so every system ships through a fully audited quality management system.
Low Dose Imaging: the aSi flat panel detector, pulsed low dose fluoroscopy, and removable grid support the ALARA principle.
Zero Dose Centering: laser localizers on the tube and detector allow centering without exposing the patient, reducing unnecessary dose.
Regional Options: the wireless foot switch and NFC smartcard login are options that may not be available in the United States.
DICOM and PACS: images route to PACS through DICOM.
Environmental: RoHS and EU REACH compliant.
Operating Room & Procedure Review
Tell us your surgical case mix and operating room layout. Our team confirms the right flat panel size and configuration, and coordinates installation and applications support before shipment.
Capital Equipment & RFP Support
Volume pricing, technical documentation, and logistics for surgical imaging deployments. We support surgical directors, biomedical engineers, and purchasing departments evaluating mobile C-arms. Contact us for RFP packages.
Frequently Asked Questions
Quick answers to the most common purchase and technical questions about the Fujifilm Persona C Mobile Fluoroscopy System. Tap any question to expand.
The Fujifilm Persona C is a mobile fluoroscopy system, a lightweight surgical C-arm that provides crisp images for diagnostic and surgical teams. It uses an aSi flat panel detector, offers pulsed fluoroscopy and digital subtraction angiography modes, and is built for busy operating rooms, surgical centers, and hospitals.
The Persona C uses high resolution aSi flat panel detector technology for low dose imaging. There is a choice of a 21×21 cm flat panel with 1.8 million pixels or a 30×30 cm flat panel with 3.8 million pixels. The flat panel is lighter and thinner than an image intensifier and has no geometric distortion at the edges, and a Radiography Mode with a removable grid supports low dose, high detail applications.
Modulated power lets the team choose the optimal dose for each examination. The Persona C supports pulsed fluoroscopy in high quality or low dose modes, plus Roadmap, Digital Subtraction Angiography, and Radiography modes. Laser localizers on the X-ray tube and flat panel detector enable zero dose centering.
The Persona C is Fujifilm’s mobile fluoroscopy system, distinguished by its flat panel detector choices, dual 21.5 inch touch displays, lightweight carbon fiber construction, and a 3 mode active cooling system. The Ziehm Vision RFD and FD are flat panel surgical C-arms with a strong vascular and DSA focus, and the Orthoscan systems are mini C-arms for extremity imaging. Our team helps match the right C-arm to your procedures.
The Persona C has an extensive orbital rotation range from +65 to -95 degrees, which makes oblique projections easy without moving the stand around the operating table. Angular rotation is more than plus or minus 210 degrees, and the C-arm has 450 mm of vertical travel for operator comfort and access to the surgical field.
Yes. The Persona C uses lightweight, durable construction with light alloys, carbon fiber, polyurethane, and special polymers, with an approximate weight of 200 pounds. A perfectly balanced C-arm, brake and axis color coding, soft bumpers, and easy lift front wheels that overcome obstacles make repositioning fast and precise in the operating room.
Yes. The Fujifilm Persona C is FDA cleared as a mobile fluoroscopic X-ray system. Medical Outfitters Inc. is ISO 13485:2016 certified as the supplying distributor, so every system ships through an audited quality management system. Some features such as the wireless foot switch and NFC smartcard login are options that may not be available in the United States.
Through Medical Outfitters Inc., ISO 13485:2016 certified, Miami, FL. We supply factory new systems with nationwide installation and applications support. Call (305) 885-4045 or request a quote online.
