LG 32HL710S: 31.5″ 4K IPS Surgical Monitor
Authorized LG medical imaging equipment supplier. The 32HL710S is a large-format surgical display engineered for precision and team-wide visibility in the OR. It addresses two persistent problems: the limited screen real estate of standard 27″ surgical monitors that forces multiple display setups, and the imaging quality gap between consumer and medical-grade medical imaging technology.
The 32HL710S works with existing 3G-SDI laparoscopic tower infrastructure – no AV rack overhaul needed. Super Resolution+ upscales HD SDI sources to the native 4K panel, extracting more visible detail from your current medical imaging equipment. High brightness of 800 cd/m2, sRGB 115% wide color, and HDR10 handle demanding endoscopic and fluoroscopic imaging. 4PBP multi-view consolidates up to four video sources onto one 31.5″ display, cutting monitor count in complex hybrid OR setups.
Need pricing? Get a quote with lead times and volume discounts within one business day.
Large 4K Canvas, Super Resolution+ & OR-Grade Durability
Three things differentiate the 32HL710S from a standard surgical monitor. The 31.5″ 4K panel gives the entire team a clear view without a secondary display. Super Resolution+ extracts more detail from existing 3G-SDI medical imaging equipment without requiring camera upgrades. IP35/IP32 with IK06 and AR/AF protection glass keeps the display running reliably through the physical demands of a sterile OR. Full technical detail in the expandable sections below.
Panel: 31.5″ IPS, 3840×2160 (4K), 16:9
Brightness (typ.): 800 cd/m2
Contrast Ratio: 1,000:1
Viewing Angle: 178 deg H / 178 deg V
Color Gamut: sRGB 115% area, sRGB over 99% coverage
HDR: HDR10, HDR Effect
DICOM: Part 14 with brightness stabilization
Super Resolution+: Upscales HD and lower-resolution sources to the 4K panel, sharpening detail from existing 3G-SDI medical imaging equipment without camera replacement
Flicker Safe: Eliminates screen flicker for comfortable viewing during long OR sessions
Protection Glass: 1.6 mm with anti-reflection (AR) and anti-fingerprint (AF) coating – reduces glare from OR ceiling lights and resists smudging from gloved hands.
IP35 (front): Dust-tight and spray-water protected from all angles – compatible with OR-grade disinfectant protocols used on medical imaging equipment.
IP32 (rear): Protected against dripping water and solid particles.
IK06: Withstands 1 J of impact energy – handles the physical demands of transport and repositioning during setup.
How the 32HL710S compares against a standard 27″ surgical monitor:
Most laparoscopic towers, endoscopy systems, and HD surgical cameras in use today output 3G-SDI. The 32HL710S connects directly – no 12G-SDI infrastructure upgrade, no SFP modules, no new AV racks. Super Resolution+ then upscales those existing HD feeds to fill the 4K panel with sharpened, detailed imagery, extending the value of your current medical imaging equipment investment.
Full Technical Specifications
Complete reference data for procurement, RFP, and biomedical review. Full specification set required by hospital purchasing teams, imaging technology managers, and biomedical engineers. Expand each category.
| Resolution | 4K (3,840×2,160) |
| Panel Type | IPS |
| Screen Size | 31.5″ (16:9) |
| Brightness (Typ.) | 800 cd/m2 |
| Contrast Ratio | 1,000:1 |
| Color Gamut | sRGB 115% area, sRGB over 99% coverage |
| HDR | HDR10, HDR Effect |
| Viewing Angle | 178 deg (H) / 178 deg (V) |
| DICOM | Part 14, brightness stabilization |
| Super Resolution+ | Yes – upscales HD/lower-resolution sources |
| Flicker Safe | Yes |
| Dimensions (without stand) | 764.6 x 480.8 x 94.4 mm |
| Weight (without stand) | 12.4 kg |
| Shipping Weight | 17.4 kg |
| IP (Front) | IP35 |
| IP (Rear) | IP32 |
| Impact Protection | IK06 |
| Protection Glass | 1.6 mm with AR and AF coating |
| VESA Wall Mount | 200×100 mm / 100×100 mm |
| Video Inputs/Outputs | HDMI x1, DisplayPort In/Out, 3G-SDI In/Out, DVI-D In/Out |
| USB | USB 2.0 |
| Control | RS-232C serial control |
| Power Consumption (Max.) | 120 W |
| External Power Adapter | 19V / 6.32A |
| PBP / PIP | Up to 4PBP, PIP |
| Screen Flip | Mirror Mode & 180 deg Rotation Mode |
| Failover Input Switch | Automatic backup switch |
| Hot Keys | 2 quick preset keys |
Clinical Applications
Deployed across OR environments where team-wide 4K visualization, 3G-SDI infrastructure compatibility, and OR-grade durability are the primary requirements for medical imaging equipment.
3G-SDI integrates directly with existing laparoscopic tower medical imaging equipment. Super Resolution+ sharpens HD feeds on the 4K panel without camera replacement.
sRGB 115% and HDR10 reveal tissue color and shadow detail from endoscopic camera feeds that standard surgical medical imaging systems underrepresent.
The 31.5″ 4K canvas gives every team member a clear view from all positions around the OR table, reducing secondary monitor requirements.
4PBP displays endoscopy, fluoroscopy, navigation, and vitals on one screen – consolidating medical imaging equipment display overhead in multi-source hybrid setups.
DICOM Part 14 with brightness stabilization supports accurate fluoroscopic and intraoperative reference imaging alongside live camera feeds.
The large 31.5″ display and 178 deg wide viewing angle let residents and observers follow procedures clearly without crowding the sterile field.

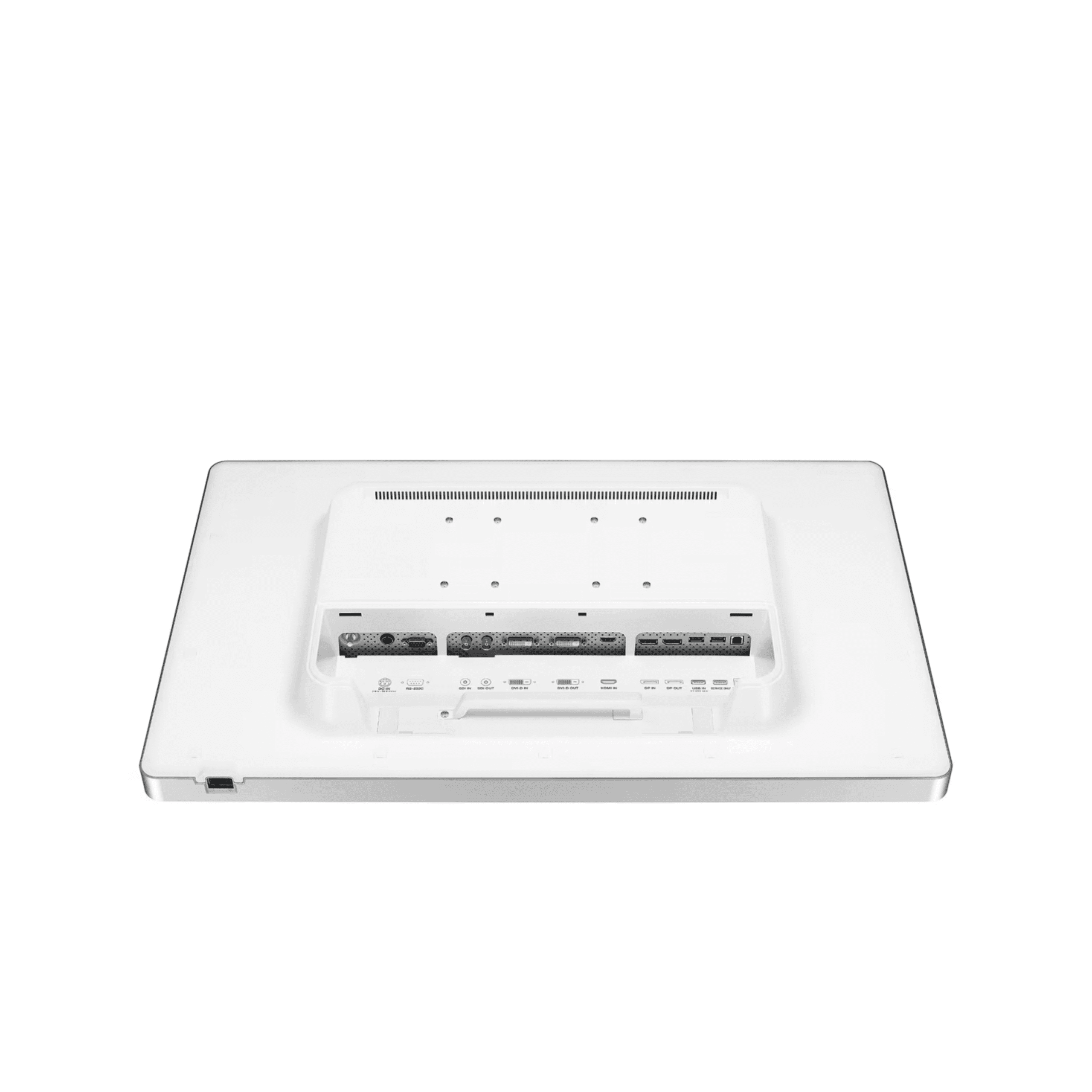

3G-SDI, 4PBP & Automatic Failover
Designed to slot into existing medical imaging equipment ecosystems without requiring new AV infrastructure. Compatible with all major laparoscopic tower systems, endoscopy platforms, and OR AV routing architectures that use 3G-SDI. Expanded detail on inputs, multi-view modes, failover, durability, and power in the expandable sections below.
HDMI x1 – 4K cameras, PC, image management systems
DisplayPort In/Out – high-frame-rate 4K sources with loop-through
3G-SDI In/Out – directly compatible with the vast majority of laparoscopic tower cameras, endoscopy systems, and HD surgical cameras already installed in most ORs. No 12G-SDI infrastructure upgrade required – plugs into existing medical imaging equipment AV racks.
DVI-D In/Out – legacy system input with loop-through
USB 2.0 – firmware updates and peripherals
RS-232C – serial control for hospital AV control systems and room automation

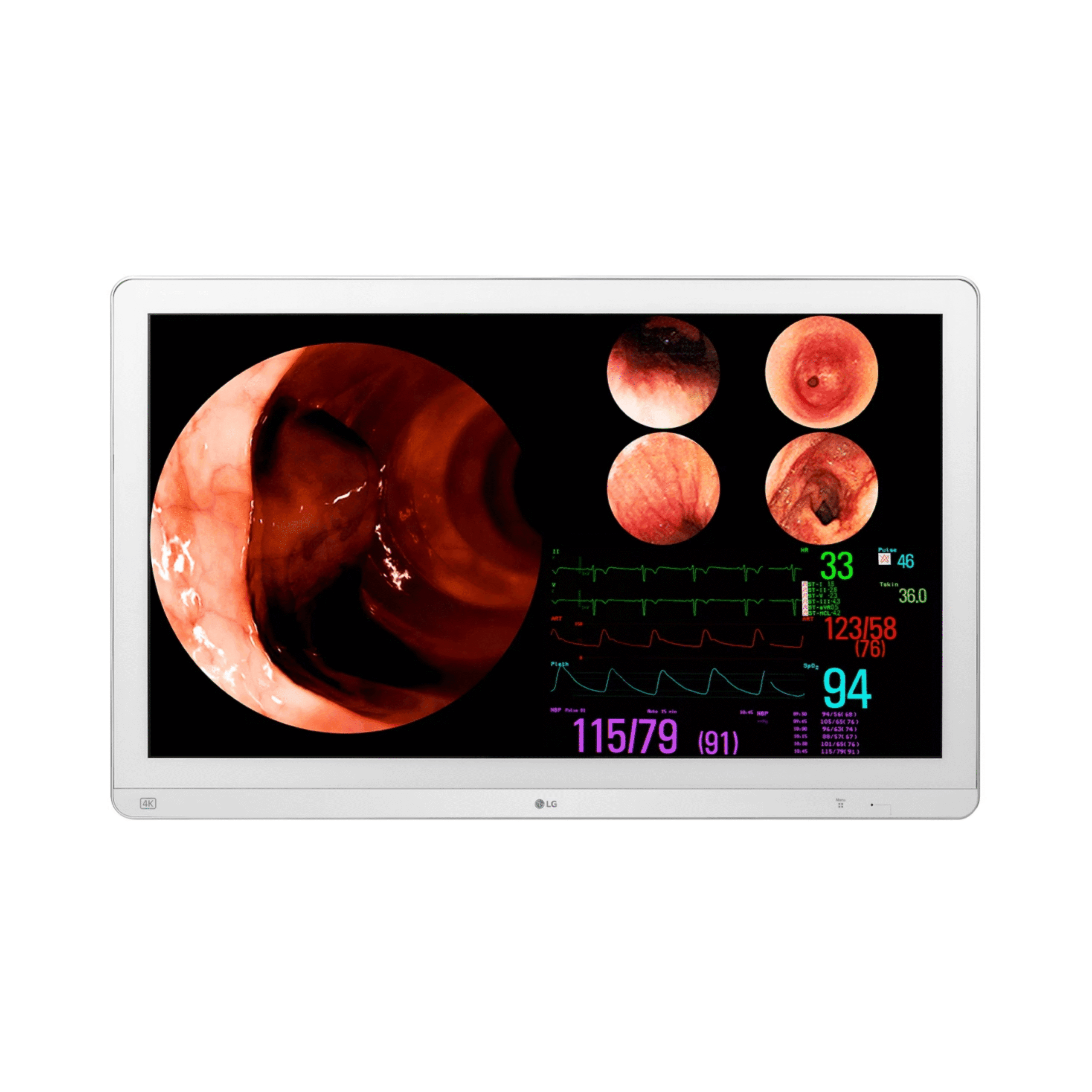

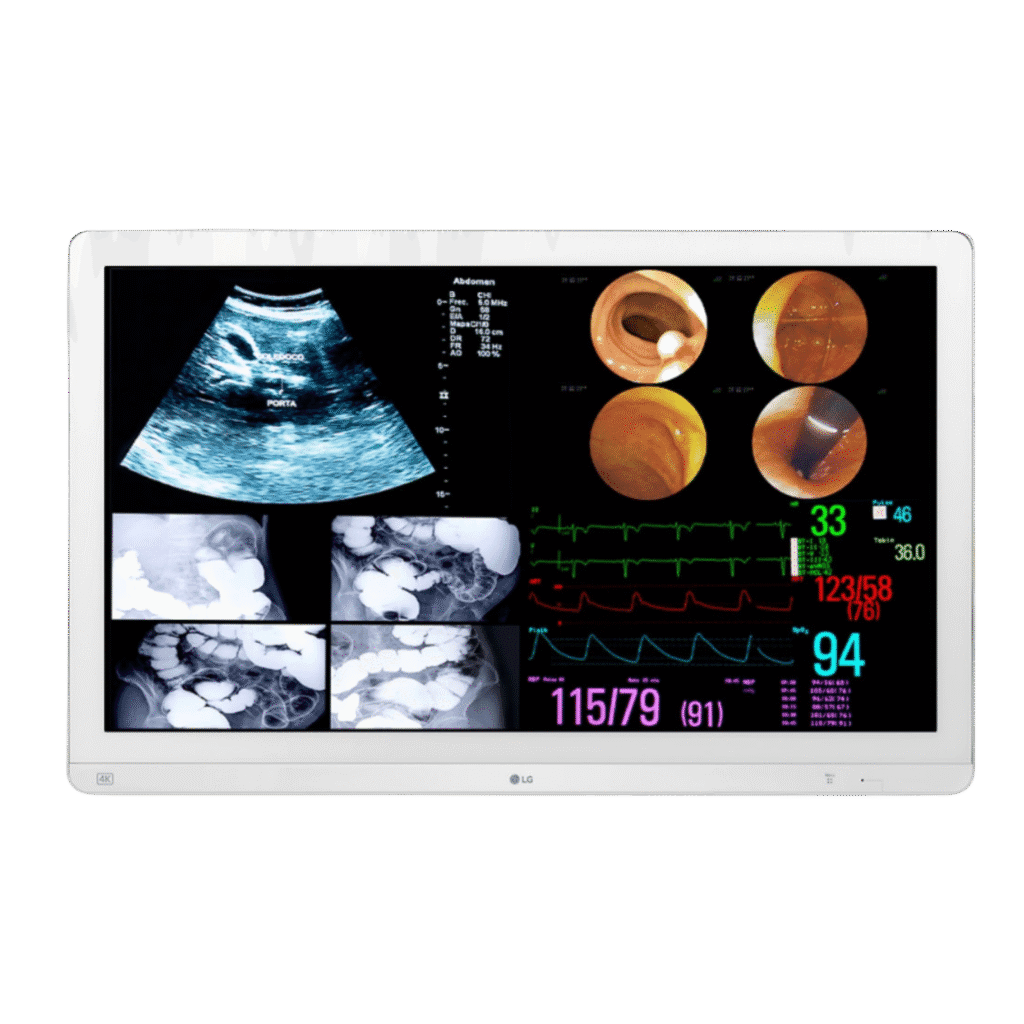

4PBP: Display up to 4 independent sources side by side on the 31.5" 4K panel – endoscopy, vital signs, fluoroscopy, and navigation all visible simultaneously.
PIP: Overlay a secondary source in a resizable window over the primary image.
Mirror Mode: Flip the image horizontally to match surgical camera orientation.
Rotation Mode: 180 deg rotation for non-standard boom arm mounting positions.
Super Resolution+: Enhances lower-resolution 3G-SDI and HD sources, sharpening fine detail in endoscopic and fluoroscopic feeds before display on the native 4K panel – extracting more visible information from existing medical imaging equipment.
The 32HL710S monitors signal integrity on the active input and automatically switches to a designated backup source if the primary signal is lost – across HDMI, SDI, DVI, or DisplayPort – without manual intervention. In a live surgical environment with multiple medical imaging systems connected, this failover layer keeps visualization continuous throughout critical procedures.
IP35 (front): Dust-tight and water-spray protected from any angle. Compatible with OR-grade disinfectants and routine surgical suite cleaning protocols.
IP32 (rear): Protected against dripping water and solid particles.
IK06: Withstands 1 J of impact energy.
Protection Glass: 1.6 mm with anti-reflection (AR) and anti-fingerprint (AF) coating.
Weight (without stand): 12.4 kg – compatible with standard surgical boom arms and ceiling pendant systems used with most medical imaging equipment mounts.

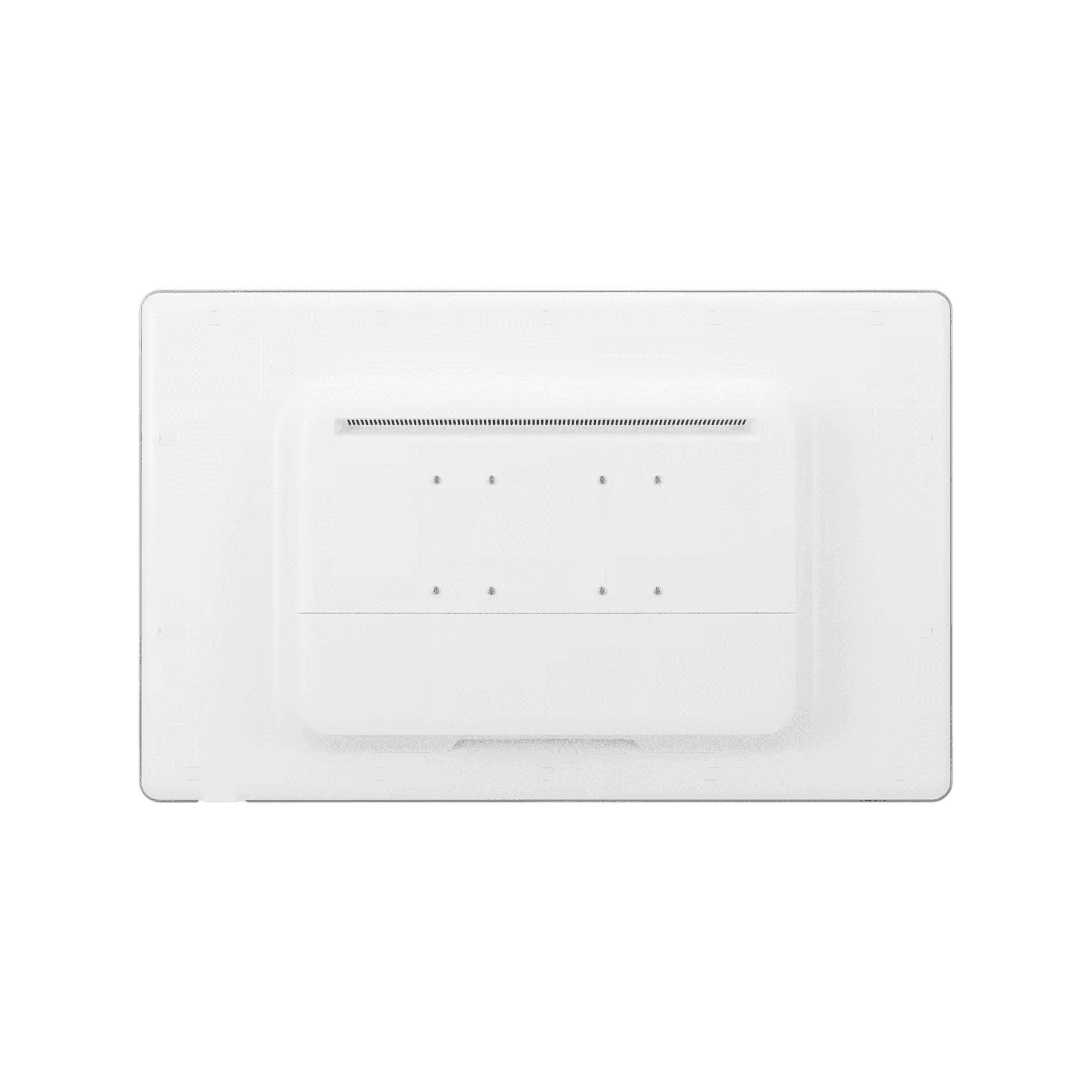

VESA: 200×100 mm and 100×100 mm supported. Stand not included.
Power Consumption (Max.): 120 W
External Power Adapter: 19V / 6.32A
Dimensions (without stand): 764.6 x 480.8 x 94.4 mm
Weight (without stand): 12.4 kg
Shipping Weight: 17.4 kg
Regulatory Compliance & Safety
FDA Class I registration, ISO 13485 manufacturing, and CE MDR compliance. Medical Outfitters is an ISO 13485:2016-certified supplier of medical imaging equipment, meaning every unit ships through a documented, audited quality management system. Full compliance documentation is available in the expandable sections below.
FDA Class I: Registered as a Class I medical device with the U.S. FDA. Suitable for use in U.S. hospital ORs and clinical environments.
CE MDR: Compliant with EU Medical Device Regulation (2017/745).
ISO 13485: Manufactured under ISO 13485 quality standards. Medical Outfitters is independently ISO 13485:2016 certified as a medical imaging equipment supplier.
IEC 60601-1: General safety requirements for medical electrical equipment.
IEC 60601-1-2: EMC requirements – ensures the monitor does not interfere with other OR medical imaging equipment, patient monitors, or AV control systems.
UL/cUL: UL Listed for the U.S. and Canada.
RoHS: Restriction of Hazardous Substances compliant.
REACH: EU REACH chemical regulation compliant.
WEEE: EU Waste Electrical and Electronic Equipment Directive compliant.
OR AV Compatibility & Integration Review
Provide your laparoscopic tower model, boom arm specs, SDI routing configuration, and room dimensions. Our team confirms full compatibility with your existing medical imaging equipment before your order ships.
Hospital Procurement & RFP Support
Volume pricing, technical documentation, and logistics coordination for multi-OR deployments. We support medical imaging technology procurement teams, biomedical engineers, and hospital purchasing departments. Contact us directly for RFP packages.
Frequently Asked Questions
Quick answers to common purchase and technical questions about this surgical display and medical imaging equipment. Tap any question to expand.
No. The LG 32HL710S is designed for wall, surgical boom arm, or ceiling pendant mounting. VESA 200×100 mm and 100×100 mm patterns supported. Weight without stand is 12.4 kg – compatible with standard boom arms used with most medical imaging equipment mounting systems. Our team can advise on compatible solutions for your OR.
The larger 31.5" 4K display allows the entire surgical team to view the procedure clearly from multiple positions around the OR table, reducing the need for secondary monitors and improving procedural collaboration. Combined with 4PBP multi-view, one display can carry all the feeds from your medical imaging equipment simultaneously.
Yes. The 32HL710S supports up to 4PBP (4 Picture-by-Picture), allowing the surgical team to monitor endoscopic, fluoroscopic, navigation, and vital signs feeds on a single large display – consolidating multiple medical imaging systems into one viewing surface.
Mirror Mode flips the image horizontally to match surgical camera orientation for intuitive hand-eye coordination during minimally invasive procedures. Rotation Mode rotates the output 180 deg for non-standard boom arm mounting positions in your medical imaging equipment setup.
Super Resolution+ is a display enhancement algorithm that sharpens and upscales lower-resolution sources – such as 3G-SDI HD camera feeds – before rendering them on the native 4K panel. This extracts more visible detail from existing medical imaging equipment without requiring a camera upgrade, improving surgical image clarity within your current infrastructure.
Yes. The LG 32HL710S is FDA Class I registered, CE MDR compliant, and meets IEC 60601-1 and IEC 60601-1-2 requirements for medical electrical devices.
Yes. DICOM Part 14 with brightness stabilization for consistent grayscale rendering of fluoroscopic and intraoperative reference imaging across extended OR sessions.
Through Medical Outfitters Inc., ISO 13485:2016 certified, Miami, FL. Factory-new units with nationwide installation support for medical imaging equipment. Call (305) 885-4045 or request a quote online.
Compatible Equipment
Medical imaging equipment commonly deployed alongside the LG 32HL710S in surgical suites – from upgraded display options to the C-arms and cameras that feed video into this monitor.

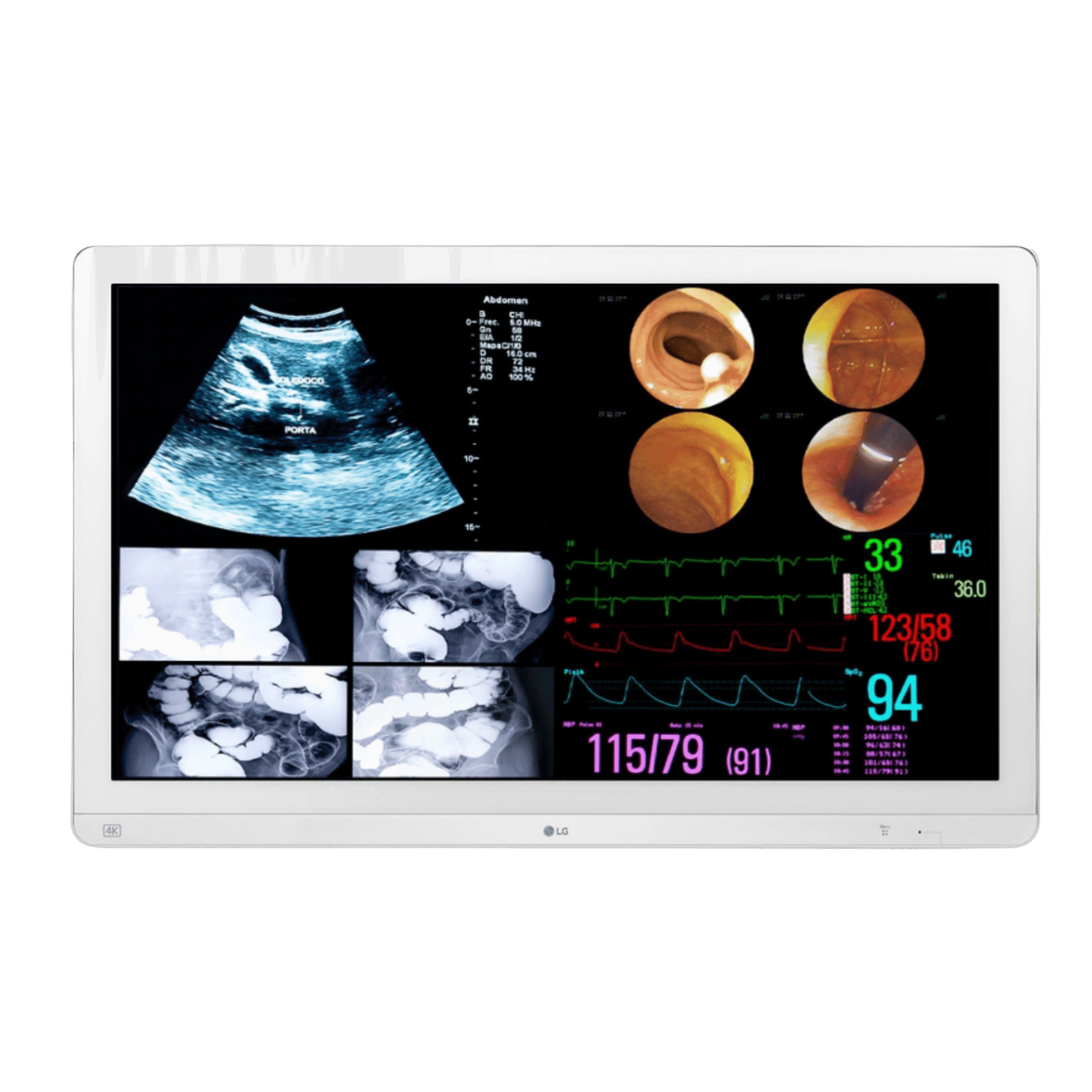

LG 32HL714S 4K IPS Surgical Monitor
