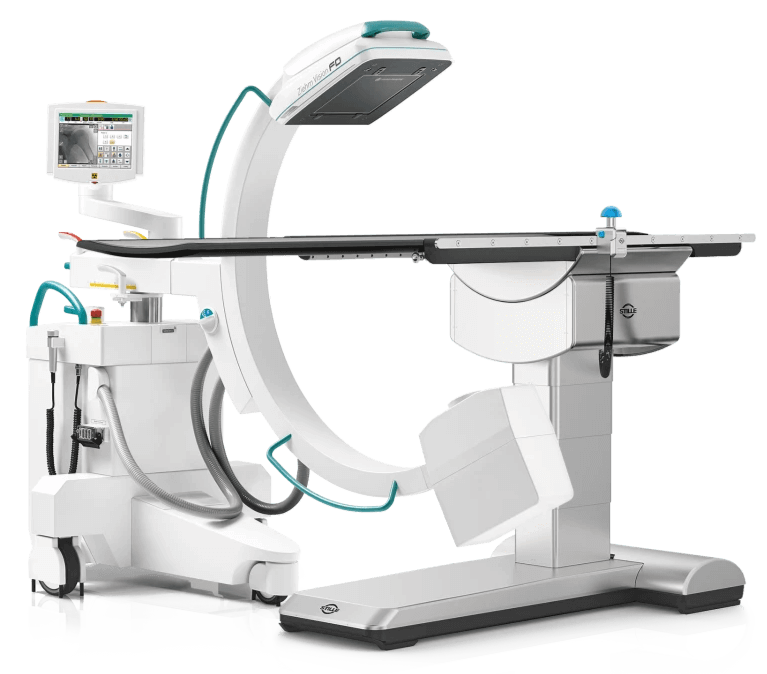

Ziehm Vision FD: Mobile Flat-Panel Surgical C-Arm
Authorized Ziehm Imaging C-arm equipment supplier. The Ziehm Vision FD is a mobile flat-panel surgical C-arm that set the imaging standard for the operating room. Ziehm Imaging introduced the first-to-market mobile flat-panel C arm in 2006, and the Vision FD builds on more than a decade of proven flat-detector performance, positioning it as a premium alternative to a conventional C arm machine. The current CMOSline version integrates the latest CMOS detector technology to deliver exceptional intraoperative image quality while increasing surgical safety and efficiency.
Core C-arm imaging technology: a CMOS flat panel detector that combines the cost efficiency of image intensifier systems with the superior image quality of flat-detector design, producing lower noise and high-resolution images that make interpolation unnecessary in magnification modes. A 2.4 kW pulsed monoblock generator paired with Advanced Active Cooling liquid cooling enables continuous use during lengthy vascular and surgical interventions, while the SmartDose Concept with Beam Filtration minimizes radiation exposure. With 165 degrees of orbital movement and one of the smallest footprints in its class at 0.8 square meters, the Vision FD is a complete surgical imaging solution for vascular surgery, orthopedics, pain management, and interventional procedures.
Need pricing? Get a quote with lead times and volume discounts within one business day.
CMOS Imaging, Active Cooling & SmartDose
Three core technologies separate the Ziehm Vision FD from conventional surgical C-arm systems and older image intensifier equipment used in traditional c arm radiology. Each was engineered to extend the clinical case mix while protecting surgeons, staff, and patients. Full technical detail is in the expandable sections below.
CMOS Flat-Panel Technology: The latest flat-panel technology on the market, combining the cost efficiency of image intensifier systems with the image quality of conventional flat-detector design
Lower Noise: Reduced noise levels and enhanced dose management compared with conventional C-arms

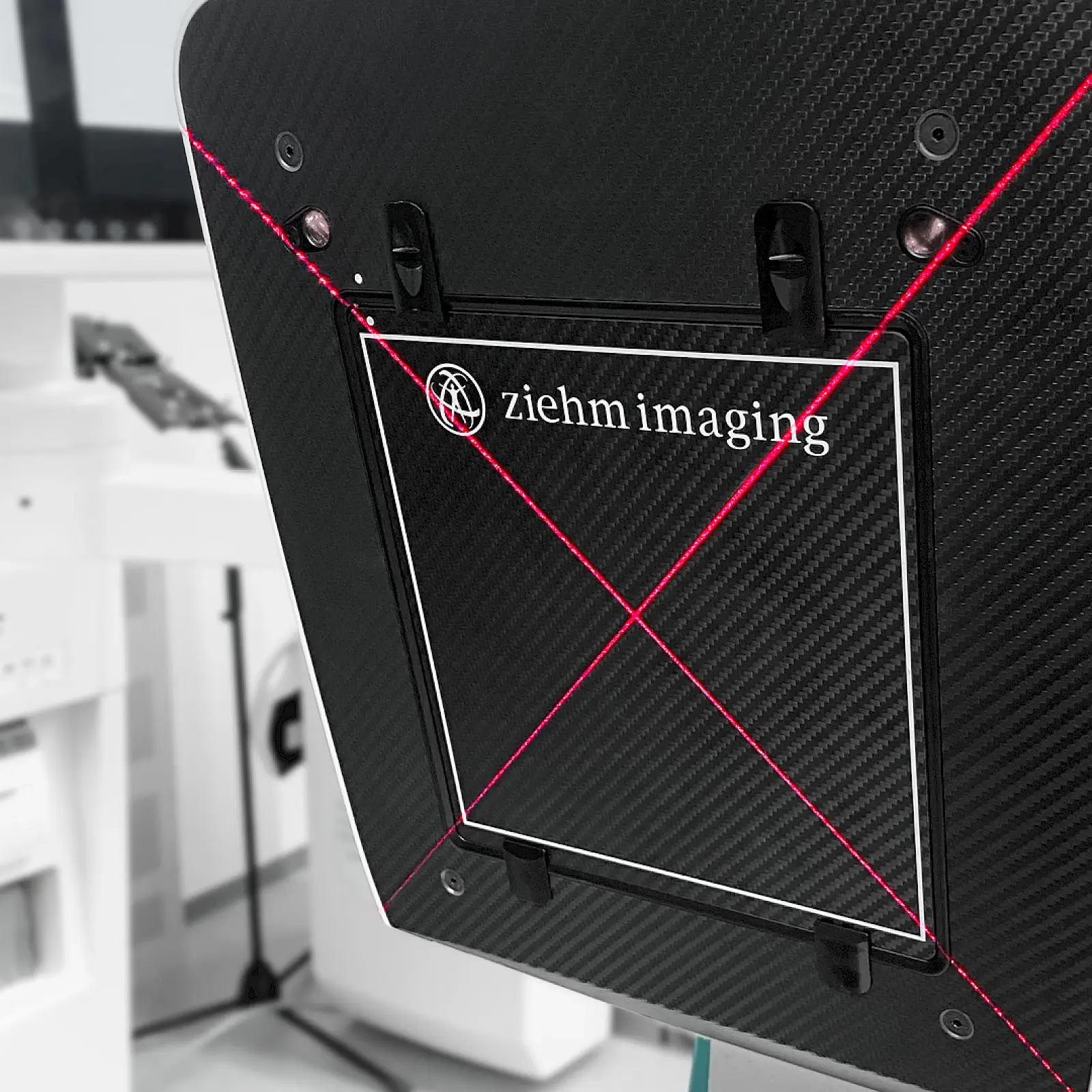

Standard Detector: 21cm x 21cm flat-panel for routine surgical and interventional imaging

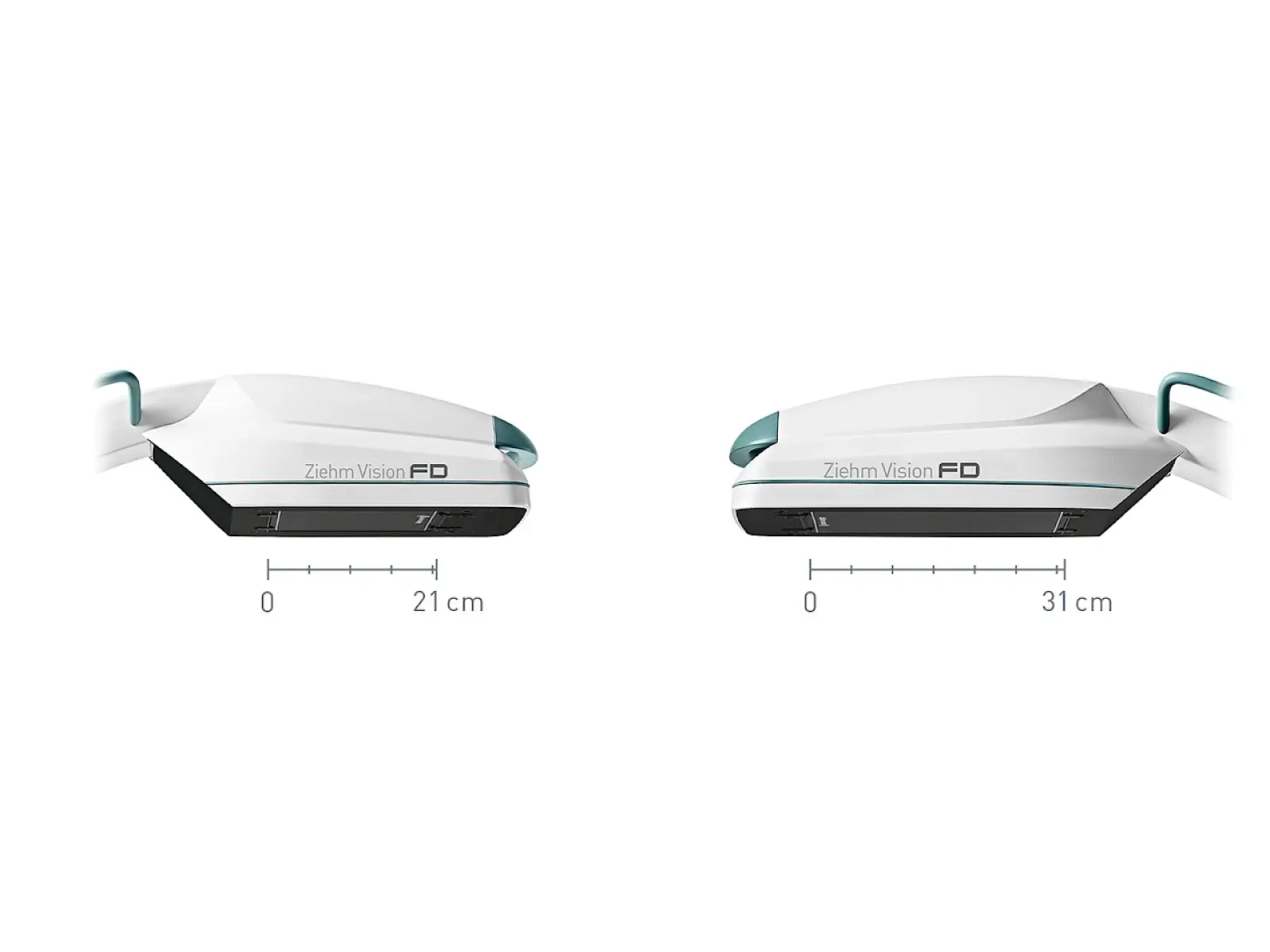

Large Detector Option: 31cm x 31cm a-Si flat-panel available to cover larger anatomical regions in orthopedic and vascular surgery
Magnification Modes: Full size 21cm x 21cm, magnification mode 1 at 15cm x 15cm, and magnification mode 2 at 10cm x 10cm, with high-resolution images that eliminate the need for interpolation
Spatial Resolution: More than 4.0 line pairs per millimeter visible on a resolution phantom
Detector Resolution: Up to 2k x 2k depending on configuration
Pulsed Monoblock Generator: Highly compact 2.4 kW pulsed monoblock generator that produces short, sharp pulses for crystal-clear images even when the patient is moving
Advanced Active Cooling (AAC): A powerful liquid cooling system that keeps the generator at optimum operating temperature during lengthy procedures
Automatic Pulse Regulation: If generator temperature rises, the pulse frequency is automatically reduced until the generator cools, ensuring uninterrupted imaging
Cooling Architecture: Circulating pump, cooling cycle heat exchanger, and high-capacity heat radiator work together to dissipate heat
Prolonged Use: Purpose-built for continuous operation during demanding vascular interventions and lengthy surgical cases that would overheat conventional C-arm generators
Dose Efficiency: Intelligent pulse technology reduces the pulse rate while minimizing dose without sacrificing image quality
How the Ziehm Vision FD compares against a conventional image intensifier C-arm:
The next-generation SmartDose Concept reduces radiation exposure for surgeons, staff, and patients across dose-sensitive applications. It includes groundbreaking Beam Filtration for an optimized X-ray spectrum and reduced skin entrance dose, Object Detected Dose Control that automatically analyzes the area of interest, anatomical programs with automatic dose and image quality optimization, a dedicated low dose mode, PREMAG exposure-free magnification, virtual collimators for exposure-free positioning, and a removable grid for pediatric and other dose-sensitive procedures. Dedicated SmartDose functions significantly reduce exposure in pediatric surgery.
Full Technical Specifications
Complete reference data for capital procurement, RFP submissions, and biomedical engineering evaluation. This specification set is required by surgical directors, purchasing teams, and biomedical engineers comparing mobile C-arm imaging options. Expand each category.
| Imaging Technology | CMOS flat-panel (CMOSline), IGZO flat-panel, or a-Si flat-panel |
| Standard Detector | 21cm x 21cm |
| Optional Detector | 31cm x 31cm a-Si flat-panel for larger anatomical coverage |
| Detector Resolution | IGZO 1.5k x 1.5k; CMOS 2k x 2k; a-Si 2k x 2k |
| Magnification Modes | Full 21x21cm, Mag 1 (15x15cm), Mag 2 (10x10cm) |
| Spatial Resolution | More than 4.0 line pairs per millimeter |
| X-Ray Tube | Single-focus stationary-anode tube, 0.6mm focal spot |
| Generator | 2.4 kW pulsed monoblock generator |
| Pulse Technology | Short, sharp pulses for clear images during patient movement |
| Cooling System | Advanced Active Cooling (AAC) liquid cooling |
| Cooling Components | Circulating pump, heat exchanger, high-capacity heat radiator |
| Thermal Management | Automatic pulse frequency reduction on temperature rise |
| Orbital Movement | 165 degrees |
| C-Arm Opening | 87 cm for easier patient coverage |
| Footprint | 0.8 square meters, one of the smallest C-arms on the market |
| Ergonomics | Different-colored scales and handles for quick function selection |
| Sterile Field Access | Easy access and operation from the sterile field |
| Monitor | 32-inch bright, high-resolution display |
| Control Panel | Ziehm Vision Center rotating and tilting touchscreen, mounted on stand and monitor cart |
| SmartEye | Mirrors the live image on the touchscreen for orientation and object position tracking |
| SmartArchive | Instant access to the latest patient data |
| Software Architecture | Modular and upgradeable without hardware changes |
| Acquisition Types | Angiography (DSA), cine loop acquisition, magnification |
| Beam Filtration | Reduced skin entrance dose without compromising image quality |
| ODDC | Object Detected Dose Control automatically analyzes area of interest to minimize dose |
| ZAIP Algorithm | Displays fast-moving objects such as guide wires and small vessels in razor-sharp quality |
| Dose Functions | Low dose mode, PREMAG, high-speed ADR, removable grid, virtual collimators |
| Interface | Ziehm NetPort for IT network integration |
| DICOM | DICOM 3.0 transfer to PACS; HIS/RIS patient data exchange |
| Wireless Freedom Concept | WLAN image transfer, Ziehm Wireless Video, wireless dual-plus footswitch |
| Backup & Export | DVD, USB stick, transparency, and paper printing |
Clinical Applications
Deployed across a broad surgical and interventional case mix wherever continuous imaging, low radiation dose, and high flat-panel resolution determine clinical success, including demanding vascular procedures that overwhelm conventional C-arm systems.
Advanced Active Cooling enables continuous imaging through lengthy procedures such as DSA, stent implantation, peripheral revascularization, and PTA, while the ZAIP algorithm renders guide wires and small vessels in razor-sharp detail.
The optional 31cm x 31cm a-Si flat-panel covers larger anatomical regions, and 165 degrees of orbital movement supports demanding orthopedic cases including anterior hip procedures.
SmartDose anatomical programs and low dose mode deliver precise needle and injection guidance for interventional pain procedures while keeping radiation exposure to a minimum for patient and staff.
Angiography and cine loop acquisition with short, sharp pulses produce crystal-clear vascular imaging, supporting interventional cardiology and endovascular procedures on a mobile C arm x ray platform.
High-resolution CMOS imaging with more than 4.0 line pairs per millimeter supports precise visualization for cervical spine and spinal interventional procedures.
Dedicated SmartDose functions, the removable grid, and low dose mode significantly reduce radiation exposure in pediatric surgery where dose sensitivity is paramount.
Integration, Wireless Freedom & OR Ergonomics
A complete surgical imaging platform engineered to integrate seamlessly into existing operating room IT infrastructure and standardize the operating concept across many users. The Vision Center control panel, Wireless Freedom Concept, and Ziehm NetPort interface keep the C-arm imaging workflow consistent and efficient. Expanded details are in the expandable sections below.

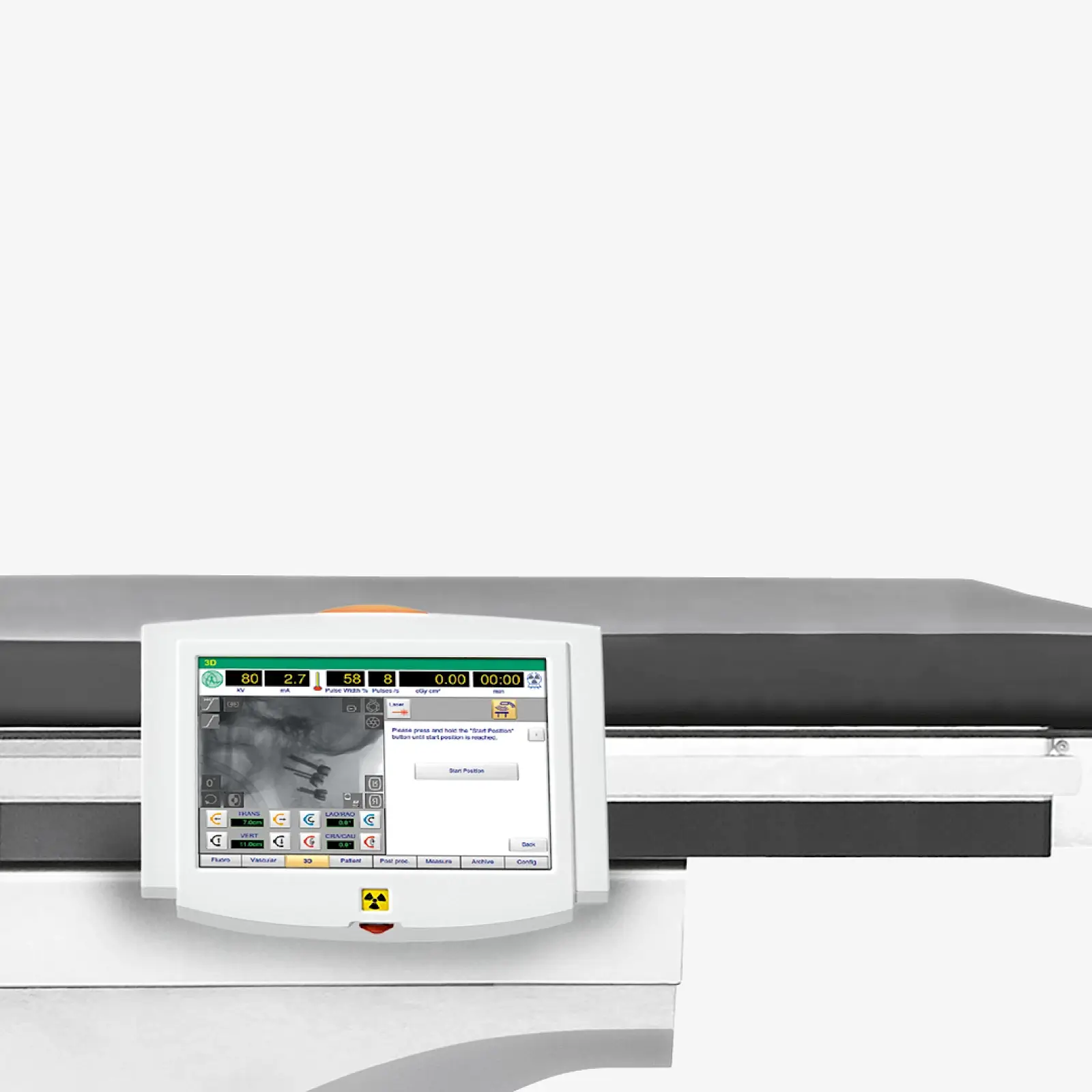

The Ziehm Vision Center is a rotating and tilting touchscreen control panel mounted on both the mobile stand and the monitor cart, providing access to the same synchronized controls on both units. The intuitive interface allows staff to make quick decisions about the exam required and the appropriate radiation dose, so even new team members can operate the system effectively. The SmartArchive function gives surgeons instant access to the latest patient data.

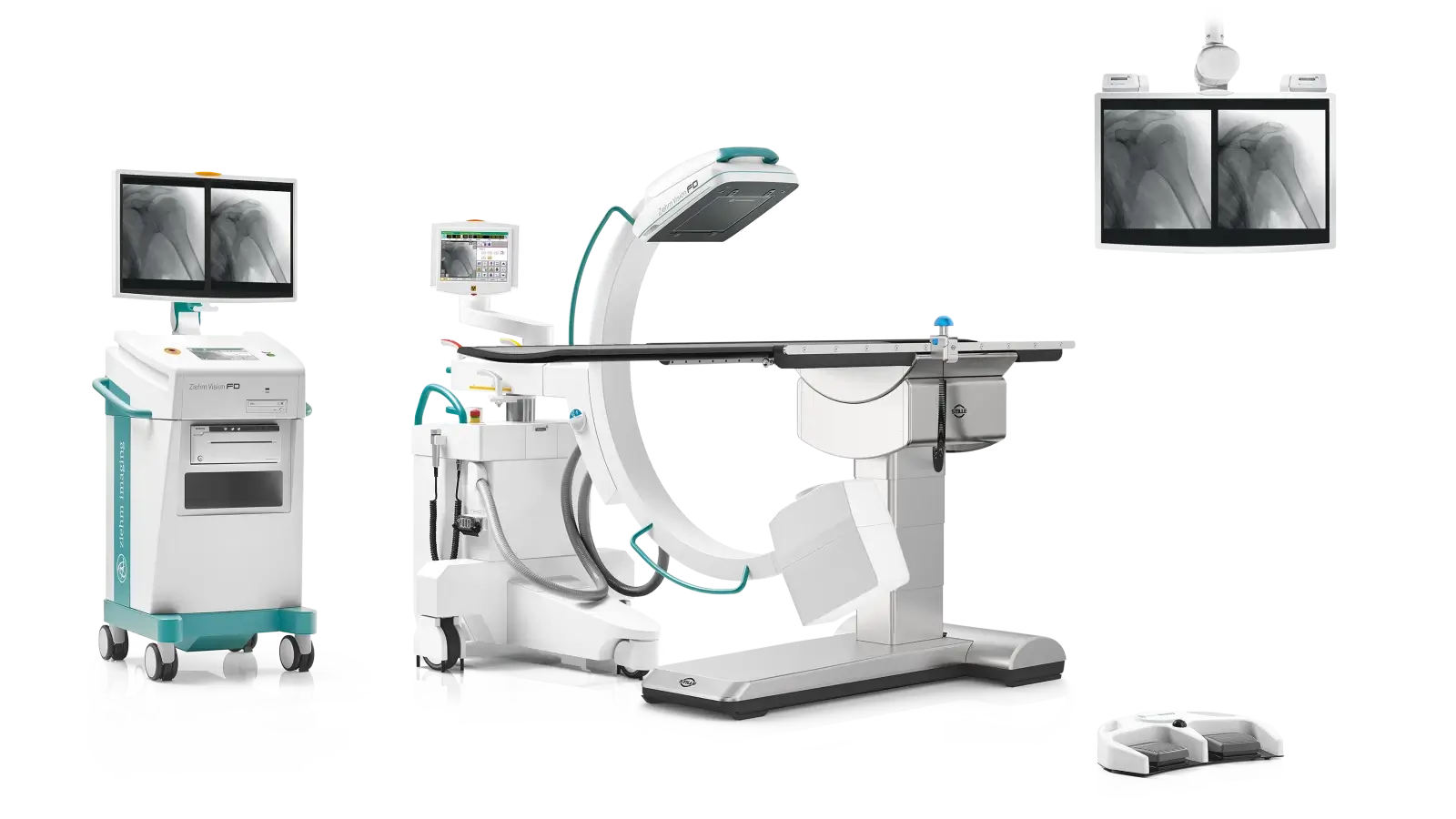

The Wireless Freedom Concept bundles three ways to increase efficiency and safety in the OR. WLAN allows operators to transfer images wirelessly to PACS from any location. The Ziehm Wireless Video option transfers live images to wall or ceiling mounted monitors in real time. The wireless dual-plus footswitch actuates key functions such as X-ray exposure while reducing cables on the OR floor for added safety.
The Ziehm NetPort interface enables easy integration into existing IT networks. X-ray images saved in DICOM 3.0 format are transferred to PACS, and patient data can be exchanged with HIS/RIS systems. Images can be retrieved at any time, backed up to DVD or USB stick, and printed on transparencies or paper. The system integrates with legacy equipment so facilities avoid budgeting for infrastructure upgrades.
With a footprint of 0.8 square meters, the Ziehm Vision FD is one of the smallest C-arms on the market. The large 87 cm C-arm opening and 165 degrees of orbital movement provide easier patient coverage and ideal workflow support. Different-colored scales and handles let the surgeon and staff quickly select the desired function, and Ziehm SmartEye technology mirrors the live image on the touchscreen so the operator can track orientation and object position.
Regulatory Compliance & Availability
Manufactured by Ziehm Imaging GmbH, a global leader in mobile C-arm technology and the first company to bring a mobile flat-panel C-arm to market. Medical Outfitters is an ISO 13485:2016-certified supplier of surgical imaging equipment, meaning every Ziehm Vision FD ships through a documented, audited quality management system. Please note that Ziehm products are available for sale in the Caribbean. Full compliance documentation is available in the expandable sections below.
Regional Availability: Ziehm products, including the Ziehm Vision FD, are available for sale in the Caribbean. If you are located outside this region and would like a comparable surgical C-arm, our team can recommend an equivalent system available in your area.
Manufacturer: Ziehm Imaging GmbH, Nuremberg, Germany, a division of Ziehm-Orthoscan, Inc. Ziehm introduced the first-to-market mobile flat-panel C-arm in 2006.
ISO 13485: Medical Outfitters Inc. is independently ISO 13485:2016 certified as a surgical imaging equipment supplier.
DICOM 3.0: X-ray images are saved in DICOM 3.0 format and transferred to PACS through the Ziehm NetPort interface.
HIS/RIS: Patient data can be exchanged with hospital and radiology information systems.
Legacy Integration: The system integrates with legacy equipment and IT networks, avoiding the need for infrastructure upgrades.
SmartDose Concept: A comprehensive, clinically proven portfolio of dose-reduction features including Beam Filtration, ODDC, anatomical programs, and pediatric-specific functions.
RoHS: Restriction of Hazardous Substances compliant.
REACH: EU REACH chemical regulation compliant.
Regional Availability & Compatibility Review
Ziehm products are available for sale in the Caribbean. Provide your facility location, OR layout, and PACS configuration, and our team will confirm availability and integration before shipment, or recommend a comparable surgical C-arm for your region.
Capital Equipment & RFP Support
Volume pricing, technical documentation, and logistics coordination for surgical C-arm deployments. We support surgical directors, biomedical engineers, and hospital purchasing departments evaluating mobile C-arm imaging systems. Contact us for RFP packages.
Frequently Asked Questions
Quick answers to the most common purchase and technical questions about the Ziehm Vision FD mobile surgical C-arm. Tap any question to expand.
The Ziehm Vision FD is a mobile flat-panel surgical C-arm featuring CMOS detector technology, a 21cm x 21cm standard detector with an optional 31cm x 31cm a-Si flat-panel, a 2.4 kW pulsed monoblock generator, Advanced Active Cooling for continuous use, 165 degrees of orbital movement, and the SmartDose Concept for reduced radiation exposure.
Pricing varies by configuration and detector size. Medical Outfitters returns a quote within one business day. Submit a request online or call (305) 885-4045. Please note that Ziehm products are available for sale in the Caribbean.
CMOS flat-panel technology combines the cost efficiency of a fluoroscopy image intensifier system with the image quality of flat-detector technology. It delivers lower noise, enhanced dose management, and high-resolution images that make interpolation in magnification modes unnecessary, improving image quality over conventional image intensifier C-arms and elevating overall c arm imaging performance.
Advanced Active Cooling (AAC) is a liquid cooling system that keeps the generator at optimal operating temperature during lengthy procedures. If temperature rises, the pulse frequency is automatically reduced until the generator cools, enabling continuous use during demanding vascular and surgical interventions that would overheat a conventional C-arm.
The Ziehm Vision FD comes standard with a 21cm x 21cm flat-panel detector and is also available with a larger 31cm x 31cm a-Si flat-panel for covering larger anatomical regions in orthopedic and vascular surgery. Three magnification modes are available: full size, 15cm x 15cm, and 10cm x 10cm.
SmartDose is a comprehensive dose-reduction system including Beam Filtration, Object Detected Dose Control (ODDC), anatomical programs, low dose mode, PREMAG exposure-free magnification, virtual collimators, and a removable grid. It minimizes radiation exposure for surgeons, staff, and patients, including dedicated functions for pediatric surgery.
Yes. The Ziehm NetPort interface enables integration into existing IT networks. X-ray images in DICOM 3.0 format transfer to PACS, patient data exchanges with HIS/RIS, and the Wireless Freedom Concept allows wireless image transfer over WLAN, real-time video to wall or ceiling monitors, and a wireless footswitch.
Through Medical Outfitters Inc., ISO 13485:2016 certified, Miami, FL. Ziehm products are available for sale in the Caribbean. Call (305) 885-4045 or request a quote online to confirm availability in your region or to identify a comparable surgical C-arm.
