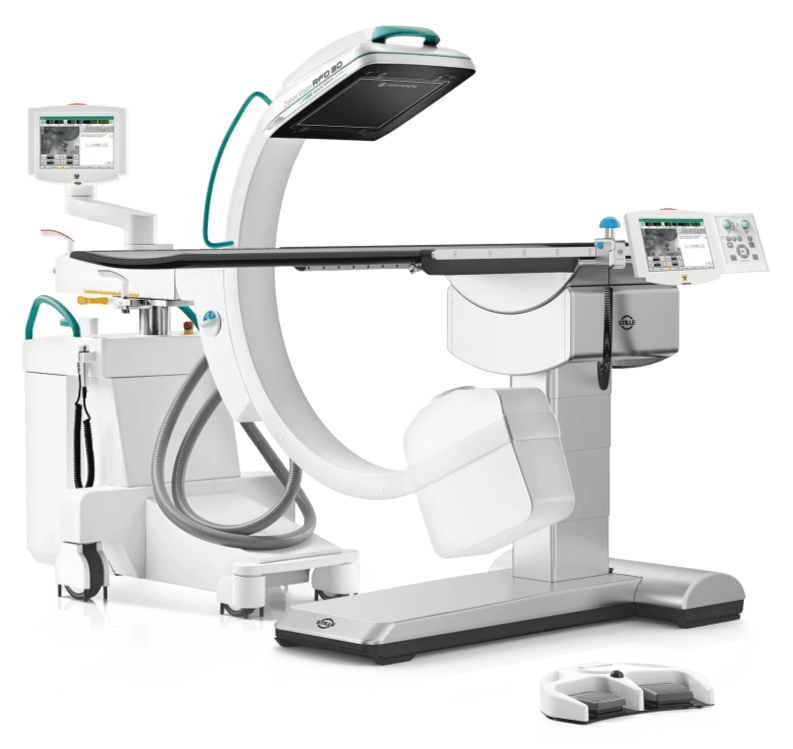

Ziehm Vision RFD 3D: Mobile 3D C-Arm with CT-Like Imaging
Authorized Ziehm Imaging 3D C-arm equipment supplier. The Ziehm Vision RFD 3D is a mobile 3D C-arm that delivers CT-like reconstructions directly in the operating room. With an installed base of almost 1,000 systems, it was the first mobile 3D C-arm to use a flat-panel detector. By pulling the postoperative CT scan forward into the OR, it reduces the need for follow-up imaging and costly revision surgeries while improving surgical precision and patient outcomes.
Core 3D imaging technology: a 31cm x 31cm CMOS flat-panel detector delivering higher spatial resolution, lower noise, and faster read-out than conventional C-arms, paired with patented SmartScan technology that produces 180 degrees of scanned information for a complete cone beam 3D dataset. A powerful 25 kW pulsed monoblock generator with Advanced Active Cooling supports continuous use, while Ziehm Iterative Reconstruction (ZIR) minimizes metal artifacts. The Ziehm NaviPort interface connects to navigation and robotic guidance systems, making the RFD 3D a complete intraoperative cone beam computed tomography (CBCT) and imaging platform for orthopedic, trauma, spinal, maxillofacial, and cochlear procedures.
Need pricing? Get a quote with lead times and volume discounts within one business day.
CMOS 3D Imaging, SmartScan & NaviPort
Three core technologies separate the Ziehm Vision RFD 3D from a conventional mobile C-arm and from fixed CBCT systems. Each was engineered to bring CT-like 3D imaging and surgical navigation into the OR on a mobile platform, delivering cone beam CT detail without a dedicated CBCT scanner. Full technical detail is in the expandable sections below.

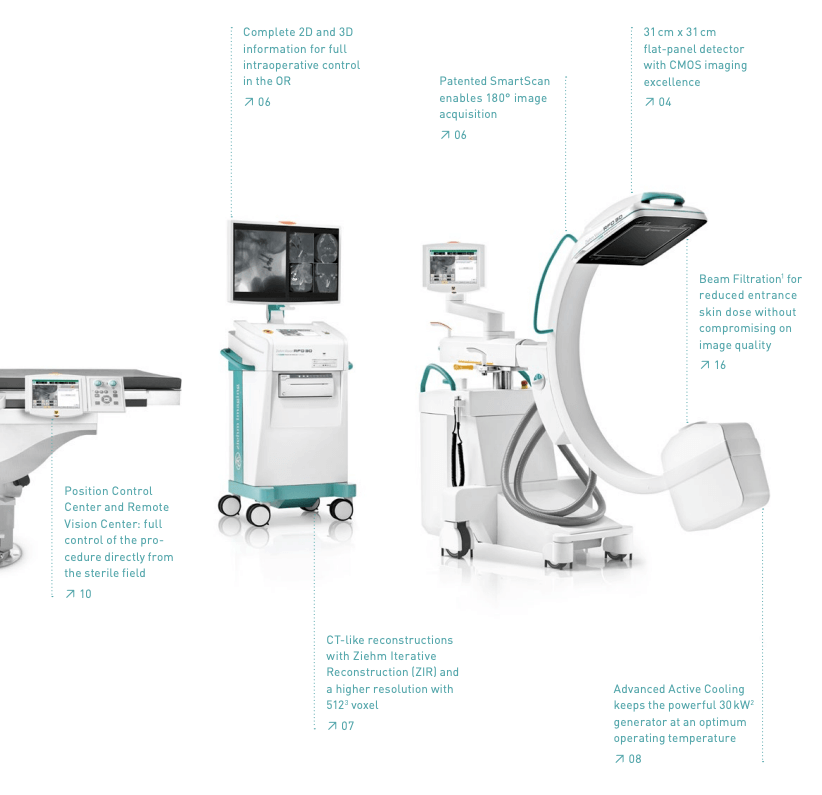

CMOS Flat-Panel Detector: 31cm x 31cm CMOS detector delivering higher spatial resolution through smaller pixel sizes, lower noise levels, and higher read-out speed at full resolution compared with conventional C-arms
True Resolution: High resolution in magnification modes makes interpolation unnecessary, improving overall imaging efficiency

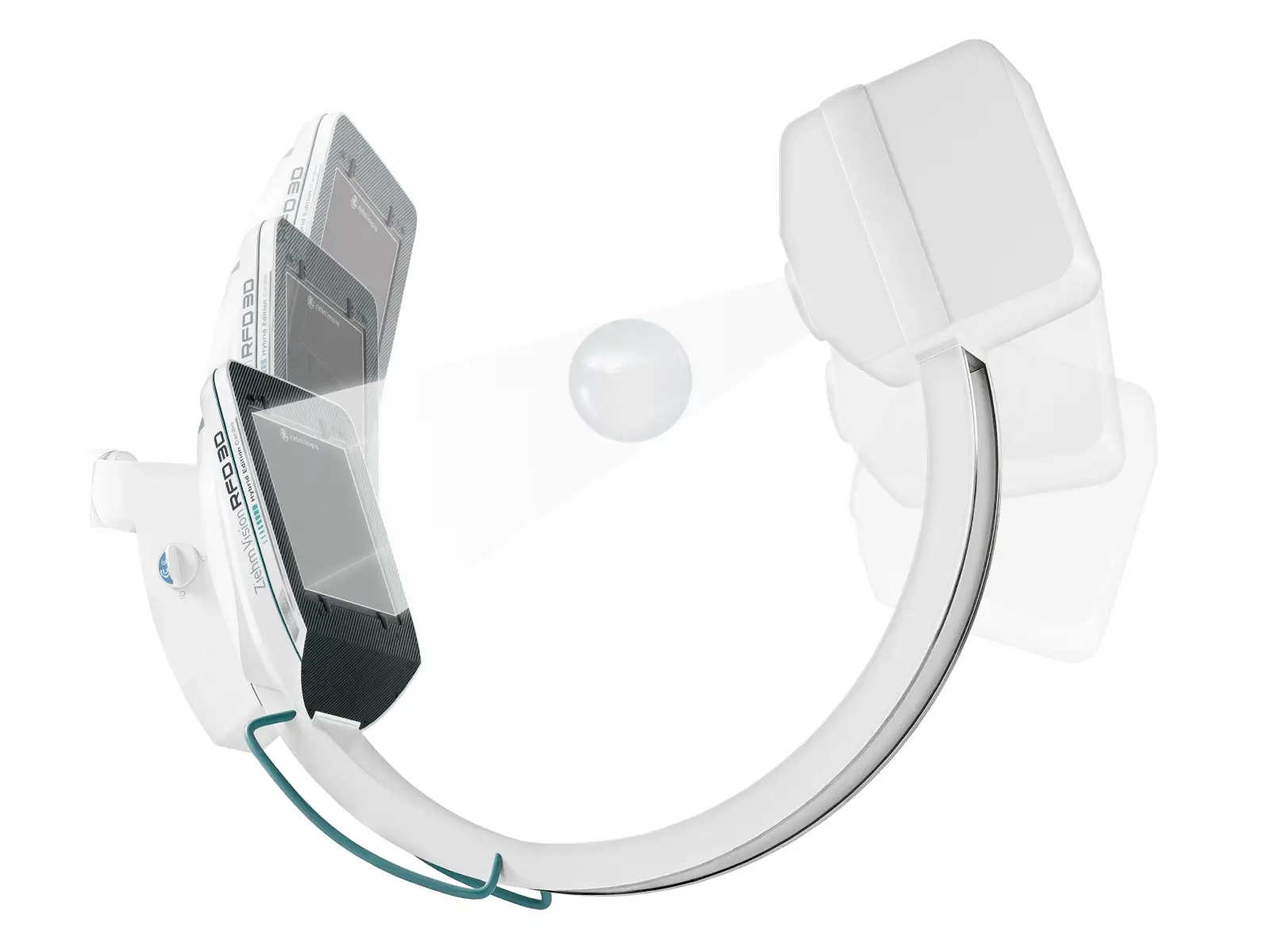

Patented SmartScan: Generates 180 degrees of scanned information through an intelligent combination of linear and rotating movements (linear 7.5 degrees, rotating 165 degrees, linear 7.5 degrees) for a complete cone beam CT style 3D dataset while retaining conventional 2D C-arm geometry
Variable Isocenter: A variable isocenter combined with a generous C-arm opening provides flexible positioning during the scan
Volume Sizes: Standard 16cm x 16cm x 16cm (0.312mm slice), larger field of view 19.8cm x 19.6cm x 18.0cm (0.387mm slice) for pelvis surgery, and a 10cm x 10cm x 10cm zoom-in or cochlea package (0.195mm slice)
Voxel Resolution: Choice of 320 or 512 voxel volumes for higher resolution without increasing dose
Ziehm Iterative Reconstruction (ZIR): A specially developed algorithm that minimizes fan and metal artifacts in 3D reconstructions, producing more distinguishable anatomy, defined bone crests, and optimum slice views in coronal, axial, sagittal, and individually adjustable planes
Ziehm NaviPort: Connects the mobile 3D C-arm to navigation and robotic guidance systems from leading providers including Brainlab, Stryker, Scopis, Globus Medical, and Zimmer Biomet. The 3D dataset transfers seamlessly and aligns automatically with the patient anatomy, eliminating manual registration
Enhanced Screw Visualization: Color-coding of screws on all axes and in volume rendering for intuitive screw evaluation in orthopedic procedures
Enhanced Vessel Visualization: Color differentiation of vessels for clearer interpretation
Anatomical Marking Tool (AMT): Apply markings and labels directly on fluoroscopic images, now enhanced with color, including aneurysm and side-branch marking for aortic stent graft implantation
SmartVascular Package: DSA, MSA, and RSA roadmapping for hybrid and interventional applications
How the Ziehm Vision RFD 3D compares against a mobile CT scanner:
By bringing CT-like 3D imaging into the OR, the Ziehm Vision RFD 3D lets surgeons assess their work intraoperatively rather than waiting for a postoperative CT scan and risking a return to surgery. Fine details such as cortical rims, pedicle diameters, and the orbital floor are clearly visualized. Combined with NaviPort navigation and robot-assisted guidance, this fusion of cone beam 3D imaging and image-guided capability supports less invasive approaches, reduces revision surgeries, and increases decision-making confidence in the OR.
Full Technical Specifications
Complete reference data for capital procurement, RFP submissions, and biomedical engineering evaluation. This specification set is required by surgical directors, purchasing teams, and biomedical engineers comparing 3D C-arm and mobile CT imaging options. Expand each category.
| Imaging Technology | CMOS flat-panel (CMOSline), 31cm x 31cm; a-Si 30cm x 30cm option |
| Scanned Information | 180 degrees via patented SmartScan |
| Standard Volume | 16cm x 16cm x 16cm, 0.312mm slice distance |
| Large Field of View | 19.8cm x 19.6cm x 18.0cm, 0.387mm slice, for pelvis surgery |
| Zoom / Cochlea Package | 10cm x 10cm x 10cm, 0.195mm slice distance |
| Voxel Options | 320 or 512 voxel |
| X-Ray Tube | Rotating anode X-ray tube for prolonged surgical use |
| Generator | 25 kW pulsed monoblock generator |
| Cooling System | Advanced Active Cooling (AAC) liquid cooling |
| Thermal Management | Automatic pulse frequency reduction on temperature rise |
| Prolonged Use | Designed for lengthy vascular and surgical interventions |
| Complete 3D Scan | Less than three minutes end to end |
| Preparation | Approximately 2 minutes setup and collision check |
| 180 Degree Scan | 48 seconds for complete 3D information |
| Reconstruction (Standard) | 8 seconds for standard volume display |
| Reconstruction (512 voxel) | 18 seconds at highest resolution |
| Motorization | 4 motorized axes |

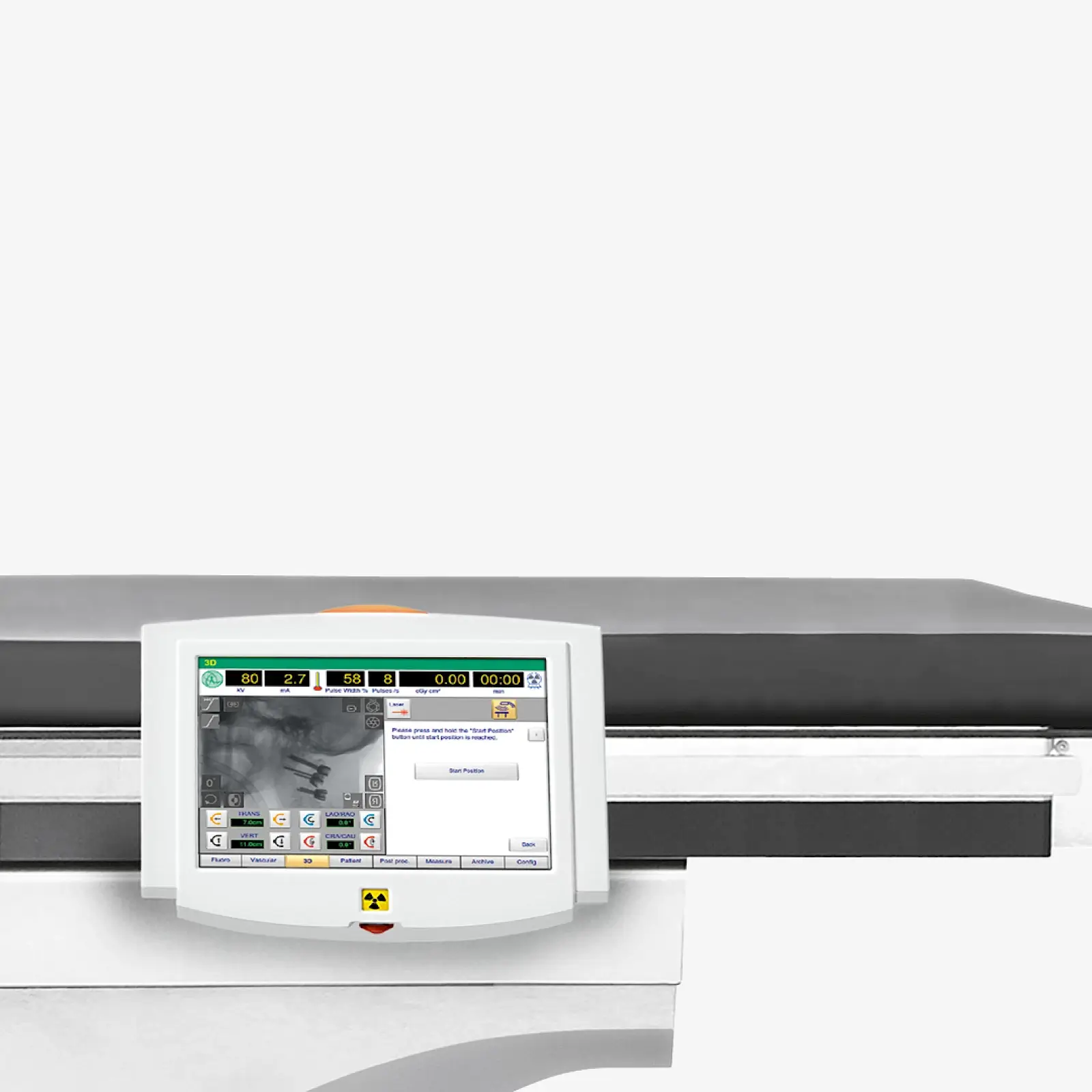

| Position Control | Position Control Center (PCC) and Remote Vision Center, save and recall up to 3 positions |
| Orbital Movement | Up to 165 degrees |
| Footprint | 0.8 square meters, fits the smallest treatment scenarios |
| Weight Advantage | Approximately 60% lighter than mobile CT scanners |
| Distance Control | Non-contact collision protection that slows and stops motorized movement near the patient |
| Control Interface | Ziehm Vision Center touchscreen, operable entirely from the sterile field |
| SmartEye | Tracks orientation and object position on the touchscreen |
| Navigation Interface | Ziehm NaviPort: Brainlab, Stryker, Scopis, Globus Medical, Zimmer Biomet |
| Footswitch | Wireless dual-plus footswitch for cable-free control |
| Connectivity | Ziehm NetPort with WLAN, wireless video to external monitors |
| Beam Filtration | Reduced skin entrance dose without compromising image quality |
| ODDC | Object Detected Dose Control automatically analyzes the area of interest |
| Low Dose Mode | Available in all anatomical programs for dose-sensitive procedures |
| Additional Functions | Laser positioning, high-speed ADR, ZAIP algorithm, PREMAG, removable grid, virtual collimators |
| Pediatric Surgery | Dedicated SmartDose functions significantly reduce pediatric exposure |
Clinical Applications
Deployed across a broad surgical case mix where intraoperative cone beam 3D imaging, surgical navigation, and CT-like reconstruction improve precision and reduce the need for a postoperative CT scan or revision surgery.
Color-coded Enhanced Screw Visualization and NaviPort navigation support precise pedicle screw placement, while ZIR minimizes metal artifacts so surgeons can verify hardware position before leaving the OR.
Intraoperative 3D imaging visualizes cortical rims, fracture reduction, and joint surfaces in real time, helping trauma teams confirm reduction quality without a separate mobile CT scan.
From tibiotalar and subtalar arthrodesis to extremity and pelvis work, the larger field of view and 512 voxel resolution deliver CT-like detail across upper extremities, lower extremities, and shoulder cases.
The 10cm zoom-in cochlea package with 0.195mm slice distance enables precise localization of cochlear implant electrode carriers, supporting demanding maxillofacial and ENT anatomies.
The SmartVascular Package with DSA, MSA, and RSA roadmapping plus the Anatomical Marking Tool prepares the system for hybrid room applications such as aortic stent graft implantation.
High-resolution 3D imaging with 512 voxel supports kyphoplasty and brachytherapy planning, giving clinicians the cone beam CT detail needed to place instruments and sources accurately.

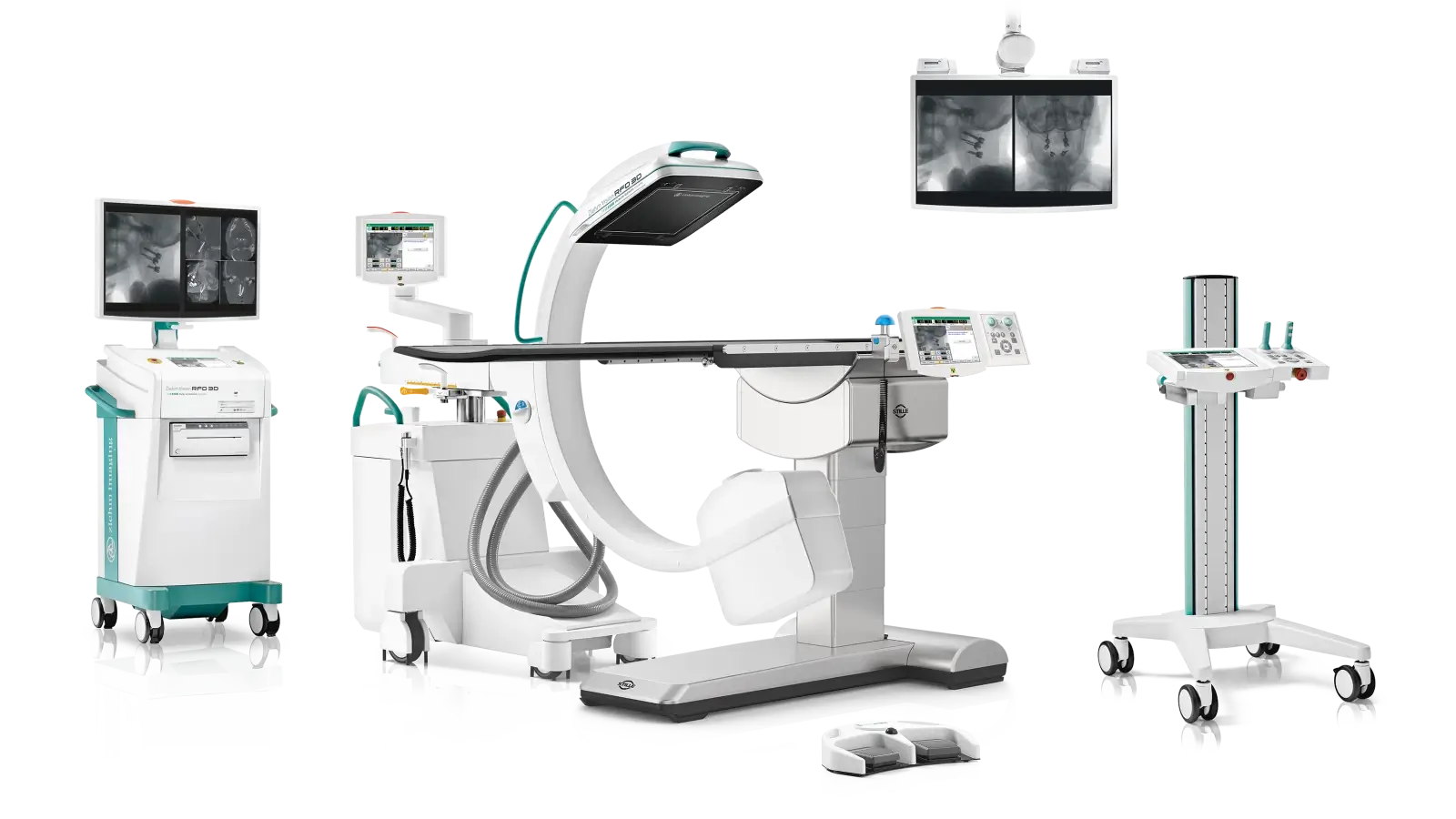

Scan Workflow, Navigation & OR Integration
A complete intraoperative imaging platform engineered to standardize the OR workflow across many users with wizard-guided scanning and seamless navigation integration. The Position Control Center, Ziehm NaviPort, and Ziehm Usability Concept keep the 3D C-arm workflow fast and repeatable. Expanded details are in the expandable sections below.
Workflow wizards assist in setting up the scan and guiding the operator to the right anatomical program with ideal dose settings. After positioning the 3D C-arm and performing a collision check in approximately 2 minutes, the system is ready to scan. SmartScan captures 180 degrees of information in 48 seconds, and iterative reconstruction creates crystal-clear images in 8 seconds for a standard volume or 18 seconds at 512 voxel. A complete 3D scan takes less than three minutes end to end.
The Ziehm NaviPort interface connects the RFD 3D to navigation and robotic guidance systems from Brainlab, Stryker, Scopis, Globus Medical, and Zimmer Biomet. The high-resolution 3D dataset transfers seamlessly and aligns automatically with the patient anatomy, eliminating the need to register the 3D record. The navigation system then guides the surgeon in real time, while robot-assisted surgery positions instruments according to a pre-defined plan.

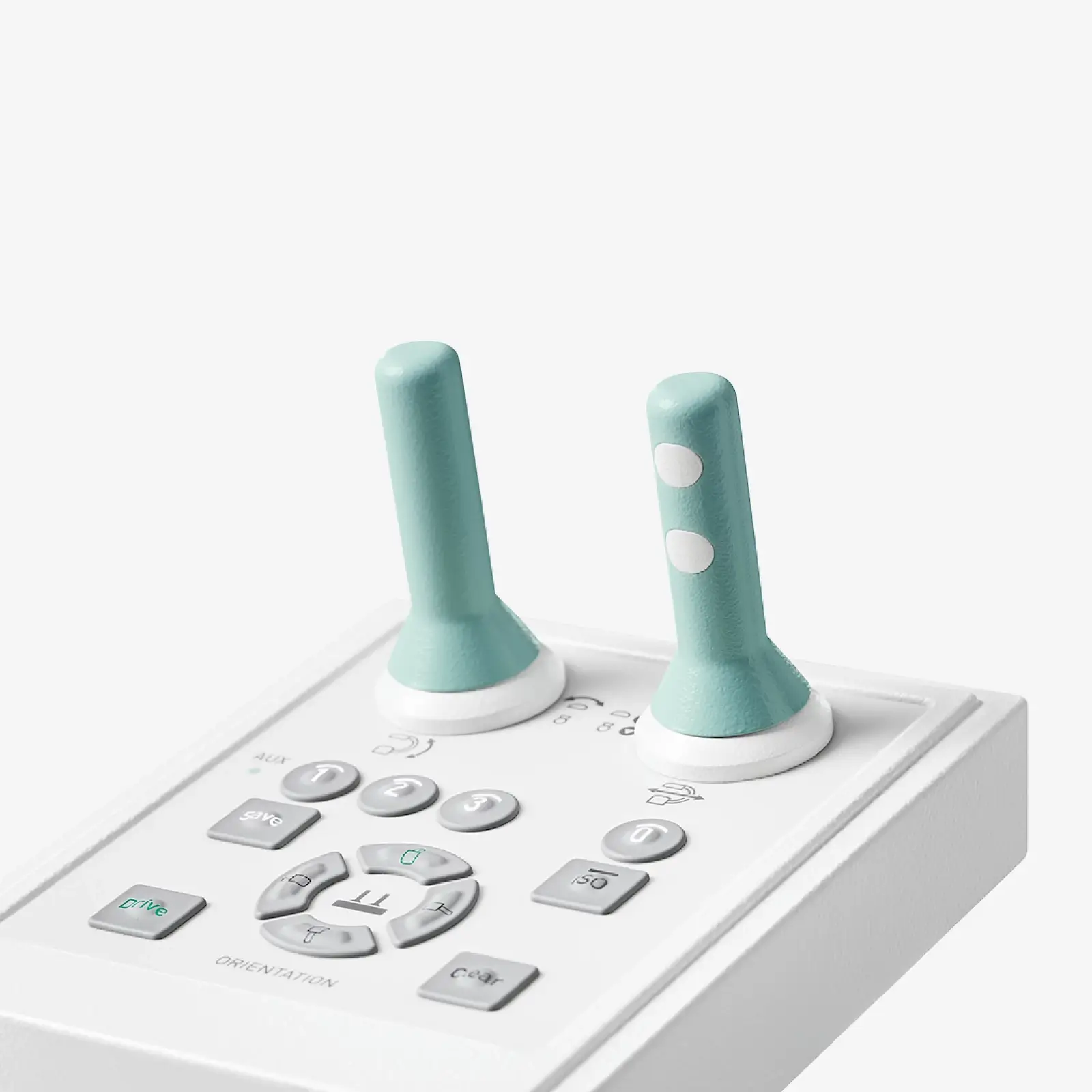

Thanks to motorization of all 4 axes combined with the Position Control Center or the Remote Vision Center, the surgeon can move the C-arm into the exact position desired entirely from the sterile field. The operator can save and recall up to 3 positions, for example switching between AP, lateral, and oblique positions to save time and increase precision. Distance Control provides non-contact collision protection for patient safety.
The Ziehm Usability Concept combines finely tuned hardware with seamlessly integrated software. Color-coded scales and handles ensure clear communication, the wireless dual-plus footswitch controls imaging functions without cables, and Ziehm NetPort with WLAN enables easy integration into IT networks. Wireless video transmits live X-ray images to external monitors, and versatile viewing options offer maximum flexibility in the OR.
Regulatory Compliance & Availability
Manufactured by Ziehm Imaging GmbH, the innovation leader that introduced the first mobile 3D C-arm with a flat-panel detector and maintains an installed base of nearly 1,000 systems. Medical Outfitters is an ISO 13485:2016-certified supplier of surgical imaging equipment, meaning every Ziehm Vision RFD 3D ships through a documented, audited quality management system. Please note that Ziehm products are available for sale in the Caribbean. Full compliance documentation is available in the expandable sections below.
Regional Availability: Ziehm products, including the Ziehm Vision RFD 3D, are available for sale in the Caribbean. If you are located outside this region and would like a comparable mobile 3D C-arm or cone beam imaging system, our team can recommend an equivalent available in your area.
Manufacturer: Ziehm Imaging GmbH, Nuremberg, Germany, a division of Ziehm-Orthoscan, Inc. Ziehm pioneered the first mobile 3D C-arm with a flat-panel detector.
ISO 13485: Medical Outfitters Inc. is independently ISO 13485:2016 certified as a surgical imaging equipment supplier.
Ziehm NetPort: WLAN network integration for transfer of images and data into hospital IT systems.
Clinical Evidence: Intraoperative 3D imaging and computer-assisted placement are supported by peer-reviewed literature on reduced revision rates and intraoperative radiation dose.
SmartDose Concept: A clinically proven portfolio of dose-reduction features including Beam Filtration, ODDC, Low Dose mode, and pediatric-specific functions.
Distance Control: Non-contact collision protection for patient safety during motorized movement.
RoHS & REACH: Compliant with EU Restriction of Hazardous Substances and REACH chemical regulations.
Navigation & Compatibility Review
Ziehm products are available for sale in the Caribbean. Provide your navigation platform, OR layout, and facility location, and our team confirms NaviPort compatibility and availability before shipment, or recommends a comparable mobile 3D C-arm for your region.
Capital Equipment & RFP Support
Volume pricing, technical documentation, and logistics coordination for 3D C-arm and intraoperative imaging deployments. We support surgical directors, biomedical engineers, and hospital purchasing departments evaluating mobile 3D imaging systems. Contact us for RFP packages.
Frequently Asked Questions
Quick answers to the most common purchase and technical questions about the Ziehm Vision RFD 3D mobile 3D C-arm. Tap any question to expand.
The Ziehm Vision RFD 3D is a mobile 3D C-arm and the first mobile 3D C-arm to use a flat-panel detector. It features a 31cm x 31cm CMOS detector, a 25 kW pulsed monoblock generator, patented SmartScan 180 degree image acquisition, Ziehm Iterative Reconstruction for metal artifact reduction, and CT-like intraoperative imaging for orthopedic, trauma, spinal, maxillofacial, and cochlear surgery.
Pricing varies by configuration and package. Medical Outfitters returns a quote within one business day. Submit a request online or call (305) 885-4045. Please note that Ziehm products are available for sale in the Caribbean.
The Ziehm Vision RFD 3D is a mobile 3D C-arm that delivers CT-like reconstructions while being significantly smaller than a fixed C-arm and approximately 60% lighter than mobile CT scanners. It provides cone beam CT style 3D datasets intraoperatively without the footprint, weight, or cost of a dedicated mobile computed tomography machine, and it retains full 2D fluoroscopy capability that a mobile CT scan cannot offer.
Like an O arm, the Ziehm Vision RFD 3D provides intraoperative 3D imaging and navigation integration, but it retains the open geometry, compact 0.8 square meter footprint, and 2D fluoroscopy capability of a conventional mobile C-arm. When clinicians compare a c arm vs o arm for their OR, the variable isocenter and generous C-arm opening offer easier patient access than a closed-gantry o arm machine, and the system weighs far less.
SmartScan is Ziehm Imaging’s patented technology that enables 180 degrees of scanned information through an intelligent combination of linear and rotating movements, specifically linear 7.5 degrees, rotating 165 degrees, and linear 7.5 degrees. It generates a complete cone beam 3D dataset while keeping the geometry of a conventional 2D C-arm.
ZIR (Ziehm Iterative Reconstruction) is a specially developed algorithm that minimizes fan and metal artifacts in 3D reconstructions, producing more distinguishable anatomy, defined bone crests, and optimum slice views in coronal, axial, sagittal, and individually adjustable planes.
Yes. The Ziehm NaviPort interface connects the RFD 3D to navigation and robotic guidance systems from leading providers including Brainlab, Stryker, Scopis, Globus Medical, and Zimmer Biomet. The 3D dataset transfers and aligns automatically with the patient anatomy, eliminating manual registration, and the navigation system guides the surgeon in real time.
Through Medical Outfitters Inc., ISO 13485:2016 certified, Miami, FL. Ziehm products are available for sale in the Caribbean. Call (305) 885-4045 or request a quote online to confirm availability in your region or to identify a comparable mobile 3D C-arm.
