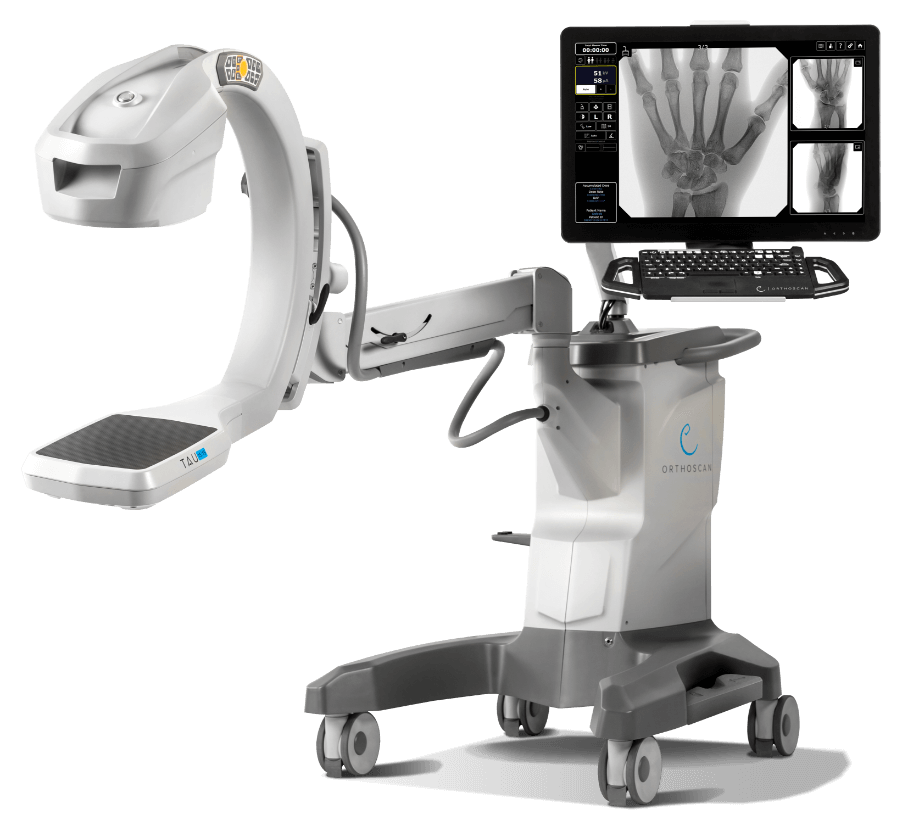

Orthoscan TAU 1515: Mini C-Arm for Extremity Imaging
Authorized Orthoscan mini C-arm supplier. Manufactured by Ziehm-Orthoscan, Inc., the TAU 1515 is a compact, mobile mini C-arm dedicated to extremity imaging in orthopedic clinics, surgical centers, and hospitals serving both adult and pediatric patients. Orthoscan has led the mini C-arm market since 2002, and the TAU family is the first line of mini C-arms designed and approved for use with pediatric patients. If you are researching what is a c arm used for in orthopedics, the TAU 1515 answers that need with high-resolution live fluoroscopy of hands, feet, and joints, and it ranks among the most capable Orthoscan mini c arm options available.
Core imaging technology: a 15cm x 15cm next-generation flat-panel detector that delivers a 25 to 33 percent larger imaging surface than conventional mini C-arms, so your team captures more anatomy in one shot. With 160 degrees of orbital rotation, a 50.8cm arc depth, and an integrated umbilical cable, the TAU 1515 maneuvers easily in the surgical field. Intelligent Dose Reduction with the Optimized Dose Filter achieves up to 79% cumulative dose reduction, and pulsed fluoroscopy keeps radiation low enough that this is one of the few mini C-arm machines cleared for pediatric use.
Need pricing? Get a quote with lead times and volume discounts within one business day.
Large Detector, Intelligent Dose Reduction & Pediatric Imaging
Three capabilities set the Orthoscan TAU 1515 apart from a conventional mini c arm: a class-leading detector, deep dose reduction, and pediatric clearance. Each was engineered to improve extremity imaging workflow and patient safety. Full technical detail is in the expandable sections below.
15cm x 15cm Flat-Panel Detector: A next-generation flat-panel detector providing a 25 to 33 percent larger imaging surface than conventional 12cm x 15cm and 13cm x 13cm mini C-arm detectors
One-Shot Coverage: The larger detector captures more anatomy in a single pass, so anatomical areas such as hands and feet need only one image, reducing repositioning, lost time, and radiation exposure
Image Resolution: 1,500 x 1,500 pixels at 100 micron pixel spacing
Large Live Image Display: A 27-inch diagnostic monitor with a 12-inch by 12-inch live image area lets your team visualize the smallest anatomical features in detail
Snapshot and Last Image Hold: Capture still images during live fluoroscopy and hold the previous image on screen for review with no additional patient radiation
Smart Image Processing: Orthoscan image processing enhances brightness and sharpness immediately on screen
Intelligent Dose Reduction (IDR): Orthoscan’s cutting-edge dose technology with an Optimized Dose Filter achieves up to 79% cumulative dose reduction while maintaining diagnostic image quality
Pulsed Fluoroscopy: Selectable 30, 15, and 7.5 pulses per second significantly reduce dose rate compared with conventional continuous fluoroscopy, with greater reduction at lower pulse rates
Optimized Dose Filter: Engaging the filter further reduces radiation dose without loss of image quality or detail
Pediatric Indication: The TAU family is the only mini C-arm line with a pediatric indication, made possible by these dose-saving technologies
Reduced Ramp Time: Decreased ramp time contributes to lower overall exposure for surgeons and patients

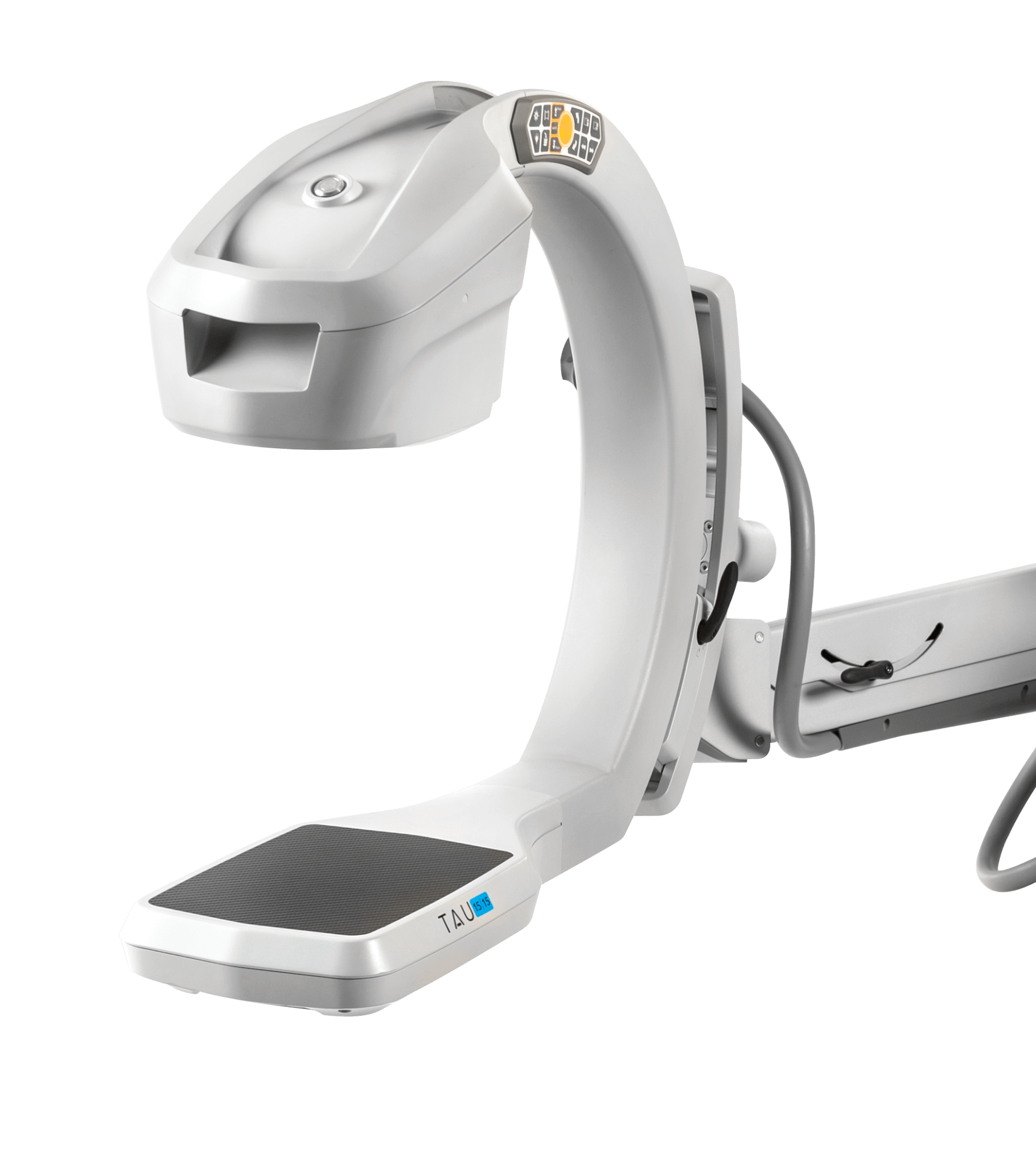

Adjustable Arm Positioning: 160 degree orbital rotation and 50.8cm arc depth let staff slide the machine into position without forcing patients into awkward postures, with backlit bilateral controls on the arm for adjustments inside the sterile field
How the TAU 1515 compares against a conventional mini C-arm:
The TAU 1515 keeps a compact, lightweight design that simplifies transportation and storage while delivering the imaging power of a much larger system. A wireless footswitch lets operators control core functions and capture images without touching the console, reducing contamination risk, and customizable controls let your team tailor the interface for specific exams. Surgical LED lights add positioning illumination to reduce repeat scans. Whether you are evaluating this mini C-arm for purchase, comparing c arm cost across vendors, searching for a c arm for sale, or exploring a c arm rental for a short-term need, the TAU 1515 is built to work with you, not against you.
Full Technical Specifications
Complete reference data for capital procurement, RFP submissions, and biomedical engineering evaluation. This specification set is required by orthopedic directors, purchasing teams, and biomedical engineers comparing mini C-arm imaging options. Expand each category.
| Detector Type | Next-generation flat-panel detector |
| Detector Size | 15cm x 15cm (25 to 33 percent larger than conventional mini C-arms) |
| Image Resolution | 1,500 x 1,500 |
| Pixel Spacing | 100 microns |
| Live Image Area | 12 inches x 12 inches |
| Image Processing | Orthoscan smart image processing for brightness and sharpness |
| Dose Technology | Intelligent Dose Reduction (IDR) with Optimized Dose Filter |
| Cumulative Dose Reduction | Up to 79% |
| Pulsed Fluoroscopy | 30, 15, and 7.5 pulses per second |
| Pediatric Indication | Yes, the only mini C-arm family with pediatric indication |
| Orbital Rotation | 160 degrees |
| Arc Depth | 50.8cm (20 inches) |
| Cable | Integrated umbilical cable |
| Sterile Field Controls | Backlit bilateral controls on the arm |
| Surgical LED Lights | Additional anatomy illumination to reduce repeat scans |
| Monitor | 27-inch diagnostic monitor at 1920 x 1080 (optional 32 inch) |
| Interface | Orthotouch proprietary touchscreen with on-screen help |
| Keyboard | Versatile detachable keyboard for patient data entry |
| Footswitch | Wireless footswitch with customizable controls |
| DICOM | DICOM 3.0 compliant for PACS integration |
| Printer | Included for hard-copy image sharing |
| Weight | 215.5 kg |
| Design | Compact, lightweight, simplified transport and storage |
Clinical Applications
Deployed across orthopedic and extremity imaging environments wherever a large field of view, low radiation dose, and pediatric capability matter most.
The 15cm x 15cm detector captures the full hand and wrist in a single shot, so surgeons confirm fracture reduction and hardware placement without repositioning or repeat exposure.
160 degree orbital rotation and a 50.8cm arc depth provide the angles needed for foot and ankle procedures while the patient stays comfortably positioned.
High-resolution live fluoroscopy of the elbow and other extremities supports closed reductions, pin removals, and joint stability assessment in the orthopedic clinic.
As one of the only mini C-arm machines with a pediatric indication, the TAU 1515 uses Intelligent Dose Reduction to image children at minimized dose without sacrificing image quality.
Wireless footswitch control, backlit sterile-field controls, and a compact footprint make the TAU 1515 an efficient fit for ambulatory surgical centers and procedure suites.
Lightweight, mobile, and DICOM 3.0 ready, the TAU 1515 brings office-based extremity fluoroscopy to orthopedic practices that need imaging at the point of care.
Positioning, Dose Control & DICOM Integration
A complete extremity imaging solution designed to integrate into the orthopedic clinic and surgical suite with minimal setup. Whether replacing an aging mini c arm or adding fluoroscopy capability for the first time, the TAU 1515 connects directly to PACS through DICOM 3.0. Expanded workflow details are in the expandable sections below.
With 160 degrees of orbital rotation, a 50.8cm arc depth, and an integrated umbilical cable, the TAU 1515 slides into position with a turn of the wrist. Backlit bilateral controls on the arm let staff make fine adjustments without leaving the sterile field, and surgical LED lights illuminate the anatomy to reduce repeat scans. Preferred views are achieved with fewer shots, improving workflow and reducing exposure.
Intelligent Dose Reduction with the Optimized Dose Filter achieves up to 79% cumulative dose reduction while maintaining image quality. The technologist selects pulsed fluoroscopy at 30, 15, or 7.5 pulses per second based on the anatomical region. Because the 15cm x 15cm detector captures hands and feet in one image, fewer exposures are required, further lowering dose to both patient and staff.
Operators capture still images during live fluoroscopy with snapshot, and last image hold keeps the previous image on the 27-inch monitor for close review with no additional radiation. The wireless footswitch controls image capture and settings without touching the console, reducing contamination risk, and customizable controls tailor the interface to specific exams.
The TAU 1515 is DICOM 3.0 compliant, integrating with existing PACS systems and workflows for automatic image routing. An included printer supports hard-copy image sharing when preferred. The Orthotouch touchscreen interface with on-screen help makes selecting exam parameters fast and intuitive for any operator.
Regulatory Compliance & Safety
FDA cleared with a pediatric indication, manufactured by Ziehm-Orthoscan, Inc., the global leader in mini C-arm imaging since 2002. Medical Outfitters is an ISO 13485:2016-certified supplier of mini C-arm and fluoroscopy equipment, meaning every Orthoscan TAU 1515 ships through a documented, audited quality management system. Full compliance documentation is available in the expandable sections below.
FDA Cleared: The Orthoscan TAU 1515 is FDA cleared for fluoroscopic extremity imaging and is part of the first mini C-arm family approved for use with pediatric patients.
Manufacturer: Ziehm-Orthoscan, Inc. Orthoscan has led the mini C-arm market since 2002, and since 2017 Ziehm Imaging has held full distribution rights for Orthoscan mini C-arms.
ISO 13485: Medical Outfitters Inc. is independently ISO 13485:2016 certified as a mini C-arm equipment supplier.
Intelligent Dose Reduction: Up to 79% cumulative dose reduction using IDR with the Optimized Dose Filter. Actual reduction depends on clinical task, patient size, and anatomical location. A consultation with a radiologist and physicist should determine the appropriate dose for each clinical task.
Pediatric Indication: The TAU family is the only mini C-arm line designed and approved for pediatric use.
DICOM 3.0: Full compliance for PACS integration and image transfer.
RoHS: Restriction of Hazardous Substances compliant.
REACH: EU REACH chemical regulation compliant.
Facility & Workflow Review
Provide your clinic layout, patient mix, and PACS configuration. Our team confirms the TAU 1515 fits your extremity imaging workflow and coordinates installation before shipment, whether you need a purchase or a short-term C-arm rental option.
Pricing & RFP Support
Orthoscan TAU 1515 cost breakdowns, volume pricing, technical documentation, and logistics coordination for orthopedic imaging deployments. We support orthopedic directors, biomedical engineers, and purchasing departments comparing a c arm for sale or a c arm rental. Contact us for RFP packages.
Frequently Asked Questions
Quick answers to the most common purchase and technical questions about the Orthoscan TAU 1515 mini C-arm. Tap any question to expand.
The Orthoscan TAU 1515 is a compact mini C-arm for extremity imaging with a 15cm x 15cm next-generation flat-panel detector, 160 degree orbital rotation, 50.8cm arc depth, pulsed fluoroscopy, Intelligent Dose Reduction with up to 79% cumulative dose reduction, and a pediatric indication. It is designed for orthopedic clinics, surgical centers, and hospitals serving both adult and pediatric patients.
The Orthoscan TAU 1515 cost varies by configuration and accessories. Medical Outfitters returns a quote within one business day. Call (305) 885-4045 or request online to discuss purchase, financing, or a C-arm rental for short-term needs.
The TAU 1515 has a 15cm x 15cm next-generation flat-panel detector, providing a 25 to 33 percent larger imaging surface than conventional mini C-arms. The larger detector captures more anatomy in one shot, reducing repositioning and radiation exposure for extremities such as hands and feet.
Yes. The Orthoscan TAU family are the first mini C-arms designed and approved for use with pediatric patients. Intelligent Dose Reduction and the Optimized Dose Filter keep radiation exposure low while maintaining image quality.
The TAU 1515 offers 160 degrees of orbital rotation and a 50.8cm (20 inch) arc depth, with an integrated umbilical cable. This combination provides high versatility and articulation, letting staff achieve preferred views with minimal patient repositioning.
Using Intelligent Dose Reduction with the Optimized Dose Filter, the TAU 1515 can achieve up to 79% cumulative dose reduction. Pulsed fluoroscopy at 30, 15, or 7.5 pulses per second provides further reduction depending on the anatomical region being examined.
Yes. The TAU 1515 is DICOM 3.0 compliant for integration with existing PACS systems and workflows, and it includes an optional printer for hard-copy image sharing.
Through Medical Outfitters Inc., ISO 13485:2016 certified, Miami, FL. Factory-new units with nationwide installation support. Call (305) 885-4045 or request a quote online.
Compatible Equipment
Imaging equipment commonly deployed alongside the Orthoscan TAU 1515, from the larger TAU 2020 mini C-arm to the full-size surgical C-arm that complements a multi-room orthopedic and surgical program.
Orthoscan TAU 2020
Larger mini C-arm · 20x20cm detector · stepless collimator · pediatric
