Fujifilm Sonosite ZX: Point-of-Care Ultrasound System
Authorized Fujifilm Sonosite ultrasound supplier. The Fujifilm Sonosite ZX is a hardworking, easy-to-use point of care ultrasound system designed to work by your side, room to room. A low-profile wheel base lets this bedside ultrasound slide right up to the patient, integrated transducer holders simplify cleanup, and clinicians can connect three transducers at once with triple transducer connect. The result is exceptional image quality in an intuitive format, so technicians spend more time on patient care and less on programming and logistics.
Core technology: a large 15.6-inch clinical monitor with 1920 by 1080 resolution and a projected-capacitive touch panel that tilts and swivels to reduce neck strain. SonoADAPT Imaging Technology and SonoMB Multi-beam Technology adapt key settings automatically for clear images with fewer manual adjustments, backed by an all-digital broadband architecture with up to 183 dB of dynamic range. An optional Sonosite ECG module and barcode scanner streamline the workflow, while DICOM and PACS connectivity, FIPS and NIST security, and a contamination-resistant touchpad make this cardiac ultrasound and procedural platform a dependable point of care ultrasound system.
Need pricing? Get a quote with lead times and volume discounts within one business day.
Bedside Stand, Triple Transducer Connect & Large Monitor
Three core strengths separate the Sonosite ZX from a conventional cart ultrasound system: a bedside-optimized stand, triple transducer connect with integrated holders, and a large 15.6-inch clinical monitor. Each was engineered for efficiency when minutes matter at the point of care. Full technical detail is in the expandable sections below.
Advanced Adaptive Imaging: SonoADAPT Imaging Technology adjusts key settings such as scan depth automatically, producing clear, detailed images with fewer operator adjustments so the team can focus on the patient
SonoMB Multi-beam Technology: A proprietary speckle reduction algorithm and multi-beam imaging sharpen borders and small structures
Full Imaging Mode Set: 2D broadband, tissue harmonic, and pulse inversion harmonic imaging, M-Mode, Color Velocity Doppler, and Color Power Doppler
Cardiac Doppler: Color Variance Mode, Pulsed Wave Doppler, Tissue Doppler Imaging, and Continuous Wave Doppler support cardiac ultrasound and echo exams
High Dynamic Range: An all-digital broadband architecture delivers up to 183 dB of dynamic range with 256 shades of gray

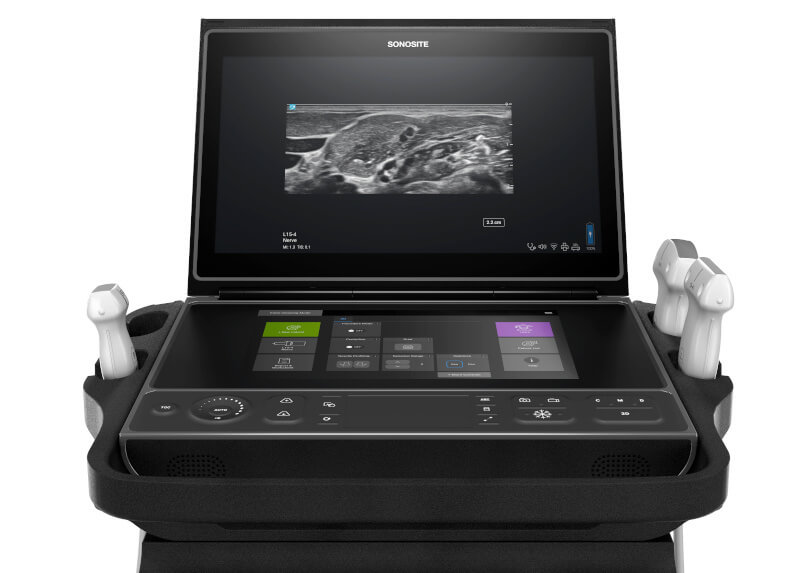

Large Clinical Monitor: A 15.6-inch monitor at 1920 by 1080 keeps fine detail sharp on the ultrasound screen

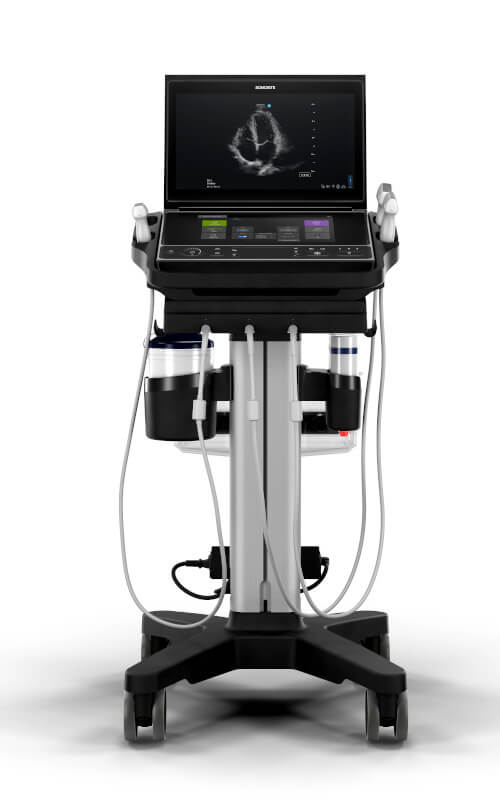

Low-Profile Wheel Base: A low-profile wheel base lets the ultrasound cart slide right up to the bedside for better accessibility, and power cords are confined within the column to prevent tangles
Triple Transducer Connect: Connect three transducers at once and switch to your most-needed transducer at the touch of a button
Integrated Transducer Holders: Durable integrated holders replace cups for simplified cleanup and a contamination-resistant design
Versatile Storage: A flexible storage system adapts to left or right with a gel holder, wipes holder, storage bin, and lockable drawer to secure supplies
Ergonomic Display: The 15.6-inch clinical monitor and touch panel tilt and swivel to reduce neck strain, with a maneuverable, compact footprint
On-Board Education: More than 150 scan-along tutorials cover anesthesiology, pain management, procedures, MSK, and transducer use
How the Sonosite ZX compares against a conventional cart ultrasound system:
The Sonosite ZX is a well-designed point of care ultrasound system built to empower clinicians and elevate patient care. It maneuvers with the team as they work, room to room, with a low-profile bedside stand, triple transducer connect, and a large clinical monitor. From diagnosis to procedure, this bedside ultrasound is engineered for uncompromising durability, reliability, and agile adaptability when every minute matters.
Full Technical Specifications
Complete reference data for capital procurement, RFP submissions, and biomedical engineering evaluation. This specification set is required by emergency, critical care, and imaging leads comparing point of care ultrasound system options. Expand each category.
| Imaging Modes | 2D broadband, Tissue Harmonic, Pulse Inversion Harmonic, and M-Mode |
| Doppler Modes | Color Velocity Doppler, Color Power Doppler, Color Variance, PW, Tissue Doppler, and CW |
| Adaptive Imaging | SonoADAPT Imaging Technology adjusts key settings such as scan depth automatically for clear images with fewer adjustments |
| SonoMB Multi-beam | A proprietary speckle reduction algorithm and multi-beam technology sharpen borders and small structures |
| Clinical Monitor | 15.6 inch ultrasound screen at 1920 by 1080 pixels for sharp detail |
| Dynamic Range | Digital broadband, up to 183 dB, with 256 shades of gray |
| Triple Transducer Connect | Connects 3 transducers at once on the stand, with one port on the system, so the most-needed transducer is ready at the touch of a button |
| Ultrasound Transducer Types | 7 transducers spanning phased array, curved array, linear, and multiplane transesophageal designs cover many ultrasound transducer types |
| Scan Depths | 1 to 35 centimeters across the ultrasound transducers for superficial to deep imaging |
| Integrated Holders | Durable integrated transducer holders replace cups for simplified, contamination-resistant cleanup |
| Immersion Rating | Transducers carry an IPX7 immersion rating for cleaning and disinfection |
| Weight | 60.6 lbs or 27.5 kg for the system and stand, and 16.9 lbs or 7.65 kg for the system only |
| Stand Footprint | 19.9 by 22.6 inches, with a low-profile wheel base for bedside access |
| Height Range | 39.2 to 53.7 inches as the clinical monitor raises and lowers |
| Touch Panel | Projected capacitive touch panel that adjusts 0 to 140 degrees, plus physical buttons |
| Operating System | Windows 10 IoT Enterprise 2019 LTSC |
| Ingress Protection | IP22 liquid ingress rating on the system, with a smooth touchpad that wipes down easily |
| Critical Care & Emergency | Efficiency when minutes matter, with clear images for focused exams in critical care and emergency medicine |
| Anesthesia & Pain Management | Proper needle guidance for regional anesthesia and pain management procedures |
| Cardiac & Focused Cardiac | Cardiac and focused cardiac echo exams with Color Variance, TDI, CW Doppler, and a transesophageal TEE option |
| Musculoskeletal | MSK, nerve, and superficial imaging for procedural guidance and assessment |
| Abdominal & OB/Gyn | Abdominal, gynecology, obstetrics, early obstetrics, prostate, and spine exams |
| Vascular & Lung | Arterial, venous, carotid, PIV, lung, and transcranial Doppler exams |
| DICOM & PACS | Supports the DICOM protocol for unified archiving to PACS and integration with hospital information systems |
| Security Standards | Adheres to FIPS 199, FIPS 200, and NIST 800-53 security standards, with USB ports to export data |
| Sonosite ECG Module | An optional 3-lead ECG module connects through a dedicated port to display an ECG trace on the clinical monitor |
| Barcode & Printer | Optional barcode scanner auto-links patient data, and an optional medical grade printer prints studies |
| On-Board Education | More than 150 scan-along tutorials cover anesthesiology, pain management, procedures, and MSK |
| Warranty | Backed by the Sonosite 5-year standard warranty |
Clinical Applications
A point of care ultrasound system built to work room to room, the Sonosite ZX brings efficiency when minutes matter across critical care, anesthesia, musculoskeletal, and emergency medicine.
Efficiency when minutes matter, the low-profile bedside stand and large clinical monitor deliver clear images for focused exams in critical care and emergency medicine.
Proper needle guidance at the desired location helps guide patients back to health with reduced pain during regional anesthesia and pain management procedures.
Color Variance, Tissue Doppler, and Continuous Wave Doppler with a transesophageal TEE option make the ZX a capable cardiac ultrasound and focused cardiac platform.
A full set of transducers and on-board MSK tutorials support musculoskeletal assessment and procedural guidance at the bedside.
By your side in perioperative care, the ZX provides clear image quality in the moment and the tool you can trust when it is time for a procedure.
Abdominal, gynecology, obstetrics, and prostate exams are supported by curved and endocavity ultrasound transducers with built-in calculations.
Bedside Workflow, Connectivity & Ease of Use
A point of care ultrasound system engineered to maneuver with the team as they work. Adaptive imaging, a large clinical monitor, triple transducer connect, and streamlined connectivity keep the Sonosite ZX fast, dependable, and easy to operate. Expanded workflow details are in the expandable sections below.
SonoADAPT Imaging Technology adjusts key settings such as scan depth automatically, so clinicians get clear, detailed images with fewer operator adjustments and can focus on keeping patients comfortable. SonoMB Multi-beam Technology and a proprietary speckle reduction algorithm sharpen detail, and a 15.6-inch 1920 by 1080 clinical monitor keeps it all easy to read.
A low-profile wheel base lets the system slide right up to the bedside, and power cords are confined within the column to prevent tangles. Triple transducer connect keeps three transducers ready at the touch of a button, integrated holders simplify cleanup, and a versatile storage system adds a gel holder, wipes holder, storage bin, and lockable drawer.
The Sonosite ZX supports the DICOM protocol for unified archiving to PACS and integration with hospital information systems, with USB ports for data export. It adheres to FIPS 199, FIPS 200, and NIST 800-53 security standards. An optional 3-lead Sonosite ECG module and barcode scanner streamline patient data and ECG display on the clinical monitor.
A smooth touchpad wipes down easily after each exam and integrated transducer holders reduce contamination risk. The display and touch panel tilt and swivel to reduce neck strain, and more than 150 on-board scan-along tutorials covering anesthesiology, pain management, procedures, and MSK help teams get the most from the system.
Quality, Durability & Support
Manufactured by FUJIFILM Sonosite, Inc., the pioneer of point of care ultrasound, the ZX is engineered for uncompromising durability, reliability, and agile adaptability. It adheres to FIPS 199, FIPS 200, and NIST 800-53 security standards with a comprehensive HIPAA tool set, supports DICOM and PACS, and is backed by a 5-year standard warranty. Medical Outfitters is an ISO 13485:2016 certified supplier of ultrasound and medical imaging equipment, meaning every Sonosite ZX ships through a documented, audited quality management system. Full compliance documentation is available in the expandable sections below.
Manufacturer: FUJIFILM Sonosite, Inc., a pioneer of point of care ultrasound.
Design Pillars: The ZX is engineered for uncompromising durability, reliability, and agile adaptability.
ISO 13485: Medical Outfitters Inc. is independently ISO 13485:2016 certified as an ultrasound and medical imaging equipment supplier.
Security Standards: Adheres to FIPS 199, FIPS 200, and NIST 800-53.
HIPAA Compliance: A comprehensive HIPAA tool set keeps image sharing secure.
Connectivity: DICOM protocol support for unified archiving to PACS and integration with hospital information systems, with USB data export.
Warranty: Backed by the Sonosite 5-year standard warranty.
On-Board Education: More than 150 scan-along tutorials cover anesthesiology, pain management, procedures, and MSK.
Service: Medical Outfitters supports the purchase, setup, and maintenance of the system throughout its life.
Transducer & Configuration Review
Provide your clinical specialties and the ultrasound transducers you need, plus any accessories such as the Sonosite ECG module or barcode scanner. Our specialists confirm the right Sonosite ZX configuration before purchase, then coordinate delivery and training.
Capital Equipment & RFP Support
Sonosite ZX pricing, transducer options, and logistics coordination, including new and refurbished options. We support critical care, anesthesia, MSK, and emergency buyers comparing point of care ultrasound system options. Contact us for a quote.
Frequently Asked Questions
Quick answers to the most common purchase and technical questions about the Fujifilm Sonosite ZX point of care ultrasound system. Tap any question to expand.
The Fujifilm Sonosite ZX is a hardworking point of care ultrasound system on a low-profile bedside stand. It has a 15.6-inch 1920 by 1080 clinical monitor with a touch panel, triple transducer connect for three transducers at once, integrated transducer holders, and 7 transducers with scan depths from 1 to 35 centimeters. SonoADAPT and SonoMB imaging, an optional ECG module, and DICOM and PACS connectivity support critical care, anesthesia, musculoskeletal, and emergency medicine.
The price depends on the transducers, accessories, and configuration you select. Medical Outfitters offers new and refurbished options and returns a quote within one business day. Call (305) 885-4045 or request online to check current Sonosite ZX availability.
The Sonosite ZX is used as a point of care ultrasound system for critical care, anesthesia, pain management, musculoskeletal, emergency medicine, and perioperative care. With cardiac, focused cardiac, abdominal, OB, gynecology, vascular, lung, and transcranial Doppler exam types, it supports clinicians from diagnosis to procedure at the bedside.
The Sonosite ZX supports 7 ultrasound transducers spanning phased array, curved array, linear, and multiplane transesophageal designs, with scan depths from 1 to 35 centimeters. Triple transducer connect lets you keep three transducers plugged in at once and switch at the touch of a button, and integrated holders simplify cleanup.
Triple transducer connect lets the ZX hold three transducers on the stand at the same time, so the most-needed transducer is ready at the touch of a button without unplugging and swapping. The system itself has one transducer port, and the stand adds the additional connections along with integrated holders for tidy storage.
The Sonosite ZX has a 15.6-inch clinical monitor with 1920 by 1080 resolution for sharp detail. The display and projected-capacitive touch panel tilt and swivel to reduce neck strain, so the team can read the ultrasound monitor comfortably from a range of positions during an exam.
Yes. The Sonosite ZX adheres to FIPS 199, FIPS 200, and NIST 800-53 security standards with a comprehensive HIPAA tool set. It supports the DICOM protocol for unified archiving to PACS and integration with hospital information systems, and USB ports allow data export.
Through Medical Outfitters Inc., ISO 13485:2016 certified, Miami, FL. New and refurbished Sonosite ZX units with nationwide delivery and support, backed by the Sonosite 5-year standard warranty. Call (305) 885-4045 or request a quote online.
