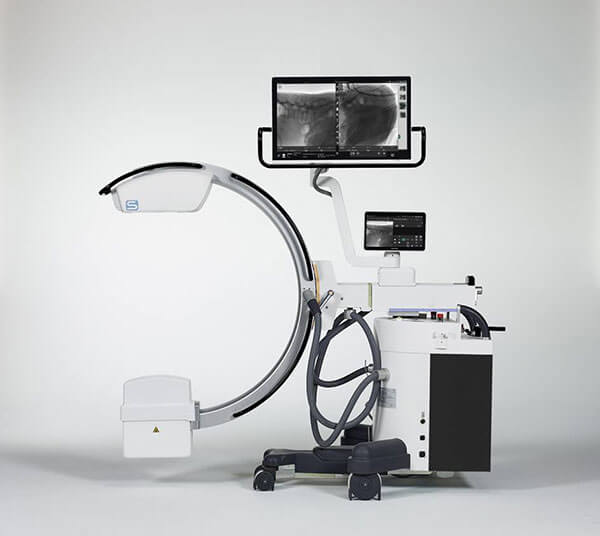

Fujifilm Persona CS Compact Mobile Fluoroscopy System
Authorized Fujifilm surgical imaging equipment supplier. The Persona CS combines high end imaging capabilities with a user friendly design. It is easily adaptable to multiple environments and tight spaces, which makes it a smart choice for providers who need a reliable and efficient compact mobile fluoroscopy solution. It is a versatile system that works well in outpatient settings, pain clinics, and other patient areas with high needs and little room.
At the heart of the Persona CS is a compact 2on1 platform with a perfectly balanced C-arm that glides easily on specially designed wheels for hassle free repositioning. A powerful 5 kW onboard generator provides over twice the power of typical compact C-arms, which improves image quality and X-ray penetration for patients of all sizes. A flat panel detector delivers sharp, low dose images instantly, a 27 inch touchscreen monitor on a three way articulated arm keeps images in clear view, and an optional cable-free WiFi additional display unit powered by a lithium-ion battery extends viewing to the whole team.
Need pricing? Get a quote with lead times and volume discounts within one business day.

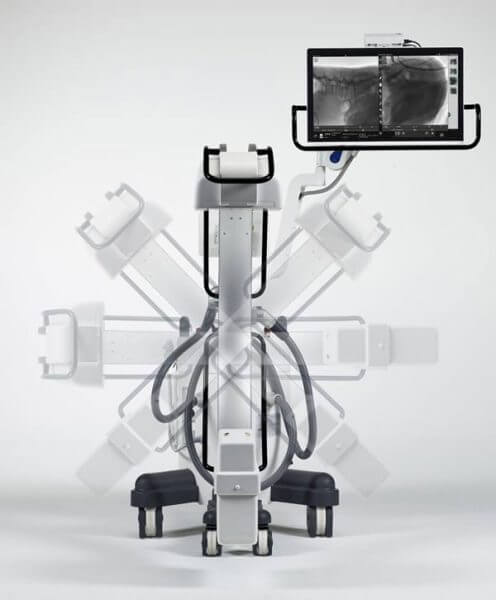

Compact 2on1 Platform, 5 kW Power, and 360-Degree Operability
The Persona CS proves that compact does not mean underpowered. A small footprint platform pairs with a 5 kW generator and full operability, so a tight space gets high end fluoroscopy. Full technical detail is in the expandable sections below.
Compact 2on1 Platform: a large diameter, lightweight C-arm on a compact 2on1 platform that repositions with effortless gliding on specially designed wheels and color coded system locks
5 kW Onboard Generator: provides over twice the power of typical compact C-arms, which improves image quality and X-ray penetration for patients of all sizes
Flat Panel Detector: replaces older image intensifiers with sharper, higher resolution, lower noise images at a lower radiation dose, displayed instantly for immediate decisions
Modulated Power: dynamically adjusts the output based on real time conditions during the exam, which improves image quality, helps with patient motion and dense anatomy, and reduces the need for retakes
Zero Dose Centering: laser localizers on the X-ray tube and flat panel detector allow centering without exposing the patient
Removable Grid: a removable 8 to 1 grid supports low dose pediatric surgery and gridless procedures
Absolute Operability: a C-arm mounted multi-touch operator console controls exam parameters from either side, with a live image display accessible from all angles

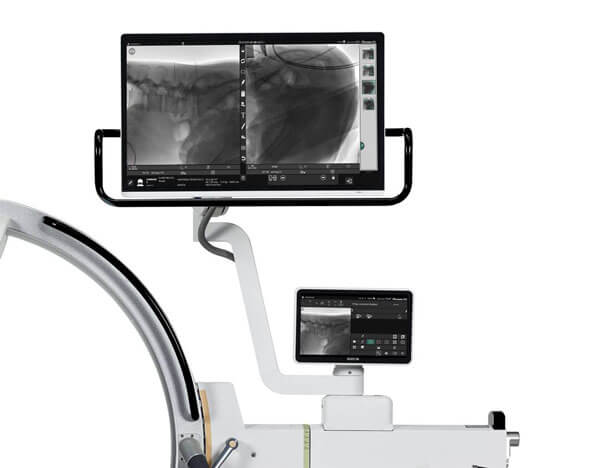

360 Degree Vision Console: a high resolution, high brightness console where acceptance, selection, edition, movement, transmission, compression, reduction, and enlargement each take a single touch

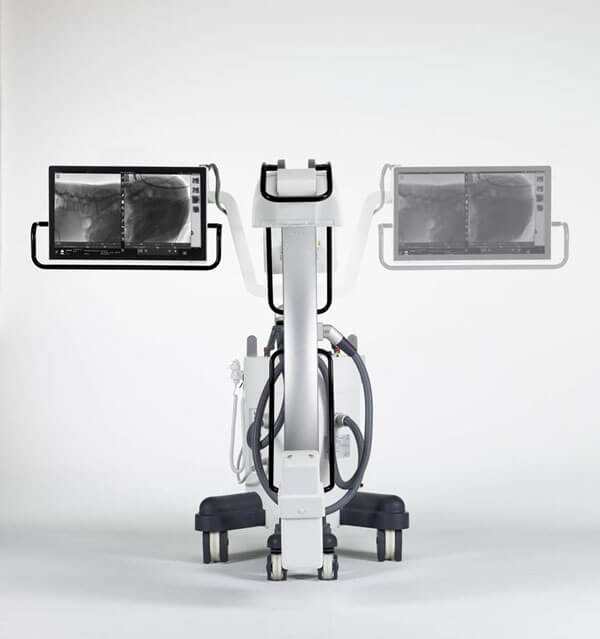

27 Inch Touchscreen Monitor: mounted on a three way articulated arm with height, angle, and tilt adjustment and wide sideways extension, which removes the need for a dedicated viewing workstation

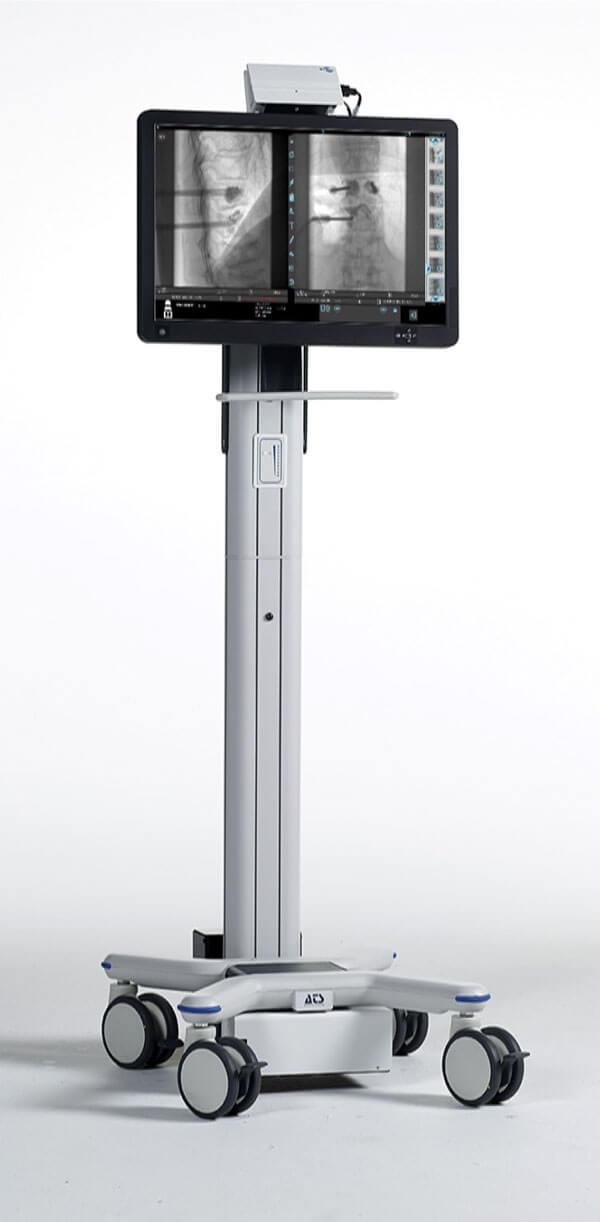

Additional WiFi Display Unit: an optional cable-free display unit offers secondary viewing with WiFi video transmission and a lithium-ion battery for extended operation, so larger teams do not crowd one screen
Connectivity: a wide range of options including USB, Ethernet, HDMI, and WiFi, with instant Smartcard NFC login
Emission Control: X-ray emission controlled by a foot switch or a multi-function hand switch, with an optional wireless foot switch for cable management
How the Persona CS compares against a typical compact C-arm:
The Persona CS is designed for environments where space is tight and demand is high. Outpatient surgery centers, pain management clinics, and busy procedure rooms benefit from a compact 2on1 platform that glides into place without strain. A perfectly balanced C-arm with orbital rotation from +65 to -95 degrees, angular rotation beyond plus or minus 210 degrees, and 450 mm of vertical travel lets a team capture the views they need without moving the patient, all from a system that fits where a larger C-arm cannot.
Full Technical Specifications
Complete reference data for capital procurement, RFP submissions, and biomedical review. Surgical directors, outpatient and pain clinic managers, and biomedical engineers rely on this specification set when they evaluate a compact mobile fluoroscopy C-arm. Expand each category for full detail.
| Platform | Compact 2on1 platform with effortless gliding and color coded locks |
| C-Arm | Large diameter, lightweight, perfectly balanced C-arm |
| Orbital Rotation | +65 to -95 degrees |
| Angular Rotation | More than plus or minus 210 degrees |
| Vertical Movement | 450 mm |
| Generator | 5 kW onboard generator, over twice the power of typical compact C-arms |
| Detector | Flat panel detector with high resolution, low noise, and low dose |
| Modulated Power | Dynamic output adjustment based on real time conditions |
| Removable Grid | Removable 8 to 1 grid for low dose pediatric and gridless procedures |
| Zero Dose Centering | Laser localizers on the X-ray tube and flat panel detector |
| Main Monitor | 27 inch touchscreen monitor on a three way articulated arm |
| Adjustment | Height, angle, and tilt with wide sideways extension |
| Additional Display | Optional cable-free WiFi display unit with lithium-ion battery |
| Certification | Medical certified display in conformity with diagnostic imaging standards |
| Console | 360 degree Vision high resolution, high brightness console |
| Operator Console | C-arm mounted multi-touch console accessible from both sides |
| One Touch Operations | Selection, movement, transmission, compression, reduction, and enlargement |
| Emission Control | Foot switch or multi-function hand switch, with optional wireless foot switch |
| Connectivity | USB, Ethernet, HDMI, and WiFi |
| Login | Optional instant Smartcard NFC login |
| Wireless Options | Optional wireless image display transmission and wireless foot switch |
Clinical Applications
Deployed where high end fluoroscopy is needed in a small space, from outpatient surgery centers and pain clinics to busy procedure rooms that cannot host a full size C-arm.
A compact 2on1 platform and 5 kW generator deliver operating room quality fluoroscopy in the smaller footprint of an ambulatory surgery center.
The Persona CS fits the tight spaces and high patient demand of pain clinics, with easy repositioning for injection and spine procedures.
A perfectly balanced C-arm with wide orbital and angular rotation captures orthopedic and extremity views without moving the patient.
The compact platform glides into rooms where a larger C-arm cannot fit, so high end imaging reaches more procedure spaces.
The optional cable-free WiFi additional display unit lets a larger team view the live image without crowding the main monitor.
The removable 8 to 1 grid and low dose flat panel detector support gridless pediatric procedures with reduced dose.
Positioning, Imaging, and Viewing in Tight Spaces
A compact surgical imaging workflow built for small rooms and busy schedules. Easy positioning, powerful imaging, and flexible viewing keep the procedure moving. Expanded workflow details are in the expandable sections below.
The compact 2on1 platform glides into place on specially designed wheels with color coded system locks, so staff reposition the perfectly balanced C-arm without strain even in tight spaces. Orbital, angular, and vertical movements adjust the view quickly for each procedure.
The 5 kW onboard generator and flat panel detector capture sharp, low dose images, with modulated power that adjusts output to patient motion and dense anatomy to reduce retakes. Laser localizers allow zero dose centering, and a foot switch or hand switch controls X-ray emission.
The 27 inch touchscreen monitor on a three way articulated arm keeps images in clear view from any angle, and an optional cable-free WiFi additional display unit extends viewing to the team on a battery powered second screen.
Images and exam data move out over USB, Ethernet, HDMI, or WiFi, with optional wireless image transmission and Smartcard NFC login. Studies route to PACS through DICOM for archiving and review.
Regulatory Compliance and Safety
FDA cleared as a mobile fluoroscopic X-ray system, manufactured by FUJIFILM Healthcare Americas Corporation. Medical Outfitters is an ISO 13485:2016 certified supplier of surgical imaging equipment, so every Persona CS ships through a documented and audited quality management system. Full compliance documentation is available in the expandable sections below.
FDA Cleared: the Fujifilm Persona CS is FDA cleared as a mobile fluoroscopic X-ray system, suitable for outpatient surgery centers, pain clinics, and hospitals.
ISO 13485: Medical Outfitters Inc. is independently ISO 13485:2016 certified as a surgical imaging equipment supplier, so every system ships through a fully audited quality management system.
Low Dose Imaging: the flat panel detector and modulated power support the ALARA principle by adjusting output to real time conditions.
Zero Dose Centering: laser localizers on the tube and detector allow centering without exposing the patient, reducing unnecessary dose.
Optional Features: the wireless foot switch, wireless additional display unit, and Smartcard NFC login are options.
DICOM and PACS: images route to PACS through DICOM.
Environmental: RoHS and EU REACH compliant.
Procedure Room & Space Review
Tell us your procedure case mix and room dimensions. Our team confirms that the compact Persona CS fits your space, selects the right configuration, and coordinates installation and applications support.
Capital Equipment & RFP Support
Volume pricing, technical documentation, and logistics for surgical imaging deployments. We support surgical directors, biomedical engineers, and purchasing departments evaluating compact mobile C-arms. Contact us for RFP packages.
Frequently Asked Questions
Quick answers to the most common purchase and technical questions about the Fujifilm Persona CS compact mobile fluoroscopy system. Tap any question to expand.
The Fujifilm Persona CS is a compact mobile fluoroscopy C-arm that combines high end imaging with a user friendly design. It is easily adaptable to multiple environments and tight spaces, which makes it a smart choice for outpatient settings, pain clinics, and other patient areas with high needs and little room. A compact 2on1 platform glides easily on specially designed wheels for quick repositioning.
The Persona CS is the compact, outpatient focused model on a 2on1 platform, with a powerful 5 kW onboard generator, a single 27 inch touchscreen monitor on a three way articulated arm, and an optional cable-free WiFi display unit. The Persona C is the larger operating room system with dual 21.5 inch displays and a 3 mode active cooling system. Choose the Persona CS when space is tight and mobility matters most.
The Persona CS has a powerful 5 kW onboard generator that provides over twice the power of typical compact C-arms. This improves image quality and X-ray penetration for patients of all sizes, so a compact system does not sacrifice imaging capability.
The Persona CS includes a 27 inch touchscreen monitor mounted on a three way articulated arm with height, angle, and tilt adjustment and wide sideways extension, which removes the need for a dedicated viewing workstation. An optional cable-free additional display unit offers secondary viewing with WiFi video transmission and is powered by a lithium-ion battery for extended operation.
Yes. The compact 2on1 platform allows hassle free repositioning with effortless gliding on specially designed wheels and color coded system locks. A perfectly balanced C-arm responds to operator touch, with orbital rotation from +65 to -95 degrees, angular rotation beyond plus or minus 210 degrees, and 450 mm of vertical travel for precise positioning without moving the patient.
The Persona CS offers a wide range of connectivity and output options including USB, Ethernet, HDMI, and WiFi. Optional features include a wireless foot switch for cable management, wireless image display transmission, zero dose centering with laser localizers, and instant Smartcard NFC login.
Yes. The Fujifilm Persona CS is FDA cleared as a mobile fluoroscopic X-ray system. Medical Outfitters Inc. is ISO 13485:2016 certified as the supplying distributor, so every system ships through an audited quality management system. Some features such as the wireless foot switch and NFC login are options.
Through Medical Outfitters Inc., ISO 13485:2016 certified, Miami, FL. We supply factory new systems with nationwide installation and applications support. Call (305) 885-4045 or request a quote online.
Compatible Equipment
Other mobile and mini C-arms to consider alongside the compact Persona CS, from the full size Persona C mobile fluoroscopy system to the Ziehm Vision RFD and the Orthoscan Tau mini C-arm.
Fujifilm Persona C
Mobile fluoroscopy C-arm · dual 21.5 inch displays · flat panel · OR imaging
View Product
