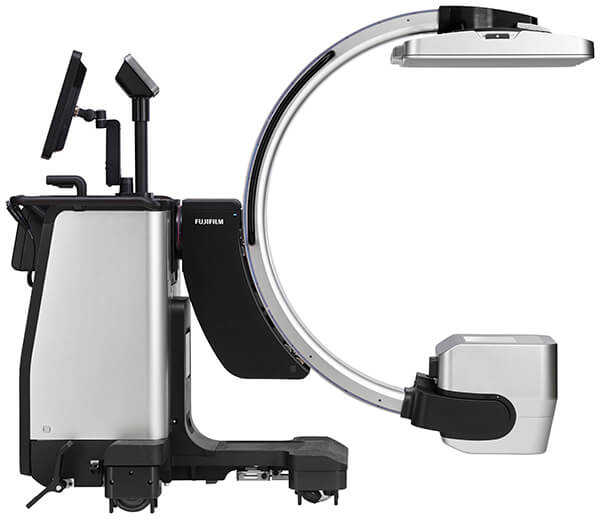

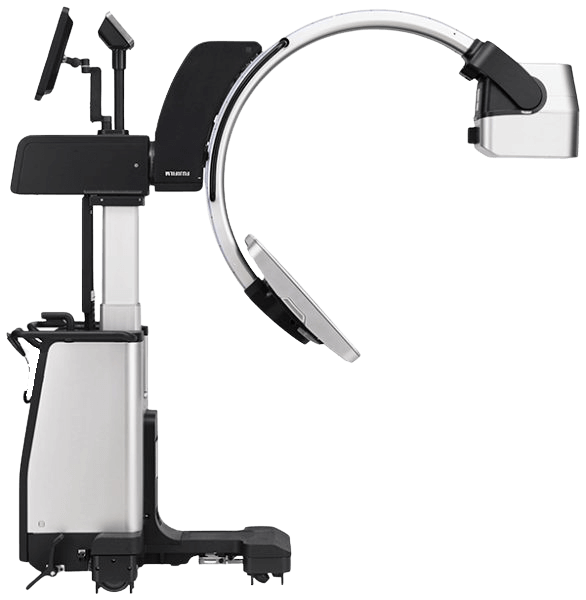

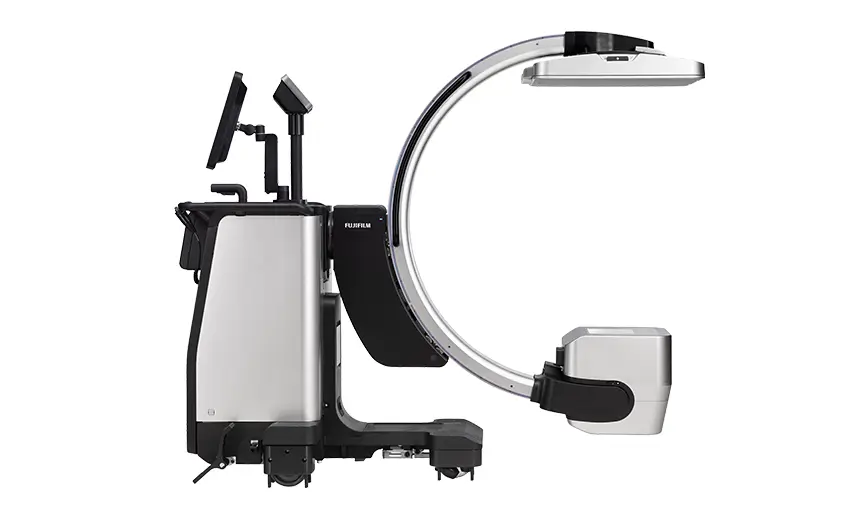

Fujifilm FDR Cross: Hybrid C-Arm and Portable X-Ray System
Authorized Fujifilm surgical imaging equipment supplier. The Fujifilm FDR Cross combines the power of fluoroscopy and X-ray into one mobile machine. Its ultralight, battery powered design means it can slide into position quickly and run cord-free, and the team can even use it for wireless X-ray imaging. It is built for hospitals and ambulatory surgery centers that serve many patients in very tight spaces.
The FDR Cross is one of the first machines to place C-arm fluoroscopy and portable X-ray on a single platform. A pivoting tube and a removable detector let clinicians perform real time and static imaging from one tool, with no equipment switching. At just 549 pounds it is the lightest in its class, more than 150 pounds lighter than typical compact C-arms. It uses interchangeable FDR D-EVO III glass-free detectors in three sizes, a lithium-ion battery with up to 8 hours of cord-free use, ISS and Dynamic Visualization II image processing, and a HydroAG antibacterial coating.
Need pricing? Get a quote with lead times and volume discounts within one business day.
Cross-Over Imaging, Cord-Free Mobility, and Interchangeable Detectors
The FDR Cross is defined by what it combines. Fluoroscopy and portable X-ray live on one ultralight, cord-free platform, with interchangeable detectors that match the anatomy and the budget. Full technical detail is in the expandable sections below.

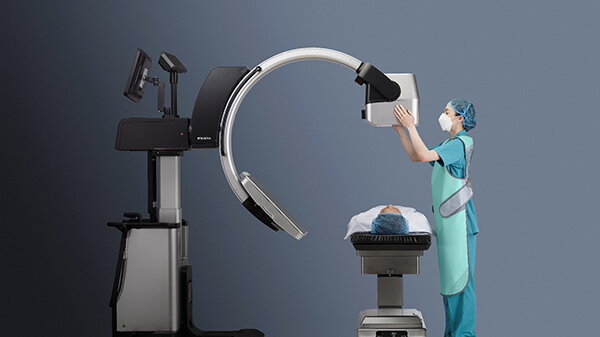

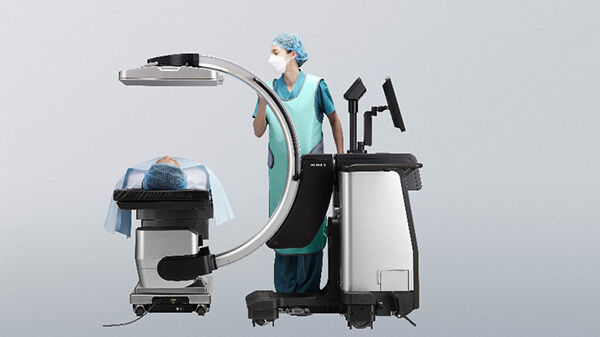

Two Imaging Types, One Platform: the FDR Cross places C-arm fluoroscopy and radiographic imaging on a single platform, so a team can perform real time and static imaging with the same tool and no equipment switching

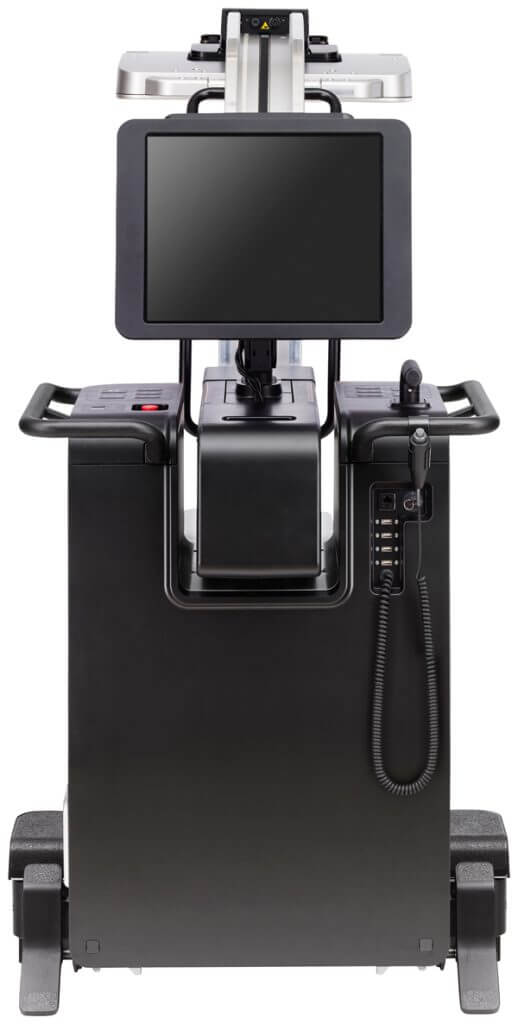

Single Console: one console operates both fluoroscopy and X-ray imaging, with exposure conditions set on the integrated articulating touchscreen that is viewable from any angle

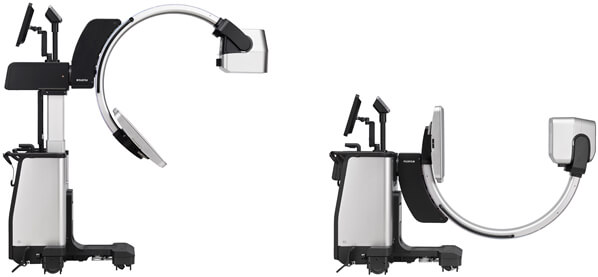

Offset Tube for Portable X-ray: the X-ray tube can be offset from the detector housing for wireless X-ray imaging comparable to a conventional portable X-ray system, which supports bedside exams and standing chest X-rays
Last Image Hold: in fluoroscopy mode, snapshots and Last Image Hold captures can be used as reference images on a two screen display
Workflow Benefit: dual functionality streamlines the workflow and reduces crowding in tight spaces, since one machine does the work of two
Lightest in Class: at 549 pounds the FDR Cross is more than 150 pounds lighter than typical compact C-arms, with an ergonomic design for easy positioning
Cord-Free Battery: a lithium-ion battery delivers up to 8 hours of continuous use and charges from empty to full in 4 hours, with an AC option for extended use
Superior Mobility: omni-directional front wheels travel and turn without skidding, and dual side mounted brake pedals with wrap around handles give secure control in tight operating rooms

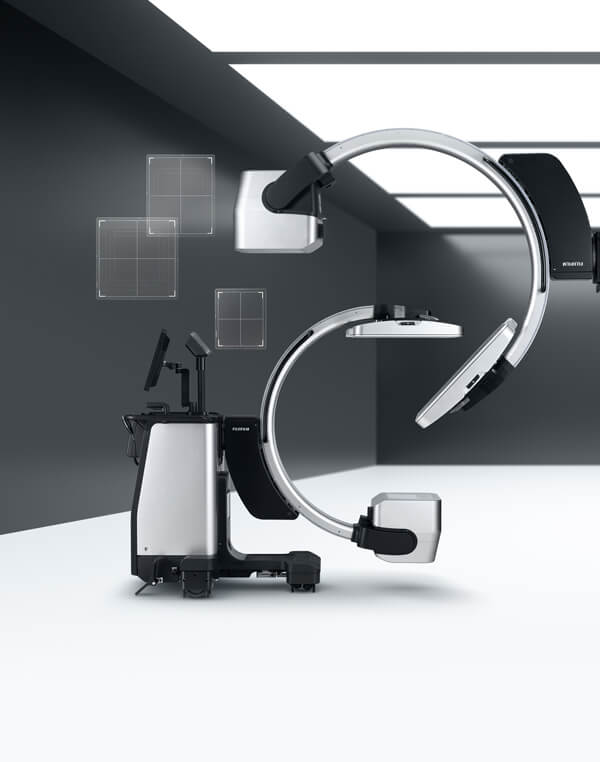

Interchangeable Detectors: FDR D-EVO III glass-free CsI detectors in three interchangeable enclosure sizes, 17×17, 14×17, and 10×12 inch, with the 14 and 10 inch panels rotatable
ISS and Dynamic Visualization II: irradiation side sampling with glass-free film-based capture achieves 58 percent DQE, and Dynamic Visualization II adapts contrast and density for sharpness even at ultra-low dose
HydroAG Antibacterial Coating: a silver-ion antibacterial coating on high touch surfaces adds a layer of protection for patients and staff
How the FDR Cross compares against a conventional compact C-arm:
The FDR Cross leverages Fujifilm FDR D-EVO III glass-free flat panel detectors for advanced fluoroscopic and radiographic image quality. The interchangeable encasement comes in three sizes, a 10×12 inch panel for limb imaging and fluoroscopy during surgery, a 14×17 inch panel for spine and hip joints, and a 17×17 inch panel for still images after surgery. ISS technology bonds the optical sensors to the patient side of the capture layer to suppress scatter and attenuation, and combined with glass-free film-based capture it achieves 58 percent DQE for sharp visualization even at ultra-low dose.
Full Technical Specifications
Complete reference data for capital procurement, RFP submissions, and biomedical review. Surgical directors, OR managers, and biomedical engineers rely on this specification set when they evaluate a hybrid C-arm and portable X-ray system. Expand each category for full detail.
| System Type | Hybrid C-arm fluoroscopy and portable X-ray on one platform |
| Console | Single console for both fluoroscopy and X-ray, with an articulating touchscreen viewable from any angle |
| Portable X-ray | X-ray tube offsets from the detector housing for wireless portable X-ray imaging |
| Fluoroscopy Mode | Snapshots and Last Image Hold as reference images on a two screen display |
| Radiography Mode | Static X-ray imaging for a complete imaging workflow |
| Detector | FDR D-EVO III glass-free CsI flat panel |
| Enclosure Sizes | 17×17 inch (43×43 cm), 14×17 inch (35×43 cm), and 10×12 inch (25×30 cm), interchangeable |
| Rotatable Panels | The 14 and 10 inch panels are rotatable |
| ISS Technology | Irradiation side sampling bonds sensors to the patient side to suppress scatter |
| DQE | Glass-free film-based capture achieves 58 percent DQE at 1 Lp/mm |
| Image Processing | Dynamic Visualization II adapts contrast and density to anatomy, thickness, and hardware |
| Battery | Lithium-ion, up to 8 hours of continuous cord-free use |
| Charging | Empty to full in 4 hours, with a standard AC outlet option |
| Weight | 549 pounds, the lightest in its class and more than 150 pounds lighter than typical compact C-arms |
| Wheels | Omni-directional front wheels for smooth travel and sideways movement |
| Controls | Dual side mounted brake pedals and wrap around handles |
| HydroAG Coating | Silver-ion antibacterial coating on high touch surfaces |
| DICOM | DICOM output to RIS and PACS |
| Dose Reporting | Dose SR export via WiFi, Ethernet, or USB media |
| Worklist | MPPS and MWM support |
| Width | 65 inches when using the 10×12 inch panel |
| Height | 58 inches |
| Depth | 31 inches |
| Opening | 29.5 inches |
| Focal Spot | 42 inches |
Clinical Applications
Deployed where a single mobile system needs to do the work of both a C-arm and a portable X-ray unit, from tight operating rooms to ambulatory surgery centers and the bedside.
At 549 pounds with omni-directional wheels and cord-free battery power, the FDR Cross positions easily where space is tight and equipment moves between procedures.
One platform performs both real time fluoroscopy and static radiography, so a team does not switch machines mid procedure.
Offsetting the tube from the detector enables wireless portable X-ray for bedside exams and standing chest X-rays.
The 10×12 inch detector suits limb imaging and fluoroscopy during surgery with a focused field of view.
The 14×17 inch detector covers the spine and hip joints, while the 17×17 inch panel captures large still images after surgery.
Cord-free operation, easy mobility, and the HydroAG antibacterial coating fit the fast paced, infection conscious environment of an ambulatory surgery center.
Positioning, Dual-Mode Imaging, and Transfer
A surgical imaging workflow built around one cord-free machine that does two jobs. Easy positioning, dual mode imaging, and direct DICOM transfer keep the procedure moving. Expanded workflow details are in the expandable sections below.
Staff wheel the FDR Cross into place on its lithium-ion battery with no cord to manage. Omni-directional front wheels move and turn without skidding, dual brake pedals and wrap around handles give secure control, and at 549 pounds the system positions easily even in a crowded operating room.
In fluoroscopy mode the team performs real time imaging on the single console, using snapshots and Last Image Hold as reference images on a two screen display. The articulating touchscreen is viewable from any angle, so the operator stays in control during the procedure.
The X-ray tube offsets from the detector housing to perform wireless portable X-ray imaging, comparable to a conventional portable X-ray unit. Interchangeable D-EVO III detectors in 17×17, 14×17, and 10×12 inch sizes match the anatomy and the exam.
ISS and Dynamic Visualization II sharpen images and adapt contrast and density even at ultra-low dose. DICOM output transfers patient and exam data to RIS and PACS, and Dose SR exports via WiFi, Ethernet, or USB media.
Regulatory Compliance and Safety
FDA cleared as a mobile fluoroscopic and radiographic X-ray system, manufactured by FUJIFILM Medical Systems U.S.A., Inc. Medical Outfitters is an ISO 13485:2016 certified supplier of surgical imaging equipment, so every FDR Cross ships through a documented and audited quality management system. Full compliance documentation is available in the expandable sections below.
FDA Cleared: the Fujifilm FDR Cross is FDA cleared as a mobile fluoroscopic and radiographic X-ray system, suitable for hospitals and ambulatory surgery centers.
ISO 13485: Medical Outfitters Inc. is independently ISO 13485:2016 certified as a surgical imaging equipment supplier, so every system ships through a fully audited quality management system.
Low Dose Imaging: ISS technology and Dynamic Visualization II support the ALARA principle, achieving 58 percent DQE for sharp images at ultra-low dose.
Dose-SR: Dose SR is exported with exam data via WiFi, Ethernet, or USB media for dose tracking and compliance.
HydroAG Antibacterial Coating: a silver-ion coating on high touch surfaces adds a layer of protection for patients and staff alongside standard cleaning protocols.
Environmental: RoHS and EU REACH compliant.
Operating Room & Procedure Review
Tell us your surgical case mix and operating room layout. Our team confirms the right detector sizes and configuration, and coordinates installation and applications support before shipment.
Capital Equipment & RFP Support
Volume pricing, technical documentation, and logistics for surgical imaging deployments. We support surgical directors, biomedical engineers, and purchasing departments evaluating mobile C-arms and portable X-ray systems. Contact us for RFP packages.
Frequently Asked Questions
Quick answers to the most common purchase and technical questions about the Fujifilm FDR Cross hybrid C-arm and portable X-ray system. Tap any question to expand.
The Fujifilm FDR Cross is a revolutionary battery powered cross-over system that combines C-arm fluoroscopy and portable X-ray in one mobile machine. An ultralight design lets it slide into position quickly, and a pivoting tube with a removable detector lets a team perform both real time fluoroscopic imaging and static radiographic imaging from a single platform.
The FDR Cross places C-arm fluoroscopy and radiographic imaging on one platform with a single console. The X-ray tube can be offset from the detector housing, which allows wireless X-ray imaging comparable to a conventional portable X-ray system for bedside exams and standing chest X-rays. No equipment switching is required, which streamlines workflow and reduces crowding in tight spaces.
The lithium-ion battery performs up to 8 hours of continuous use and charges from empty to full in just 4 hours. For extended use or when power is low, the system can run plugged into a standard AC outlet. Cord-free operation reduces clutter and tripping hazards.
The FDR Cross is a hybrid that does both fluoroscopy and portable X-ray, runs cord-free on battery, and weighs just 549 pounds, the lightest in its class. The Persona C is a dedicated mobile fluoroscopy C-arm, and a conventional compact C-arm typically performs fluoroscopy only, runs on a cord, and is heavier. Choose the FDR Cross when you need both imaging types and easy portability.
The FDR Cross uses Fujifilm FDR D-EVO III glass-free CsI flat panel detectors in interchangeable enclosures of 17×17 inch (43×43 cm), 14×17 inch (35×43 cm), and 10×12 inch (25×30 cm). The 14 and 10 inch panels are rotatable, which lets a team match the detector to the anatomy, procedure, and budget.
The FDR Cross weighs 549 pounds, more than 150 pounds lighter than typical compact C-arms. Omni-directional front wheels provide smooth travel and sideways movement without skidding, dual side mounted brake pedals and wrap around handles give secure control, and the cord-free battery lets staff wheel it into place and go.
Yes. The Fujifilm FDR Cross is FDA cleared as a mobile fluoroscopic and radiographic X-ray system. Medical Outfitters Inc. is ISO 13485:2016 certified as the supplying distributor, so every system ships through an audited quality management system.
Through Medical Outfitters Inc., ISO 13485:2016 certified, Miami, FL. We supply factory new systems with nationwide installation and applications support. Call (305) 885-4045 or request a quote online.
