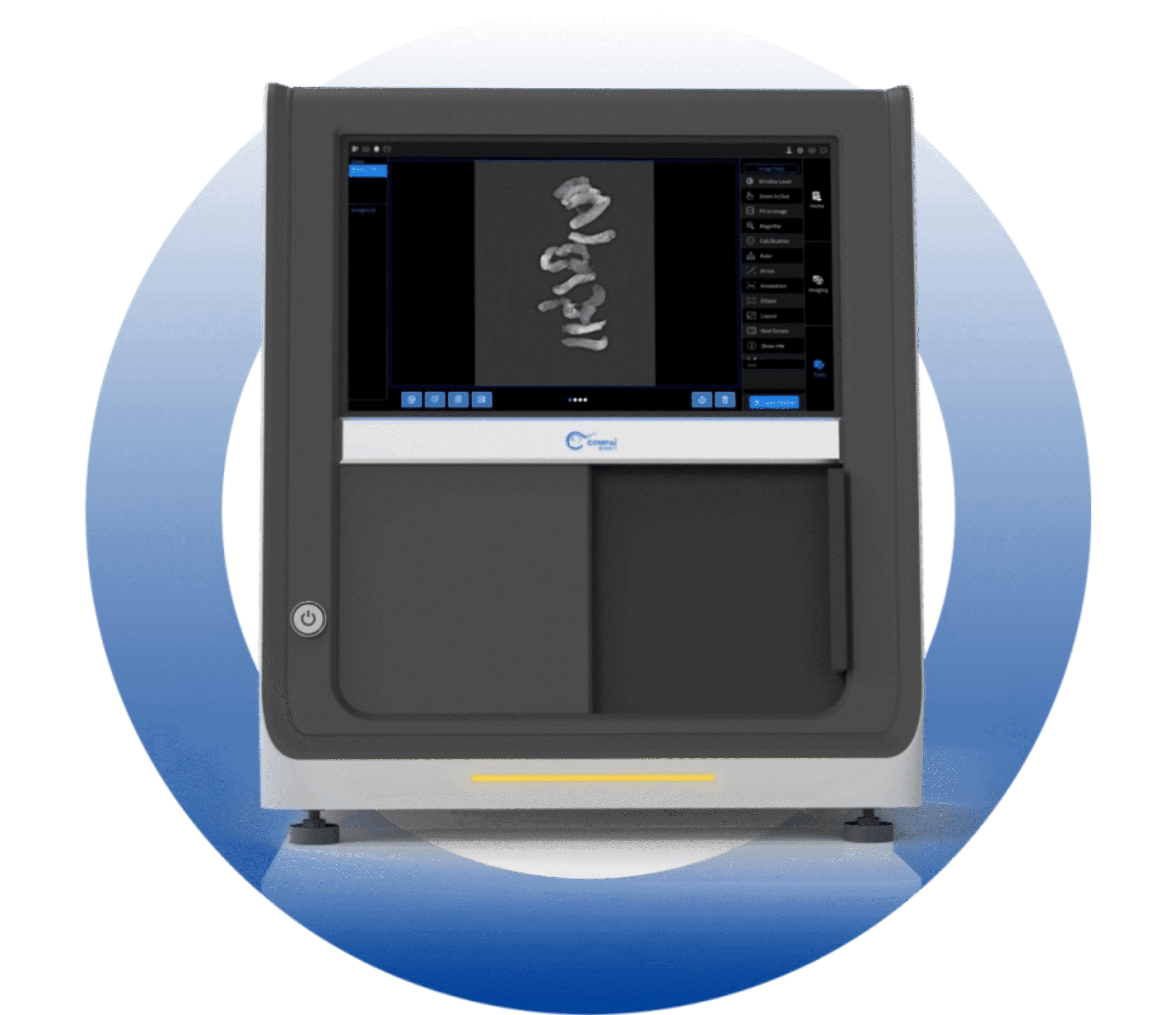

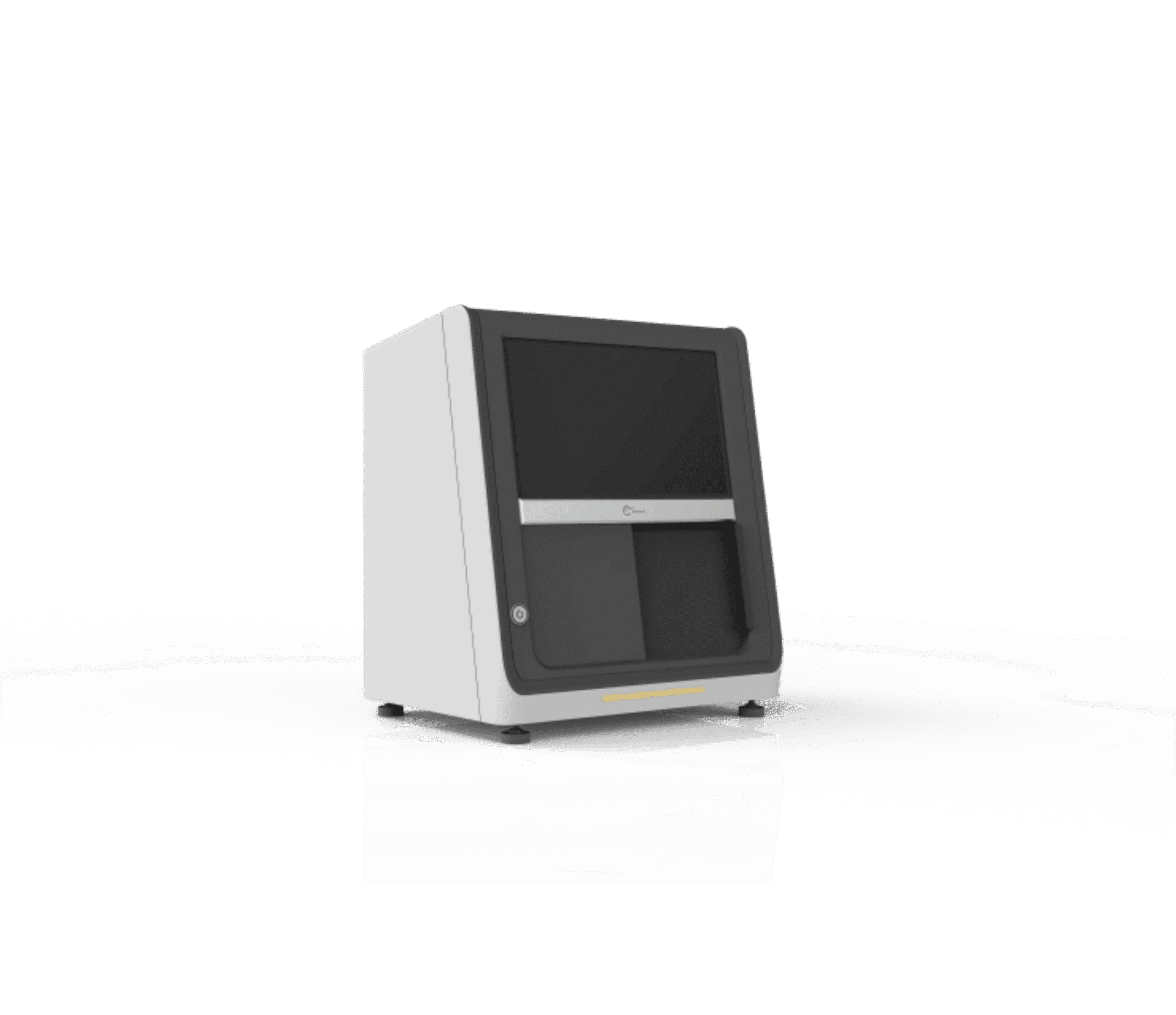

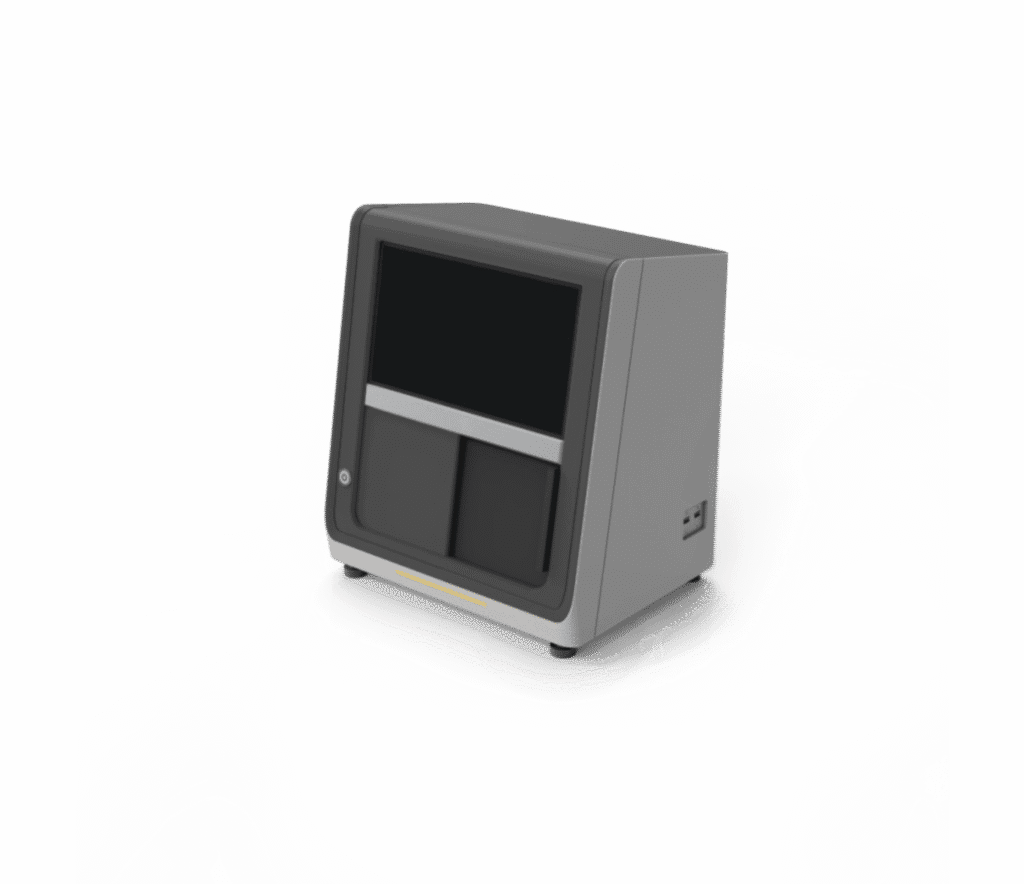

TrueView Core 100Pro: Biopsy Specimen Radiography System
Authorized TrueView specimen imaging supplier. The Core 100Pro is purpose-built for the pathology lab and breast procedure suite, solving three persistent problems in specimen radiography: CCD-based detectors that sacrifice resolution at clinical pixel sizes, manual exposure workflows that slow inter-procedure turnaround, and fragmented PACS integration that adds steps between acquisition and pathologist review. It replaces compromise with a complete, compact specimen imaging solution.
Core technology: 49.5 μm high-performance CMOS detector with advanced image processing algorithms, delivering the resolution that microcalcification detection demands. The built-in automatic calcification recognition highlights suspected lesions without manual review. A single-touch auto-exposure sequence acquires, processes, and routes the image to PACS in seconds making it a complete specimen radiography system for breast biopsy programs, pathology labs, and interventional suites alike.
Need pricing? Get a quote with lead times and volume discounts within one business day.
CMOS Precision, Calcification AI & One-Touch Workflow
Three technologies differentiate the Core 100Pro from standard specimen radiography systems and legacy CR-based biopsy imaging. Each is summarized below, with full technical data inside the expandable sections.
Detector Type: High‑performance CMOS
Pixel Size: 49.5 μm pixel pitch
Image Quality: High‑resolution detail optimized for microcalcification visualization
Dynamic Range: Wide dynamic range for fine tissue differentiation
Magnification: On‑screen digital zoom for detailed specimen inspection
Image Processing: Advanced algorithms for enhanced contrast and edge sharpness
Environmental Stability: CMOS technology offers reduced sensitivity to temperature and humidity variation compared to CCD and CR-plate detectors
Automatic Calcification Recognition: AI‑assisted image processing analyzes every acquired image and highlights regions of suspected microcalcifications for rapid pathologist confirmation
One‑Touch Auto Exposure: Single‑touch optimization of kV, mA, and exposure time no manual technique adjustment required
Image Review Tools: Intuitive software interface with digital magnification and annotation
CMOS Stability: Low environmental sensitivity ensures consistent, reproducible results across specimens
PACS Routing: Automatic DICOM push to archive following every acquisition
How the Core 100Pro compares against a standard specimen radiography system:
The Core 100Pro eliminates manual kV and mA selection entirely. After placing the specimen in the imaging chamber, a single button press triggers automatic density evaluation, parameter optimization, image acquisition, calcification recognition, and PACS transmission all without additional operator steps. This dramatically reduces the time between specimen collection and pathologist review, keeping biopsy procedures on schedule.
Full Technical Specifications
Complete reference data for procurement, RFP, and biomedical review. This is the full specification set required by hospital purchasing teams, imaging technology managers, and biomedical engineers evaluating specimen radiography systems. Expand each category.
| Detector Type | High‑performance CMOS |
| Pixel Size | 49.5 μm pixel pitch |
| Image Processing | Advanced algorithms for contrast enhancement and edge sharpness |
| Calcification Recognition | Automatic (AI‑assisted) |
| Digital Magnification | On‑screen zoom for detailed specimen inspection |
| Dynamic Range | Wide optimized for breast tissue differentiation |
| System Design | Compact all‑in‑one (integrated generator, detector & display) |
| Radiation Shielding | Integrated lead shielding within cabinet |
| Placement | Countertop or mobile cart |
| Room Requirement | No dedicated X‑ray room required* |
* Verify compliance with local and state radiation safety regulations prior to installation.
| Exposure Control | One‑Touch Auto Exposure |
| Auto Parameters | kV, mA, and exposure time auto‑optimized per specimen |
| Power Supply | Standard electrical outlet |
| DICOM | Full DICOM 3.0 (Storage SCU, Modality Worklist) |
| PACS Compatibility | All major PACS systems |
| Network Interface | Standard Ethernet |
| DICOM Part 14 | Yes grayscale calibration for diagnostic display |
| Modality Worklist | Yes (automated patient data import) |
| Auto Exposure | One‑Touch |
| Calcification Recognition | Automatic (AI‑assisted) |
| Image Magnification | Digital zoom for specimen review |
Clinical Applications
Deployed across the full spectrum of breast biopsy workflows, wherever rapid specimen confirmation directly affects procedure efficiency and re-excision rates.
Rapid calcification verification confirms targeted lesion capture while the patient remains in position, reducing the need for repeat procedures.
Confirms adequate tissue sampling for sonographically detected masses with immediate PACS routing for pathologist review.
Provides specimen radiograph confirmation for MRI-detected lesions, supporting multi-modality biopsy program workflows.
Documents specimen completeness for VAB procedures with automatic calcification marking and instant DICOM archive.
Intraoperative margin assessment and target lesion confirmation before final pathology submission.
Self-contained, self-shielded design keeps specimen imaging within the pathology suite, reducing transport time and chain-of-custody complexity.
DICOM/PACS Integration & Lab Setup
A complete specimen imaging solution engineered to slot into existing hospital radiology infrastructure including PACS systems, RIS/HIS worklists, pathology lab networks, and breast program AV environments. Expanded details on DICOM integration, network setup, acquisition workflow, and lab installation are in the expandable sections below.
DICOM Compliance: Full DICOM 3.0 support including DICOM Storage SCU and Modality Worklist for automated patient data import and direct PACS archive push.
PACS Compatibility: Integrates with all major PACS systems images automatically route to archive and review workstations without manual export steps.
DICOM Part 14: Grayscale Standard Display Function (GSDF) compliance for calibrated diagnostic-quality image rendering.
DICOM Storage SCU: Direct push to PACS archive eliminates manual image routing between acquisition and pathology review.
Network Interface: Standard Ethernet for direct hospital or clinic network integration.
System Compatibility: Works alongside existing pathology lab PCs and radiology review workstations.
Software Updates: Updateable remotely via standard network connection.
Deployment: No dedicated server or complex IT infrastructure required for standard installation.
Place the breast biopsy specimen in the imaging chamber and press one button. The Core 100Pro automatically evaluates specimen density, selects optimal kV and mA parameters, acquires the image, runs automatic calcification recognition, and transmits directly to PACS all within seconds. No manual technique adjustment. No separate image routing step. The result: faster turnaround between specimen collection and pathologist review, with fewer workflow interruptions during the biopsy procedure.
Design: Compact all-in-one no separate X-ray generator, detector housing, or additional workstation required.
Placement: Countertop or mobile cart fits standard pathology lab or procedure suite spaces.
Power: Standard electrical outlet (no dedicated high-voltage power supply).
Network: Standard Ethernet connection.
Radiation Safety: Integrated lead shielding within the cabinet. Verify compliance with local and state radiation safety regulations prior to installation.
Regulatory Compliance & Safety
FDA Class I registration, CE MDR compliance, and DICOM Part 14 certification. Medical Outfitters is an ISO 13485:2016-certified supplier of medical imaging equipment, meaning every Core 100Pro ships through a documented, audited quality management system. Full compliance documentation is available in the expandable sections below.
FDA Registration: Registered as a Class I radiological medical device with the U.S. FDA. Suitable for use in U.S. hospital pathology labs, procedure suites, and clinical environments.
CE Marking: Compliant with applicable EU Medical Device Regulation (MDR 2017/745) requirements.
ISO 13485: Medical Outfitters Inc. is independently ISO 13485:2016 certified as a medical device supplier, ensuring every unit ships through a documented, audited quality management system.
DICOM Part 14: Grayscale Standard Display Function (GSDF) compliance ensures calibrated grayscale rendering for diagnostic review on DICOM-compliant monitors.
DICOM Storage SCU: Direct image push to PACS archive without manual export steps.
DICOM Modality Worklist: Automated patient data import for streamlined workflow and data integrity.
IEC 60601-1: Compliant with general safety requirements for medical electrical equipment.
Radiation Safety: Integrated lead shielding for operator protection during specimen acquisition.
RoHS: Restriction of Hazardous Substances compliant.
REACH: EU REACH chemical regulation compliant.
PACS & Radiology Compatibility Review
Provide your PACS vendor, RIS/HIS system, and network configuration details. Our team confirms full DICOM compatibility with your existing hospital radiology infrastructure before your unit ships.
Hospital Procurement & RFP Support
Volume pricing, technical documentation, and logistics coordination for multi‑suite deployments. We support breast program directors, biomedical engineers, and hospital purchasing departments. Contact us directly for RFP packages.
Frequently Asked Questions
Quick answers to the most common purchase and technical questions about the Core 100Pro specimen radiography system. Tap any question to expand.
The TrueView Core 100Pro is a compact, all-in-one biopsy specimen radiography system with a 49.5 μm high-performance CMOS detector, automatic calcification recognition, one-touch auto exposure, and full PACS/DICOM compatibility. It is designed to rapidly verify breast biopsy specimens in the pathology lab or procedure suite.
Pricing varies by configuration and volume. Medical Outfitters returns a quote within one business day. Submit a request online or call (305) 885-4045.
The Core 100Pro uses advanced image processing algorithms to analyze the acquired specimen image and automatically highlight regions of suspected microcalcifications. This helps pathologists and radiologists rapidly confirm that the target lesion is captured in the biopsy sample without manual image analysis.
Yes. The Core 100Pro supports full DICOM compliance including DICOM Storage SCU and Modality Worklist, enabling integration with all major PACS systems. Images are automatically routed to your archive and review workstations.
Yes. The TrueView Core 100Pro is registered as a Class I medical device with the U.S. FDA and meets applicable IEC 60601-1 electrical safety requirements. Medical Outfitters Inc. is ISO 13485:2016 certified as the supplying distributor.
The Core 100Pro features an integrated self-shielded cabinet designed for countertop or cart placement in pathology labs and procedure suites. Verify compliance with local and state radiation safety regulations prior to installation our team provides full regulatory guidance.
The Core 100Pro supports specimen verification for all major breast biopsy approaches, including stereotactic core needle biopsy, ultrasound-guided biopsy, MRI-guided biopsy, vacuum-assisted biopsy, and surgical excision. It provides rapid confirmation that the target lesion or calcifications are present in the specimen.
Through Medical Outfitters Inc., ISO 13485:2016 certified, Miami, FL. Factory-new units with nationwide installation and service support. Call (305) 885-4045 or request a quote online.
