Fujifilm Essentia FS Digital Radiography Room

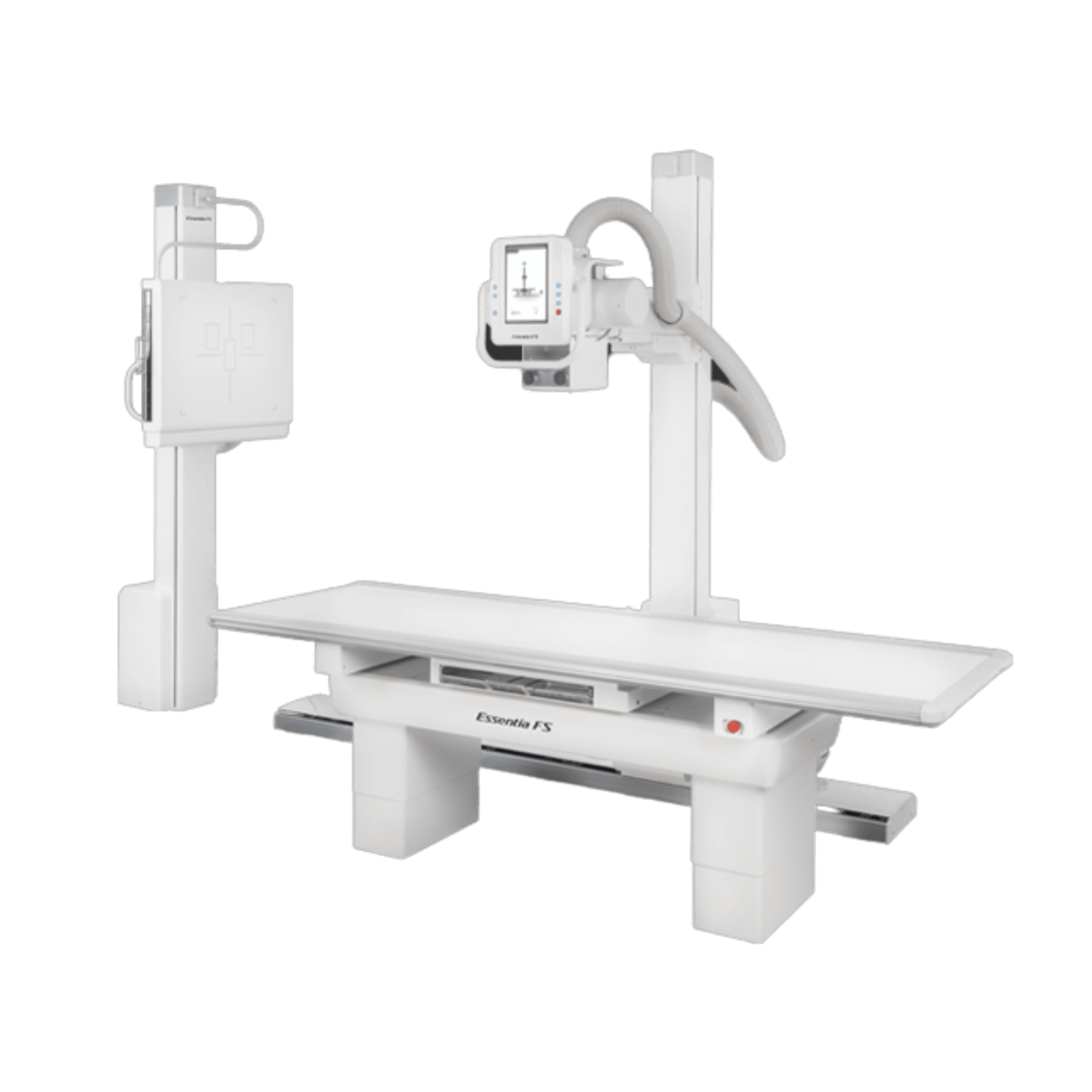

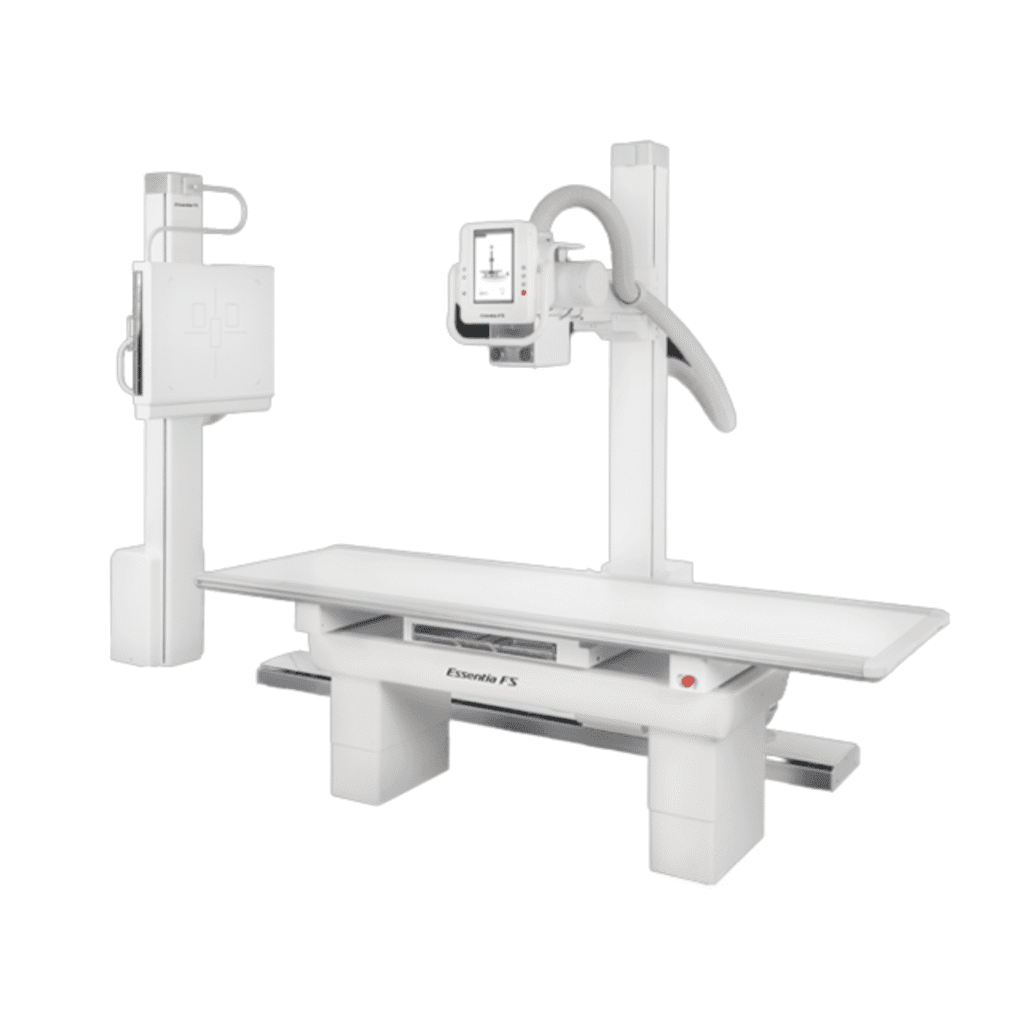

Authorized Fujifilm digital radiography supplier. The Fujifilm Essentia FS is a feature-rich digital radiography room with a space-saving footprint. The standard configuration includes a generator, a floor mounted tube stand, a chest stand, and a table. In addition, an advanced 10" touchscreen on the tube housing brings exam controls to the patient side. Therefore positioning stays fast, intuitive, and comfortable.
This system delivers high performance with a strong price-performance ratio. Auto sync tracking links the tube to the wall and table buckys, so height matching becomes automatic. Motorized, counterbalanced controls and electromagnetic locks make positioning light and steady. Because the suite integrates with Fujifilm detectors and the FDX console, exams finish in as few as two or three mouse clicks.
Need pricing? Get a quote with lead times within one business day.
Fujifilm Essentia FS Features
Every feature focuses on faster positioning, safer handling, and cleaner images. The highlights below come directly from the Essentia FS configuration and specifications.

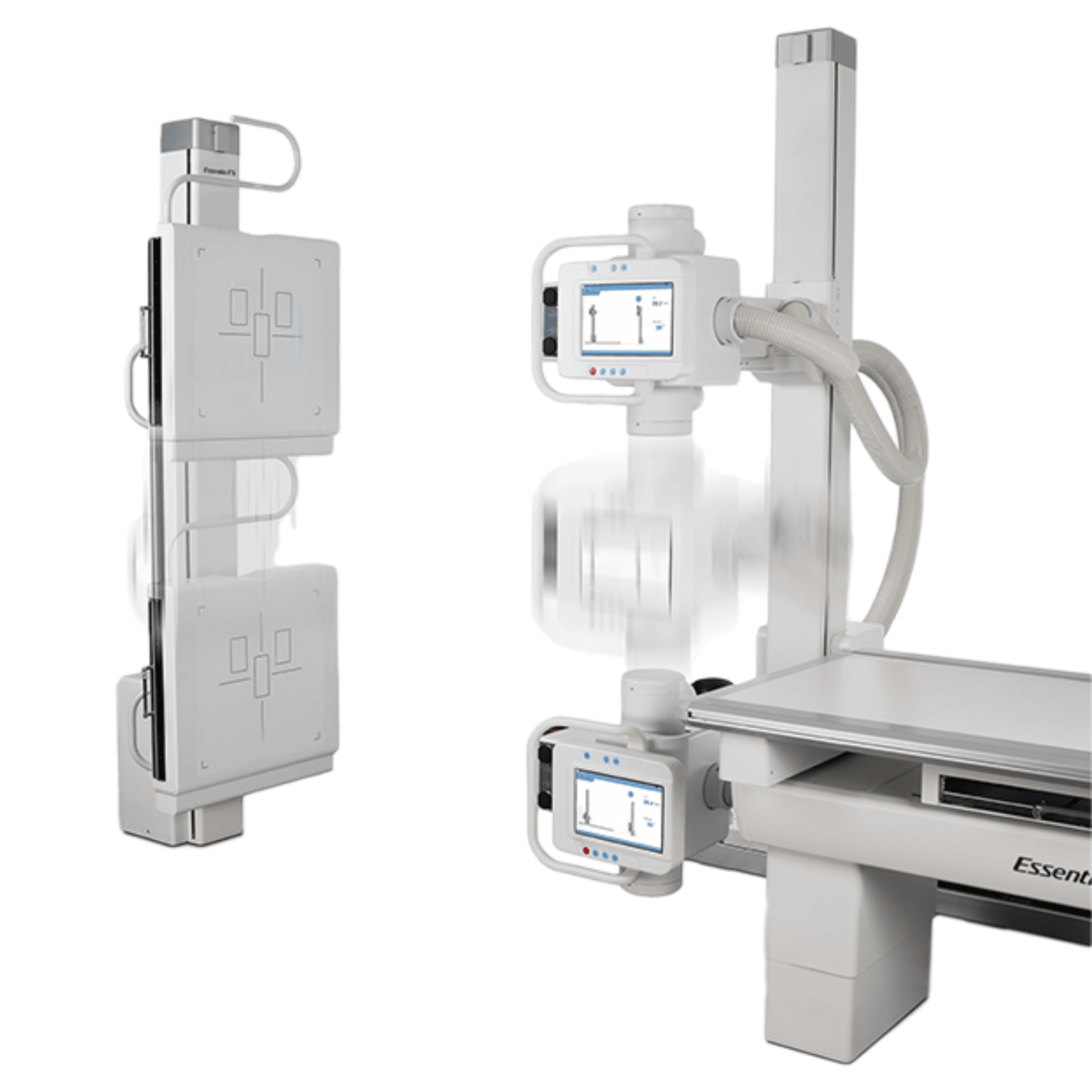

The Essentia FS uses automatic motorized tube tracking to the table and upright detector height. As a result, the tube follows the selected bucky without manual height matching. Auto sync tracking covers both the wall and table buckys.
In addition, the rotational column and rotating detector trays add positioning flexibility. Motorized, counterbalanced wall stand controls and electromagnetic locks keep movement light. Convenient hand grips help technologists steady the patient during each exposure.
A 10" color touchscreen sits on the tube housing for control at the patient side. The interface shows SID measurement and the tube rotation angle in real time. Therefore the technologist adjusts exam parameters without walking back to the console.
Safety features include an emergency stop and a wireless foot switch. AEC is available as an option. Because controls stay close to the patient, workflow and comfort both improve.
Here is how a generic floor mounted room compares with the Fujifilm Essentia FS.
The Essentia FS supports single or multiple flat panel detector workflows as an option. Because the trays accept a 14×17" detector and a 17×17" adapter, the room adapts to varied anatomy. Smaller 10×12" or 24×30 cm detectors handle free positioning of small body parts.
Full Specifications
All specifications below come from the Fujifilm Essentia FS documentation. Where the marketing sheet and the specification sheet differ, the specification sheet values are used, for example the tabletop measures 90 by 32 inches.
| 40 kW generator | Single-phase, 230 VAC, 500 mA |
| 50 kW generator | 3-phase, 230 VAC, 630 mA |
| 50 kW generator | 3-phase, 480 VAC, 630 mA |
| 65 kW generator | 3-phase, 480 VAC, 800 mA |
| 200 kHu tube | With 40 or 50 kW generator |
| 300 kHu tube | With 40, 50 or 65 kW generator |
| Display | 10 in color touchscreen on tube housing |
| Tube rotation | ±135° |
| Telescopic extension | ±4.7 in (±12 cm) |
| Column rotation | ±90° |
| Vertical travel (tube) | 58.7 in (149 cm) |
| Longitudinal travel | 100 in (254 cm) |
| Detector tray | 14×17 in rotating, 17×17 adapter at install |
| Movement | Vertical travel with electromagnetic brake |
| Max central beam to floor | 74 in (188 cm) |
| Min central beam to floor | 15.7 in (40 cm) |
| Power requirement | 24 VDC, 1 A |
| Tabletop dimensions | 90 × 32 in |
| Left and right travel | ±33.5 in |
| Forward and back travel | ±7 in |
| Up and down travel | ±10 in, height 21.5 to 31.5 in |
| Detector travel (L and R) | 19.5 in |
| Max patient weight | 550 lbs |
| DR detectors (options) | FDR D-EVO III, FDR ES, SE Lite |
| Standard detector size | 14×17 in with ISS technology |
| Additional detector sizes | 10×12 in or 24×30 cm |
| Console | FDX with Dynamic Visualization |
| Secondary display (option) | 2 megapixel |
| Table power | 120 to 240 VAC, 50/60 Hz, 500 VA |
Clinical Applications
The Essentia FS serves a wide range of routine radiographic exams. Each card below maps to a capability stated in the source.
The complete suite supports daily general x-ray work. Because the room includes a table, chest stand, and tube stand, most projections fit one setup.

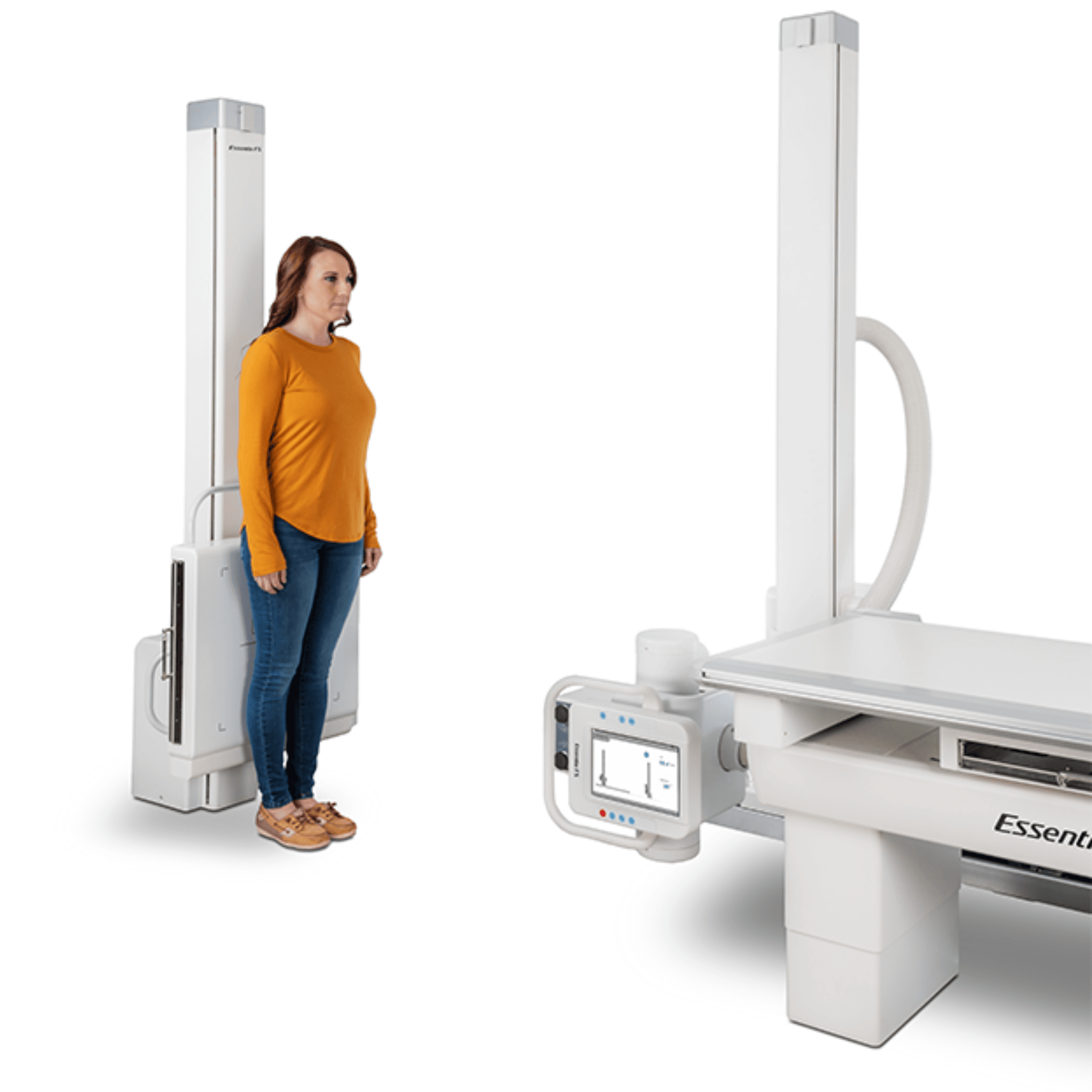

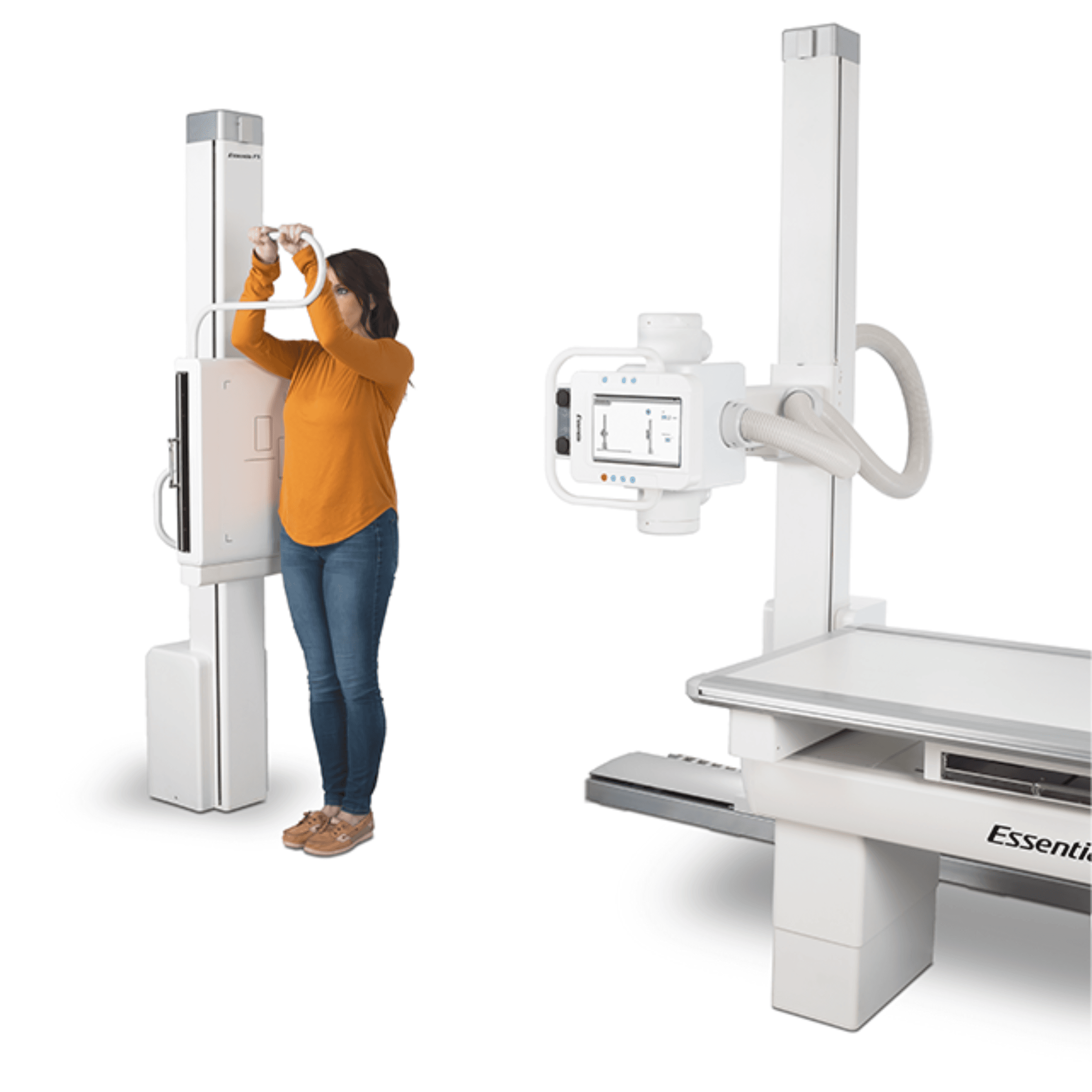

The premium wall stand positions patients quickly with motorized controls. In addition, hand grips help patients stay steady during chest exposures.

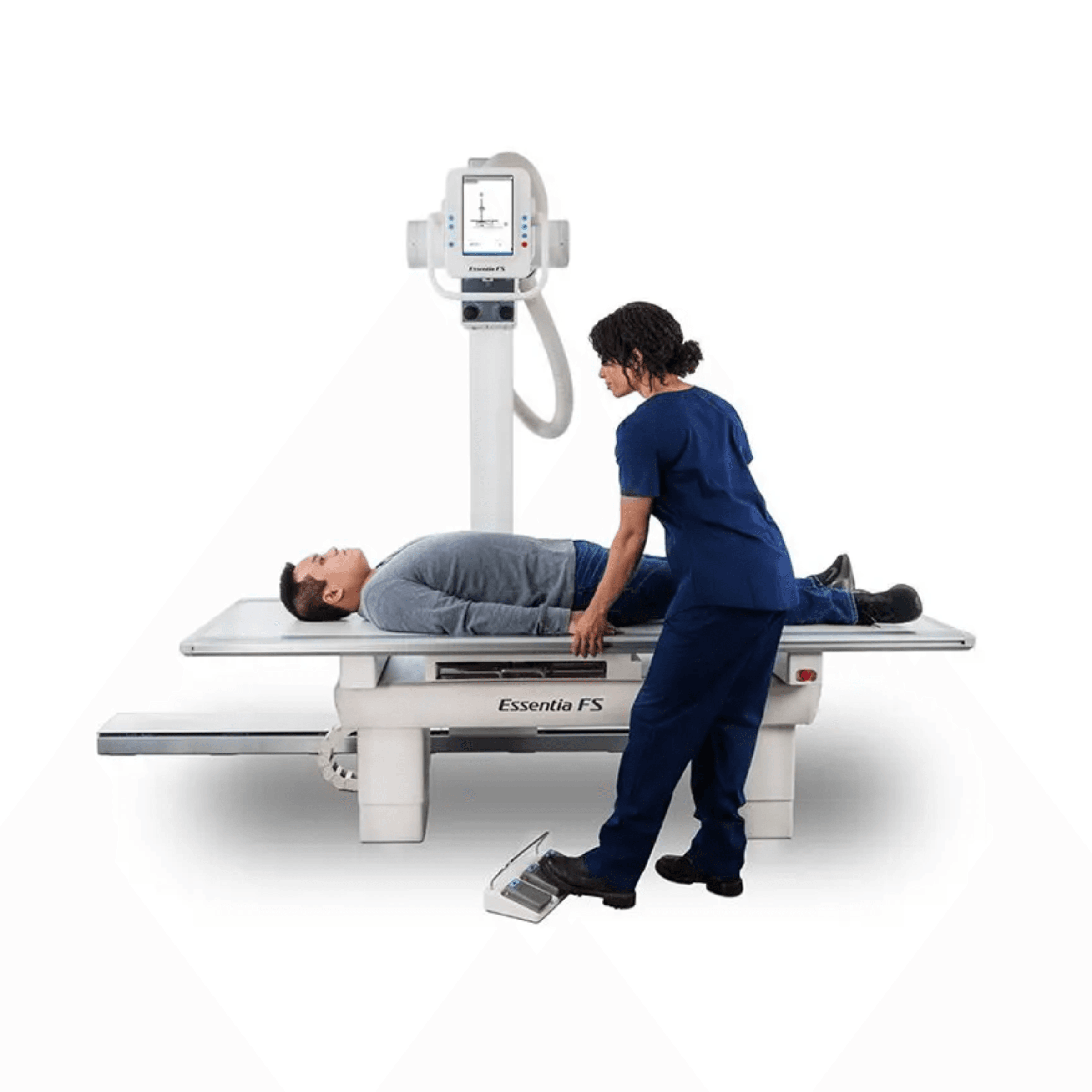

The 6-way elevating float top table eases patient transfers. Therefore staff can position recumbent patients with less effort.

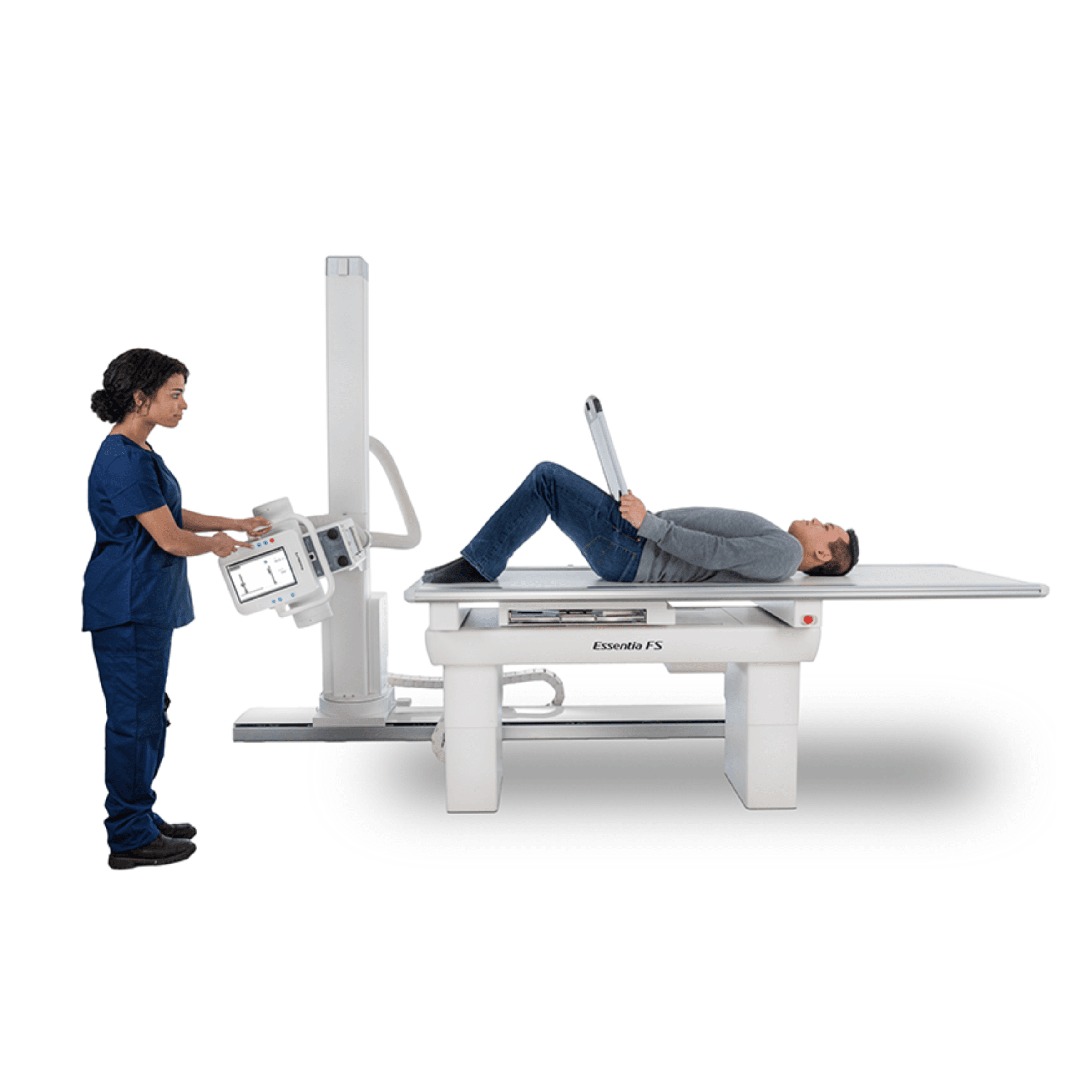

An optional tabletop detector holder supports cross-table exams. As a result, the room handles trauma and lateral projections at the table.
Smaller 10×12 inch or 24×30 cm detectors enable free positioning. Because the panels are lightweight, technologists capture extremities with ease.
SpeedLink automates technique parameters to exam menus. Therefore the team follows site presets and dose-lowering techniques consistently.
Essentia FS Clinical Workflow
The Essentia FS connects positioning, capture, and reporting into one streamlined pathway. Each step below reduces clicks and keeps technologists at the patient side.
The 10" touchscreen brings exam parameter controls to the tube housing. SID and tube angulation appear in real time.
As a result, the technologist sets up the exposure without returning to the console.
Automatic motorized tube tracking follows the table and upright detector height. Auto sync covers both wall and table buckys.
Therefore height matching stays accurate and fast.
Rotating 14×17" trays accept a 17×17" adapter installed at service. Single or multiple detector workflows are available as an option.
Because Fujifilm panels are lightweight, free positioning is simple.
The FDX console pairs with advanced digital image processing. Exams finish in as few as two or three mouse clicks.
In addition, immediate previews and image manipulation speed review.
The system includes IHE EI/DI exposure and deviation index plus retake analysis. IHE RDSR radiation dose structured reporting is also compatible.
Therefore sites track dose and quality consistently.
Safety, Quality and Sourcing
The Essentia FS combines patient safety features with documented dose reporting. Medical Outfitters supplies and supports the system from Miami, FL.
The room includes an emergency stop and electromagnetic locks for steady positioning. A wireless foot switch frees the technologist to support the patient. AEC is available as an option.
IHE EI/DI exposure and deviation index features come standard. In addition, retake analysis and IHE RDSR radiation dose structured reporting compatibility support quality programs.
All Fujifilm detector models feature the patented ISS design for low dose and low noise. As a result, image quality stays high while supporting dose-lowering techniques through SpeedLink.
Medical Outfitters Inc. is an ISO 13485:2016 certified medical imaging equipment supplier based in Miami, FL. Therefore every Essentia FS order ships with documented supplier-quality controls.
Request a quote
Tell us your room size, generator preference, and detector workflow. Our team will scope a complete Essentia FS suite for your site.
Installation and configuration
Generator options, the 17×17 tray adapter, and a tabletop detector holder are selected at initial service installation. We help you plan the right configuration.
Frequently Asked Questions
Common questions about the Fujifilm Essentia FS digital radiography room.
The standard suite includes a generator, a floor mounted tube stand, a chest stand, and a table. Therefore it ships as a complete radiographic room.
You can choose 40, 50, or 65 kW generators. The 40 kW is single-phase, while the 50 kW and 65 kW units are 3-phase. Tube options include 200 kHu and 300 kHu.
The rotating tray fits a 14×17 inch detector as standard. In addition, a 17×17 inch adapter installs at service, and 10×12 inch or 24×30 cm panels handle small anatomy.
The room integrates with FDR D-EVO III, FDR ES, and SE Lite detectors as options. Because all models use the patented ISS design, they deliver low dose and low noise.
Automatic motorized tube tracking follows the table and upright detector height. Auto sync covers both the wall and table buckys, so height matching stays automatic.
The 6-way elevating float top table supports a maximum patient weight of 550 lbs. It also moves up, down, side to side, and forward and back for easy positioning.
Yes. It includes IHE EI/DI exposure and deviation index plus retake analysis. In addition, it is compatible with IHE RDSR radiation dose structured reporting.
You can buy it from Medical Outfitters Inc., an ISO 13485:2016 certified supplier in Miami, FL. Call (305) 885-4045 for pricing and configuration help.
Compatible Equipment
Explore other digital radiography products available from Medical Outfitters.

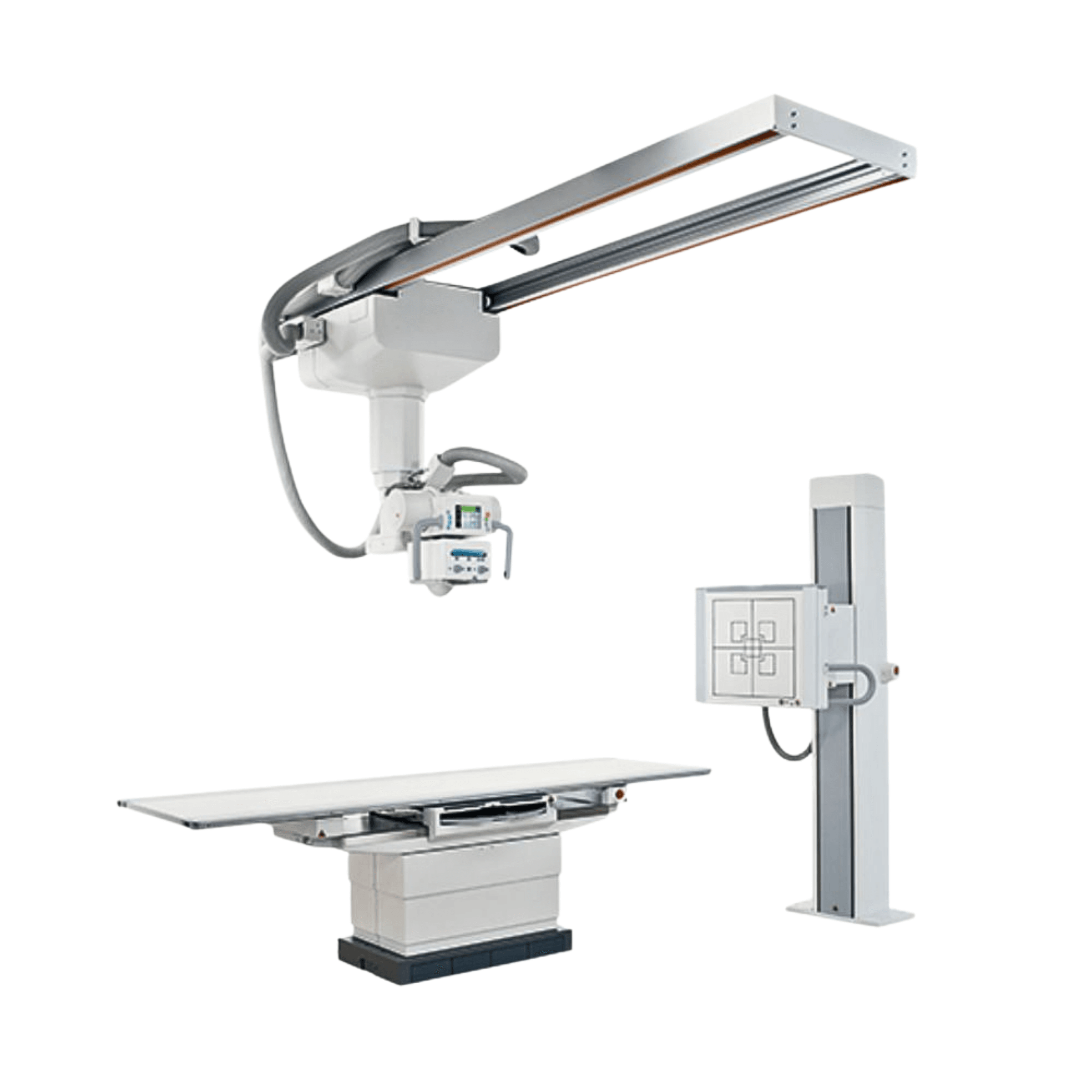

Fujifilm FDR D-EVO Suite II Digital Radiography Room
