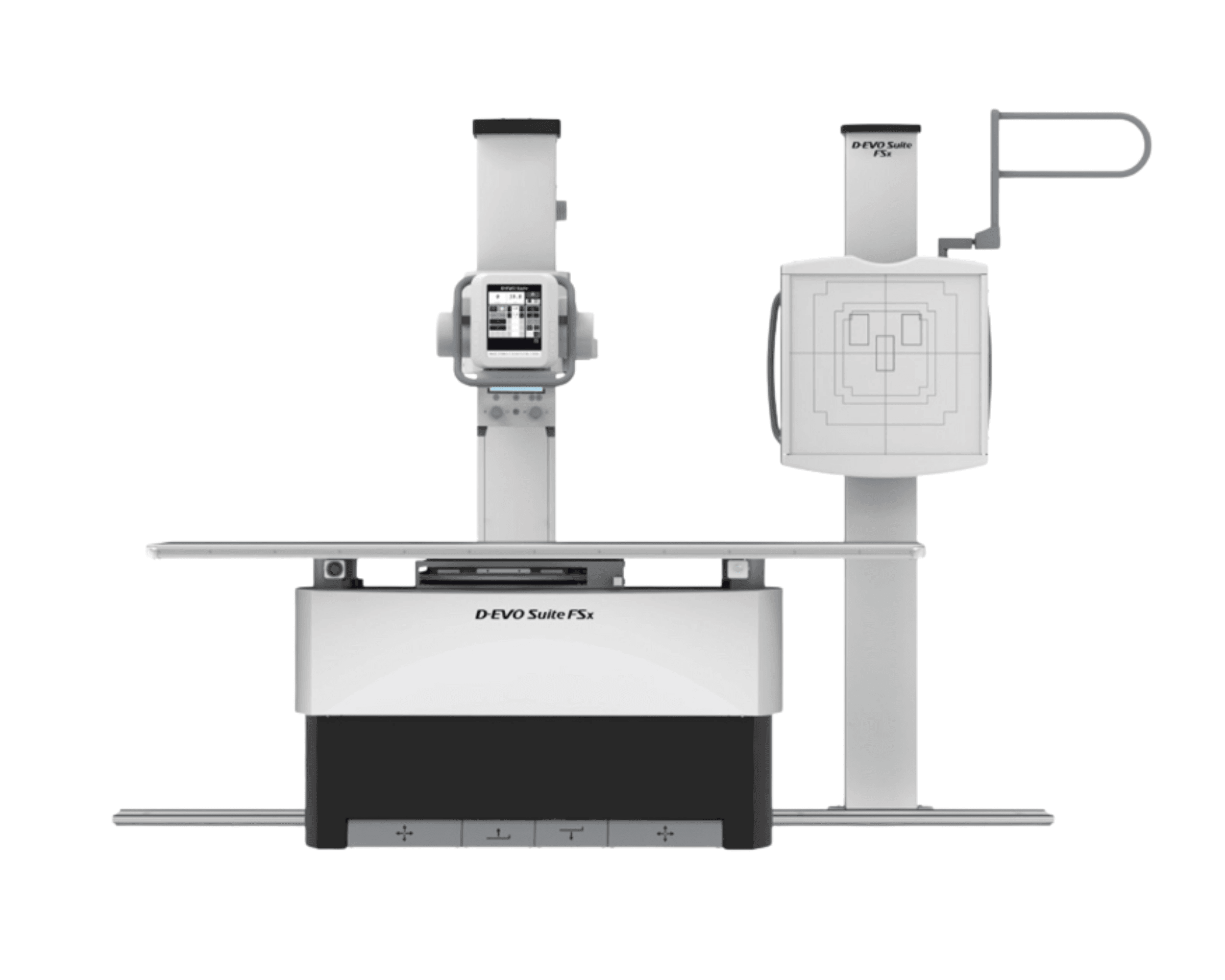

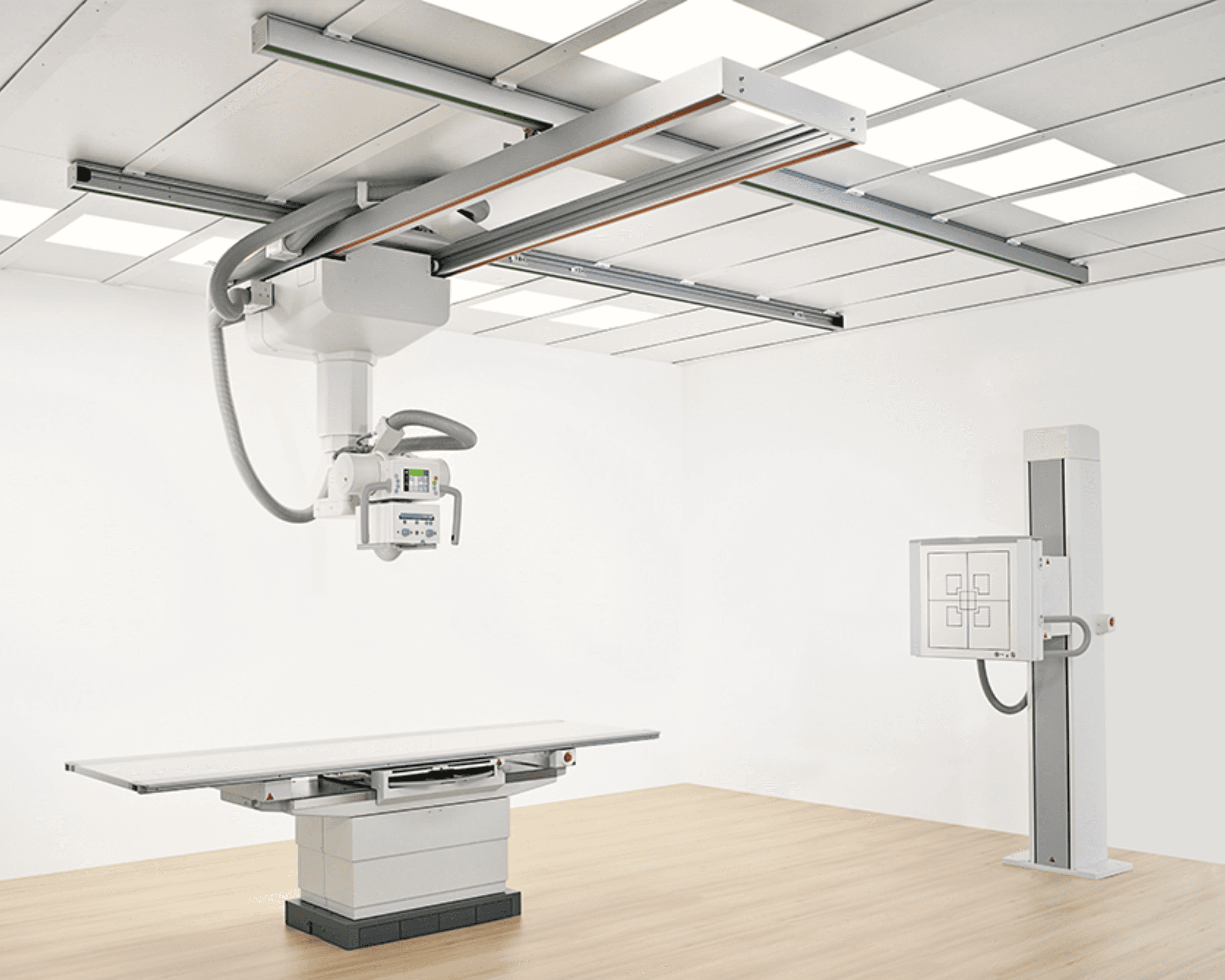

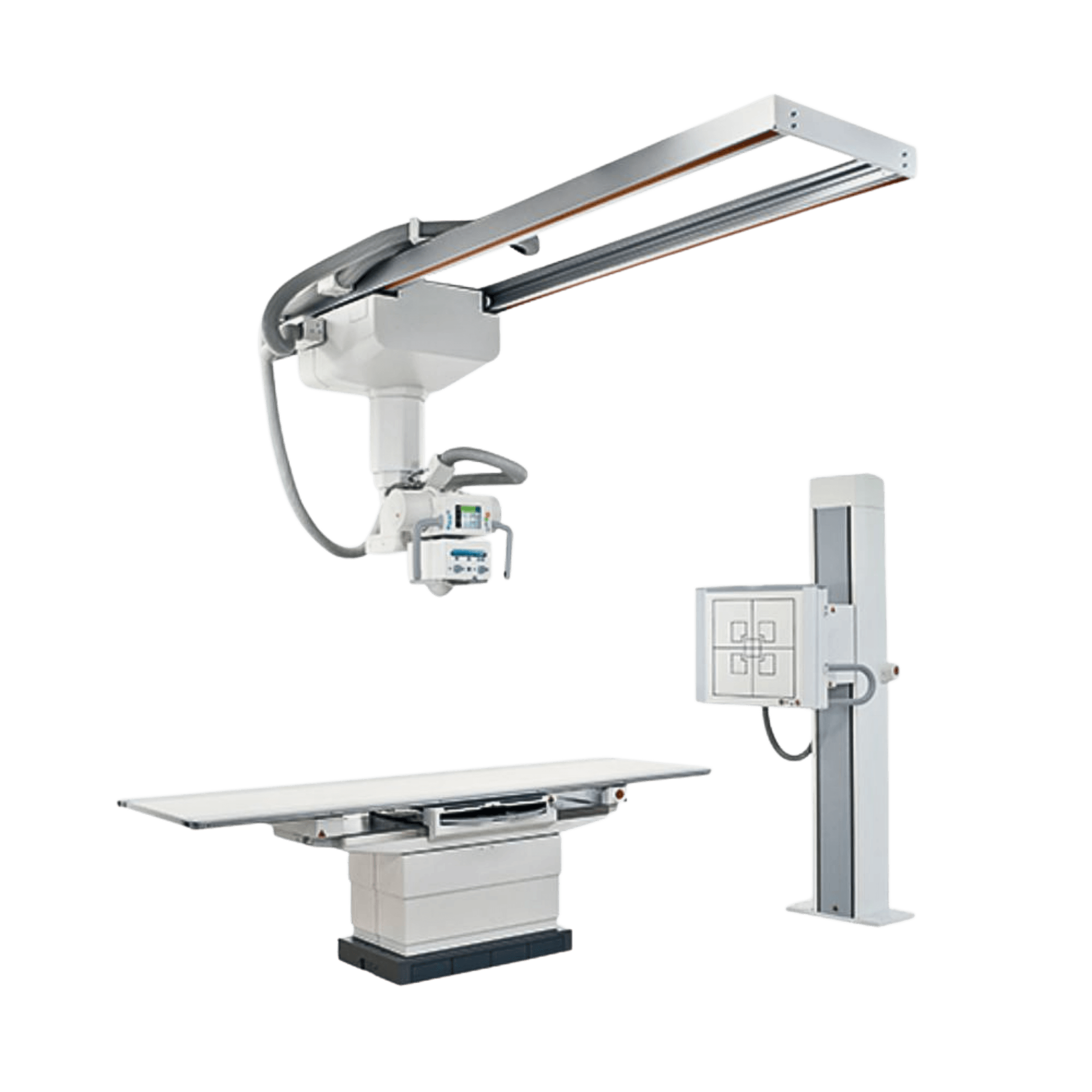

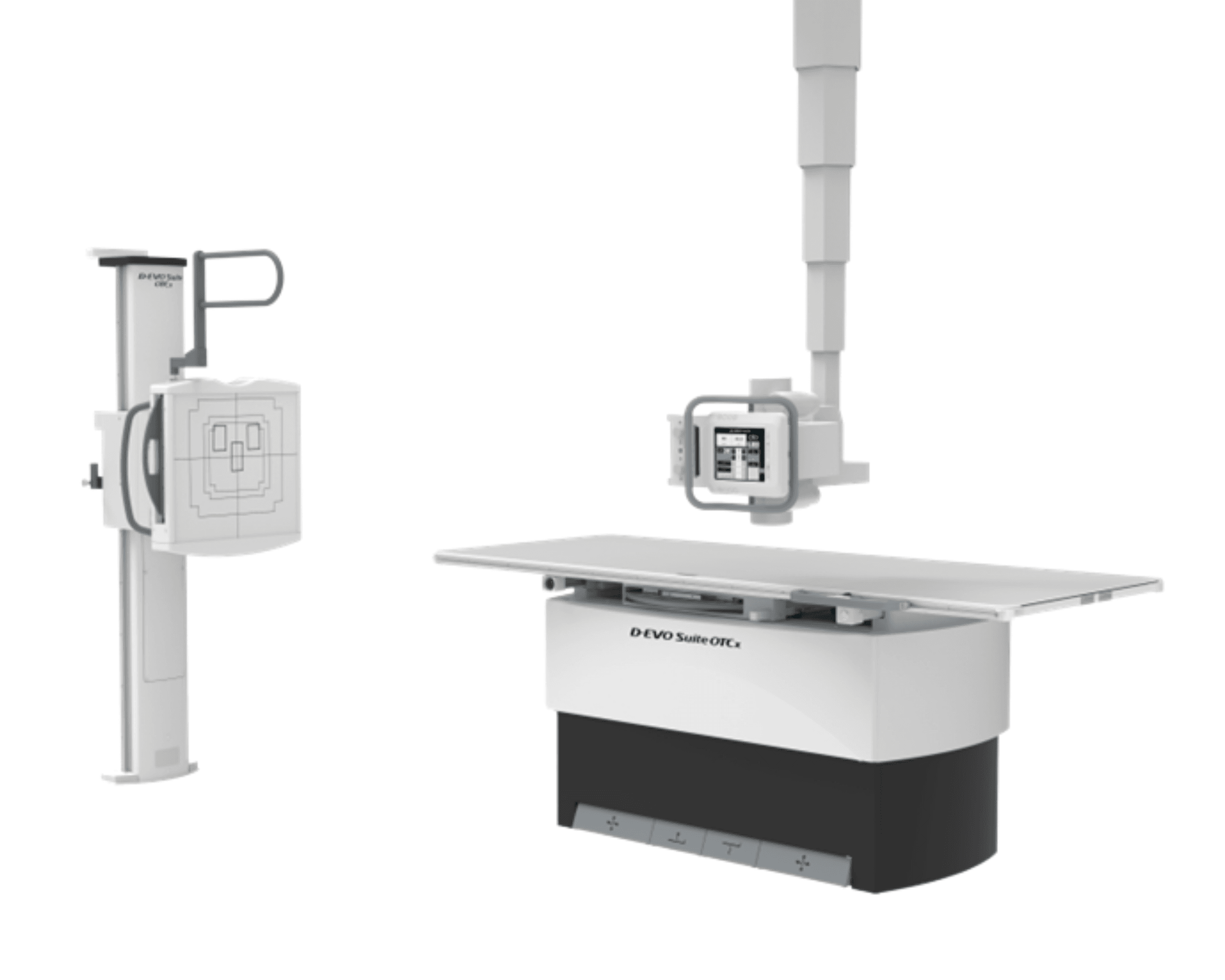

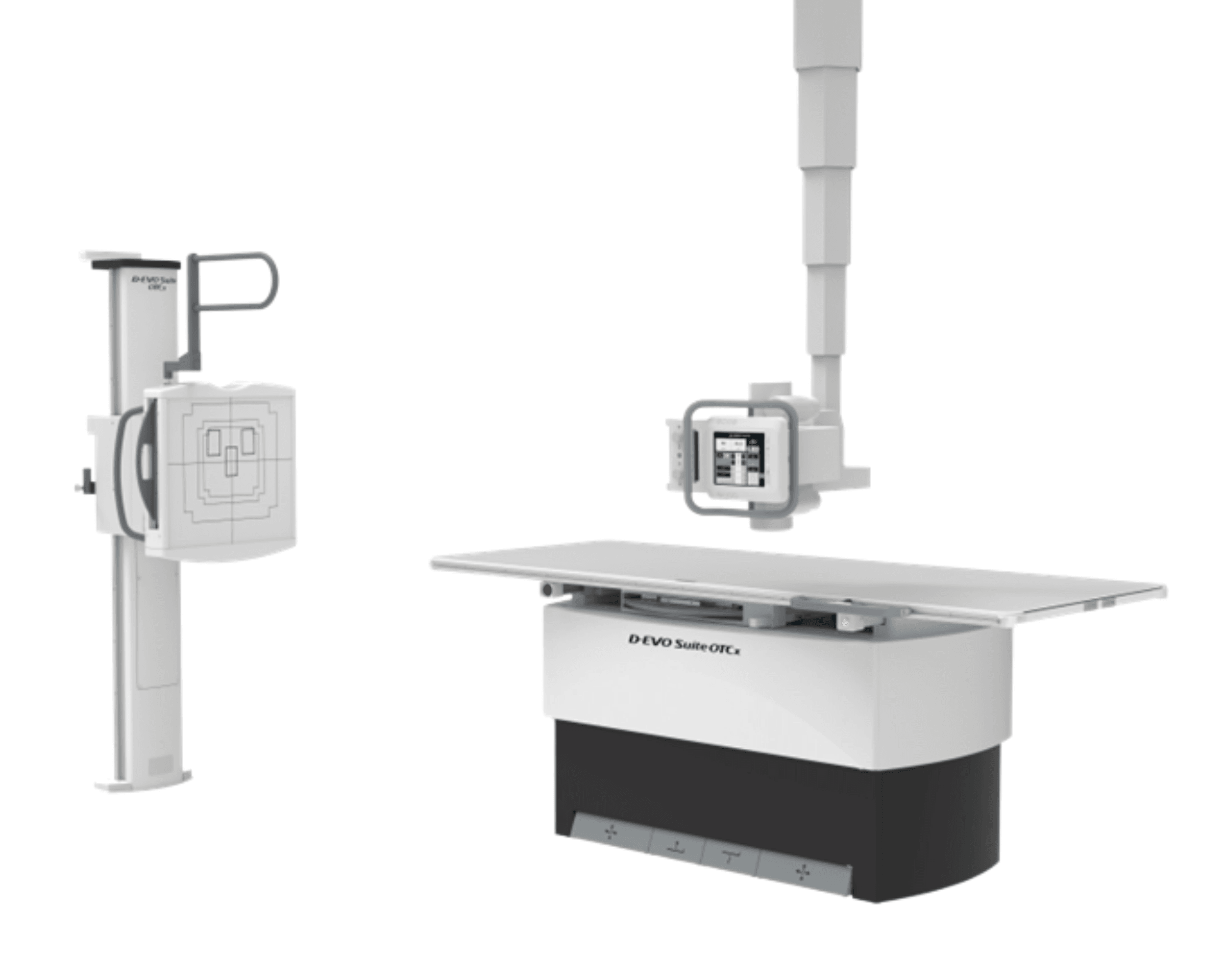

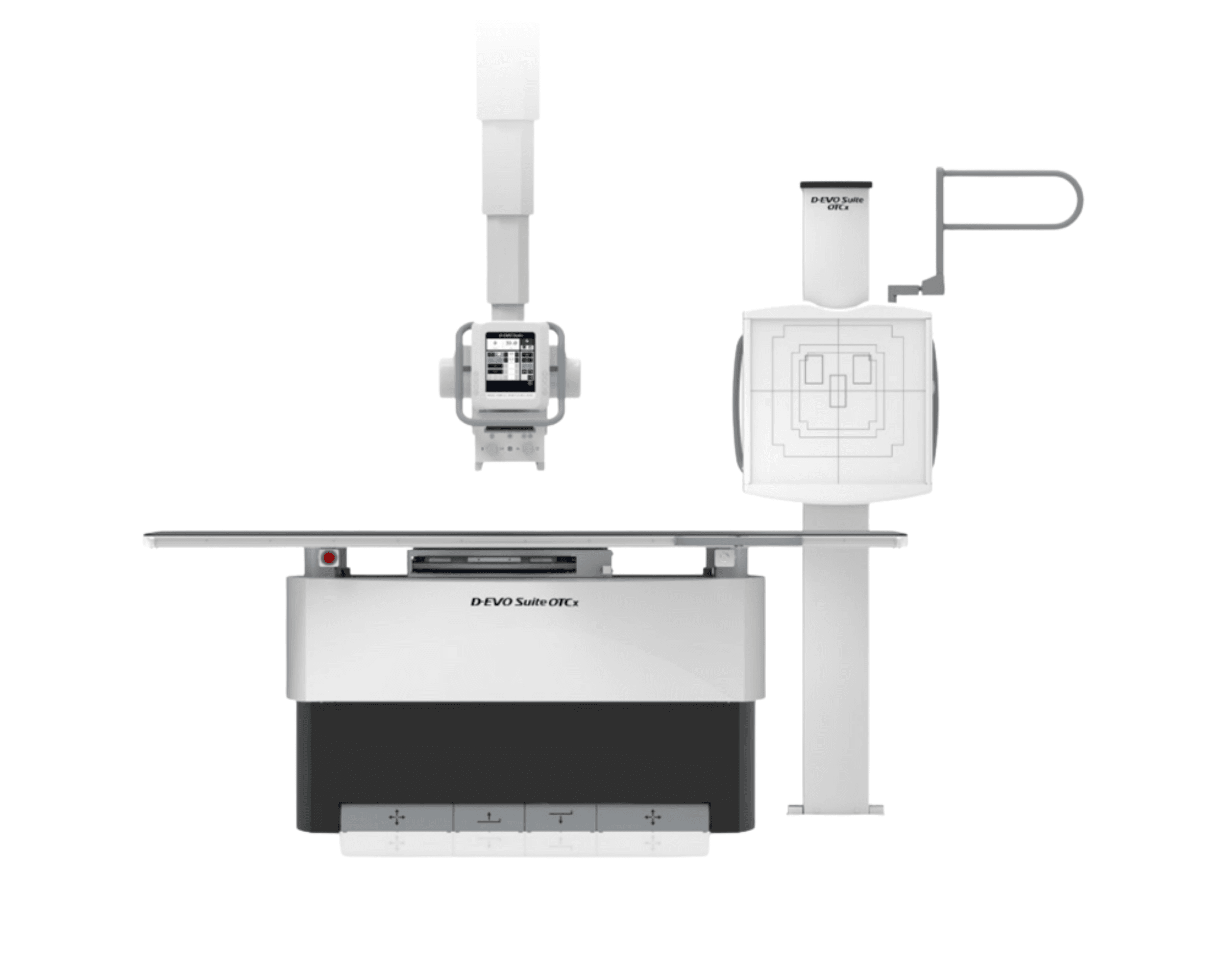

FDR D-EVO Suite II Overview
Authorized Fujifilm digital radiography supplier. The FDR D-EVO Suite II is a complete DR room replacement built for busy radiology departments. It combines high efficiency ISS detectors with Fujifilm imaging software. As a result, the system delivers outstanding image quality at low patient dose. In addition, flexible configurations let you match clinical preferences and operational budget.
This latest evolution adds clear dose efficiency advances, because it uses exclusive ISS detector technology and Dynamic Visualization processing. New workflow features include a touchscreen tube head display and automated tube tracking to the table and upright. Furthermore, Speed*Link exposure optimization, higher weight capacity, and a very low table height improve daily use. Therefore one experienced vendor supports installation, training, warranty, and factory-trained service.
Need pricing? Get a quote with lead times within one business day.
FDR D-EVO Suite II Features
The FDR D-EVO Suite II focuses on fast, precise positioning and consistent image quality. Each component works together to simplify routine and urgent exams.

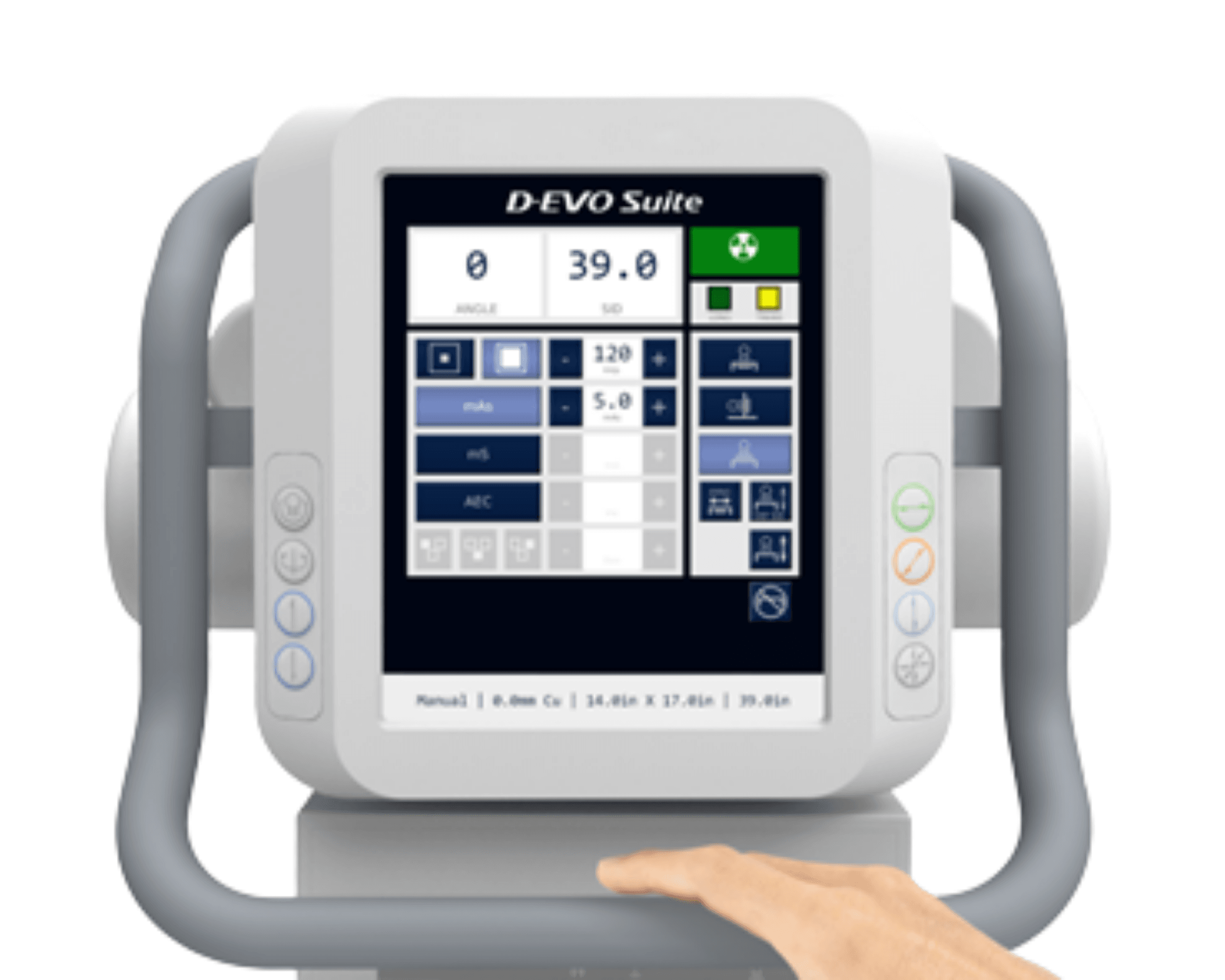

A new touchscreen display sits at the tube head. Therefore technologists can adjust exams without leaving the patient side. The improved tube design also allows a short tube-to-ceiling distance, so it fits rooms with lower or higher ceilings.
Tube tracking automatically synchronizes tube position with the table and chest stand height. In addition, it tracks when the chest stand detector is tilted and adjusts tube height to collimation changes. As a result, the system suits orthopedic, trauma, and emergency department applications.
Fujifilm detectors use patented Irradiated Side Sampling. Because the top detector layer senses x-rays first, light spread and blur drop and signals stay sharp. Therefore the design raises MTF detail clarity and DQE dose efficiency.
The FDX Console adds Dynamic Visualization image processing. This intelligently clarifies images and widens window and leveling range. In addition, advanced dose management tracks Exposure and Deviation Index, Dose Structured Reporting, and Dose Area Product.
Compare a generic DR room against the FDR D-EVO Suite II.
An evolved, integrated, and customized DR room is ready for your department. In addition, bundled savings opportunities are available through your sales representative.
Full Specifications
Specifications below come directly from Fujifilm source material for the FDR D-EVO Suite II. Configuration options can change the included components.
| Vertical movement range | 71″ |
| Tube rotation | 240° and 336° |
| Tube display | Touchscreen at tube head |
| Tube tracking | Automatic to table and upright |
| Collimator | Automatic, manual optional |
| Weight capacity | 617 lbs |
| Maximum height | 36″ from floor |
| Minimum height | 21″ from floor |
| Top movement | 4-way floating |
| Controls | Toe switches, optional rear switches |
| Safety | Anti-collision sensors standard |

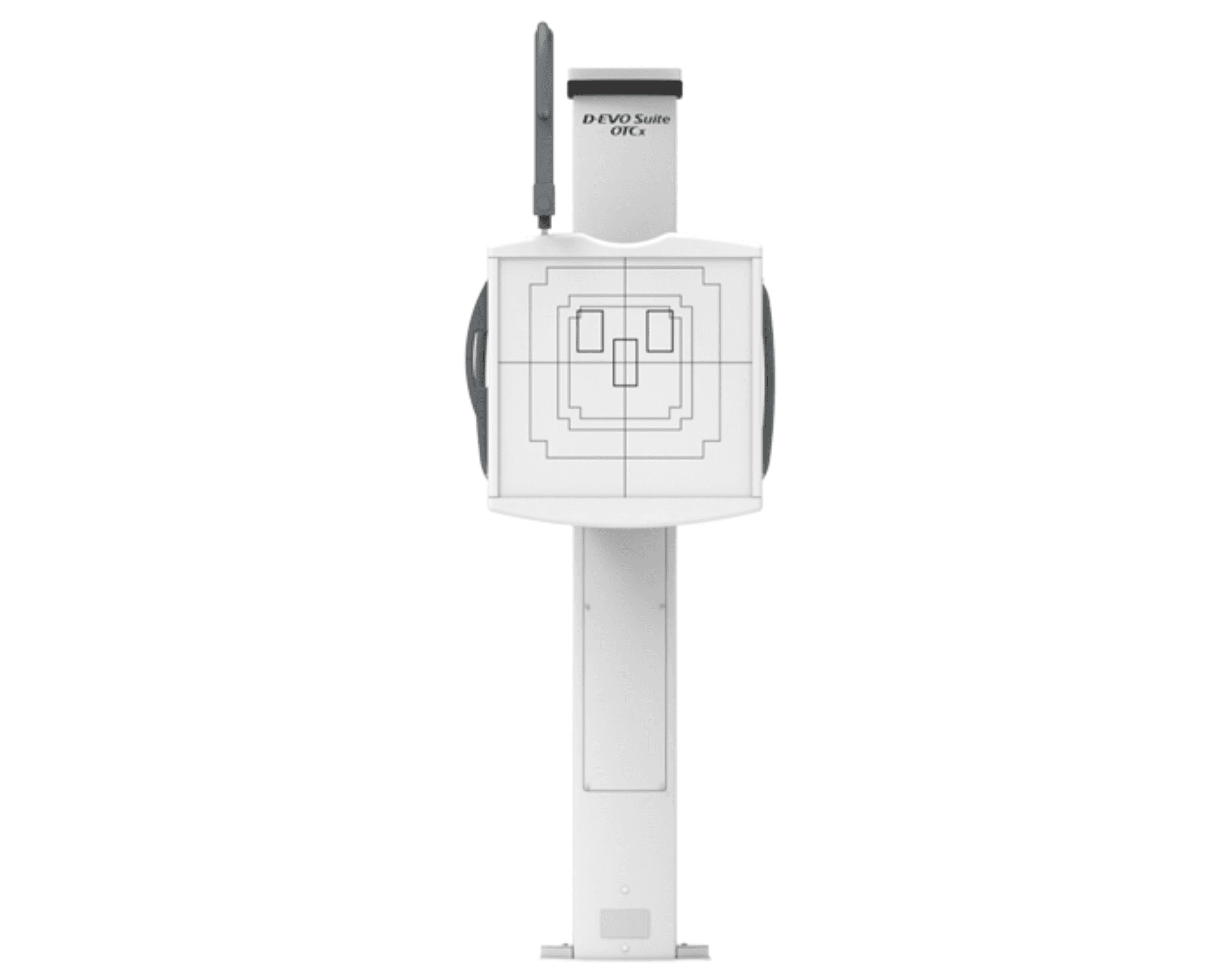

| Bucky tilt | +90° to -20° |
| Loading | Left or right |
| Grid | User removable, included |
| Operation | One-hand bucky |
| Tube tracking | Tilting model required |
| Type | 3-phase |
| Power options | 55 kW or 80 kW |
| Technology | Falling load |
| Console | Tabletop console included |
| Exposure control | Speed*Link interface |
| Detector sizes | 14×17″, 17×17″, 24x30cm |
| Capture types | GoS or CSI |
| Detector technology | ISS |
| Image preview | As little as 2 seconds |
| Cycle time | About 9 seconds |
| Compatibility | DR, CR, film screen cassettes |
Clinical Applications
The FDR D-EVO Suite II adapts to many clinical environments. Here are common applications.
Fast, precise positioning supports urgent imaging. Therefore staff can capture studies quickly during high-volume shifts.
Tube tracking synchronizes position with the table and chest stand. As a result, repeatable extremity and joint views are simple.
Long Leg and Scoliosis exams use automated image stitching. In addition, manual positioning stands are optionally available.
ISS detectors deliver sharp images at low dose. Because cycle time runs about 9 seconds, throughput stays high.

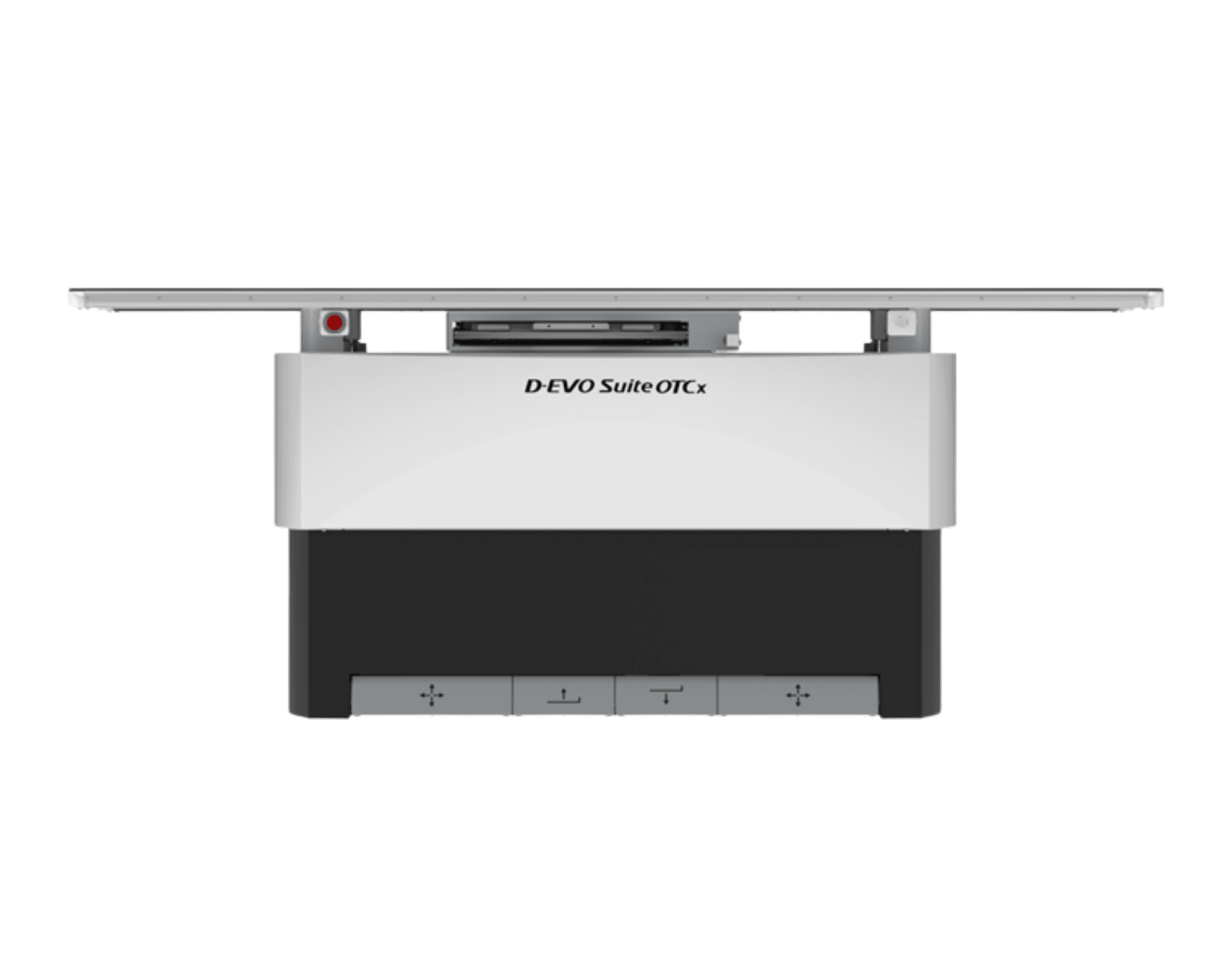

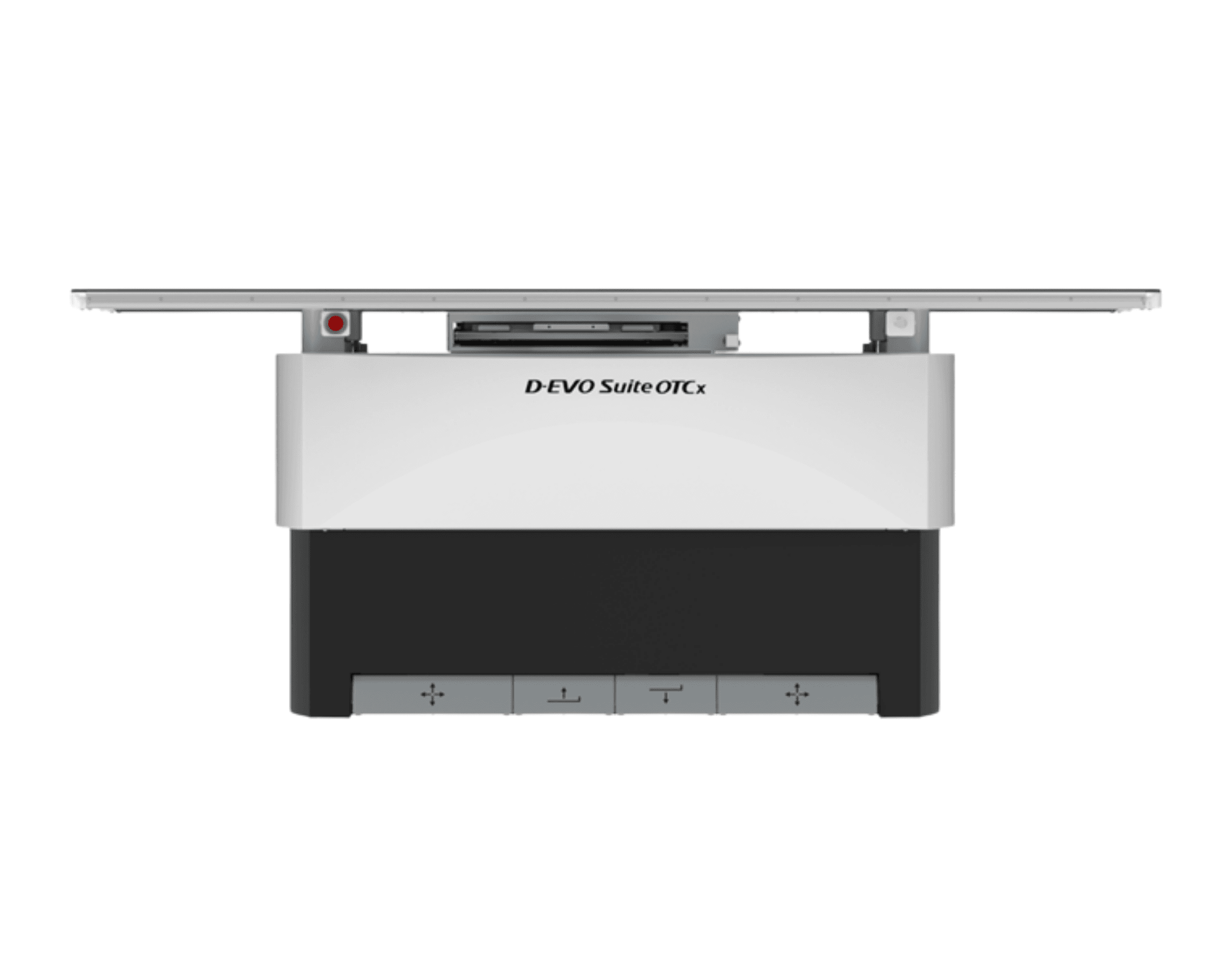

The table lowers to 21 inches and supports 617 lbs. Therefore patient access stays easy and comfortable.
The room works with DR, CR, and film screen cassettes. As a result, facilities can transition gradually.
Workflow With the FDR D-EVO Suite II
The FDR D-EVO Suite II guides each exam through fast, intuitive steps. Below is how the workflow flows from setup to dose tracking.
The FDX Console uses a customizable, intuitive interface. Because it completes exams in as few as three steps, technologists move quickly. In addition, it connects with multiple FDR and FCR devices, even within the same exam.
Speed*Link X-Ray Control Software maps preferred dose techniques to the generator console. As a result, filters, collimation format, and technique follow the exam menu automatically. Falling load technology then starts exposure at full power for short exposure times.
The touchscreen tube head lets staff adjust exams at the patient side. Furthermore, automatic tube tracking follows the table and upright. Therefore positioning stays accurate for orthopedic and trauma views.
ISS detectors preview images in as little as 2 seconds. Dynamic Visualization then clarifies detail and widens window and leveling. In addition, Auto Trimming corrects off-center exams.
Advanced dose management offers virtually unlimited customizable menus. Because variables such as patient size and age are supported, dose stays optimized. The console also tracks IEC indices, Dose Structured Reporting, and Dose Area Product.
Reliability and Quality
Fujifilm builds the FDR D-EVO Suite II for dependable daily operation. Medical Outfitters Inc. supports the full lifecycle.
Choosing Fujifilm means working with one experienced vendor. Therefore you can count on full system installation and integration. In addition, professional user training and equipment warranties are included.
Skilled factory-trained technicians handle service and maintenance. As a result, the system stays reliable and consistent. This protects throughput in busy radiology departments.
The FDX Console supports IEC Exposure and Deviation Index reporting. In addition, it provides Dose Structured Reporting and Dose Area Product data. Therefore departments can document dose for quality programs.
Medical Outfitters Inc. is an ISO 13485:2016 certified medical imaging equipment supplier in Miami, FL. Because of this quality system, every order follows controlled sourcing and documentation. Therefore you receive consistent, traceable support.
Request a Quote
Tell us about your room size, exam mix, and detector preferences. Then our team configures an FDR D-EVO Suite II package for your department.
Talk to a Specialist
Our specialists explain configuration options, bundled savings, and installation timelines. In addition, they coordinate training and factory-trained service.
Frequently Asked Questions
Common questions about the FDR D-EVO Suite II digital radiography room.
It is a complete Fujifilm digital radiography room replacement. The system integrates ISS detectors and imaging software. As a result, it delivers high image quality at low patient dose.
The suite works with any Fujifilm FDR D-EVO detector. Sizes include 14×17″, 17×17″, and 24x30cm. In addition, GoS or CSI capture options are available.
Image preview appears in as little as 2 seconds. Cycle time runs about 9 seconds. Therefore the room supports high patient throughput.
Generators come in 3-phase 55 kW or 80 kW versions. Both use falling load technology. As a result, exposures begin at full power for short exposure times.
Yes. The 4-way float top table supports up to 617 lbs. In addition, it lowers to 21 inches from the floor for easy access.
A standard motorized overhead tube system is required. In addition, the tilting upright chest stand is required. Together they enable auto collimation and tracking.
Yes. The detectors integrate for DR and remain compatible with CR and film screen cassettes. Note that Auto Cassette Size Sensing requires a motorized OTC.
You can buy it from Medical Outfitters Inc., an ISO 13485:2016 certified supplier in Miami, FL. Call (305) 885-4045 for configuration help and pricing.
