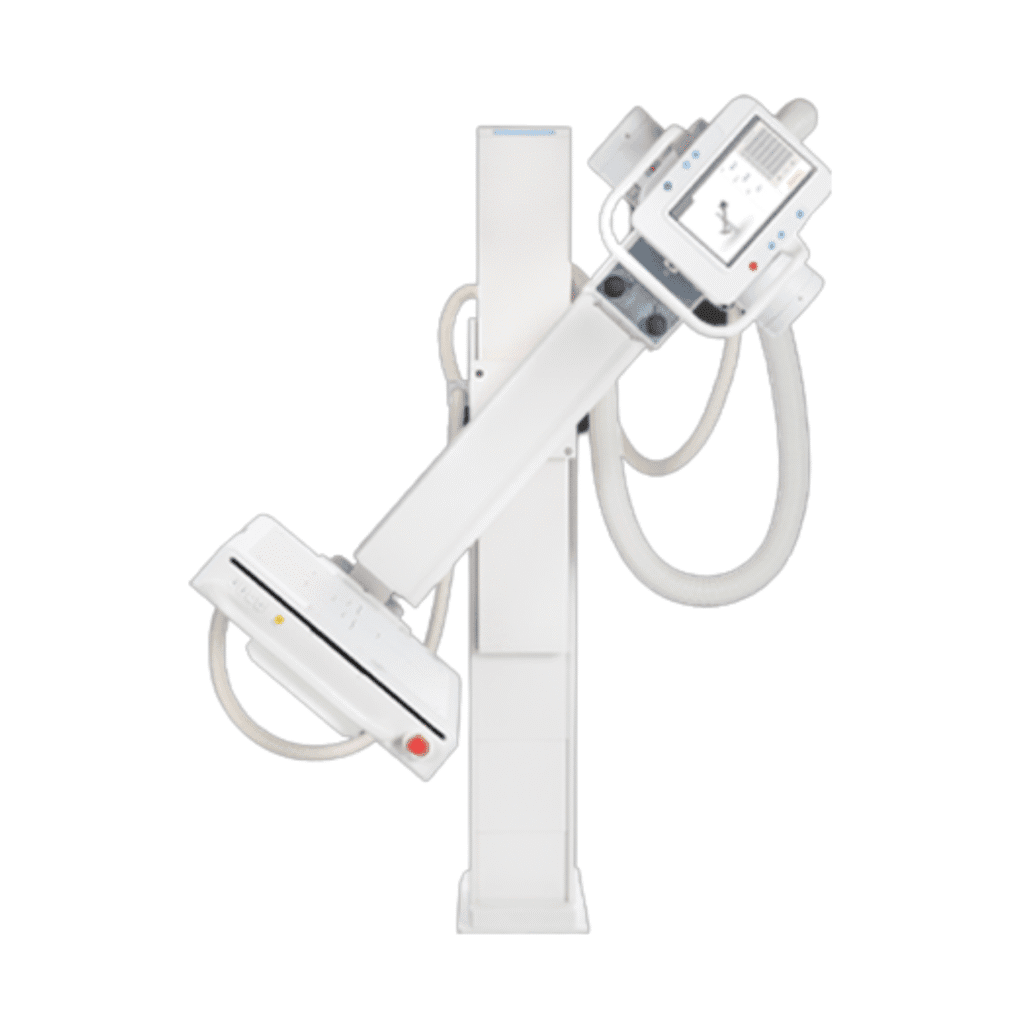

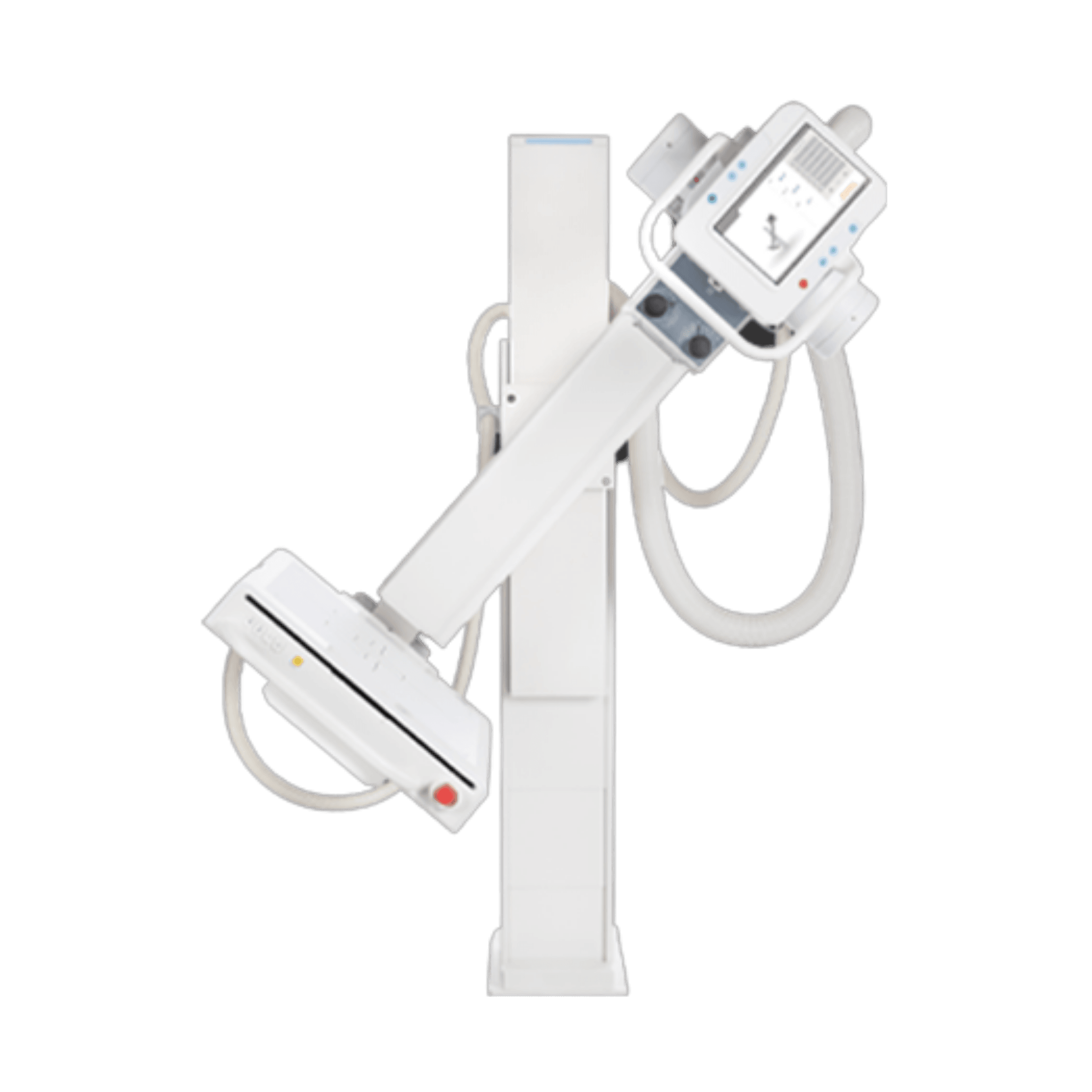

Fujifilm Essentia SA Straight Arm DR Overview

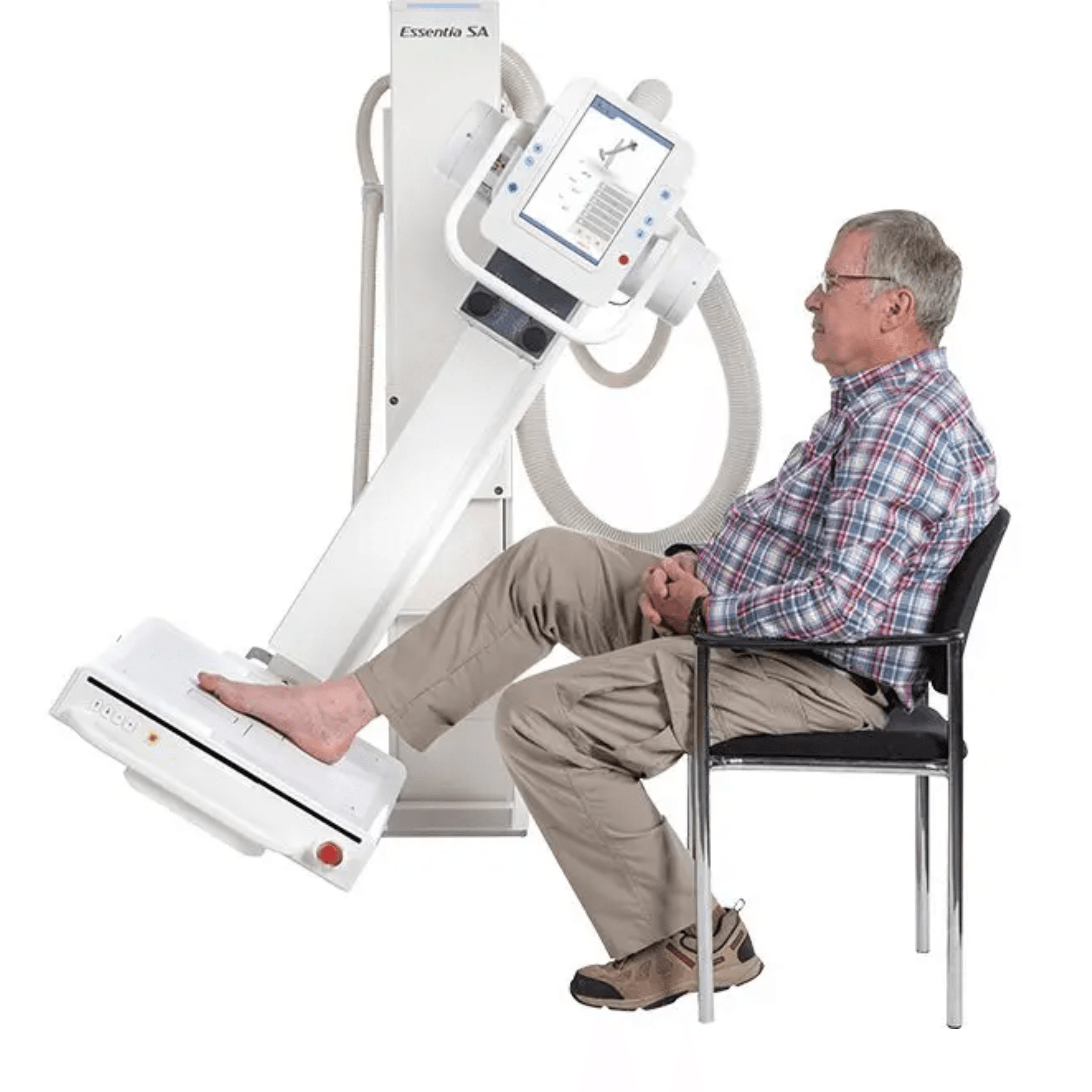

Authorized Fujifilm digital radiography supplier. The Fujifilm Essentia SA is a straight arm DR system designed for a wide range of standing, sitting, and recumbent radiographic exams. Its semi-automated, pre-programmed positioning and automated exposure guidance speed up everyday workflow. Therefore, you get up to 60 site-programmable exam shortcuts that keep imaging fast and consistent.
Integrated with the latest Fujifilm DR detectors, the system delivers fast image acquisition and exceptional image quality at low patient dose. In addition, the intuitive 10 inch touchscreen at the tube head puts controls right at the patient side. Because the streamlined design fits the tightest spaces and ceilings as low as 8 feet, it suits clinics with limited room and budget.
Need pricing? Get a quote with lead times within one business day.
Fujifilm Essentia SA Features
The Essentia SA focuses on simple operation and dependable image quality. Each feature supports faster positioning and lower dose without adding room or cost.

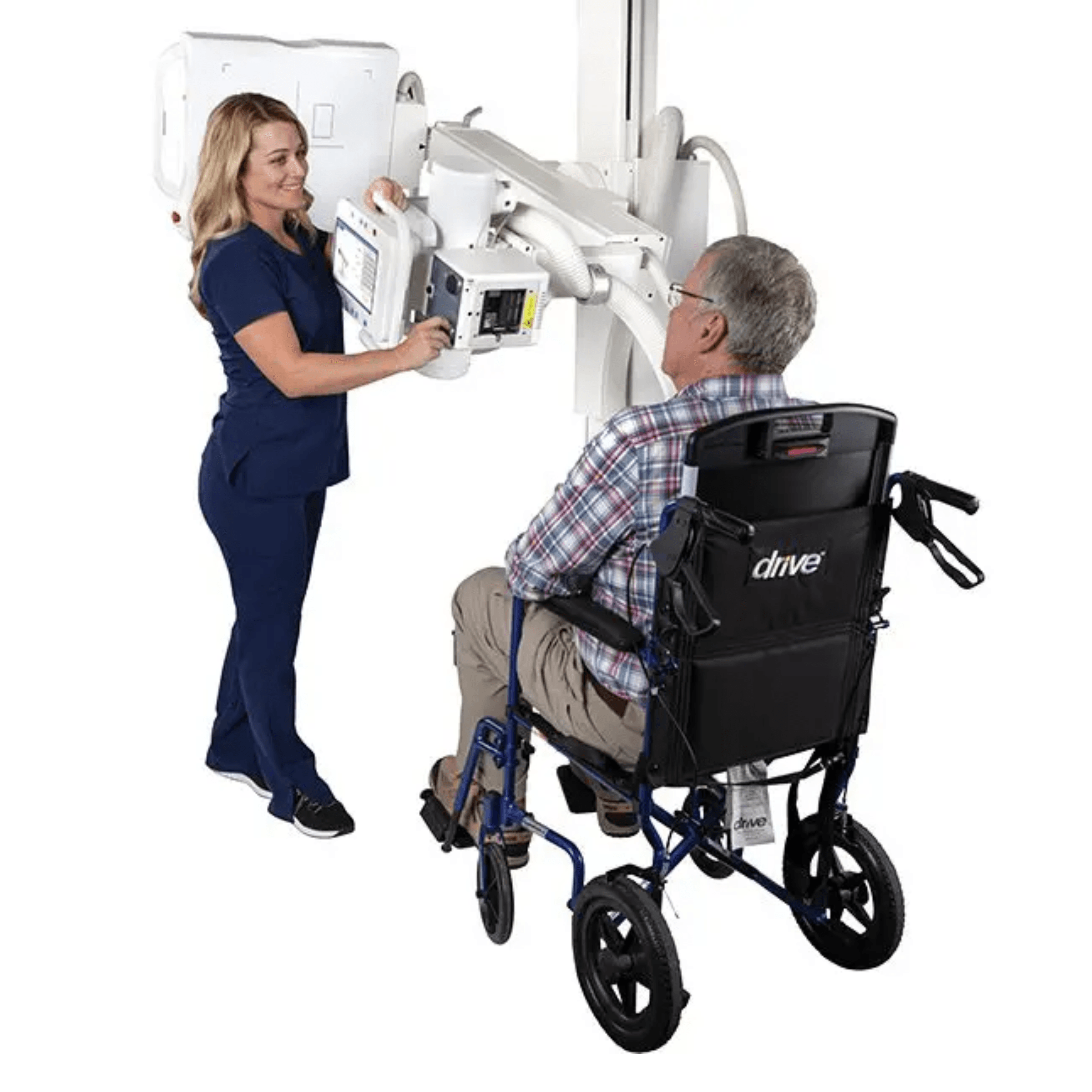

The intuitive 10 inch rotating touchscreen sits at the tube head, so you operate the system right beside the patient. Quick stand positioning and motorized source-to-image-distance adjustment cover upright chest, abdomen, and oblique exams. With the optional mobile table, you can also perform supine imaging.
Up to 60 semi-automatic presets automate stand height, orientation, and SID. In addition, collimator and movement controls at the Bucky keep the technologist efficient. Multiple emergency stop buttons and collision sensors add integrated safety.
The system integrates with Fujifilm FDR D-EVO III, II, FDR ES, and FDR SE Lite detectors. The standard adjustable tray fits 14×17 inch or 17×17 inch panels and lifts out for free positioning. For smaller anatomy, 10×12 inch or 24×30 cm detectors are available.
All detector models feature Fujifilm’s patented ISS for low dose and low noise. Moreover, the FDR D-EVO III uses a glass-free design that boosts durability while staying lightweight. SpeedLink integration maps APR presets from the exam you select at the workstation.
See how a generic straight arm room compares with the Fujifilm Essentia SA.
The streamlined straight arm fits the smallest rooms and ceilings as low as 8 feet. However, it keeps full functionality, premium image quality, and low dose performance.
Full Specifications
Every specification below comes directly from the Fujifilm Essentia SA documentation. Options are noted as options.
| Detector capability | 14×17 in or 17×17 in FDR D-EVO III, II, FDR ES or FDR SE Lite |
| Standard tray | Fixed 17×17 in (requires detector power box) |
| Optional tray | Adjustable for removable 14×17 in or 17×17 in |
| Small-anatomy detectors | 10×12 in or 24×30 cm available |
| 40 kW | Single-phase, 230 VAC, 500 mA |
| 50 kW | 3-phase, 230 VAC, 630 mA |
| 50 kW | 3-phase, 480 VAC, 630 mA |
| 65 kW | 3-phase, 480 VAC, 800 mA |
| Focal spot | 0.6 / 1.0 mm |
| 200 kHu tube | With 40 or 50 kW generator |
| 300 kHu tube | With 40, 50 or 65 kW generator |
| Voltage | 120 V~, 200-240 V~ (±10%) |
| Current | 4 A @120 VAC or 2 A @200-240 VAC |
| Frequency | 50/60 Hz, single phase |
| Weight | 551 lbs (250 kg) |
| SID range | 39 in to 71 in |
| Temperature | 41 to 104 °F |
| Relative humidity | 10 to 50% |
| Atmospheric pressure | 700 to 1060 hPa |
Clinical Applications
The Essentia SA adapts to many clinical settings. Here are common ways teams put it to work.

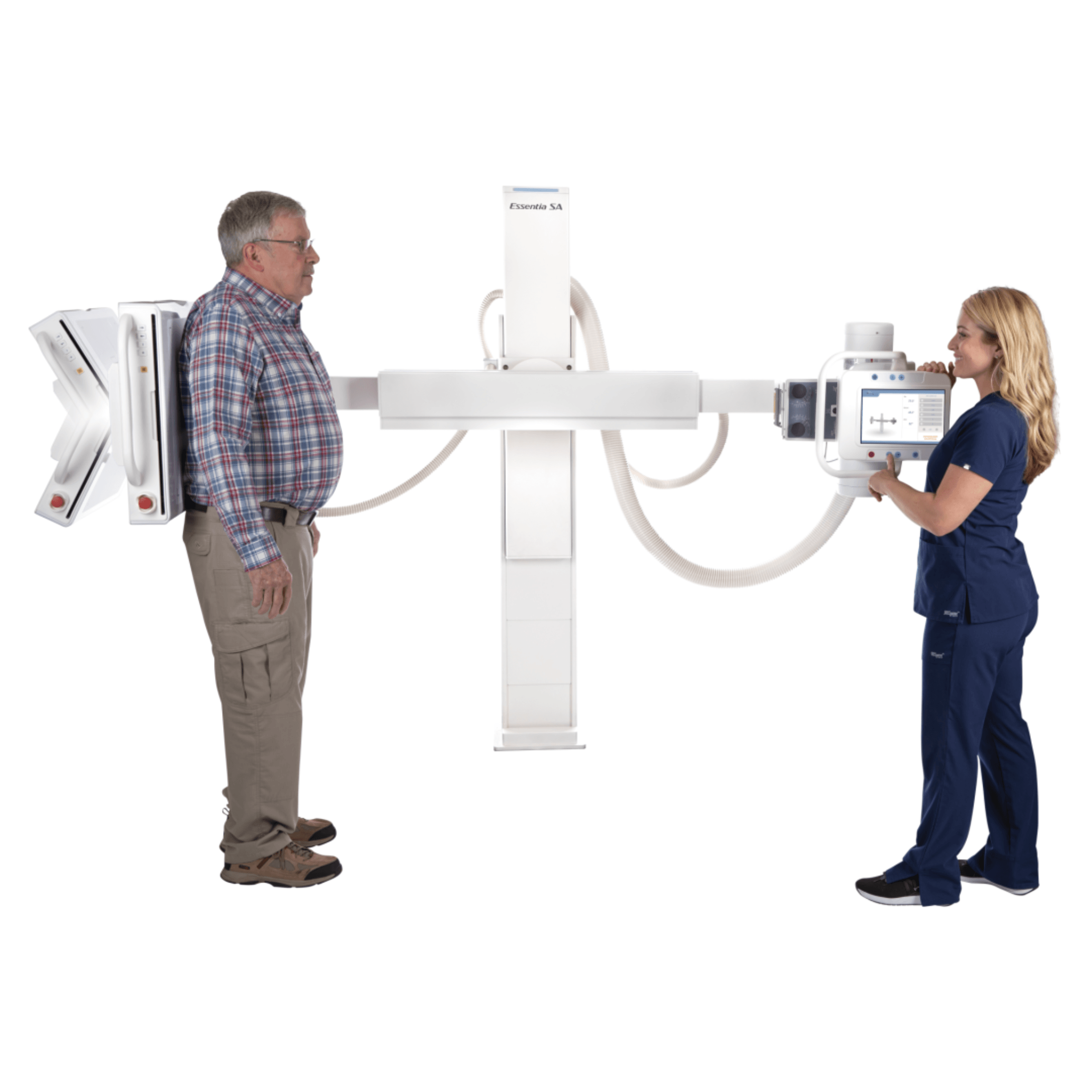

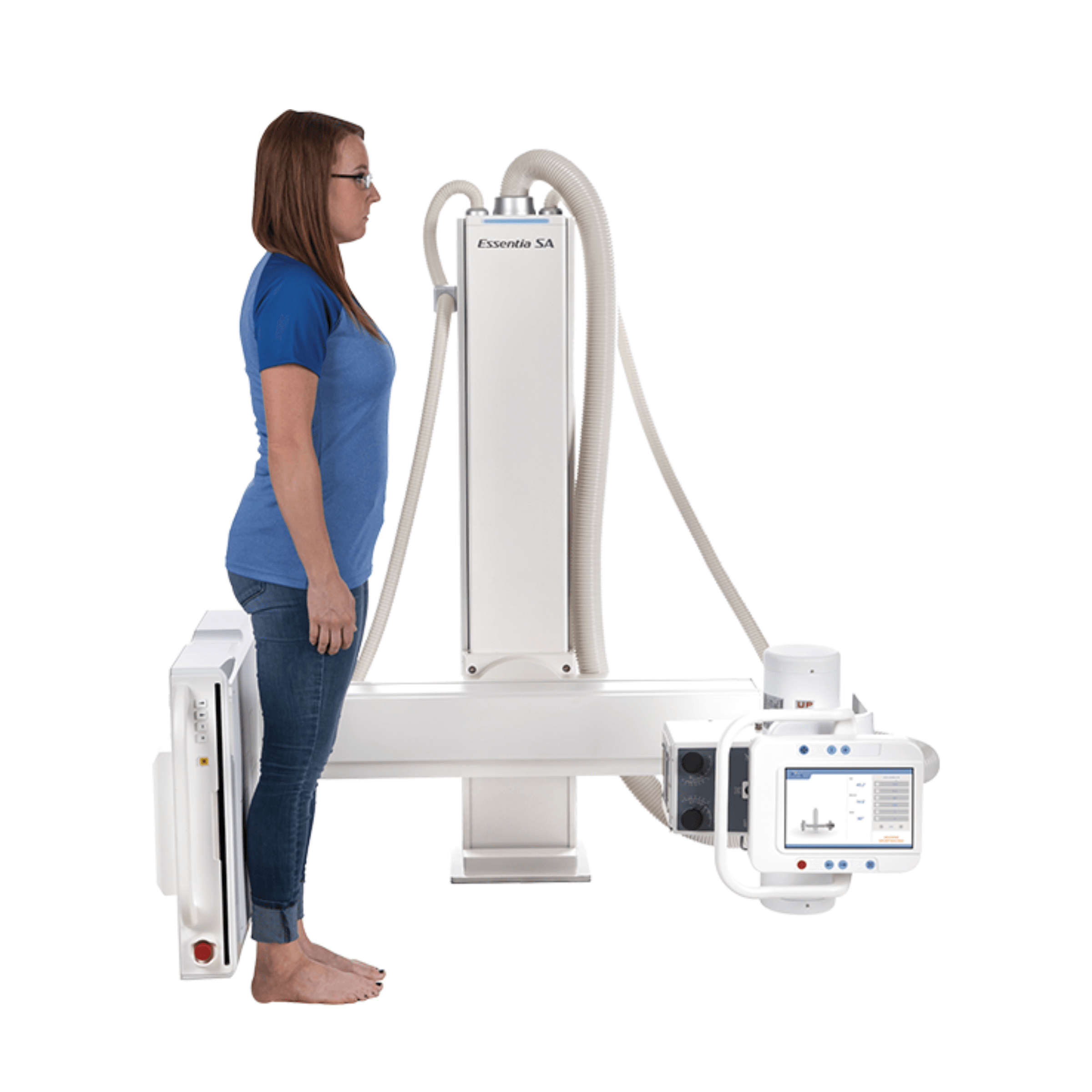

Motorized SID and quick stand positioning support fast upright chest exams. Therefore, throughput stays high during busy clinics.
Semi-automatic presets handle abdomen and oblique projections. As a result, positioning stays consistent across technologists.
With the optional mobile table, the system covers supine imaging. In addition, a table-top detector holder supports cross-table exams.
Up to 60 presets and 2 or 3 click workflow speed daily caseloads. Because controls sit at the patient side, staff move efficiently.
The streamlined straight arm fits ceilings as low as 8 feet. However, it keeps full exam flexibility and premium image quality.
Patented ISS detectors deliver low noise at gentle dose. Moreover, RDSR reporting and deviation index tools support dose tracking.
Workflow with the Fujifilm Essentia SA
The Essentia SA links positioning, exposure, and review into one smooth radiographic pathway. Each step reduces manual effort and supports dose-lowering techniques.
Technologists pick the exam at the workstation. SpeedLink then maps the matching APR presets automatically.
This keeps technique aligned with site preferences.
Up to 60 semi-automatic presets set stand height, orientation, and SID. Motorized SID adjustment covers upright and oblique views.
Patient-side touchscreen controls keep the technologist close to the patient.
Automated exposure parameter adjustments respond to patient size. Optional Automatic Exposure Control is available for added consistency.
This combination supports accuracy and speed.
High-efficiency Fujifilm DR detectors deliver fast acquisition and display. The FDX console with Dynamic Visualization provides immediate previews and image manipulation.
Exams finish in as few as 2 or 3 mouse clicks.
The console includes IHE EI/DI exposure and deviation index tools. In addition, IHE RDSR radiation dose structured reporting and retake analysis are built in.
Secure network connectivity moves images to your systems.
Safety and Compliance
The Essentia SA includes integrated safety features and documented operating limits. Review the points below before installation planning.
The system includes multiple emergency stop buttons and collision sensors. As a result, it helps protect patients and staff during positioning.
Fujifilm rates the system for 41 to 104 °F and 10 to 50% relative humidity. Atmospheric pressure limits run from 700 to 1060 hPa.
The equipment is not certified for use in the presence of flammable anesthetic mixtures with air, oxygen, or nitrous oxide. Therefore, site planning must avoid those environments.
Medical Outfitters Inc. operates under an ISO 13485:2016 certified quality management system. Because of this, we supply, document, and support the Essentia SA to defined medical-device quality standards.
Request a quote
Tell us your room size, ceiling height, and exam mix. We will match an Essentia SA generator and detector configuration to your facility.
Plan your installation
Our team reviews electrical, tray, and table options before delivery. Therefore, your room is ready for a smooth installation.
Frequently Asked Questions
Common questions about the Fujifilm Essentia SA straight arm DR system.
It is a straight arm digital radiography system for standing, sitting, and recumbent exams. It uses semi-automatic positioning and a 10 inch tube-head touchscreen for fast workflow.
The system supports up to 60 site-programmable exam shortcuts. Each preset automates stand height, orientation, and SID.
It works with Fujifilm FDR D-EVO III, II, FDR ES, and FDR SE Lite detectors. In addition, 10×12 in or 24×30 cm panels are available for smaller anatomy.
You can choose 40 kW single-phase, 50 kW three-phase, or 65 kW three-phase generators. Tube options include 200 kHu and 300 kHu units.
Yes. The streamlined straight arm fits the smallest spaces and ceilings as low as 8 feet. However, it keeps full functionality and image quality.
Yes, with the optional lightweight mobile patient imaging table. That table supports a maximum patient weight of 516 lbs.
Yes. The console includes IHE EI/DI deviation index, retake analysis, and IHE RDSR radiation dose structured reporting compatibility.
You can buy it from Medical Outfitters Inc., an ISO 13485:2016 certified supplier in Miami, FL. Call (305) 885-4045 for a configuration and quote.
