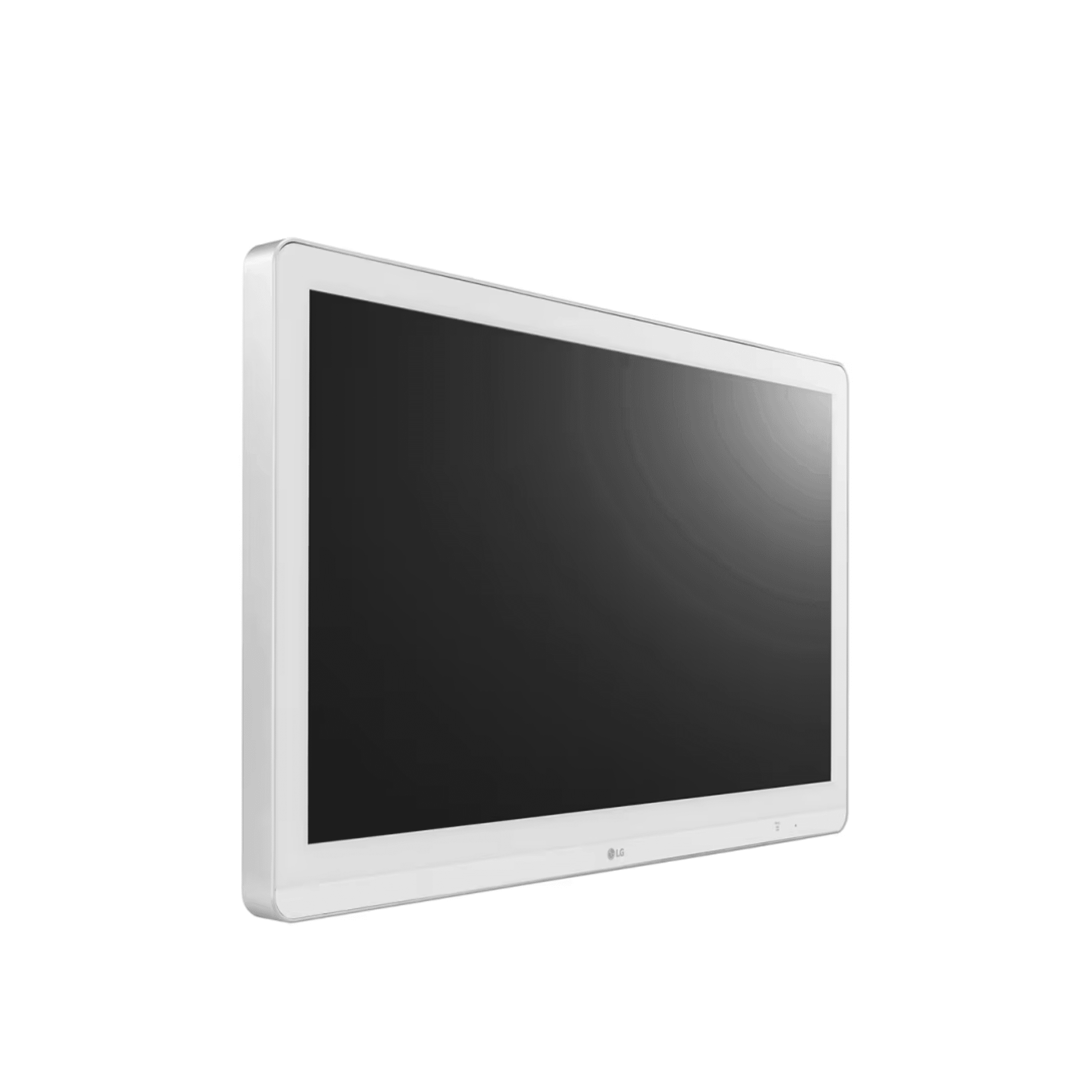

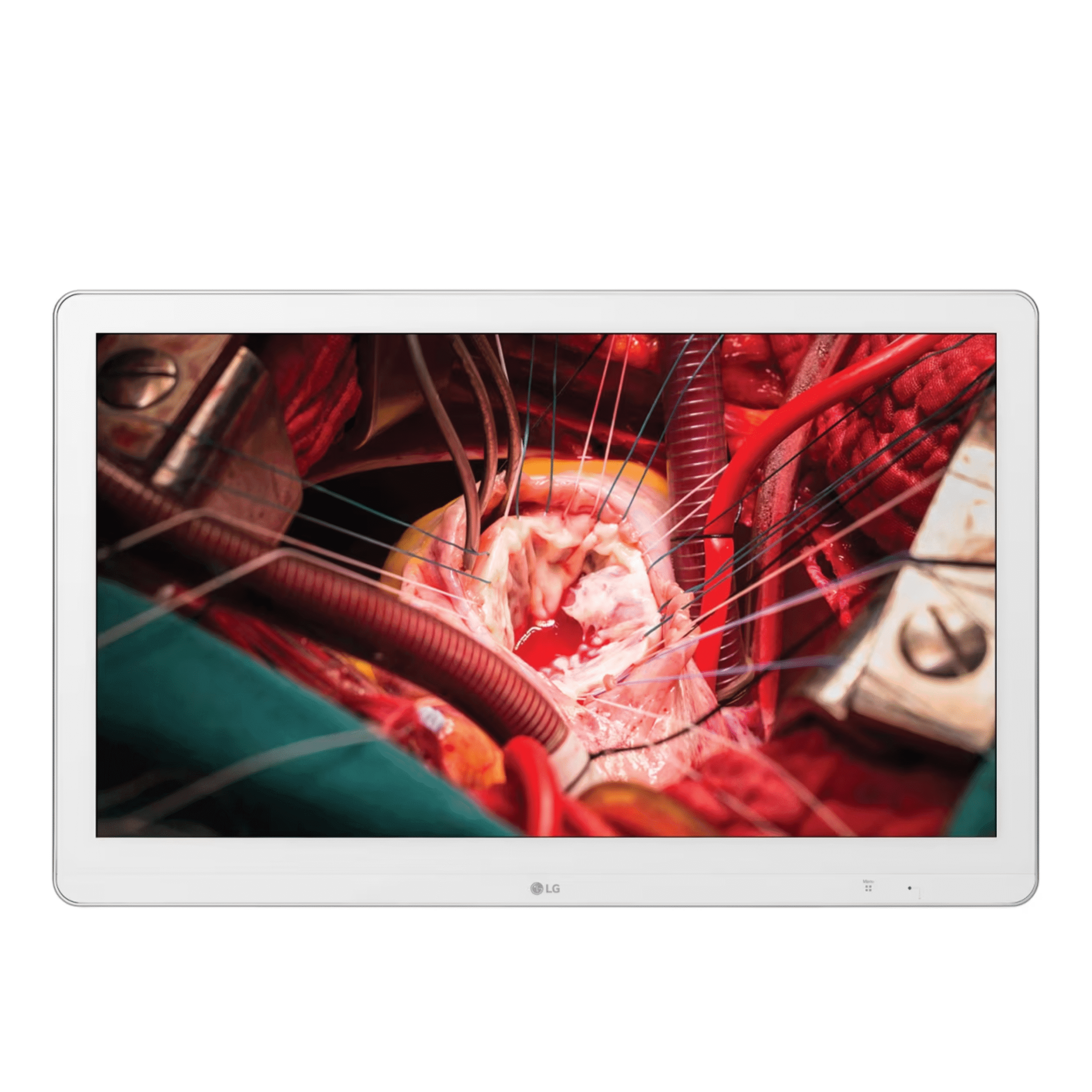

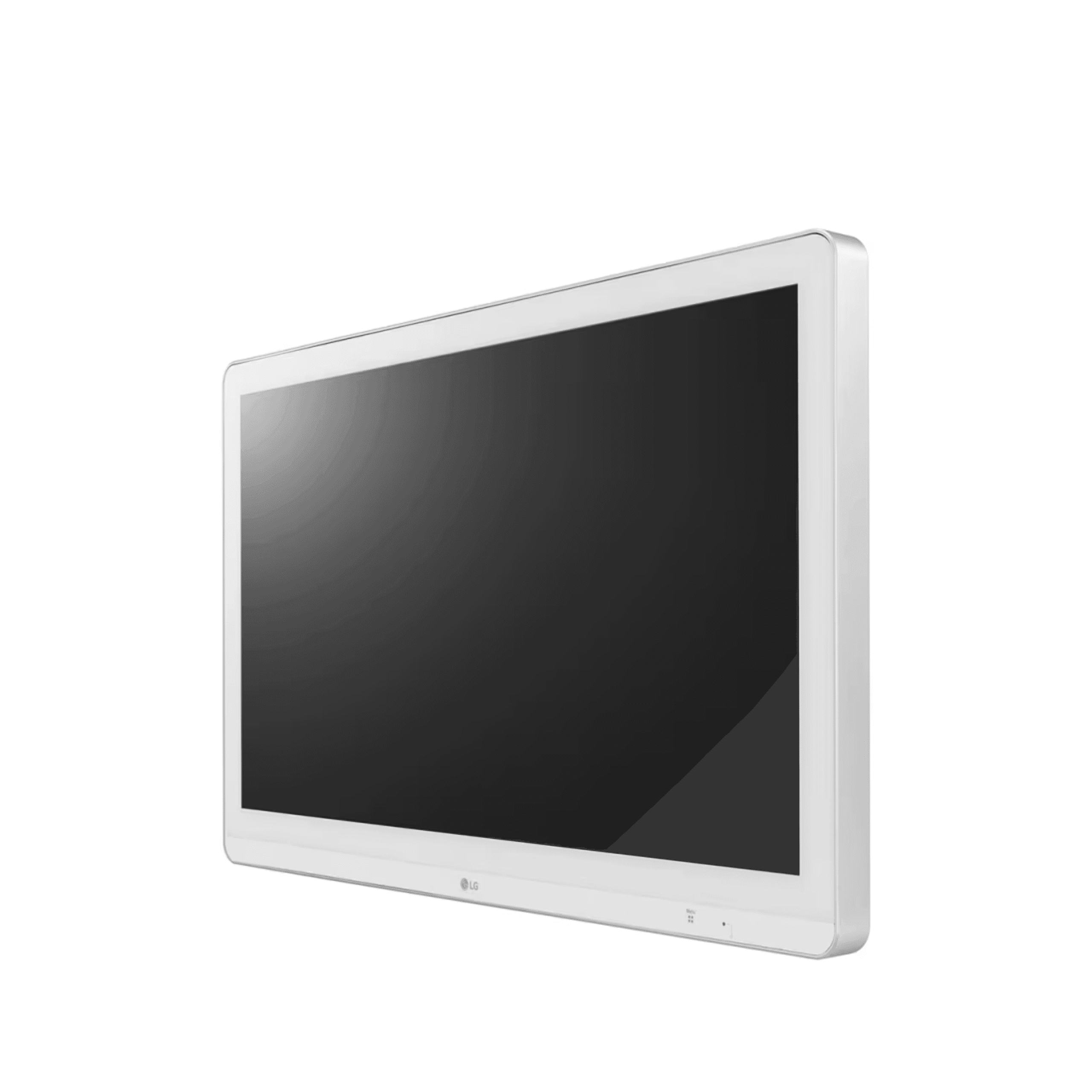

LG 27HK510S: 27" Full HD IPS Surgical Monitor with 3G-SDI and Multi-Input
Authorized LG surgical imaging equipment supplier. The LG 27HK510S is a 27 inch Full HD IPS surgical monitor designed specifically for the operating room, where medical-grade brightness, a sealed and cleanable surface, and wide signal compatibility matter alongside proven Full HD resolution. The 1,000 cd/m² panel maintains visualization under active operating room overhead lighting, and a dedicated DICOM Part 14 picture mode with brightness stabilization addresses the medical imaging quality concerns of NEMA and the American College of Radiology. Optical bonding with 1.3 millimeter anti-reflection and anti-fingerprint glass, an anti-microbial coating, and IP35, IP32, and IK06 protection make it durable and cleanable between cases.
The core specifications are a 27 inch Full HD IPS panel, 1920 by 1080, with 1,000 cd/m² brightness, a 1000 to 1 contrast ratio, sRGB 99 percent color, and 10-bit color depth. Hardware calibration runs through True Color Pro with an included factory calibration report. A wide input set covers 3G-SDI in and out, two DVI-D inputs with a DVI-D output, HDMI 2.0, D-Sub, composite over BNC, S-Video, and component, with RS-232C and RJ45 remote control, picture by picture and picture in picture, Six Axis Control, and Super Resolution Plus. The monitor weighs 7.7 kilograms, mounts on VESA 200 by 100 or 100 by 100 millimeter fixtures, and carries a 3 year parts, labor, and backlight warranty.
Need pricing? Get a quote with lead times and volume discounts within one business day.
Full HD IPS, Sealed OR-Ready Glass, and Multi-Input Connectivity
Three capabilities define the 27HK510S for surgical imaging. A 1,000 cd/m2 Full HD IPS panel with sRGB 99 percent color and DICOM Part 14 calibration delivers medical-grade brightness and accurate color, optical bonding with 1.3 millimeter anti-reflection glass and an anti-microbial coating provides a sealed and cleanable operating room surface, and a wide input set with 3G-SDI and RS-232C control integrates with the broad installed base of operating room sources and AV systems. Full technical detail is in the expandable sections below.
Panel: 27 inch IPS, 1920 by 1080 Full HD, 16:9
Brightness: 1,000 cd/m², maintains visualization under operating room overhead lighting
Contrast Ratio: 1000:1 original, with a Mega dynamic contrast mode
Viewing Angle: 178 degrees horizontal and 178 degrees vertical for the full surgical team
Color Gamut: sRGB 99 percent, CIE1931
Color Depth: 10-bit, 1.07 billion colors
Response Time: 14 ms typical, 5 ms gray to gray at high setting
DICOM: dedicated DICOM Part 14 picture mode with brightness stabilization, addressing NEMA and ACR medical imaging quality concerns
Hardware Calibration: True Color Pro with an included factory calibration report, Delta E under 2
Picture Modes: Custom, Mono, sRGB, BT.709, DICOM, Calibration 1, and Calibration 2, with Six Axis Control
Optical Bonding Glass: 1.3 millimeter glass with 8H hardness and anti-reflection and anti-fingerprint coatings, which reduces internal reflection between the cover glass and the panel for a brighter, sharper image
Anti-Microbial: an anti-microbial coating supports a hygienic surface in the operating room
IP35 Front, IP32 Rear, IK06: protected against water spray and dust at the front, dripping water at the rear, and 1 joule of impact, and cleanable with hospital-grade disinfectants
Wide Input Set: 3G-SDI in and out, two DVI-D inputs with a DVI-D output, HDMI 2.0, D-Sub, composite over BNC, S-Video, and component
Remote Control: RS-232C and RJ45 for integration with operating room AV switching and pendant systems
Image Tools: picture by picture, picture in picture, Super Resolution Plus, Black Stabilizer, Uniformity Compensation, and Dynamic Sync Mode
How the 27HK510S compares against a standard consumer display in the operating room:
The 27HK510S is a medical-grade replacement for consumer displays in operating rooms that need wide signal compatibility at Full HD resolution. The 3G-SDI in and out, two DVI-D inputs, HDMI 2.0, D-Sub, composite, S-Video, and component cover the complete range of modern and legacy surgical cameras, scope towers, anesthesia workstations, and older equipment in established operating rooms. RS-232C and RJ45 remote control integrate the display into existing AV pendant and control systems, and the sealed, DICOM-calibrated, anti-microbial design fits directly into current operating room infrastructure without a signal routing overhaul.
Full Technical Specifications
Complete reference data for operating room procurement, biomedical review, and facilities planning. Surgical department heads, operating room coordinators, and biomedical engineers rely on this specification set when they evaluate Full HD surgical displays. Expand each category for full detail.
| Resolution | Full HD, 1,920 × 1,080 |
| Panel Type | IPS |
| Screen Size | 27 inch, 16:9 |
| Brightness, typical | 1,000 cd/m² |
| Contrast Ratio | 1000:1 original, Mega dynamic |
| Color Gamut | sRGB 99 percent, CIE1931 |
| Color Depth | 10-bit, 1.07 billion colors |
| Response Time | 14 ms typical, 5 ms gray to gray at high |
| Viewing Angle | 178° horizontal and 178° vertical |
| Surface Treatment | Optical bonding glass, 1.3 mm, 8H, AR and AF |
| DICOM | Part 14 picture mode with brightness stabilization |
| Weight | 7.7 kg, which is 17 lbs, stand not included |
| Packed Weight | 11.1 kg, which is 24.5 lbs |
| Dimensions | Approximately 652 × 412 × 58 mm, 25.7 by 16.2 by 2.3 inches |
| VESA Mount | 200 × 100 mm and 100 × 100 mm |
| IP Rating, front | IP35, water spray and dust protected |
| IP Rating, rear | IP32, protected against dripping water |
| Impact Protection | IK06 |
| Hygiene | Anti-microbial coating |
| SDI | 3G-SDI × 1 in and 3G-SDI × 1 out |
| DVI-D | 2 inputs and 1 output |
| HDMI | HDMI 2.0 × 1 |
| Analog | D-Sub, composite over BNC, S-Video, and component |
| USB | 1 upstream and 1 downstream, for hardware calibration |
| Remote Control | RS-232C and RJ45 |
| Power Input Type | External adapter |
| AC Input | 100 to 240 V AC, 50/60 Hz |
| Power Consumption, DC off | Less than 0.3 W |
| Picture Modes | Custom, Mono, sRGB, BT.709, DICOM, Calibration 1, Calibration 2 |
| Multi-View | Picture by picture and picture in picture |
| Image Tools | Super Resolution Plus, Six Axis Control, Black Stabilizer, Uniformity Compensation, Dynamic Sync Mode |
| Hardware Calibration | True Color Pro, factory calibration report, Delta E under 2 |
| Hygiene and Durability | Anti-microbial coating, IP35 front, IP32 rear, IK06 |
| Regulatory | FDA Class I, CE MDD, Health Canada Class I, UL Medical Grade Listed, TAA compliant |
| Electrical Safety | IEC 60601-1, IEC 60601-1-2, RoHS, REACH, WEEE |
| Warranty | 3 year parts, labor, and backlight |
Clinical Applications
Deployed across general surgery, endoscopy labs, laparoscopic procedure rooms, and fluoroscopy viewing stations where medical-grade Full HD visualization, wide signal compatibility, and operating room durability are required in a compact 27 inch surgical display.
A 1,000 cd/m2 Full HD IPS panel with sRGB 99 percent color delivers clear tissue and instrument visualization during minimally invasive laparoscopic and endoscopic procedures under active operating room lighting, and picture by picture and picture in picture allow two source feeds on one panel.
The 27HK510S connects into existing 3G-SDI signal chains with SDI loop-through, and a wide input set of DVI-D, HDMI, D-Sub, composite, S-Video, and component covers modern and legacy operating room sources, with RS-232C and RJ45 control for AV pendant integration.
A dedicated DICOM Part 14 picture mode with brightness stabilization keeps grayscale consistent for fluoroscopy reference images and surgical navigation overlays displayed alongside the primary endoscopic feed.
The IP35 and IP32 sealed housing with 1.3 millimeter anti-reflection glass and an anti-microbial coating withstands routine surface disinfection between endoscopic cases, and Super Resolution Plus improves the clarity of lower-resolution flexible scope feeds on the Full HD panel.
Full HD IPS at 1,000 cd/m2 with the complete input set covers surgical cameras, scope towers, anesthesia workstations, and legacy operating room equipment in general surgery configurations, with Six Axis Control for color tuning.
FDA Class I, CE Medical Device Directive, Health Canada, UL Medical Grade, and TAA compliance, with a 3 year parts, labor, and backlight warranty, suit standardized procurement across hospital operating rooms and surgery centers.
3G-SDI, Multi-Input, and RS-232C Control
A Full HD surgical AV integration platform designed to slot into established operating room ecosystems, with a wide input set for modern and legacy sources and RS-232C and RJ45 control. The expanded detail on inputs, control, image tools, and mounting is in the expandable sections below.
Brightness: 1,000 cd/m2 maintains clear visualization of endoscopic and fluoroscopic imagery under active operating room overhead lighting, about three times the brightness of a standard consumer display.
DICOM Part 14: a dedicated DICOM picture mode with brightness stabilization addresses the medical imaging quality concerns of NEMA and the American College of Radiology, and it keeps grayscale consistent over time to reduce recalibration frequency.
True Color Pro: hardware calibration through LG True Color Pro, with a factory calibration report at Delta E under 2 and DICOM and two calibration picture modes.
Color: sRGB 99 percent with 10-bit color depth and Six Axis Control, with 178 by 178 degree viewing angles for the full surgical team.
3G-SDI, in and out: SDI loop-through integrates the 27HK510S into existing 3G-SDI signal chains, compatible with 3G-SDI surgical cameras, video processors, and routing switchers in established operating rooms.
DVI-D: two DVI-D inputs and a DVI-D output for surgical camera systems and anesthesia workstation connectivity.
HDMI 2.0: high-definition input for modern operating room source devices.
Analog Inputs: D-Sub, composite over BNC, S-Video, and component cover legacy operating room equipment where digital interfaces are not available.
USB: one upstream and one downstream port for hardware calibration.
RS-232C Serial Control: a serial control interface for integration with operating room AV management systems, ceiling pendant controllers, and surgical integration platforms, which enables automated display control without manual on-screen menu interaction.
RJ45 Remote: a network remote interface for centralized control and management of the display.
DDC and CI: standard display data channel control, plus Plug and Play and Key Lock for controlled operating room use.
Equipotential Plug: a grounding plug for medical electrical safety in the operating room.
Picture by Picture and Picture in Picture: view two independent video sources side by side or one within the other on a single 27 inch panel, for example an endoscopic camera feed alongside a fluoroscopy or navigation reference image.
Super Resolution Plus: enhances the apparent detail and sharpness of lower-resolution source signals, which helps when upscaling legacy standard-definition endoscope systems to the Full HD panel.
Dynamic Sync Mode: reduces input latency on a 60 hertz source for real-time visualization.
Black Stabilizer and Uniformity Compensation: improve dark region visibility and luminance uniformity across the panel.
Optical Bonding Glass: 1.3 millimeter glass with 8H hardness and anti-reflection and anti-fingerprint coatings, which reduces internal reflection between the cover glass and the panel for a brighter, sharper image under operating room lighting.
Anti-Microbial: an anti-microbial coating supports a hygienic surface.
IP35 Front: protected against water spray from any direction and dust, and cleanable with hospital-grade disinfectants between cases.
IP32 Rear: protected against dripping water on the rear panel.
IK06 Impact Resistance: withstands 1 joule of impact.

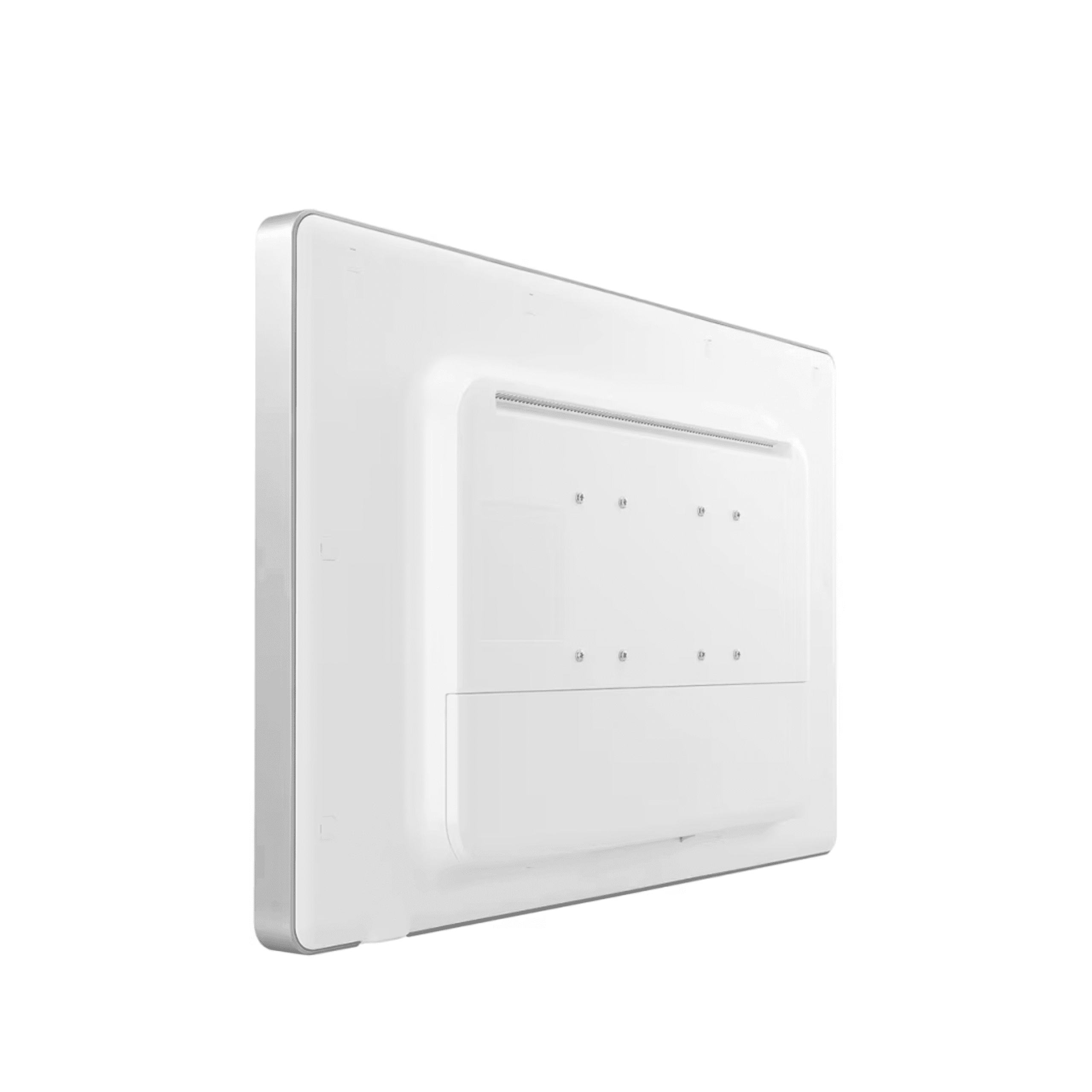

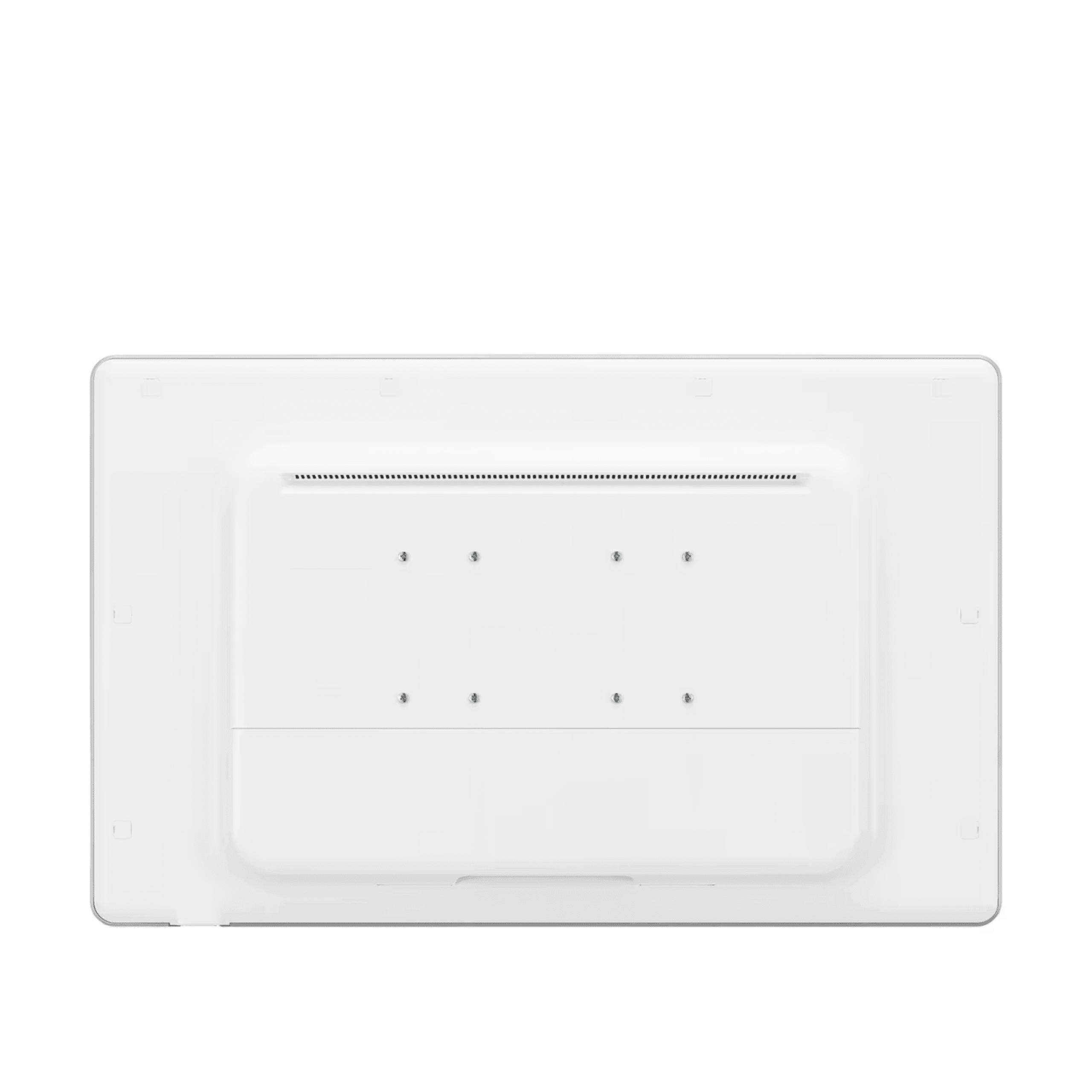

VESA Mount: 200 by 100 millimeters and 100 by 100 millimeters for boom, pendant, wall, or ceiling mount. A stand is not included, and the monitor weighs 7.7 kilograms.
Regulatory Compliance and Safety Standards
The LG 27HK510S is FDA Class I, CE marked under the Medical Device Directive, Health Canada registered, UL Medical Grade Listed, and TAA compliant, and it meets IEC 60601-1 and IEC 60601-1-2 medical electrical safety standards for operating room use. Medical Outfitters is an ISO 13485:2016 certified supplier of surgical imaging equipment, so every unit ships through a documented and audited quality management system. Full compliance documentation is available in the expandable sections below.
FDA Class I: registered as a Class I medical device for use in surgical and clinical environments in the United States, and UL Medical Grade Listed.
CE MDD: CE marked and registered as a Class I device under the European Medical Device Directive 93/42/EEC.
Health Canada: registered as a Class I device under the Canadian Medical Device Regulations.
TAA Compliant: compliant with the Trade Agreements Act for government and group purchasing procurement.
ISO 13485: Medical Outfitters is independently ISO 13485:2016 certified as a surgical imaging equipment supplier.
IEC 60601-1: meets the general safety requirements for medical electrical equipment, confirmed by cUL certification to ANSI/AAMI ES 60601-1 and CSA C22.2 No. 60601-1, and EN 60601-1.
IEC 60601-1-2: meets the electromagnetic compatibility requirements, so the monitor does not interfere with adjacent surgical equipment or patient monitoring systems.
Additional: FCC Part 15 Class A, ICES-003, and an equipotential grounding plug for the operating room.
Anti-Microbial: an anti-microbial coating and a sealed IP35 front and IP32 rear housing support hygienic, cleanable use in the operating room.
RoHS, REACH, and WEEE: compliant with the Restriction of Hazardous Substances directive, the European Union REACH chemical regulation, and the Waste Electrical and Electronic Equipment directive.
Warranty: a 3 year limited warranty covering parts, labor, and backlight, with a factory calibration report, True Color Pro, and operating software included.
OR AV Compatibility & Integration Review
Provide your surgical camera and scope tower models, operating room boom arm specifications, SDI signal routing layout, and AV control system. Our surgical imaging specialists confirm full compatibility with your existing operating room equipment before your order ships.
Hospital Procurement & RFP Support
Volume pricing, TAA compliant quoting, technical documentation, and logistics for multi-OR and surgery center deployments. We support biomedical engineers, operating room directors, and hospital purchasing departments. Contact us for RFP packages.
Frequently Asked Questions
Quick answers to the most common purchase and technical questions about the LG 27HK510S surgical monitor. Tap any question to expand.
No. The 27HK510S is designed for wall or articulating arm mounting in surgical environments, and it supports VESA 200 by 100 millimeters and 100 by 100 millimeters patterns for operating room boom arms, ceiling mounts, and wall brackets. Contact Medical Outfitters to discuss compatible mounting solutions for your operating room.
The 27HK510S is a Full HD IPS panel with sRGB 99 percent color and 10-bit color depth, with 178 by 178 degree viewing angles for the full surgical team. It includes dedicated Custom, Mono, sRGB, BT.709, DICOM, and two Calibration picture modes, and Six Axis Control for fine color adjustment, which supports accurate tissue and image color reproduction during procedures.
Yes. The IP35 front and IP32 rear sealed housing, the 1.3 millimeter anti-reflection and anti-fingerprint protection glass, and an anti-microbial coating allow the front surface to be cleaned with hospital-grade disinfectants between cases. Follow the user manual cleaning procedures to maintain warranty coverage and protect the coatings.
The 27HK510S has a wide input set for mixed operating room sources, including 3G-SDI in and out, two DVI-D inputs with a DVI-D output, HDMI 2.0, D-Sub, composite over BNC, S-Video, and component. It also provides RS-232C and RJ45 remote control for integration with operating room AV switching and pendant systems, and a USB upstream and downstream pair for hardware calibration.
Yes. The monitor has a dedicated DICOM Part 14 picture mode and brightness stabilization that address the quality concerns of NEMA and the American College of Radiology for medical imaging during surgical procedures. Hardware calibration is supported through True Color Pro, and a factory calibration report with Delta E under 2 is included.
Yes. The 27HK510S is FDA Class I, CE marked under the European Medical Device Directive, Health Canada registered as a Class I device, UL Medical Grade Listed, and TAA compliant. It is certified to IEC 60601-1 and IEC 60601-1-2 for medical electrical safety and electromagnetic compatibility, and it carries a 3 year parts, labor, and backlight warranty.
No. The 27HK510S is designed for intraoperative surgical visualization, not primary diagnostic radiology reading. For primary diagnostic displays, see the LG 32HL512D 8 megapixel diagnostic monitor and the LG 31HN713D 12 megapixel mammography monitor. The 27HK510S is appropriate for operating room visualization and endoscopy suite applications.
Through Medical Outfitters Inc., an ISO 13485:2016 certified supplier based in Miami, FL. We supply factory-new units with integration support and nationwide installation, and we specialize in surgical monitors and operating room display systems. Call (305) 885-4045 or request a quote online.
Compatible Equipment
Other LG surgical displays from Medical Outfitters. For a 4K resolution upgrade with Mini-LED on the same 27 inch size, see the LG 27HQ710S and LG 27HS714S.
LG 27HQ710S Mini-LED Surgical Monitor
27" 4K Mini-LED · 2,000 cd/m² peak · 3G-SDI in and out · IP45 · 4K upgrade path
View Product

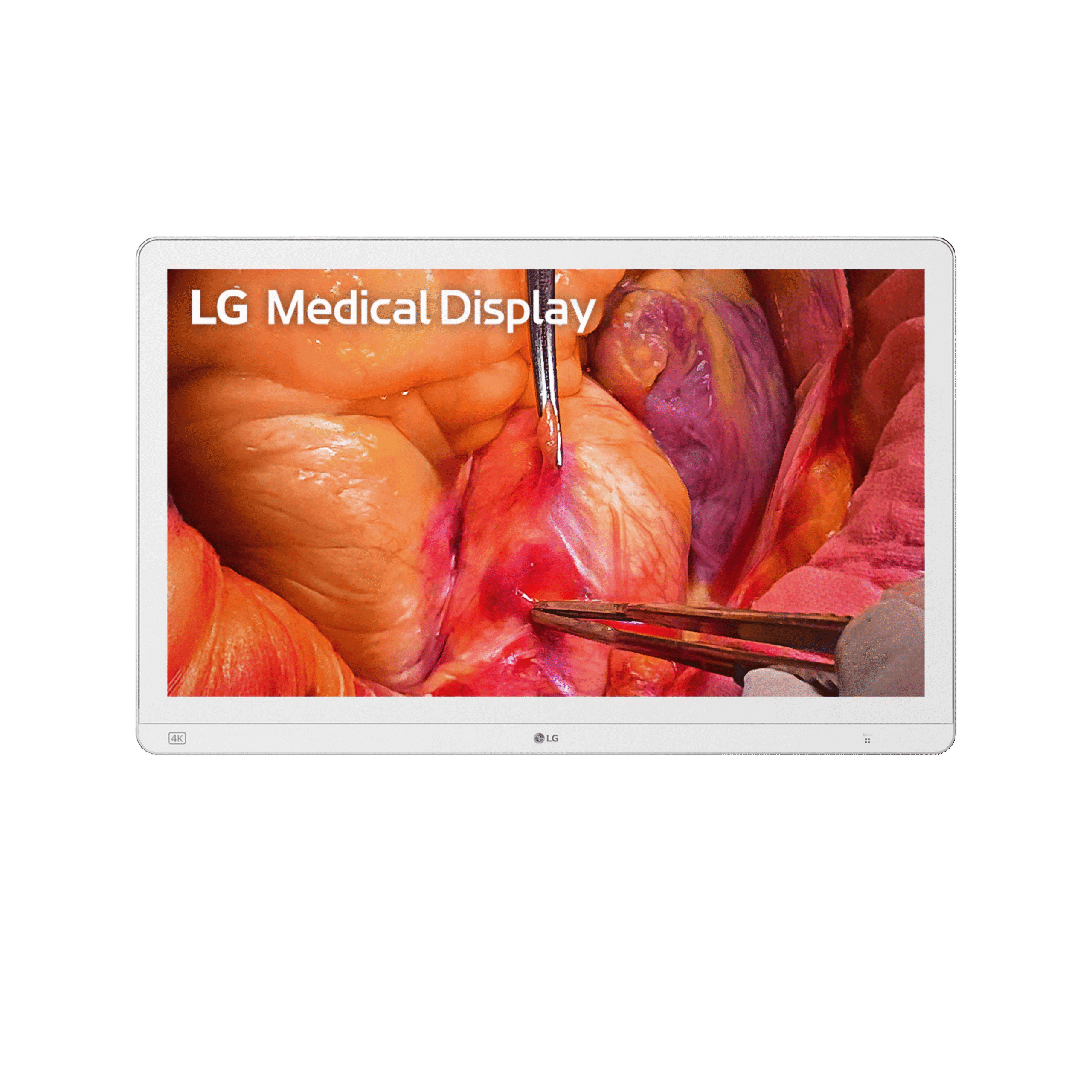

LG 27HS714S Surgical Monitor
