LG 27HJ713C: 27″ 8MP IPS Clinical Review Monitor with Two-Way Pivot and DICOM Part 14
Authorized LG clinical imaging solutions supplier. The LG 27HJ713C is a 27-inch 8MP IPS clinical review monitor designed for secondary interpretation and multimodality review workstations. The 3840×2160 (8MP) IPS panel resolves individual pixel structures in CT, MR, and cross-sectional modality images at the display level, an advantage for detecting subtle findings at secondary review. Factory DICOM Part 14 calibration with built-in brightness stabilization delivers consistent grayscale accuracy between calibration cycles. The two-way pivot ergonomic stand, rotating plus/minus 90 degrees in either direction with 150mm height adjustment and plus/minus 45 degree swivel, and the 3-side borderless design make the 27HJ713C well suited to dual portrait reading station configurations in radiology reading rooms and MDT review environments.
Core specifications: 27-inch 8MP IPS panel (3840×2160) with 350 cd/m² brightness (250 cd/m² DICOM calibrated) and sRGB over 99% color coverage. DICOM Part 14 compliance with brightness stabilization and True Color Pro hardware calibration support. HDMI x2, DisplayPort 1.2, USB 3.0 hub (2 downstream), and 3.5mm headphone out. PBP, 4 Screen Split, Dual Controller, Flicker Safe, Reader Mode, Dynamic Sync Mode, Six Axis Control, and Super Resolution+. Weight: 7.5 kg with stand, 4.7 kg without. VESA 100x100mm for arm mounting.
Need pricing? Get a quote with lead times and volume discounts within one business day.
8MP Resolution, Two-Way Pivot and DICOM Calibration for Secondary Review
Three capabilities define the 27HJ713C for clinical review environments. The 8MP (3840×2160) IPS panel delivers the pixel density needed for secondary review of CT, MR, and cross-sectional modalities at the display surface. Factory DICOM Part 14 calibration with brightness stabilization and True Color Pro hardware calibration support provides the luminance accuracy and QA infrastructure required in departmental reading environments. The two-way pivot stand and 3-side borderless design address the specific ergonomic requirements of dual portrait reading station configurations common in radiology and MDT settings.
Panel: 27″ IPS, 3840×2160 (8MP), 16:9
Brightness: 350 cd/m² typical, 250 cd/m² DICOM calibrated
Contrast Ratio: 1000:1
Response Time: 14ms typical, 5ms GTG (High)
Viewing Angle: 178/178 degrees for clear visibility across the review team
Color Gamut: sRGB over 99% coverage for accurate color rendering in multimodality review
Color Depth: 10-bit (1.07 billion colors)
Surface Treatment: Anti-Glare 3H hard coating to reduce reflections in lit reading rooms
DICOM Compliance: Factory calibrated to DICOM Part 14 grayscale display function
Brightness Stabilization: Built-in sensor monitors and compensates for backlight luminance drift over time
True Color Pro: Hardware LUT calibration software with Calibration 1 and Calibration 2 modes for formal departmental QA programs
Flicker Safe: Reduces backlight flicker during extended reading sessions
Reader Mode: Reduces blue light for comfortable viewing of text-heavy PACS interfaces and reports
Super Resolution+: Enhances perceived sharpness of lower-resolution source content

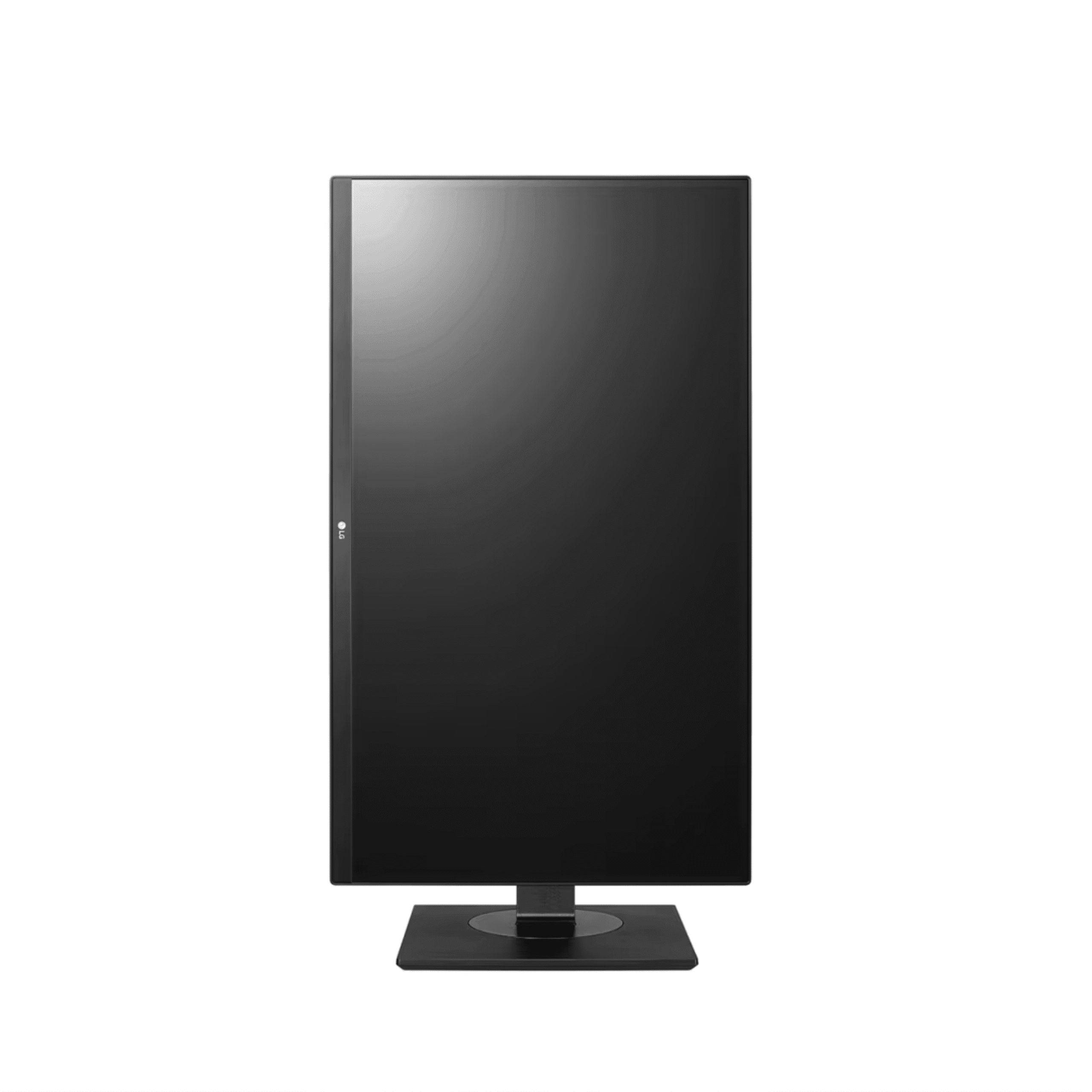

Two-Way Pivot (plus/minus 90 degrees): Rotates to portrait orientation in either direction, clockwise or counterclockwise, for flexible dual portrait reading station configurations without repositioning

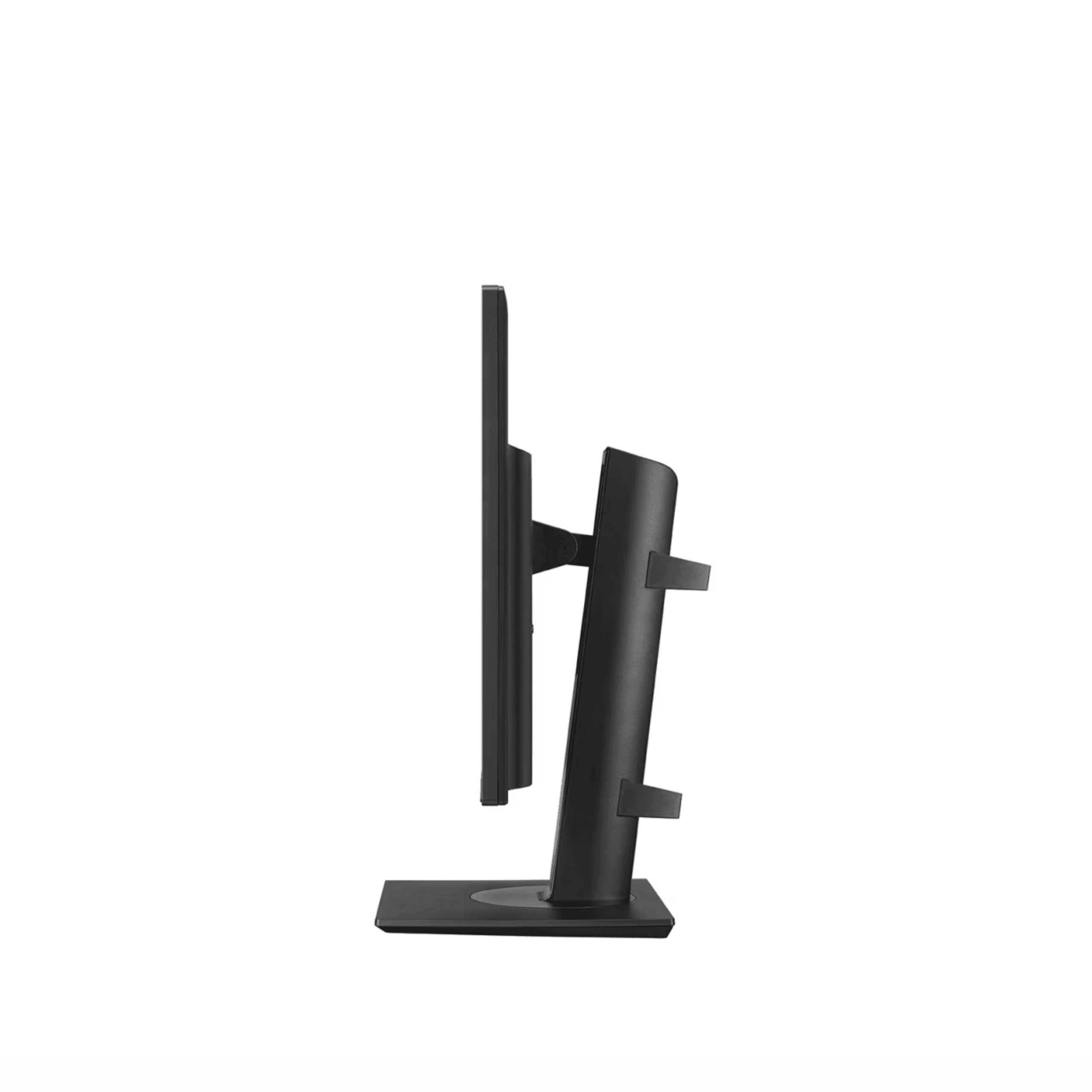

Height Adjustment: 150mm range
Tilt: -5 to +25 degrees
Swivel: plus/minus 45 degrees
3-Side Borderless Design: Minimizes visible bezel gap in side-by-side dual portrait arrangements for near-seamless reading surfaces
One-Click Stand: Tool-less assembly for quick installation and workstation reconfiguration

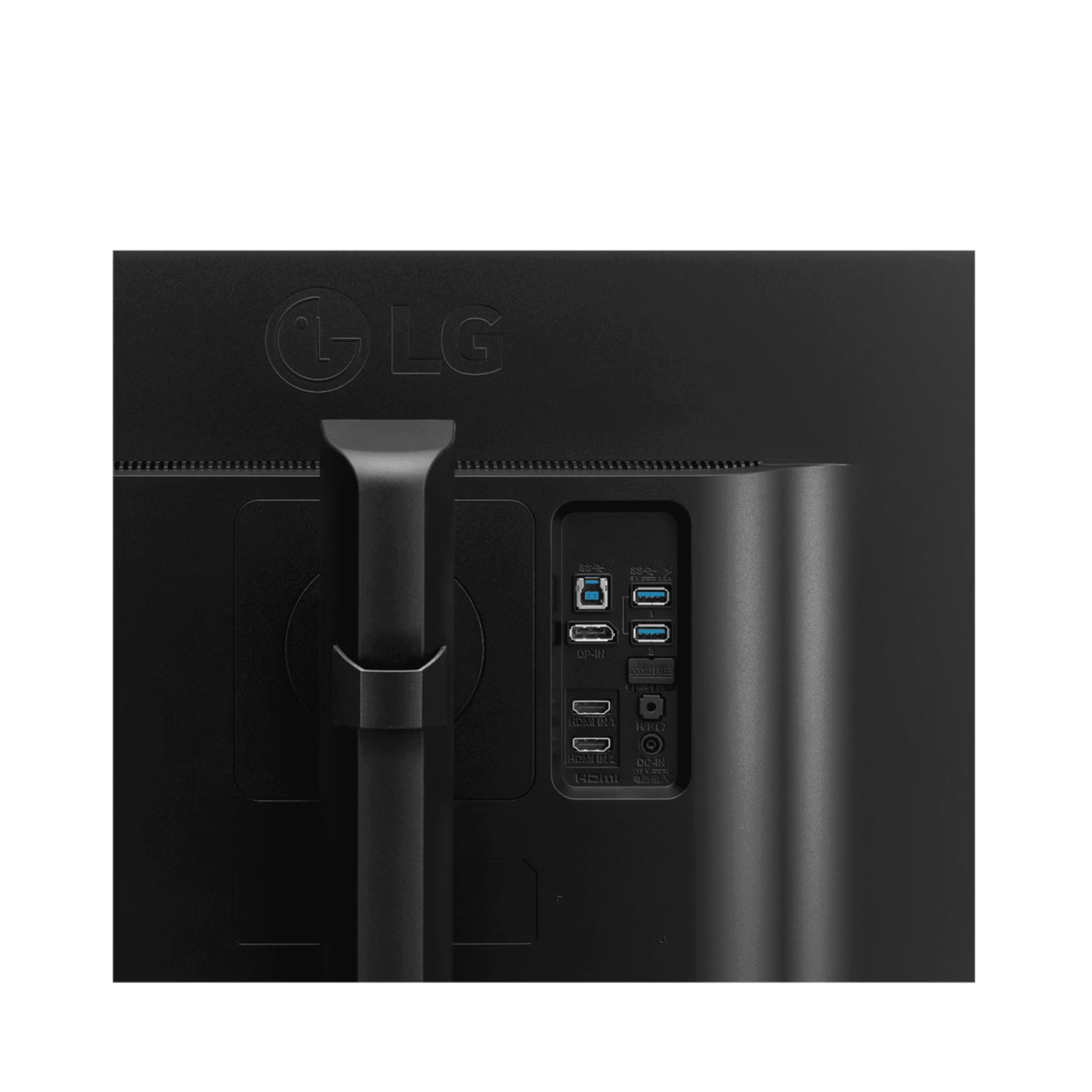

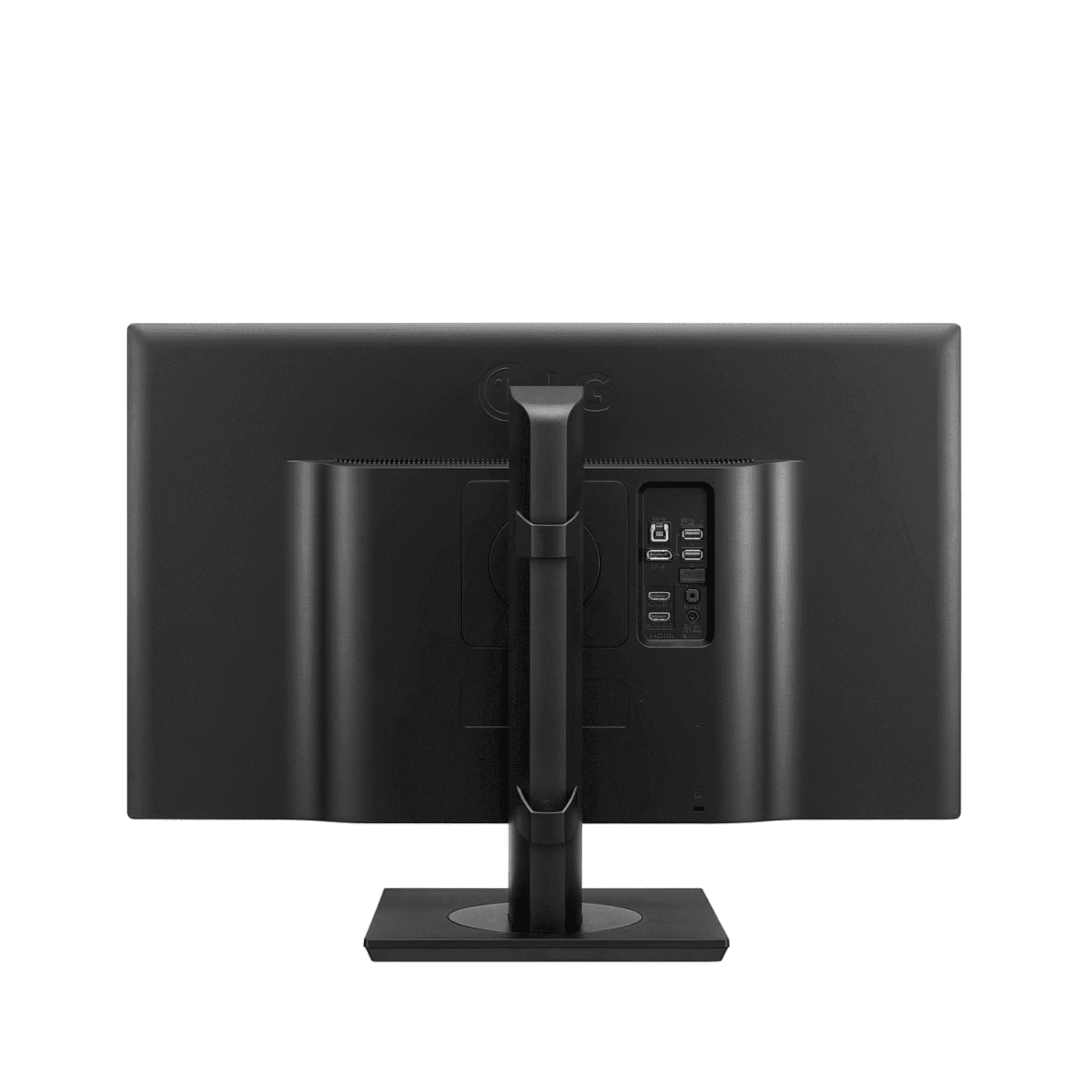

Video Inputs: HDMI 1, HDMI 2, DisplayPort 1.2, three independent sources
PBP: Picture by Picture displays two input sources simultaneously in a split-screen layout
4 Screen Split: Displays up to four source windows on the 8MP panel
Dual Controller: Software KVM, one keyboard and mouse controls two connected computers by moving the cursor to the screen edge
USB 3.0 Hub: USB 3.0 Upstream plus two USB 3.0 Downstream ports for peripheral connectivity
Headphone Out: 3.5mm audio output
VESA: 100x100mm for monitor arm mounting
How the 27HJ713C compares against a standard 4K clinical monitor:

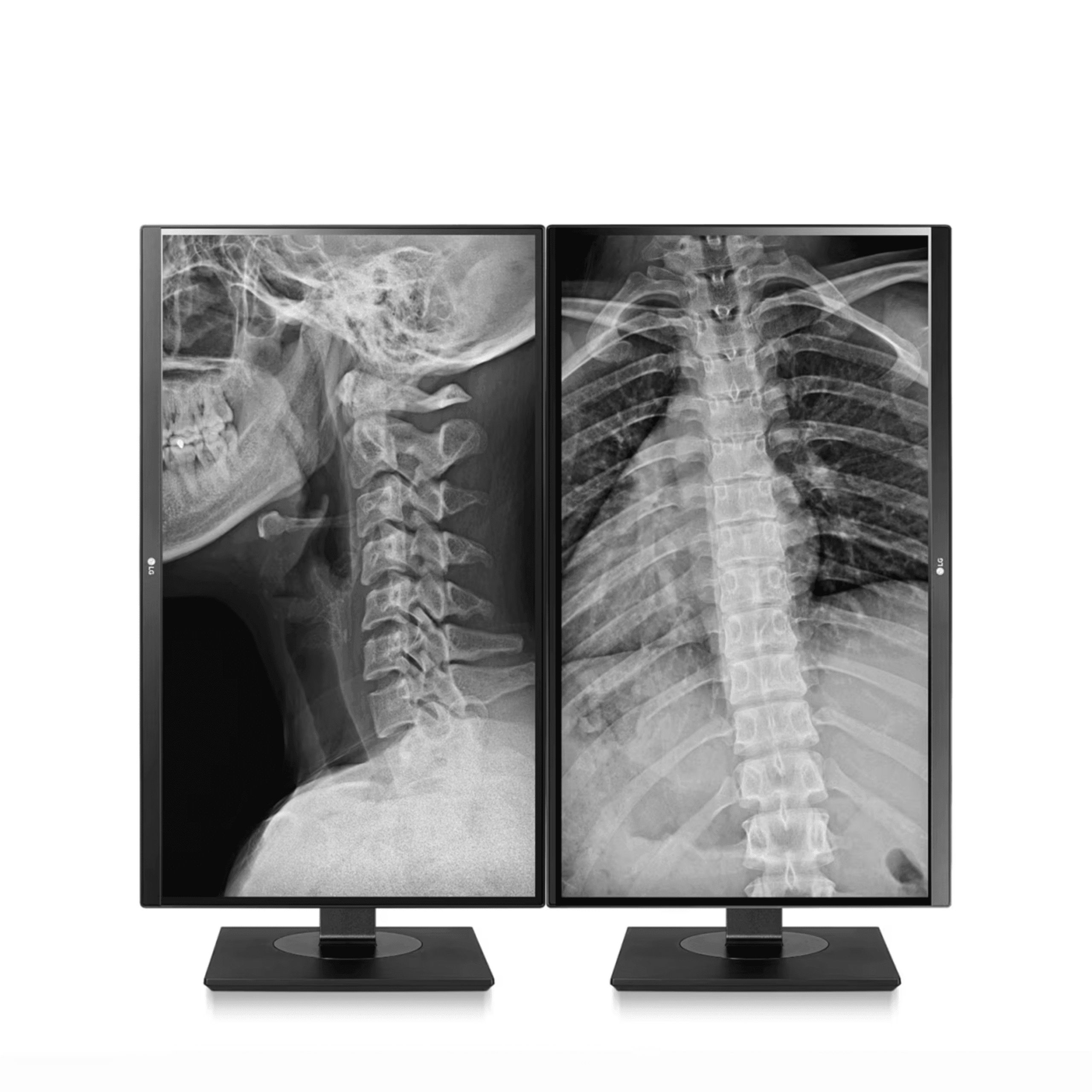

The 27HJ713C two-way pivot stand and 3-side borderless design directly address the dual portrait reading station configuration common in radiology reading rooms and MDT review environments. The two-way pivot allows each display to be rotated to portrait orientation in either clockwise or counterclockwise direction, accommodating different monitor arm placements, desk heights, and room configurations. The 3-side borderless bezel minimizes the visible gap between displays in the portrait dual-monitor arrangement. DICOM Part 14 calibration, brightness stabilization, and True Color Pro hardware calibration support complete the secondary review profile needed for departmental PACS workstation configurations and clinical reading room deployments.
Full Technical Specifications
Complete reference data for IT procurement, biomed review, and reading room planning. Expand each category for the full specification set required by radiology department heads, IT administrators, and facilities teams evaluating 8MP clinical review monitor solutions for PACS workstation environments.
| Resolution | 3,840 × 2,160 (8MP) |
| Panel Type | IPS |
| Screen Size | 27″ (16:9) |
| Brightness (Typ.) | 350 cd/m² |
| Brightness (DICOM Calibrated) | 250 cd/m² |
| Contrast Ratio | 1000:1 |
| Response Time | 14ms typ., 5ms GTG (High) |
| Viewing Angle | 178 / 178 degrees |
| Color Gamut | sRGB over 99% |
| Color Depth | 10-bit (1.07B colors) |
| Surface Treatment | Anti-Glare 3H |
| DICOM Compliance | Part 14 with brightness stabilization |
| Calibration Software | True Color Pro (Calibration 1-2 modes, optional external sensor) |
| Weight (with stand) | 7.5 kg (16.5 lbs) |
| Weight (without stand) | 4.7 kg (10.4 lbs) |
| Shipping Weight | 10.3 kg (22.7 lbs) |
| Dimensions with Stand (W x H x D) | 615 × 546.3 × 276.1 mm |
| Dimensions without Stand (W x H x D) | 615 × 365.1 × 42.7 mm |
| VESA Mount | 100×100 mm |
| Height Adjustment | 150mm range |
| Tilt | -5 to +25 degrees |
| Swivel | plus/minus 45 degrees |
| Pivot | 180 degrees (two-way, clockwise or counterclockwise) |
| HDMI | 2x (HDMI 2.0) |
| DisplayPort | DisplayPort 1.2 |
| USB Upstream | USB 3.0 x1 |
| USB Downstream | USB 3.0 x2 |
| Audio Out | 3.5mm headphone |
| Multi-View | PBP and 4 Screen Split (up to four sources) |
| Power Input | 100-240Vac, 50/60Hz (external adapter, 19V / 3.42A) |
| Power Consumption (Max.) | 65W |
| Sleep Mode | 0.5W |
| DC Off Mode | Less than 0.3W |
| Multi-Source | PBP and 4 Screen Split |
| Dual Controller | Yes – software KVM for two connected computers |
| Calibration | True Color Pro, Six Axis Control, Uniformity Compensation |
| Eye Comfort | Flicker Safe, Reader Mode |
| Image Enhancement | Super Resolution+, Dynamic Sync Mode |
| OSD Control | 5-way joystick (bottom) |
| Medical Certification | FDA Class I, CE MDD, Health Canada CMDR, ISO 13485 |
| Safety / Environmental | IEC 60601-1, IEC 60601-1-2, UL Medical Grade (cUL), RoHS, REACH, WEEE |
Clinical Applications
Deployed across radiology reading rooms, multimodality review workstations, MDT conference environments, and PACS-connected secondary review stations where 8MP resolution, DICOM calibration accuracy, and dual portrait ergonomic flexibility are required.
8MP (3840×2160) IPS panel and DICOM Part 14 calibration with brightness stabilization provide the resolution and consistent luminance needed for secondary review of CT, MR, ultrasound, and nuclear medicine studies in radiology reading rooms and clinical workstation environments.
Two-way pivot (plus/minus 90 degrees in either direction) and 3-side borderless design configure directly into dual portrait arrangements for long-format image review. Height, tilt, and swivel adjustments accommodate different desk heights and radiologist posture preferences for extended reading sessions.
178/178-degree IPS viewing angles allow the clinical team to view the same 8MP display from multiple positions during MDT meetings, tumor board presentations, and collaborative case review sessions without image quality degradation at off-axis positions.
PBP mode displays PACS images alongside a secondary source, such as a reporting interface, prior study, or different modality, simultaneously on the 8MP panel. Dual Controller software allows one keyboard and mouse to control both the PACS workstation and reporting computer from the same desk position.
Flicker Safe, Reader Mode, and brightness stabilization support extended reading room sessions where display consistency and visual comfort affect diagnostic performance over multi-hour radiologist reading schedules. True Color Pro supports departmental QA calibration programs.
Clinical Workflow, Connectivity and Calibration Details
DICOM calibration, dual-source visualization, USB hub connectivity, ergonomic flexibility, and eye comfort features combine to support radiology reading rooms and secondary review workstation configurations. Expand each section for full detail required by radiologists, IT administrators, and department procurement teams.
DICOM Part 14 Compliance: Factory calibrated to DICOM Part 14 grayscale display function for consistent luminance reproduction across modalities at the secondary review workstation.
Brightness Stabilization: Built-in sensor monitors backlight output and compensates for luminance drift over time, maintaining consistent display performance between calibration cycles without manual adjustment.
True Color Pro: Software-based hardware LUT calibration with Calibration 1 and Calibration 2 modes and an optional external sensor supports formal QA programs and scheduled calibration aligned with ACR-AAPM-SIIM secondary review display guidelines.
PBP (Picture by Picture): Displays two video input sources simultaneously in a split-screen layout on the 8MP panel, useful for comparing different modalities, series, or prior studies from the same patient at a single review workstation without toggling inputs. 4 Screen Split extends this to up to four source windows.
Dual Controller: Software feature allowing a single keyboard and mouse to control two computers connected via HDMI and DisplayPort inputs. Moving the cursor to the screen edge transfers control between workstations, reducing the peripheral footprint at dual-workstation review stations where a PACS computer and reporting or dictation system share the same desk position.
Video Inputs: Dual HDMI and DisplayPort 1.2 provide three independent video source connections, a PACS workstation, a secondary reporting computer, and an additional source device, for a fully configured clinical review station.
USB 3.0 Hub: USB 3.0 Upstream plus two USB 3.0 Downstream ports form an integrated peripheral hub at the monitor arm, centralizing keyboard, mouse, and storage connectivity without a separate desk hub.
Headphone Out: 3.5mm headphone jack supports audio monitoring at the review station for PACS viewers and clinical systems with audio output.
Flicker Safe: Reduces backlight flicker during extended reading sessions, reducing cumulative eye strain for radiologists and clinical reviewers at prolonged daily workstation sessions.
Reader Mode: Adjusts display color temperature to reduce blue light emission, providing more comfortable viewing of text-heavy PACS interfaces, radiology report templates, and clinical documentation alongside imaging content.
Dynamic Sync Mode: Reduces input lag on 60Hz sources so that live information from connected devices displays with minimal delay.
Super Resolution+: Image processing that enhances perceived sharpness and detail of lower-resolution source content on the 8MP panel.
Two-Way Pivot (plus/minus 90 degrees): Rotates the display to portrait orientation in either direction, clockwise or counterclockwise, accommodating different desk orientations, monitor arm placements, and multi-monitor configurations without physical repositioning of the display.
Full Ergonomic Range: 150mm height adjustment, -5 to +25 degree tilt, plus/minus 45 degree swivel, covering the full range of posture and viewing angle adjustments for extended reading sessions.
3-Side Borderless Design: Minimizes visible bezel gap in side-by-side dual portrait reading station configurations for near-seamless dual portrait surfaces.
One-Click Stand: Tool-less assembly for quick workstation installation. VESA 100x100mm for monitor arm mounting.
Regulatory Compliance & Quality Standards
The LG 27HJ713C is FDA Class I registered for clinical environments, CE MDD compliant, Health Canada CMDR registered, and meets IEC 60601-1 and IEC 60601-1-2 medical electrical safety standards. DICOM Part 14 compliance with True Color Pro supports departmental QA requirements for secondary review display environments. Medical Outfitters Inc. is independently ISO 13485:2016 certified.
DICOM Part 14: Factory calibrated to DICOM Part 14 grayscale display function for secondary clinical review applications.
Brightness Stabilization: Built-in sensor maintains consistent luminance over time, reducing visible drift between calibration intervals.
True Color Pro: Optional external sensor and software support hardware LUT calibration (Calibration 1 and Calibration 2 modes) for formal departmental QA programs aligned with ACR-AAPM-SIIM secondary review display requirements.
FDA Class I: Registered as a Class I medical device for clinical use in the United States.
CE MDD: Compliant with the EU Medical Device Directive (93/42/EEC) Class I for deployment in European clinical environments.
Health Canada CMDR: Class I registration under the Canadian Medical Devices Regulations.
ISO 13485: Manufactured under ISO 13485 quality management system standards. Medical Outfitters is independently ISO 13485:2016 certified as a clinical imaging solutions supplier.
IEC 60601-1: General electrical safety for medical electrical equipment, confirms safe deployment in clinical patient care environments.
IEC 60601-1-2: EMC compliance, ensures the monitor does not interfere with adjacent clinical equipment in reading rooms and workstation areas.
UL Medical Grade: UL Medical Grade Listed (cUL) for the U.S. and Canada.
Environmental: RoHS, REACH, and WEEE compliant.
Power: Maximum 65W. DC Off mode less than 0.3W.
Reading Room Configuration Review
Share your PACS workstation specs, monitor arm model, and dual portrait or landscape layout requirements. Our clinical imaging specialists confirm the 27HJ713C stand setup, calibration program, and dual-monitor configuration before your order ships.
Hospital Procurement & RFP Support
Volume pricing, technical documentation, and logistics coordination for hospital radiology departments, imaging center networks, and GPO procurement teams. Full documentation package available for IT and department procurement review.
Frequently Asked Questions
Common questions from radiologists, radiology department heads, IT administrators, and procurement teams evaluating the LG 27HJ713C for secondary review stations, dual portrait reading configurations, and PACS workstation environments.
The 27HJ713C features an enhanced ergonomic stand with 150mm height adjustment range (vs 110mm in the 27HJ712C-W), plus/minus 45 degree swivel, and two-way pivot for portrait orientation in either direction, where the 27HJ712C-W uses a single-direction pivot. Both monitors share the same 27-inch 8MP IPS panel, DICOM Part 14 calibration, and brightness stabilization. The 27HJ713C is the more ergonomically flexible configuration for dual portrait reading station setups.
No. The LG 27HJ713C is designed for secondary clinical review, not primary diagnostic interpretation. It is not a replacement for FDA-cleared primary diagnostic displays. For primary diagnostic display requirements see the LG 32HL512D or LG 31HN713D. The 27HJ713C meets ACR-AAPM-SIIM brightness guidelines for secondary review applications including multimodality review, MDT meetings, and clinical reading room configurations where secondary review standards apply.
Yes. The two-way pivot (plus/minus 90 degrees) allows each display to rotate to portrait orientation in either direction, clockwise or counterclockwise, accommodating different monitor arm placements and desk configurations. The 3-side virtually borderless design minimizes visible bezel gap in dual portrait arrangements, providing a near-seamless dual portrait surface for reviewing long-format images or side-by-side modality comparison in radiology reading rooms.
No external sensor is required for normal clinical use. The monitor is factory calibrated to DICOM Part 14 with built-in brightness stabilization that maintains luminance consistency automatically over time. For facilities with formal QA programs and scheduled calibration requirements, True Color Pro software supports hardware LUT calibration using an optional external sensor via USB.
Dual Controller is a software feature that allows one keyboard and mouse set to control two computers connected to the monitor via its HDMI and DisplayPort inputs. Moving the cursor to the screen edge transfers control between the two connected computers. This is useful at clinical review stations where a PACS workstation and a reporting or dictation computer share the same desk, reducing the peripheral count without a dedicated hardware KVM switch.
Yes. The 27HJ713C is factory calibrated to the DICOM Part 14 grayscale display function and ships with a factory calibration report. Built-in brightness stabilization continuously monitors and adjusts backlight output to maintain consistent luminance over time, reducing visible drift between scheduled calibration events in clinical reading room environments.
The 27HJ713C has three video inputs: HDMI 1, HDMI 2, and DisplayPort 1.2. These accommodate a PACS workstation, a secondary reporting computer, and an additional source device. PBP mode can display two sources simultaneously and 4 Screen Split shows up to four sources on the 8MP panel. The integrated USB 3.0 hub (one upstream, two downstream ports) provides peripheral connectivity at the monitor without a separate desk hub.
Through Medical Outfitters Inc., ISO 13485:2016 certified, Miami, FL. Factory-new units with configuration support and nationwide delivery. Specialists in clinical review monitors, radiology display solutions, and PACS workstation configurations. Call (305) 885-4045 or request a quote online. Volume pricing and GPO-compatible quoting available for hospital systems and multi-site imaging networks.
Compatible Equipment
The 27HJ713C is a clinical review display. The 27HS713C provides the same 8MP review panel with USB-C single-cable connectivity, and for primary diagnostic reading and mammography LG offers dedicated displays from Medical Outfitters.

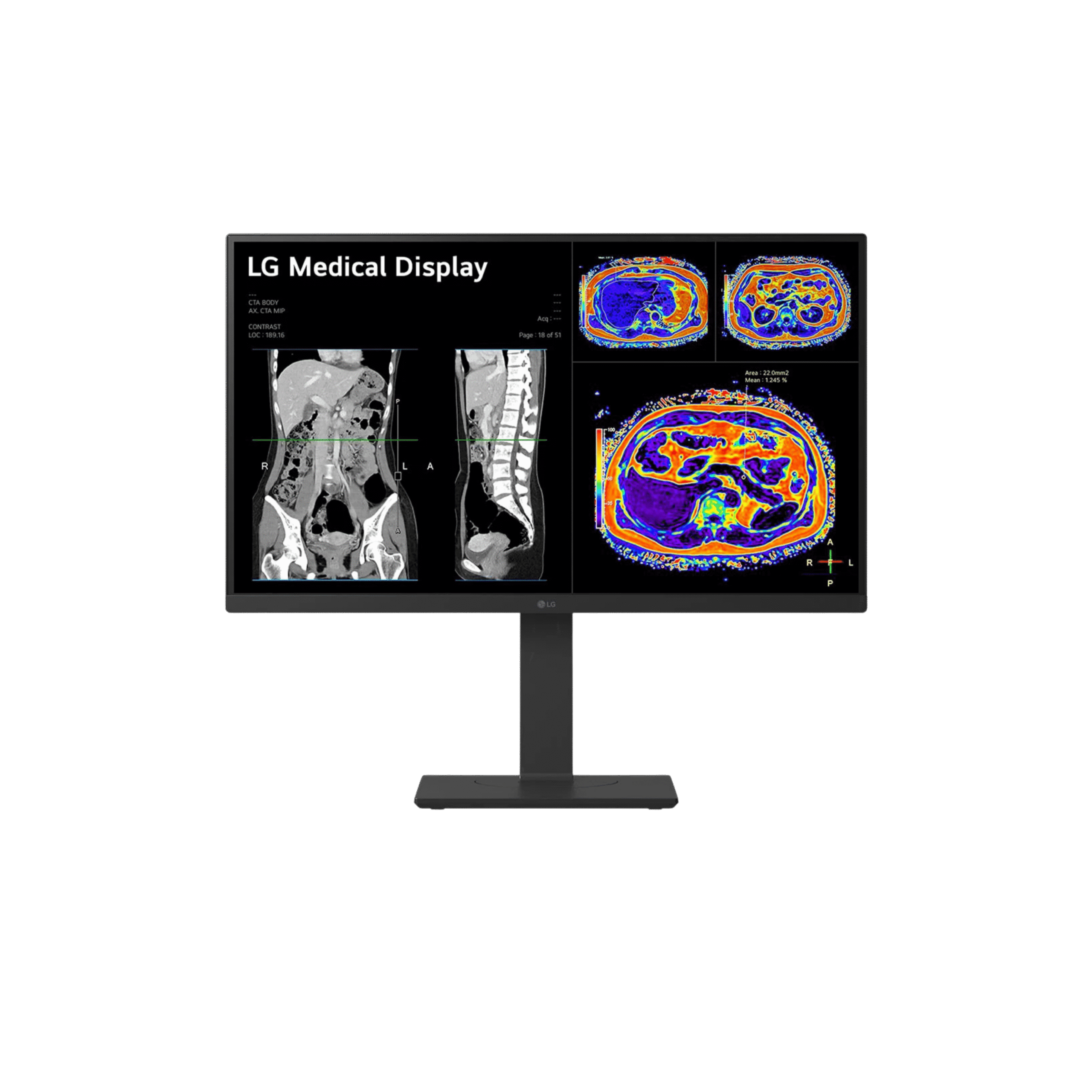

LG 27HS713C Clinical Review Monitor
