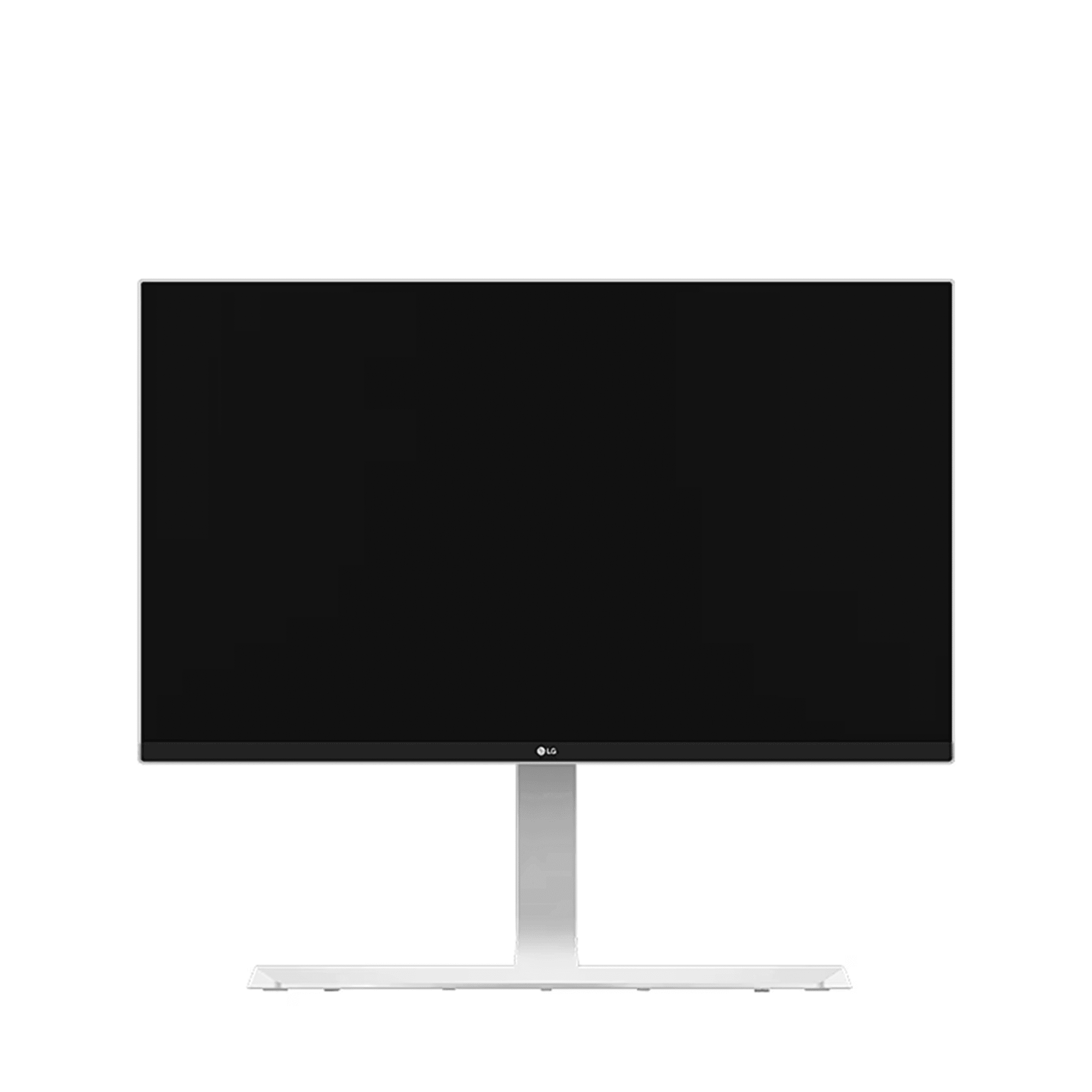

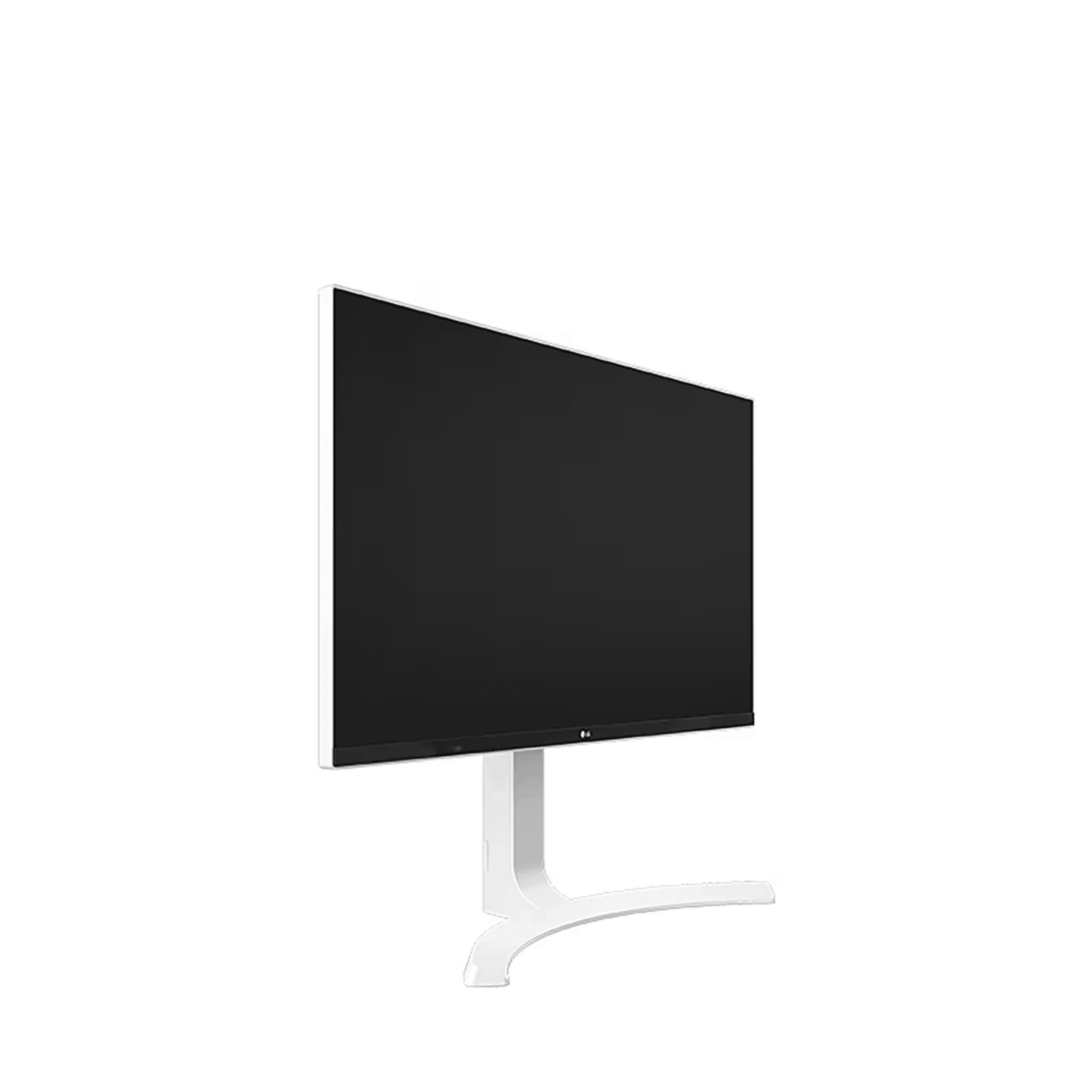

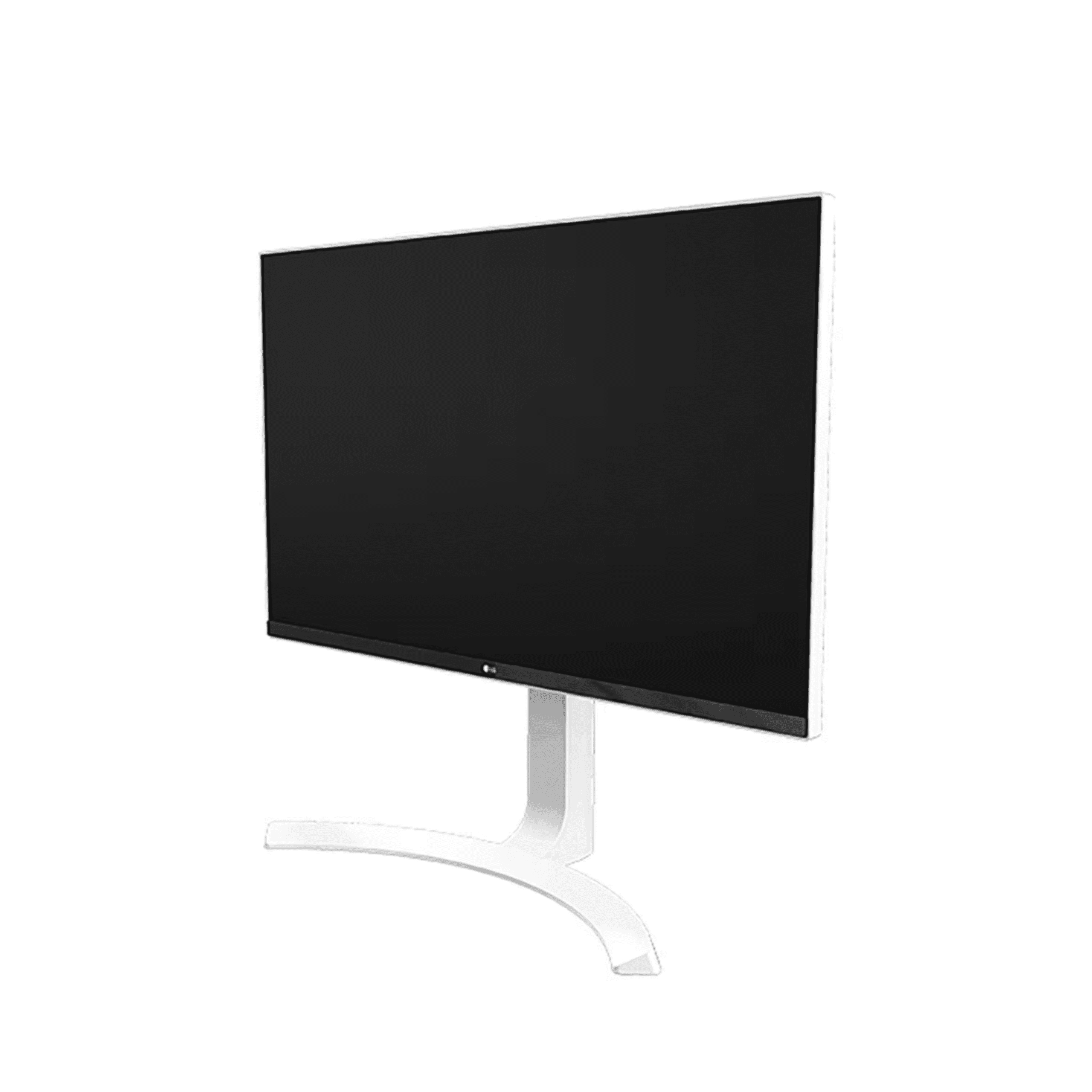

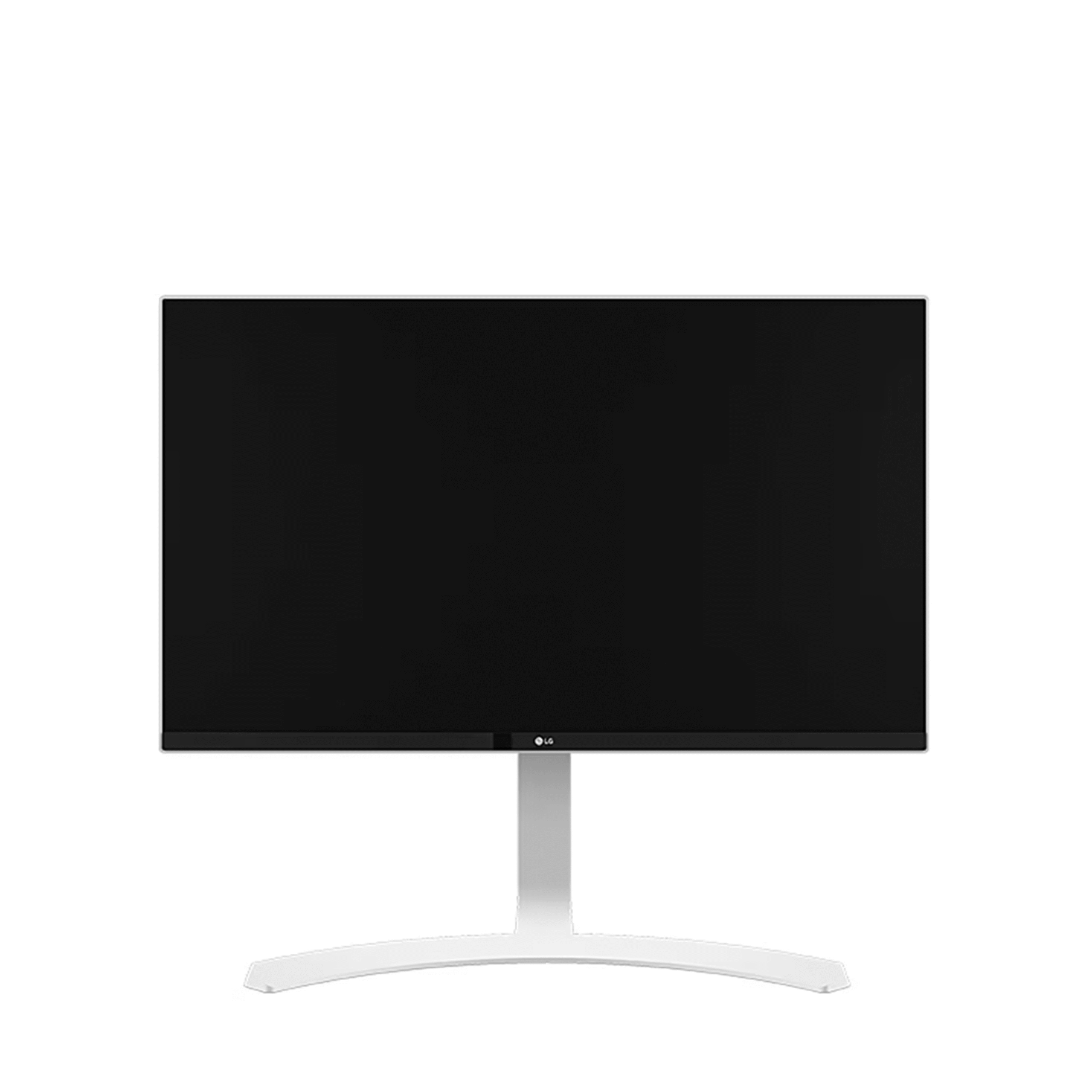

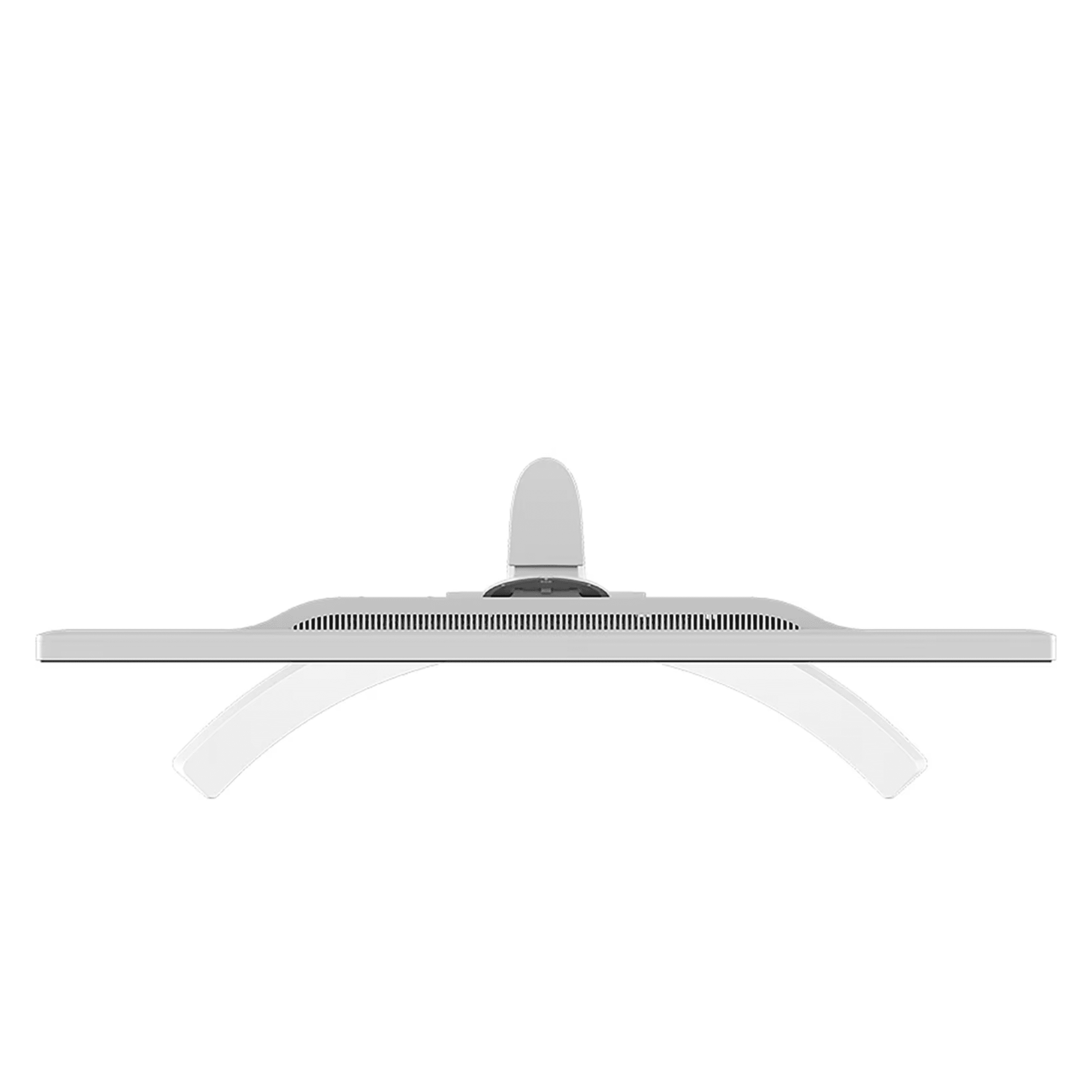

LG 27HJ712C-W: 27″ 8MP IPS Clinical Review Monitor with DICOM Part 14 and Brightness Stabilization
Authorized LG clinical imaging solutions supplier. The LG 27HJ712C-W is a 27-inch 8MP IPS clinical review monitor that delivers the core imaging performance of the LG 8MP clinical review platform in a compact, lightweight white configuration. The 3840×2160 (8MP) IPS panel provides the pixel density needed for secondary review of CT, MR, ultrasound, and cross-sectional modality studies at the display level. Factory DICOM Part 14 calibration with built-in brightness stabilization maintains consistent grayscale accuracy between calibration cycles. HDMI x2, DisplayPort 1.2, a USB 3.0 hub, PBP, and Dual Controller support fully configured dual-workstation PACS review setups. The 110mm height ergonomic stand with portrait pivot and 3-side borderless design support dual portrait reading configurations at fixed desk positions or VESA arm-mounted clinical workstations.
Core specifications: 27-inch 8MP IPS panel (3840×2160) with 350 cd/m² brightness and sRGB over 99% color coverage. DICOM Part 14 compliance with brightness stabilization and True Color Pro hardware calibration. HDMI x2, DisplayPort 1.2, USB 3.0 hub (2 downstream), and a 3.5mm headphone out. PBP, Dual Controller, Flicker Safe, Reader Mode, Dynamic Sync Mode, Six Axis Control, Uniformity Compensation, and Super Resolution+. Weight: 6.2 kg with stand, 4.7 kg without. VESA 100x100mm for arm mounting.
Need pricing? Get a quote with lead times and volume discounts within one business day.
8MP Resolution, DICOM Part 14 Calibration and Dual Controller for Secondary Review
Three capabilities define the 27HJ712C-W for clinical review environments. The 8MP (3840×2160) IPS panel delivers the pixel density needed for secondary review of CT, MR, and cross-sectional modalities at the display surface, the same panel as the LG 27HJ713C in a more compact stand configuration. Factory DICOM Part 14 calibration with brightness stabilization and True Color Pro hardware calibration provide the luminance accuracy and QA infrastructure required in departmental reading environments. HDMI x2, DisplayPort 1.2, PBP, and Dual Controller address the multi-source workstation configurations common in radiology and clinical review settings.
Panel: 27″ IPS, 3840×2160 (8MP), 16:9
Brightness: 350 cd/m² typical
Contrast Ratio: 1000:1 original, Mega dynamic
Response Time: 14ms typical, 5ms GTG (High)
Viewing Angle: 178/178 degrees for clear visibility across the review team
Color Gamut: sRGB over 99% coverage for accurate color rendering in multimodality review
Color Depth: 10-bit (1.07 billion colors)
Surface Treatment: Anti-Glare 3H hard coating to reduce reflections in lit reading rooms
DICOM Compliance: Factory calibrated to DICOM Part 14 grayscale display function
Brightness Stabilization: Built-in sensor monitors and compensates for backlight luminance drift over time
True Color Pro: Hardware LUT calibration software with Calibration 1 and Calibration 2 modes for formal departmental QA programs
Flicker Safe: Reduces backlight flicker during extended reading sessions
Reader Mode: Reduces blue light for comfortable viewing of text-heavy PACS interfaces and reports
Super Resolution+: Enhances perceived sharpness of lower-resolution source content

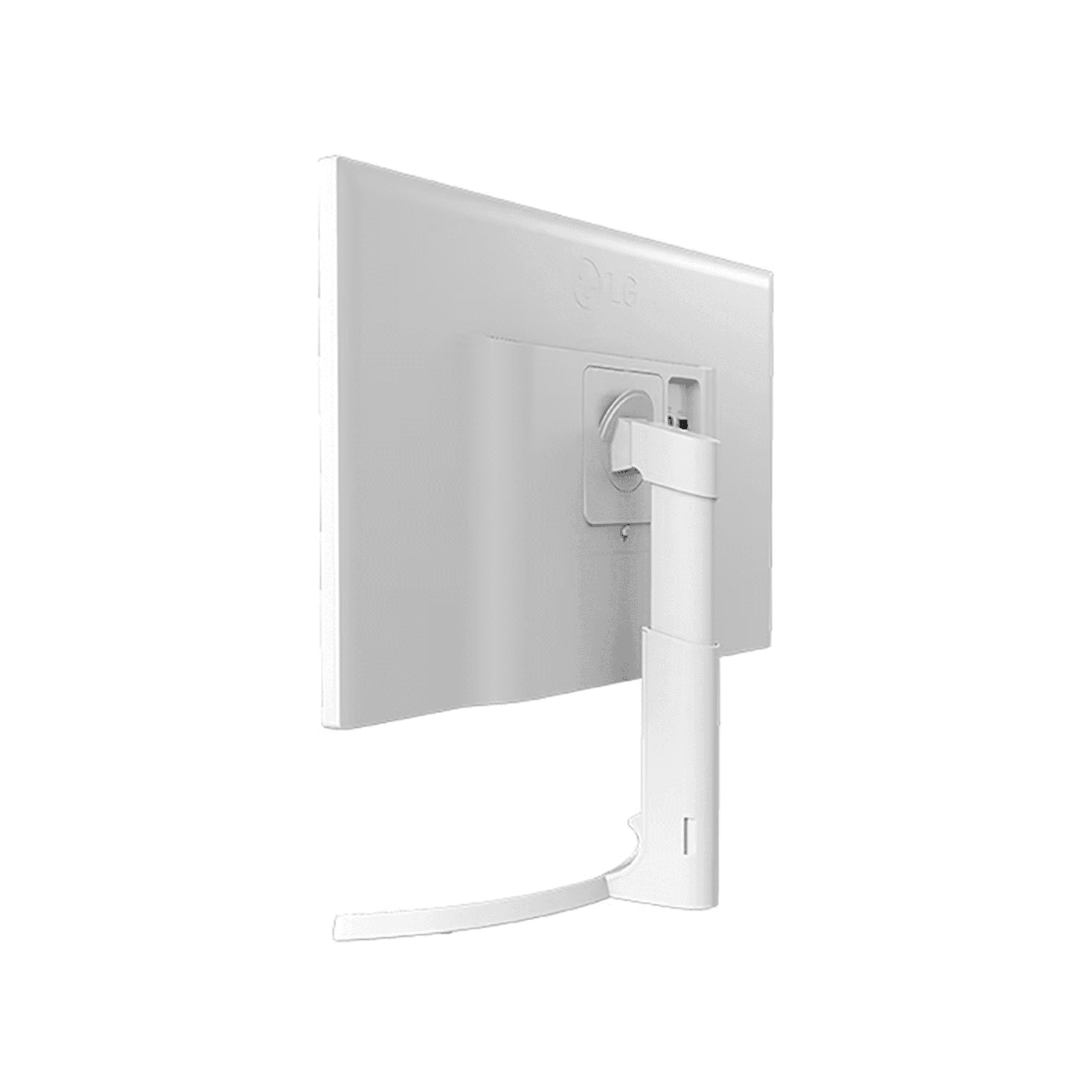

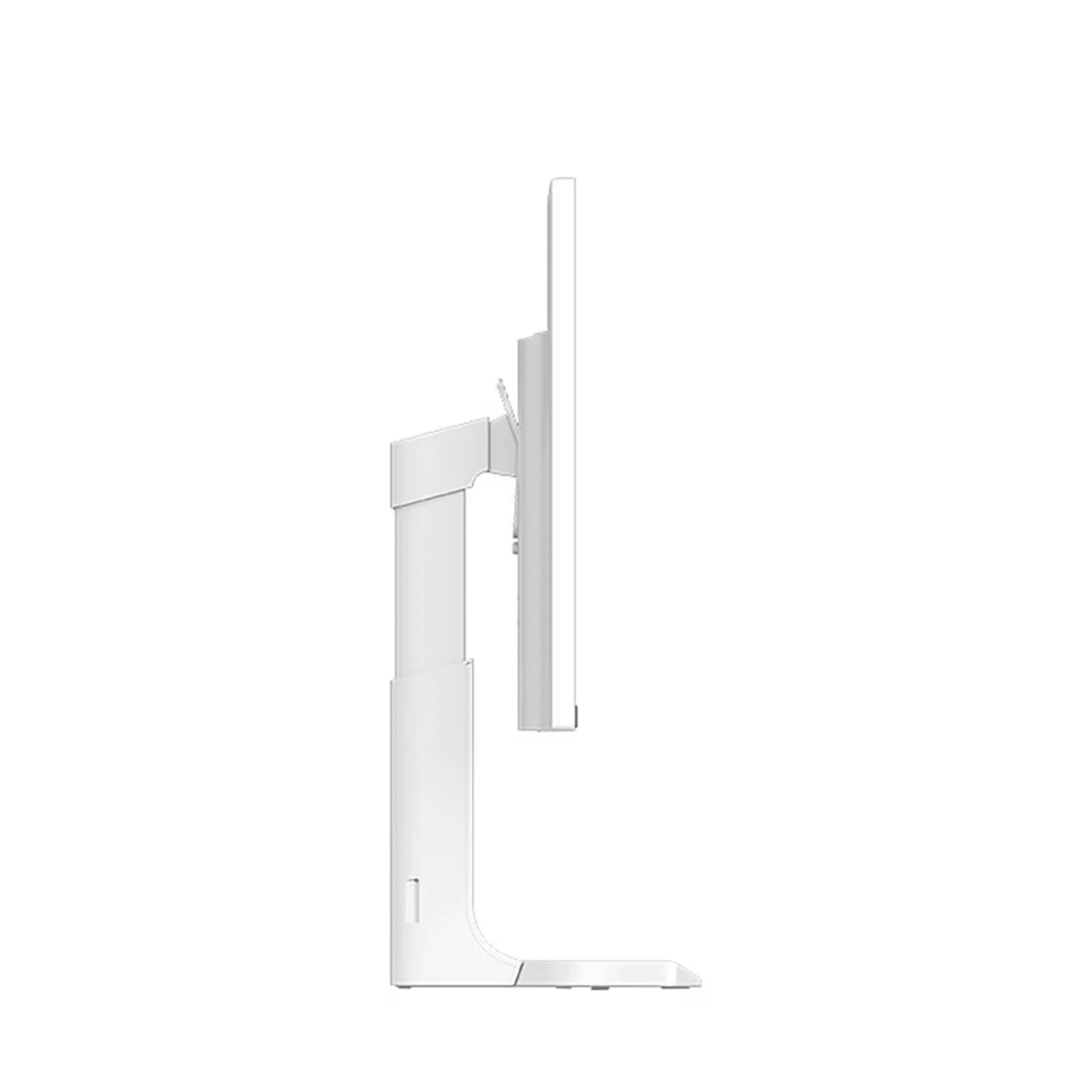

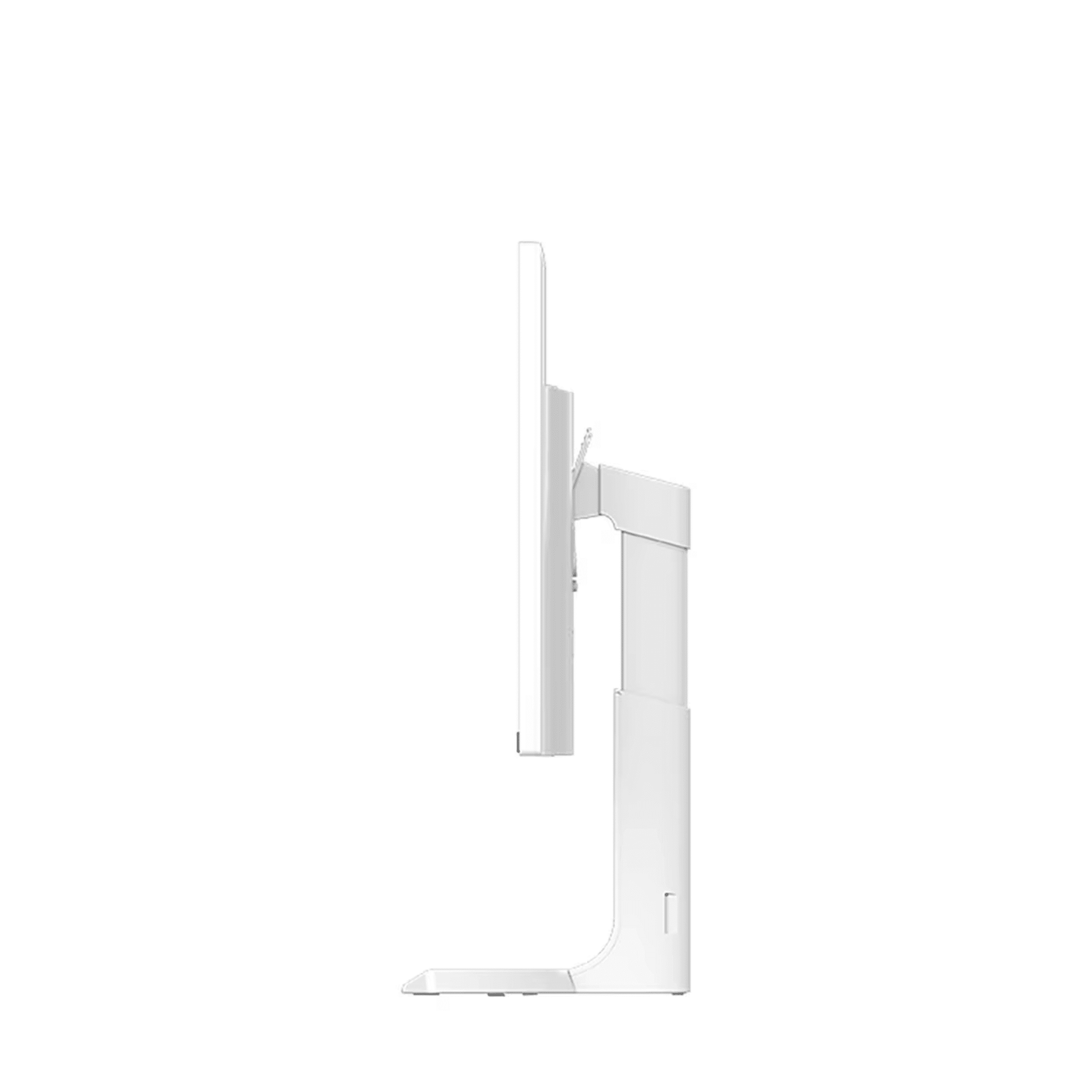

Height Adjustment: 110mm range accommodates different desk heights and clinical workstation configurations
Tilt: -3 to +20 degrees
Portrait Pivot: 90 degrees to portrait orientation for long-format image review
3-Side Borderless Design: Minimizes visible bezel gap in side-by-side dual portrait arrangements for near-seamless reading surfaces
One-Click Stand: Tool-less assembly for quick installation

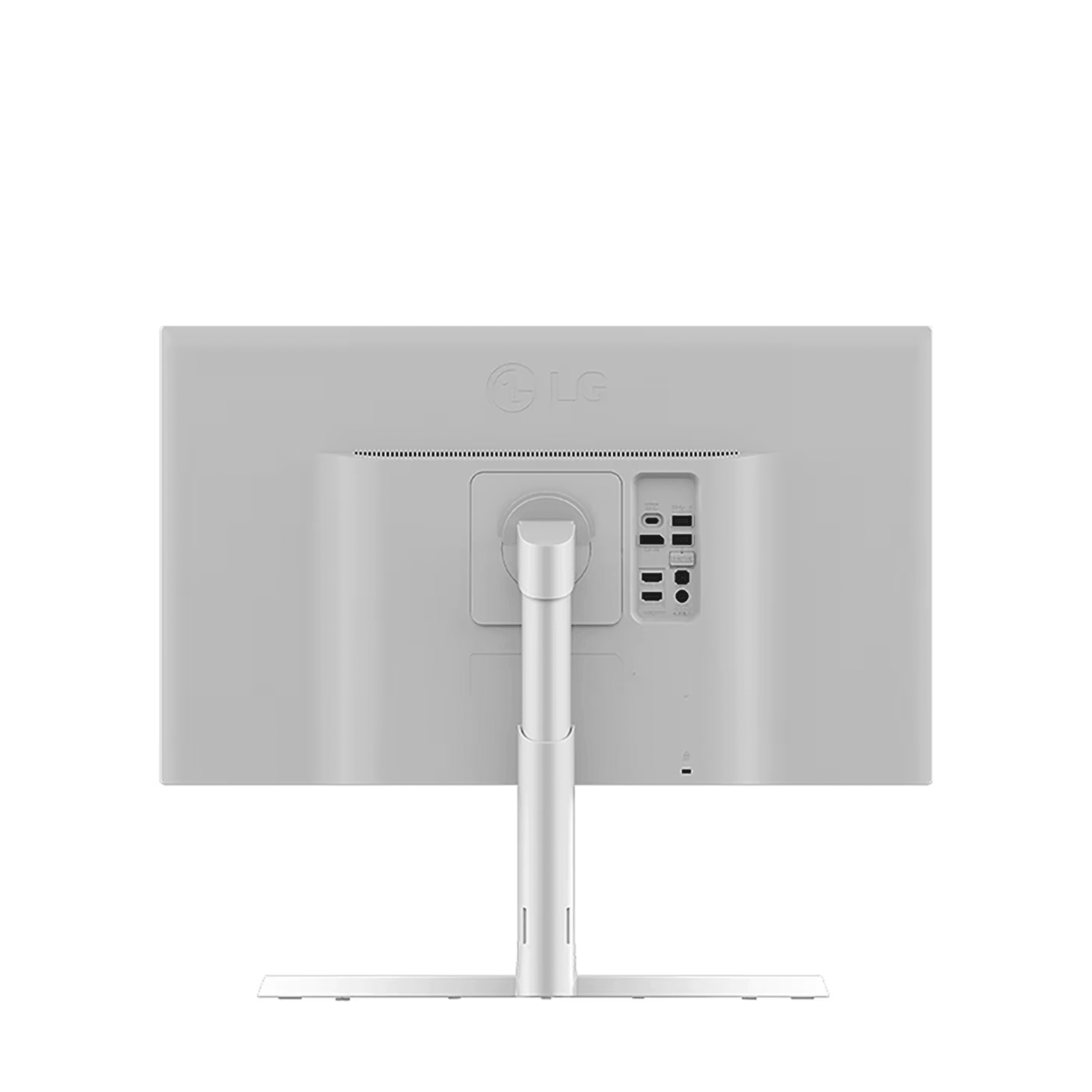

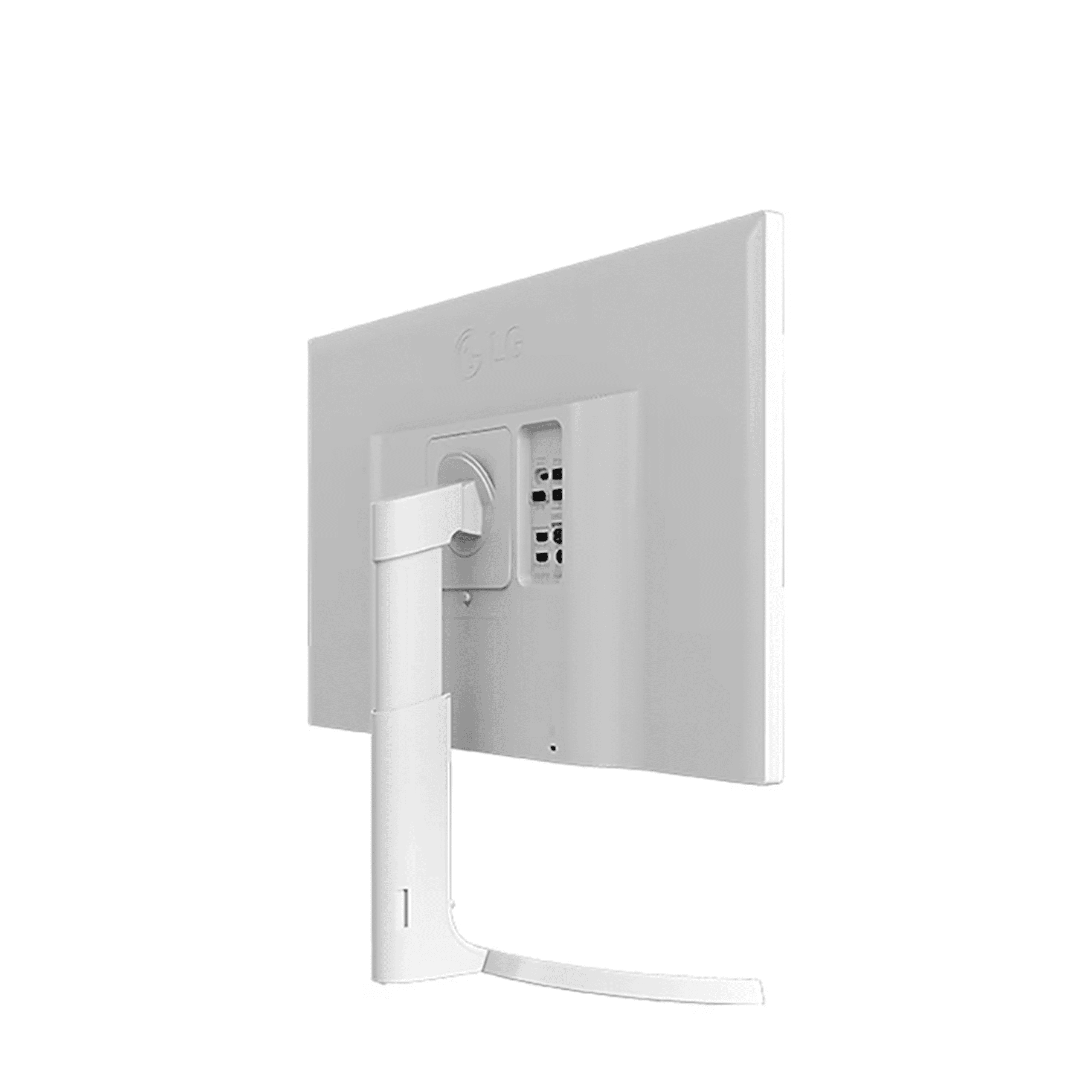

Video Inputs: HDMI 1, HDMI 2, DisplayPort 1.2, three independent sources
PBP: Picture by Picture displays two input sources simultaneously in a split-screen layout
Dual Controller: Software KVM, one keyboard and mouse controls two connected computers by moving the cursor to the screen edge
USB 3.0 Hub: USB 3.0 Upstream plus two USB 3.0 Downstream ports for peripheral connectivity
Headphone Out: 3.5mm audio output
VESA: 100x100mm for monitor arm mounting
How the 27HJ712C-W compares against a standard 4K monitor:
The 27HJ712C-W delivers the same 8MP IPS panel, DICOM Part 14 calibration, brightness stabilization, sRGB over 99% color coverage, and True Color Pro hardware calibration as the LG 27HJ713C in a lighter 6.2 kg stand configuration suited for fixed reading positions. For clinics and imaging centers where monitor arm mounting or a fixed-height desk position is the standard workstation format, the 27HJ712C-W provides the complete secondary review imaging stack without the extended ergonomic stand range of the 27HJ713C. HDMI x2, DisplayPort 1.2, PBP, and Dual Controller support the same dual-source PACS workstation configurations.
Full Technical Specifications
Complete reference data for IT procurement, biomed review, and reading room planning. Expand each category for the full specification set required by radiology department heads, IT administrators, and facilities teams evaluating 8MP clinical review monitor solutions for PACS workstation environments.
| Resolution | 3,840 × 2,160 (8MP) |
| Panel Type | IPS |
| Screen Size | 27″ (16:9) |
| Brightness (Typ.) | 350 cd/m² |
| Contrast Ratio | 1000:1 (Mega dynamic) |
| Response Time | 14ms typ., 5ms GTG (High) |
| Viewing Angle | 178 / 178 degrees |
| Color Gamut | sRGB over 99% |
| Color Depth | 10-bit (1.07B colors) |
| Surface Treatment | Anti-Glare 3H |
| DICOM Compliance | Part 14 with brightness stabilization |
| Calibration Software | True Color Pro (Calibration 1-2 modes, optional external sensor) |
| Weight (with stand) | 6.2 kg (13.7 lbs) |
| Weight (without stand) | 4.7 kg (10.4 lbs) |
| Shipping Weight | 10.5 kg (23.2 lbs) |
| Dimensions with Stand (W x H x D) | 615 × 426.7 × 223.5 mm |
| Dimensions without Stand (W x H x D) | 615 × 365.1 × 42.7 mm |
| VESA Mount | 100×100 mm |
| Height Adjustment | 110mm range |
| Tilt | -3 to +20 degrees |
| Pivot | 90 degrees to portrait |
| HDMI | 2x (HDMI 2.0) |
| DisplayPort | DisplayPort 1.2 |
| USB Upstream | USB 3.0 x1 |
| USB Downstream | USB 3.0 x2 |
| Audio Out | 3.5mm headphone |
| Multi-View | PBP (side-by-side dual source) |
| Power Input | 100-240Vac, 50/60Hz (external adapter, 19V / 3.42A) |
| Power Consumption (Max.) | 65W |
| Sleep Mode | 0.5W |
| DC Off Mode | Less than 0.3W |
| Multi-Source | PBP (side-by-side dual source display) |
| Dual Controller | Yes – software KVM for two connected computers |
| Calibration | True Color Pro, Six Axis Control, Uniformity Compensation |
| Eye Comfort | Flicker Safe, Reader Mode |
| Image Enhancement | Super Resolution+, Dynamic Sync Mode |
| OSD Control | 5-way joystick (bottom) |
| Medical Certification | UL Medical Grade, CE MDD Class I, KC, ISO 13485 |
| Safety / Environmental | IEC 60601-1, IEC 60601-1-2, RoHS, REACH, WEEE |
Clinical Applications
Deployed across radiology reading rooms, multimodality review workstations, MDT conference environments, and PACS-connected secondary review stations where 8MP resolution, DICOM calibration accuracy, and a compact monitor configuration are the priority.

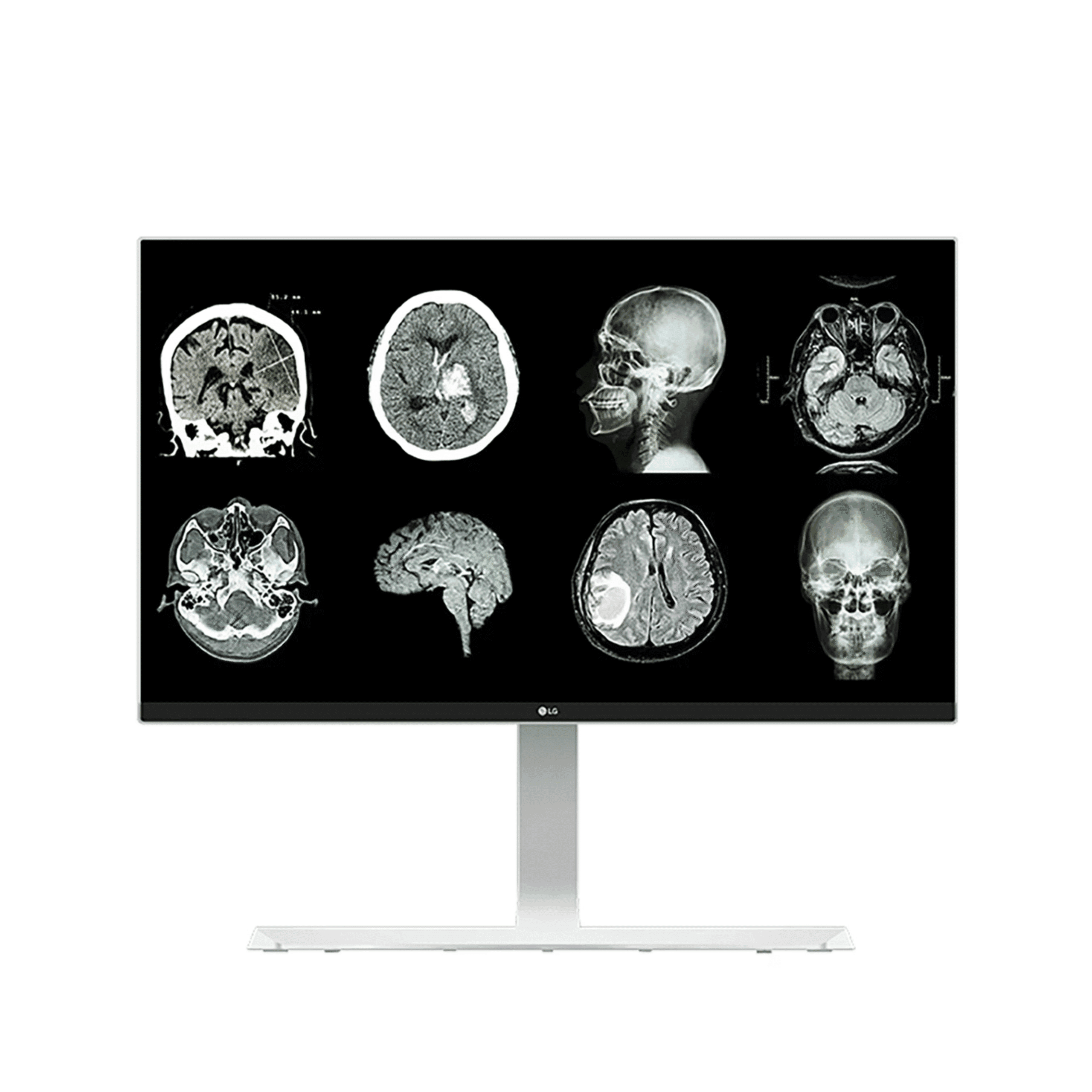

8MP (3840×2160) IPS panel and DICOM Part 14 calibration with brightness stabilization provide the resolution and consistent luminance needed for secondary review of CT, MR, ultrasound, and nuclear medicine studies in radiology reading rooms and clinical workstation environments.
VESA 100x100mm compatibility and the lightweight 4.7 kg panel make the 27HJ712C-W well suited for monitor arm-mounted configurations where the stand is removed. Full 8MP imaging performance, DICOM calibration, brightness stabilization, and True Color Pro QA are retained in the arm-mounted configuration.
178/178-degree IPS viewing angles allow the clinical team to view the same 8MP display from multiple positions during MDT meetings, tumor board presentations, and collaborative case review sessions without image quality degradation at off-axis positions.

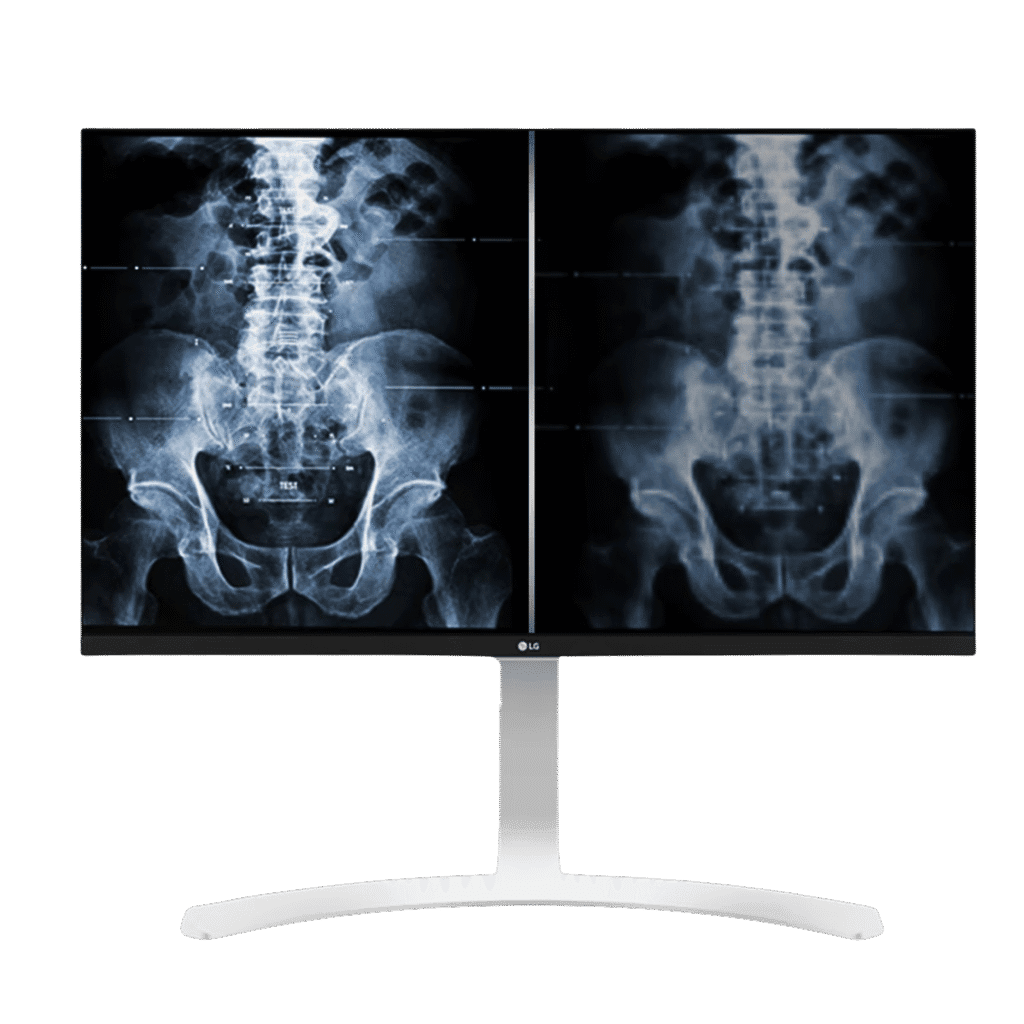

PBP mode displays PACS images alongside a secondary source, such as a reporting interface, prior study, or different modality, simultaneously on the 8MP panel. Dual Controller software allows one keyboard and mouse to control both the PACS workstation and reporting computer from the same desk position.
The 110mm height stand with 90 degree portrait pivot and 3-side borderless design configures into compact fixed reading positions and side-by-side dual portrait layouts. The white cabinet suits clinic and imaging center reading rooms, and Flicker Safe and Reader Mode support extended reading comfort.
Clinical Workflow, Connectivity and Calibration Details
DICOM calibration, dual-source visualization, USB hub connectivity, ergonomic stand features, and eye comfort functions combine to support radiology reading rooms and secondary review workstation configurations. Expand each section for full detail required by radiologists, IT administrators, and department procurement teams.
DICOM Part 14 Compliance: Factory calibrated to DICOM Part 14 grayscale display function for consistent luminance reproduction across modalities at the secondary review workstation.
Brightness Stabilization: Built-in sensor monitors backlight output and compensates for luminance drift over time, maintaining consistent display performance between calibration cycles without manual adjustment.
True Color Pro: Software-based hardware LUT calibration with Calibration 1 and Calibration 2 modes and an optional external sensor supports formal QA programs and scheduled calibration aligned with ACR-AAPM-SIIM secondary review display guidelines.
PBP (Picture by Picture): Displays two video input sources simultaneously in a split-screen layout on the 8MP panel, useful for comparing different modalities, series, or prior studies from the same patient at a single review workstation without toggling inputs.
Dual Controller: Software feature allowing a single keyboard and mouse to control two computers connected via HDMI and DisplayPort inputs. Moving the cursor to the screen edge transfers control between workstations, reducing the peripheral footprint at dual-workstation review stations where a PACS computer and reporting or dictation system share the same desk position.
Video Inputs: Dual HDMI and DisplayPort 1.2 provide three independent video source connections, a PACS workstation, a secondary reporting computer, and an additional source device, for a fully configured clinical review station.
USB 3.0 Hub: USB 3.0 Upstream plus two USB 3.0 Downstream ports form an integrated peripheral hub at the monitor, centralizing keyboard, mouse, and storage connectivity at the workstation without a separate desk hub.
Headphone Out: 3.5mm headphone jack supports audio monitoring at the review station for PACS viewers and clinical systems with audio output.
Flicker Safe: Reduces backlight flicker during extended reading sessions, reducing cumulative eye strain for radiologists and clinical reviewers at prolonged daily workstation sessions.
Reader Mode: Adjusts display color temperature to reduce blue light emission, providing more comfortable viewing of text-heavy PACS interfaces, radiology report templates, and clinical documentation alongside imaging content.
Dynamic Sync Mode: Reduces input lag on 60Hz sources so that live information from connected devices displays with minimal delay.
Super Resolution+: Image processing that enhances perceived sharpness and detail of lower-resolution source content on the 8MP panel.
Height Adjustment: 110mm range accommodates different desk heights and radiologist posture requirements for fixed reading station setups.
Tilt: -3 to +20 degree tilt range for comfortable viewing angle adjustment without repositioning the display body.
Portrait Pivot (90 degrees): Rotates the display to portrait orientation for long-format image review and side-by-side dual portrait configurations in reading rooms and multimodality review workstations.
3-Side Borderless Design: Minimizes visible bezel gap in side-by-side monitor configurations for near-seamless dual portrait review surfaces.
One-Click Stand: Tool-less assembly for quick workstation installation. VESA 100x100mm supports monitor arm mounting as an alternative to the desk stand for arm-mounted clinical workstation configurations.
Regulatory Compliance & Quality Standards
The LG 27HJ712C-W is UL Medical Grade Listed, CE MDD Class I, and KC certified, and meets IEC 60601-1 and IEC 60601-1-2 medical electrical safety standards. DICOM Part 14 compliance with True Color Pro supports departmental QA requirements for secondary review display environments. Medical Outfitters Inc. is independently ISO 13485:2016 certified.
DICOM Part 14: Factory calibrated to DICOM Part 14 grayscale display function for secondary clinical review applications.
Brightness Stabilization: Built-in sensor maintains consistent luminance over time, reducing visible drift between calibration intervals.
True Color Pro: Optional external sensor and software support hardware LUT calibration (Calibration 1 and Calibration 2 modes) for formal departmental QA programs aligned with ACR-AAPM-SIIM secondary review display requirements. A factory calibration report at Delta E under 2 is included.
UL Medical Grade: UL Medical Grade Listed and certified to UL 60601-1 for clinical use in the United States and Canada.
CE MDD: CE marked and registered as a Class I device under the EU Medical Device Directive (93/42/EEC).
KC: Korea Certification mark for deployment in Korean healthcare facilities.
ISO 13485: Manufactured under ISO 13485 quality management system standards. Medical Outfitters is independently ISO 13485:2016 certified as a clinical imaging solutions supplier.
IEC 60601-1: General electrical safety for medical electrical equipment, confirms safe deployment in clinical patient care environments, with EN 60601-1 and UL 60601-1.
IEC 60601-1-2: EMC compliance, ensures the monitor does not interfere with adjacent clinical equipment in reading rooms and workstation areas.
Additional: FCC Part 15 Class A and CB certification.
Environmental: RoHS, REACH, and WEEE compliant.
Power: Maximum 65W. DC Off mode less than 0.3W.
Reading Room Configuration Review
Share your PACS workstation specs, monitor arm model, and reading room layout requirements. Our clinical imaging specialists confirm arm compatibility with the 27HJ712C-W panel weight, calibration setup, and True Color Pro QA requirements before your order ships.
Hospital Procurement & RFP Support
Volume pricing, technical documentation, and logistics coordination for hospital radiology departments, imaging center networks, and GPO procurement teams. Full documentation package available for IT and department procurement review.
Frequently Asked Questions
Common questions from radiologists, radiology department heads, IT administrators, and procurement teams evaluating the LG 27HJ712C-W for secondary review stations, fixed-position reading configurations, and PACS workstation environments.
Both share the same 27-inch 8MP IPS panel, DICOM Part 14 calibration, and brightness stabilization, so core imaging performance is identical. The 27HJ713C has an enhanced ergonomic stand: 150mm height adjustment (vs 110mm), plus/minus 45 degree swivel (the 27HJ712C-W has no swivel), two-way pivot for portrait rotation in either direction (vs single-direction pivot), and a wider tilt range of -5 to +25 degrees. The 27HJ712C-W is a lighter, more compact white configuration at 6.2 kg with stand, suited for fixed desk reading positions or VESA arm-mounted deployments.
No. The 27HJ712C-W is for secondary clinical review only, not primary diagnostic interpretation. For primary diagnostic displays see the LG 32HL512D or LG 31HN713D. The 27HJ712C-W meets ACR-AAPM-SIIM secondary review brightness guidelines for multimodality review, MDT meetings, and clinical reading room configurations.
Yes. The 27HJ712C-W stand pivots 90 degrees to portrait orientation, and the 3-side virtually borderless design minimizes the visible bezel gap in side-by-side dual portrait configurations. For two-way pivot that rotates in either direction to accommodate different monitor arm placements and desk orientations, the LG 27HJ713C offers that capability in its enhanced stand.
No external sensor is required for normal clinical use. The monitor is factory calibrated to DICOM Part 14 with built-in brightness stabilization that maintains luminance consistency automatically over time. For facilities with formal QA programs, True Color Pro supports hardware LUT calibration using an optional external sensor via USB.
Dual Controller is a software feature that lets one keyboard and mouse control two computers connected to the monitor via its HDMI and DisplayPort inputs. Moving the cursor to the screen edge transfers control between the two connected computers, reducing the peripheral count at a dual-computer review desk without a hardware KVM switch.
Yes. The 27HJ712C-W is factory calibrated to the DICOM Part 14 grayscale display function and ships with a factory calibration report at Delta E under 2. Built-in brightness stabilization maintains consistent luminance over time, reducing visible drift between scheduled calibration events.
HDMI 1, HDMI 2, and DisplayPort 1.2, three independent video sources, plus a USB 3.0 hub (one upstream, two downstream) and a 3.5mm headphone output. PBP displays two sources simultaneously on the 8MP panel.
Through Medical Outfitters Inc., ISO 13485:2016 certified, Miami FL. Call (305) 885-4045 or request a quote online. GPO-compatible pricing available.
